Wireless 2d Barcode Scanners

/2D Handheld Barcode Scanner Gun Bluetooth Wireless Barcode Scanner with USB Receiver QR Code Reader CMOS Wireless Barcode Scanner

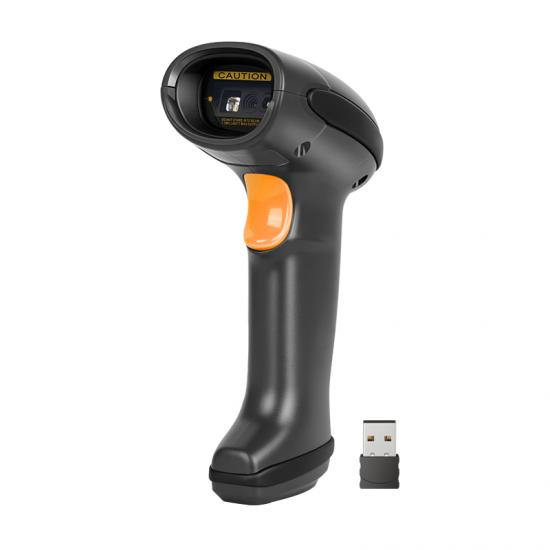

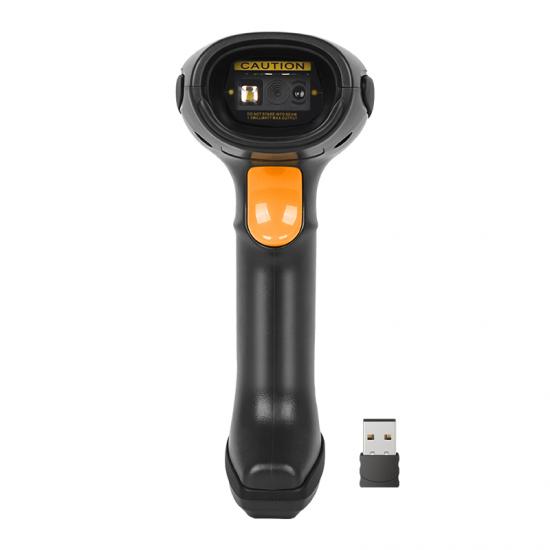

2D Handheld Barcode Scanner Gun Bluetooth Wireless Barcode Scanner with USB Receiver QR Code Reader CMOS Wireless Barcode Scanner

2D Wireless Barcode Scanner Gun 2.4G Bluetooth Wireless Barcode Reader Handheld QR Code Reader for Store, Supermarket, Warehouse
  • Item NO.:

    XB-6008RB
  • Payment:

    EXW/FOB
  • Product Origin:

    Guangzhou
  • Color:

    Black
  • Shipping Port:

    Guanghzhou/Shenzhen
  • Lead Time:

    7-10days
  • Product Details

XB-6008RB which is very high cost-effective 2D 2.4G bluetooth wireless barcode scanner is new product of Syble barcode scanner manufacturer. New decoding chip, interpretation of various 1D and 2D barcodes. High-speed and accurate, it can scan not only paper codes but also screen codes. Fast charge and long endurance, built-in long-life battery, after fully charged, it can work continuously for 6 hours. The housing case of the scanner is covered with thick PS+ABS material, withstands multiple times 3m drops to concrete, very solid. XB-6008RB are the best assistant in supermarket, library, hospital, pharmacy, express, retail store, warehouse and other industries.



Features

1. Can interpret various 1D/2D codes and support Chinese direct transmission of QR code

2. USB Bluetooth receiver supports plug and play, easy to set up and quickly match

3. Wireless bluetooth transmission distance: 30-50 meters (open area)

4. 512,000 characters can be stored in offline/inventory storage mode

5. Can be paired derectly with Bluetooth-enabled mobile phones, tablets and laptops


Model Name: XB-6008RB


Specification

Performance Parameters

Light Sources

617nm LED Aimer, White LED

Supported Symbologies

1D: EAN, UPC-A, UPC-E,Code 39, Code 93, Code 128, JAN/EAN-8, JAN/EAN-13, Codabar, Code 32 Pharmaceutical(PARAF), NEC 2 of 5, MSI, Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, China Post(Hong Kong 2 of 5), Korea Post.

2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode,Micor PDF417, Codablock.

Scanning Principle

Image CMOS

Resolution

640*480

Scan Method

Manual/Contnuous/Automatic inductive scanning

Scan Angle

Yaw 65°, Rotation 360°, Pitch 65°

Field of view

48°(H) * 36°(V)

Precision

4mil

Contrast

20%

Movement tolerance

0.4m/s

Depth of scan field

Code39(5mil): 4-10cm

Code39(13mil): 7-20cm

QR(15mil): 6-10cm

Error Rate

Less than 1/5million

Interface

USB-HID

Wireless Communication

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0

Transmission Distance

30-50M (Open area)

Storage Mode

Offline Storage Mode: When the scanner exits the connection range,

the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode,

storage capacity is 512000 characters.

Pairing Mode

One to One: One Scanning Gun Pairs One Receiver,

Pairing Bluetooth Mobile Devices: Bluetooth BLE 4.0

Receiver:

Delicated Bluetooth U-disk type receiver, Android/IOS mobile devices

Physical  Parameters

Dimensions

102mm*71mm*177mm

Weight

223.9g

Material

ABS+PC

Cable Length

1.2M

Environmental Parameters

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% RHNon-condensing

Ambient lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 3 meters drops to concrete

lectrical Parameters

Voltage

DC5V±5%

Operating Current

when not scanning code ≥26mA; when scanning code ≥300mA

Standby Current

0mA(Standby is to cut off battery power)

Charging Mode

Square USB charging cable, plug straight charge

Battery Working Time

5-6h

Charging Time

2-3h

Lithium battery

1200mA

Charging Model

Square USB charging cable, plug straight charge
