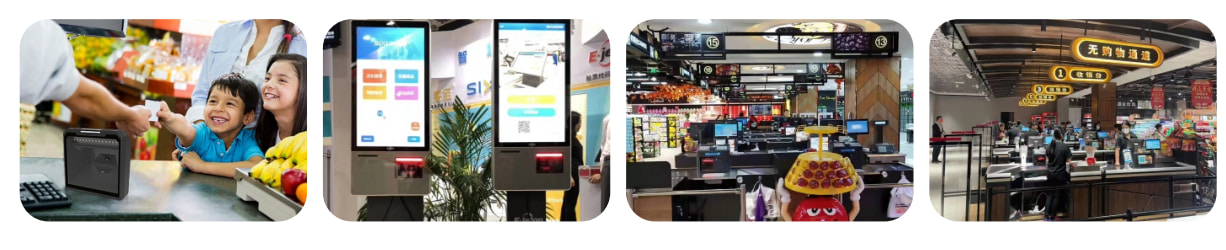

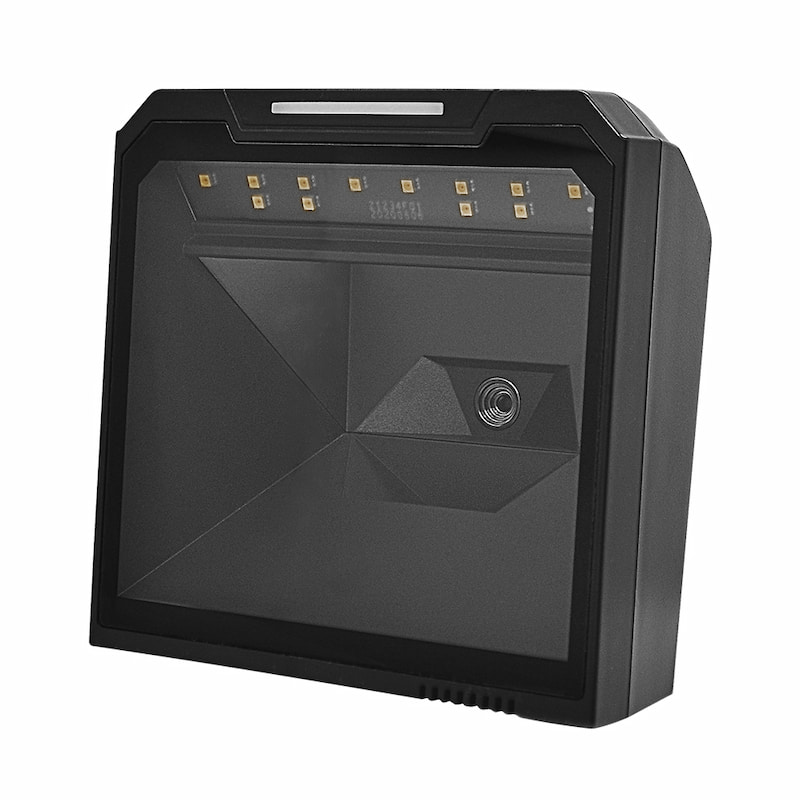

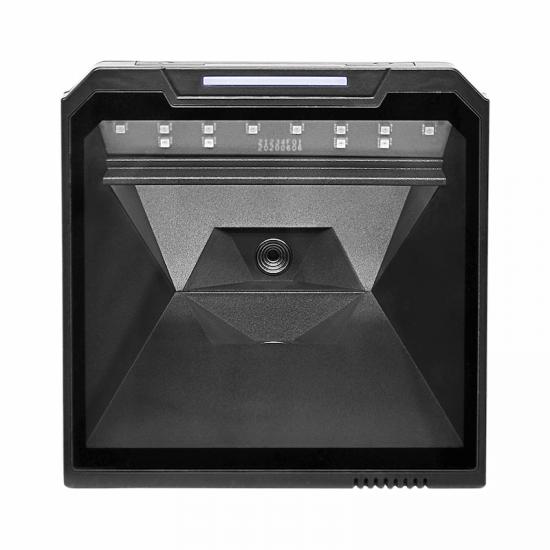

Syble XB-8808H is a desktop 2D scanning platform equipped with a megapixel global shutter engine and a wide-angle, large-aperture window, enabling rapid reading of 1D and 2D barcodes from a distance and at multiple angles. It features automatic detection, driver-free plug-and-play functionality, and audible and visual alerts, making it ideal for supermarket checkout scenarios and other applications, allowing for hands-free, efficient barcode scanning.
Item NO.:
XB-8808HPayment:
EXW/FOBProduct Origin:
ChinaColor:
BlackProduct weight:
497.1gShipping Port:
GuangzhouLead Time:
5-7days
Product Features
Product Size
|
Specification |
|
|
Performance Parameters |
|
|

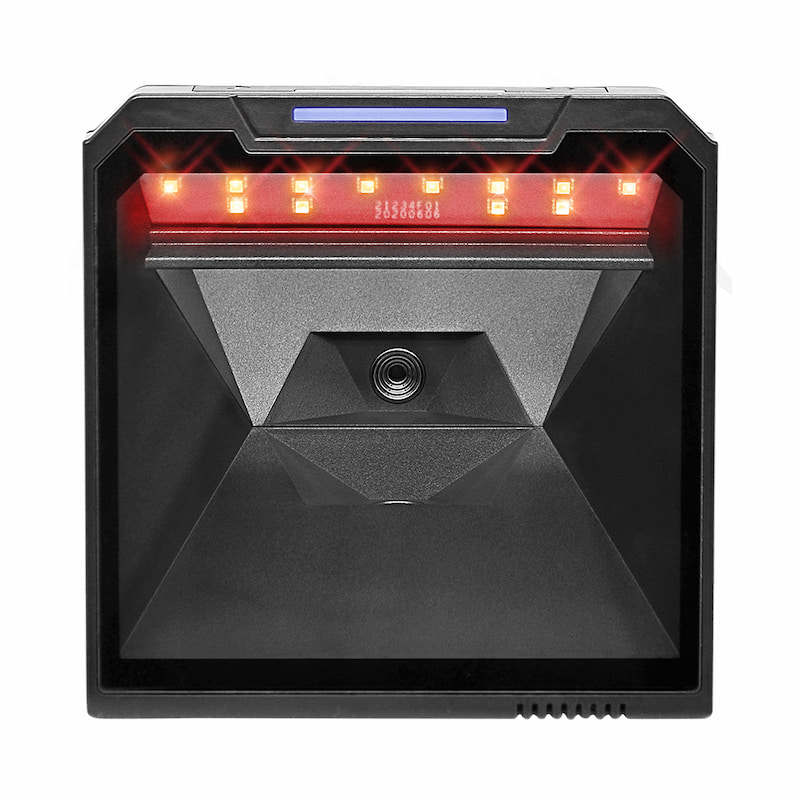

Light Sources |
Red LED |
|
Image (Pixels) |
1024 pixels(H)*1280pixels(V) global shutter |
|
Supported symbologies |
1D: EAN-8, EAN-13, EAN-132 add-on, EAN-135add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128、GS1-128, GS1 DataBar(RSS14), GS1 DataBar Limited, GS1 DataBar Expanded. 2D:PDF417, QR code, DataMatrix, Aztec Code, China Post, HongKong 2 of 5,Korea Post, Han Xin code, Maxi code, Micro PDF417, GS1 Composte coders,Codablock A, Codablock F. |
|
Scan Range |
Code39(5mil) 0mm~120mm, Code39(20mil) 0mm~240mm, QR(20mil) 0mm~210mm,Alipay Code(QR 3*3cm) 40mm~650mm, Wechat Code(QR 2.3*23.cm) 20mm~550mm |
|
System compatibility |
Linux、Android、Windows XP/7/8/10/MAC |
|
Minimum recognition accuracy |
Code 39 4mil |
|
Motion tolerance |
4 meters/second |
|
Scan Mode |
Continuous Scanning |
|
Print contrast |
20% |
|
Recognition angle range |
Turn ±360°, elevation ±65°, declination ±65° |
|
Mutual Move |
Indicator light: Red and blue dual color indicator light: Blue light flashing code reading prompt, blue light power indicator; Red light: turn off QR code reading. Buzzer: start prompt, read code prompt; Key: switch three tones; 1D code switch. |
|
Interface |
USB(Drive-Free), RS232, USB-COM |
|
Physical Parameters |
|
|
Dimensions |
152mm*82mm*152mm |
|
Weight |
497.1g |
|
Material |
ABS+PC |
|
Cable length |
1.5M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ - 60℃ |
|
Storage Temperature |
-20℃-70℃ |
|
Humidity |
5% to 95% RH.Non-condensing |
|
Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |
|
Ambient Ligh |
0-100000LUX |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Current |
Start-up current 380mA, Standby current 190mA, Working current 240mA |
FAQ:
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: Why so competitive? With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost. |
|
Q3: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q4: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q5:What’s the warranty policy for the barcode scanners? Syble provide 24 months maintenance warranty. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
