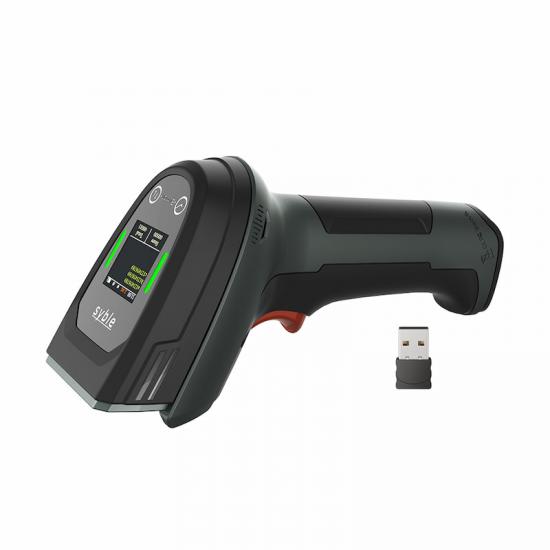

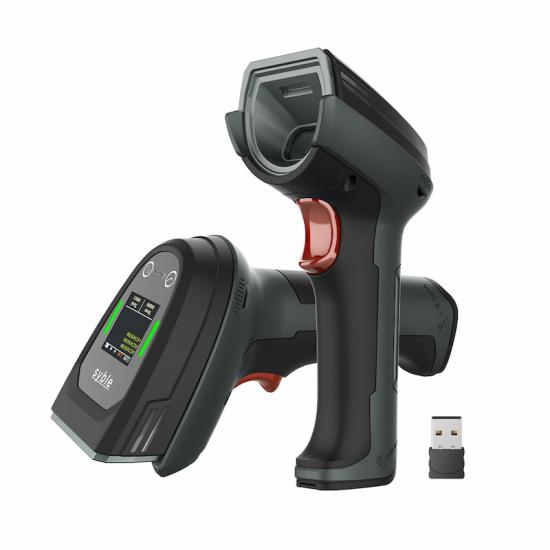

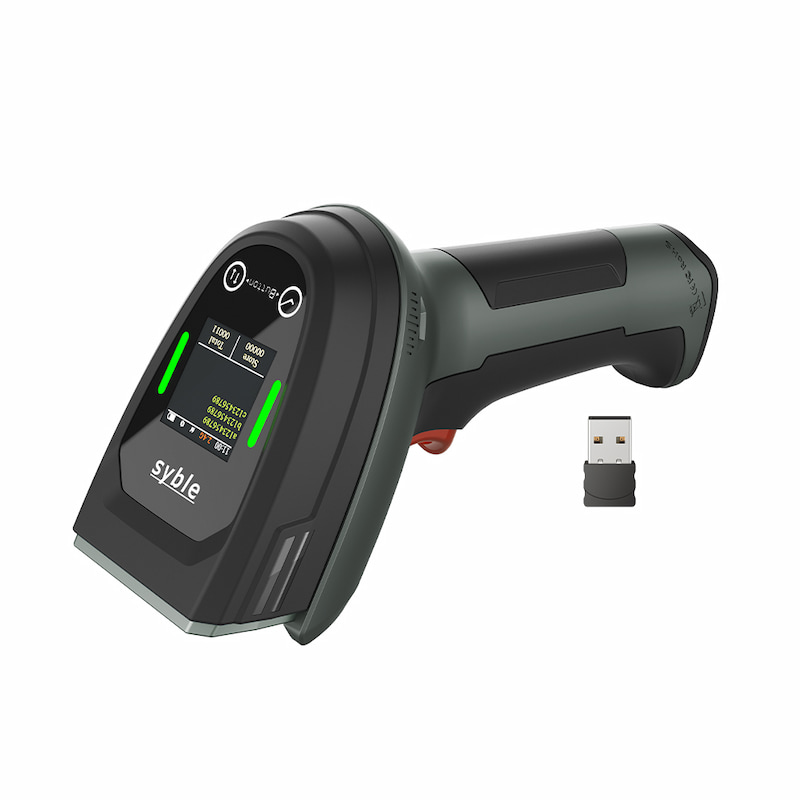

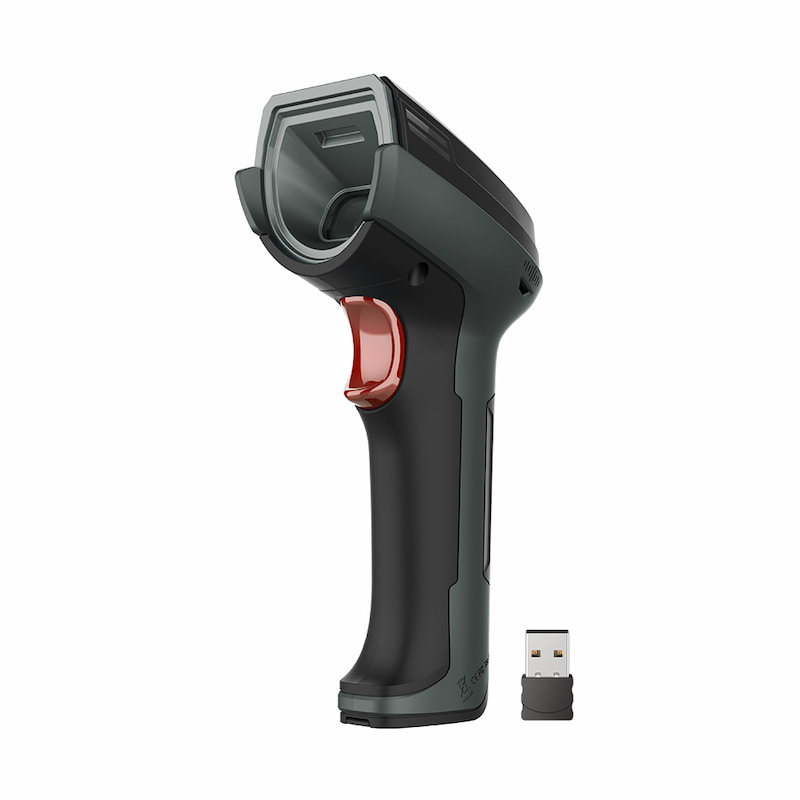

The XB‑6267DB is a high-performance 2D wireless Bluetooth barcode scanner that supports dual wireless transmission via 2.4 GHz or Bluetooth 5.0. It is plug-and-play and compatible with multiple operating systems, including Windows, Android, Linux and iOS. It features a TFT colour display and a 2,200 mAh removable battery, and supports offline storage and inventory modes. It achieves a scanning speed of up to 120 FPS and can recognise dirty or damaged barcodes. The scanner is drop-resistant from a height of 1.5 metres, with buttons rated for over 10 million presses, making it suitable for use in warehousing, retail and logistics environments.
Item NO.:
XB-6267DBPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black,Grey and RedProduct weight:
210gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7daysProduct Features
• The top cover adopts two-color mold design, withsmooth outline and great visual impact.
• It adopts a 1.2G ultra-high frequency chip, which can easily decode dirty ,wrinkled and damaged barcodes.
• Excellent 1.5 meter anti-drop performance
• The scanning speed is 120 FPS and the motion tolerance is 2 meters per second.
• Supports offline storage and inventory modes.
• It is equipped with a 2200mAh removable battery and support max 7 hours continuous work(reading interval 1s) which equal to 25000 scans.
• It is equipped with a multifunctional TFT colour display. This colour screen displays the time, scan mode, connection status and real-time battery level, and allows
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
White illumination light, green aiming light |
|
Supported Symbologies |
1D: Codabar, Code39, Code32Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5lndustial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11Codel28, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN- 13, MSI, GS1 DataBar Omnidirectional, Gs1 DataBar Limited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Post. 2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN. |
|
Scanning Principle |
Image CMOS |
|
Scan Mode |
Manual/Continuous/Automatic Scintillation |
|
Image (Pixels) |
640pixels (H) x 480 pixels (V) Global Shutter |
|
Scan Angle |
Yaw±65°, Rotation 360°,Pitch±65° |
|
Print Contrast |
≥20% |
|
Depth of scan field |
Code 128 20mm-130mm (4mil);
|
|
Error Rate |
1/5million |
|
Interface |
Receiver: USB-HID USB-COM, Bluetooth: HID, BLE |
|
Transmission distance |
100M(Open Yard) |
|
Wireless Communication |
Paired dedicated receiver: 2.4G communication Paired mobile Bluetooth devices: Dual-mode Bluetooth |
|
Screen Features |
1.Check barcode data in real time; 2. Check storage data in real time; 3.Check power in real time; 4. Real-time time display; 5.Scanner can be set through the screen. |
|
Physical Parameters |
|
|
Dimensions |
181*68*85mm |
|
Screen Size |
25.5*26.5mm |
|
Material |
ABS+PC |
|
Charging cable standard |
0.8M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient lighting |
0~100000LUX |
|
Drop/Shock Resistance: |
Withstands multiple times 1.5 meters drops to concrete |
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Working Current |
210mA |
|
Standby Current |
OmA(Standby is to cut off battery power) |
|
Battery Working Time |
The scanner can scan continuously and work for up to 7 hours |
|
Lithium battery |
2200mA |
|
Charging Time |
4-5H |
|
Charging Mode |
TYPE-C charging cable, plug-in direct charging |
FAQ:
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: Why so competitive? With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost. |
|
Q3: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q4: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q5. What's the warranty policy for the barcode scanners? Syble provide 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
