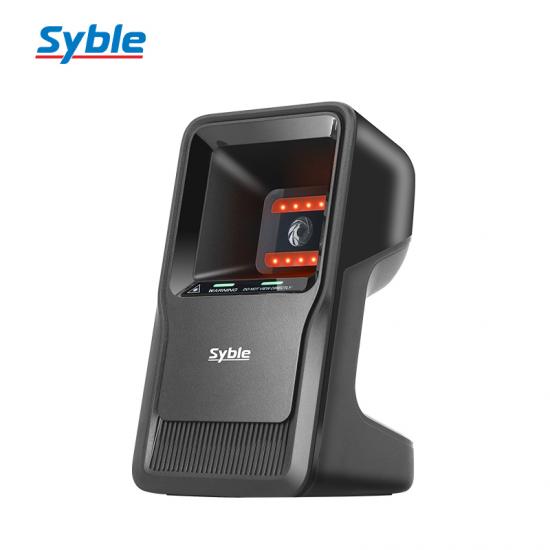

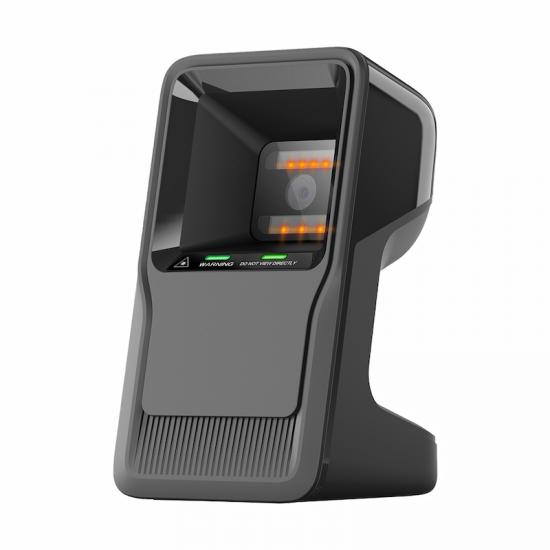

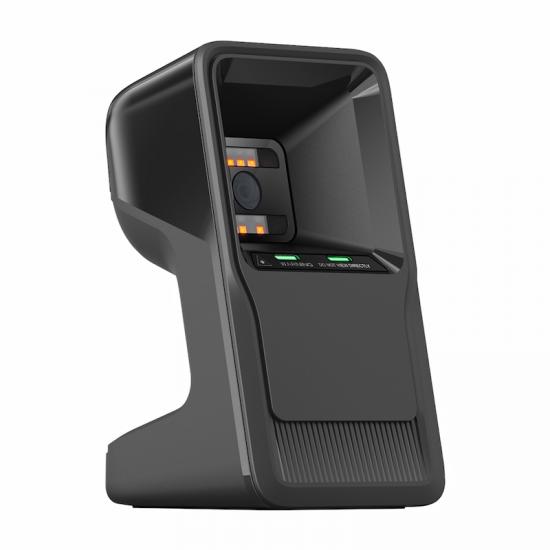

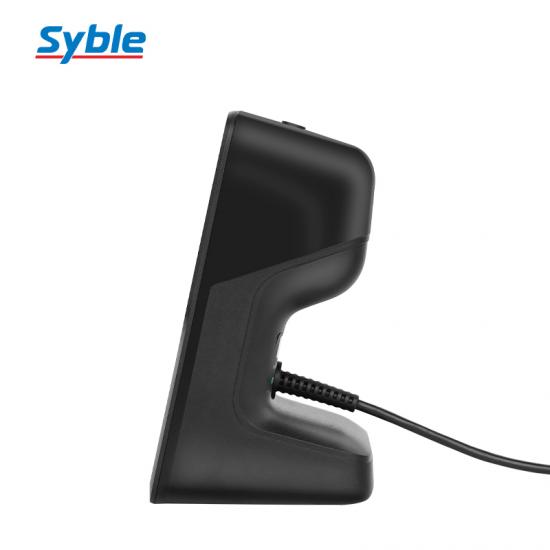

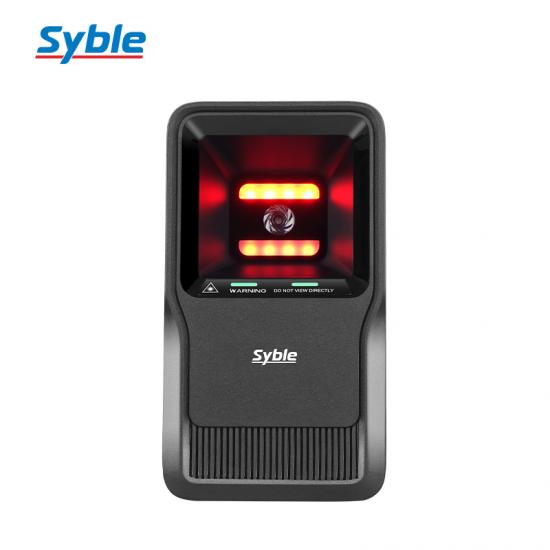

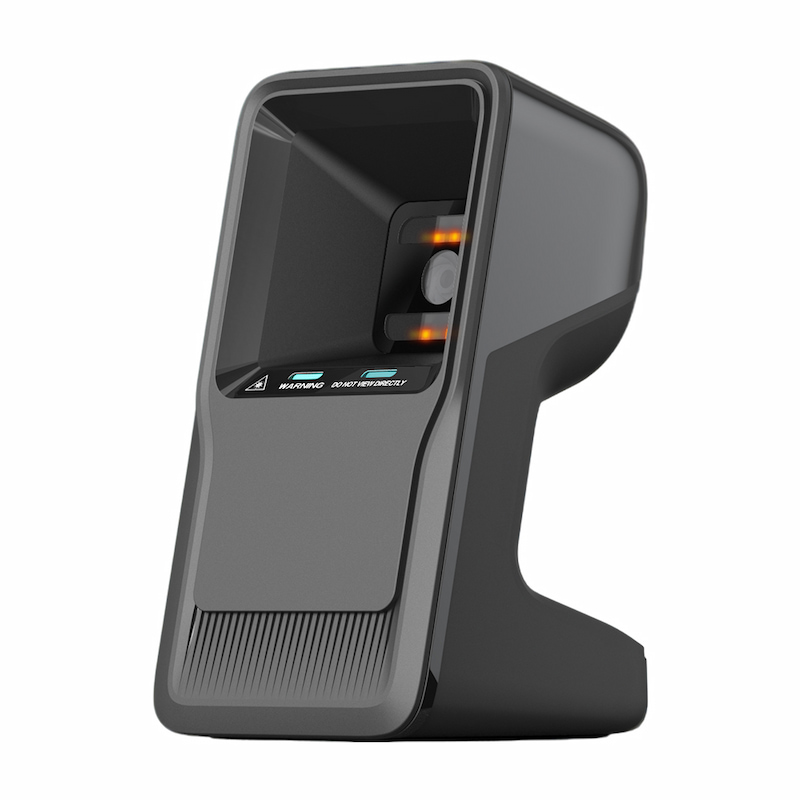

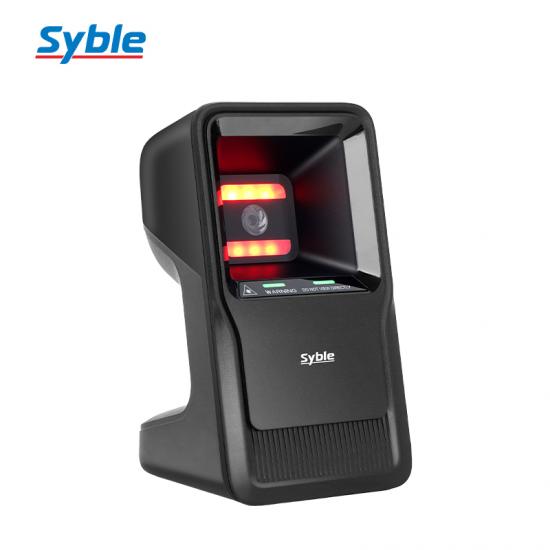

The Syble X80 2D desktop scanner features a simple and ergonomic design, a sturdy and durable body, and combines 4mil high-precision recognition and 120fps high-speed scanning capabilities. It is compatible with various 1D/2D barcodes, plug-and-play, and supports secondary development. With excellent quality and reasonable price, it is an ideal choice for retail stores, clothing stores, and specialty stores, etc.
Item NO.:
X80Payment:
EXW/FOBProduct Origin:
ChinaColor:
BlackProduct weight:
255gShipping Port:
GuangzhouLead Time:
5-7days2D Small Desktop Barcode Reader

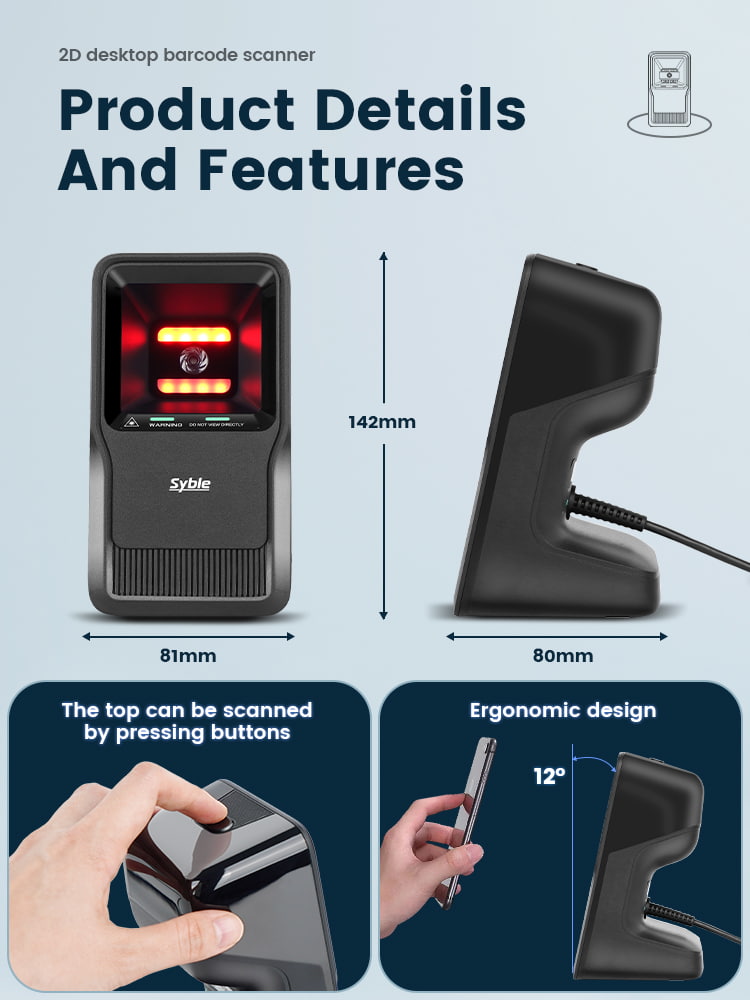

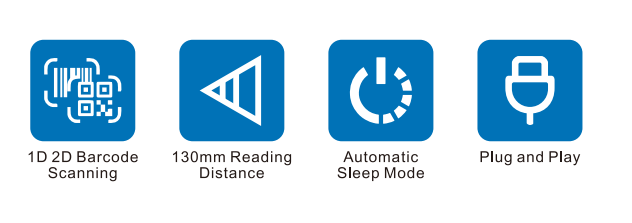

Product Features

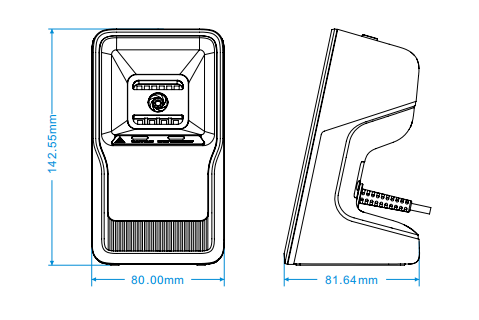

Product Size

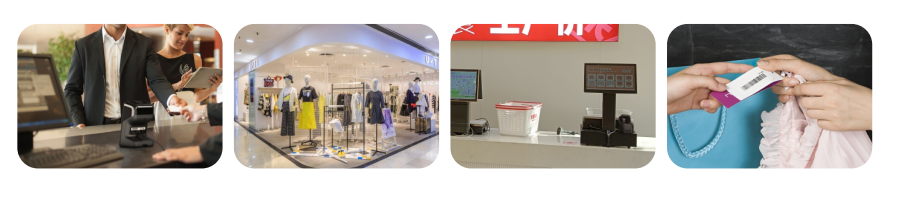

Applications
The X80 desktop barcode scanner is suitable for various checkout scanning scenarios such as supermarkets, stores, retail outlets, clothing stores, and libraries.
|
Performance Parameters |
|
|
Decoding capability |
1D:EAN-13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar，Code 128，Code93，ITF-14，ITF-6，Interleaved 2 of 5，Industrial 2 of 5，Matrix 2 of 5，GS1 Databar(RSS)，Code 39，Code 11，MSI-Plessey. 2D: QR Code，Data Matrix，PDF417，Micro PDF417，Micro QR，Aztec. |
|
Scanning principle |
Imaging CMOS |
|
Sensor pixels |
640 pixels (H)x 480 pixels (V) global shutter |
|

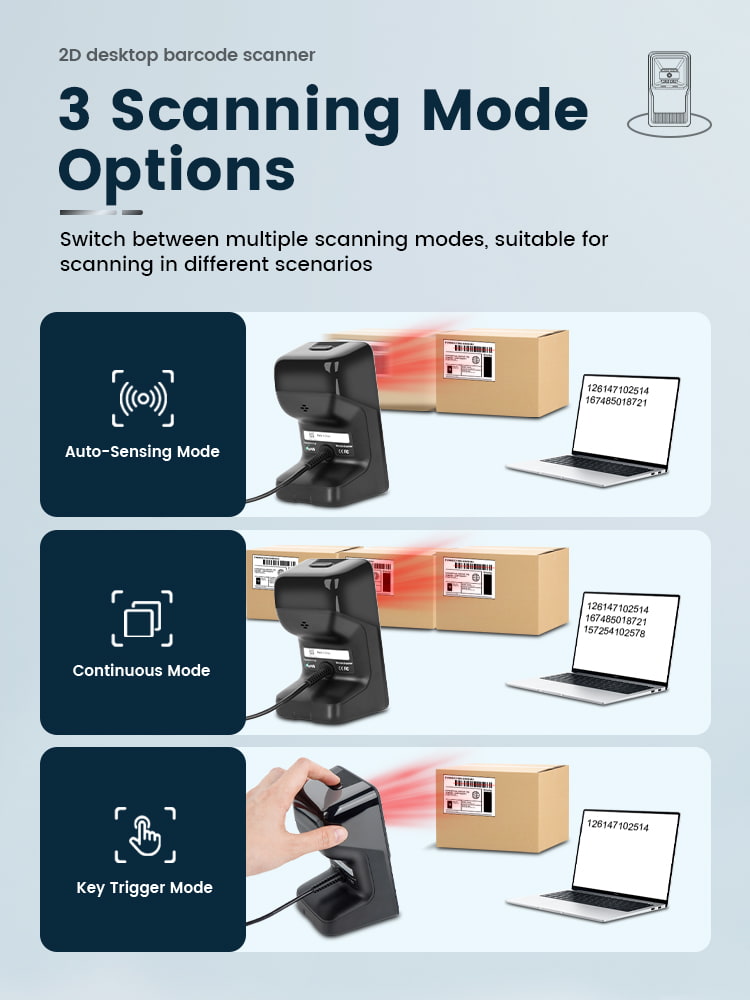

Scanning mode |
Automatic sensing scanning |
|
Reading tips |
The code reading indicator light is flashing green |
|
Scanning accuracy |
≥4mil |
|
Scan Angle |
Rotation angle 360°,elevation angle ±60°,deflection angle ±60° |
|
Scan range |
0-130mm (EAN13 13mil 90%PCS) |
|
Communication interface |
USB drive free,USB-COM,RS232 |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
220mA |
|
Standby current |
185mA |
|
Physical Parameters |
|
|
Scanner size |
81*80*142mm |
|
Material |
ABS+PC |
|
Weight |
255g |
|

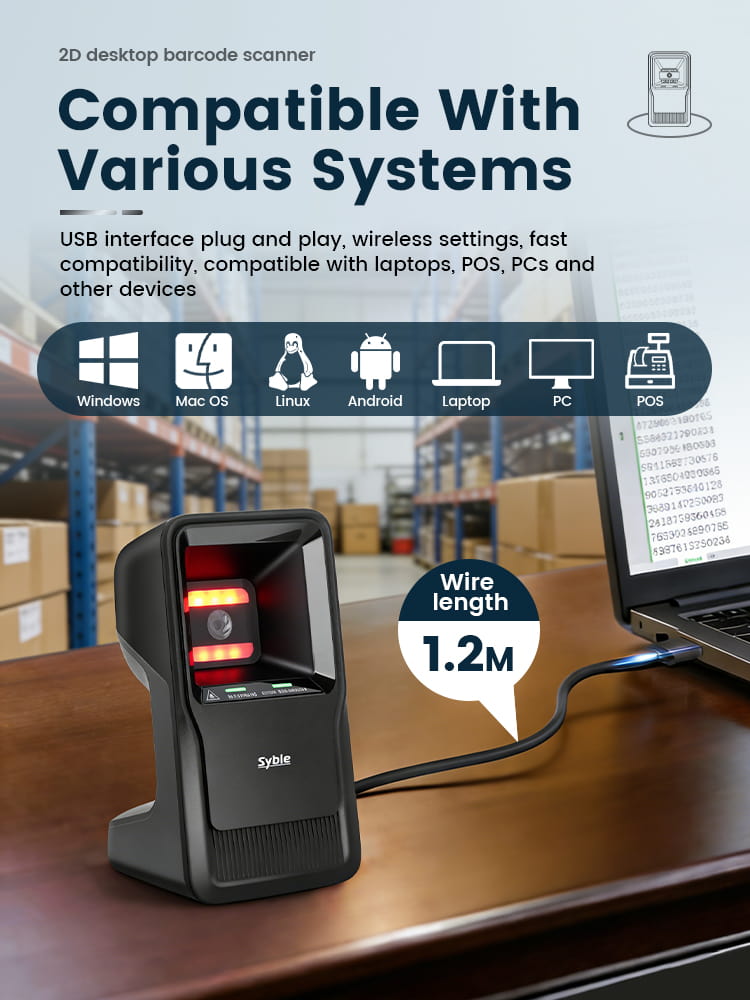

Charging cable standard |
1.2 meters |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~+60℃ |
|
Storage temperature |
-40℃~+70℃ |
|
Working humidity |
5%~95%（no condensation） |
|
Ambient light |
0~100000LUX |
|
Drop resistance |

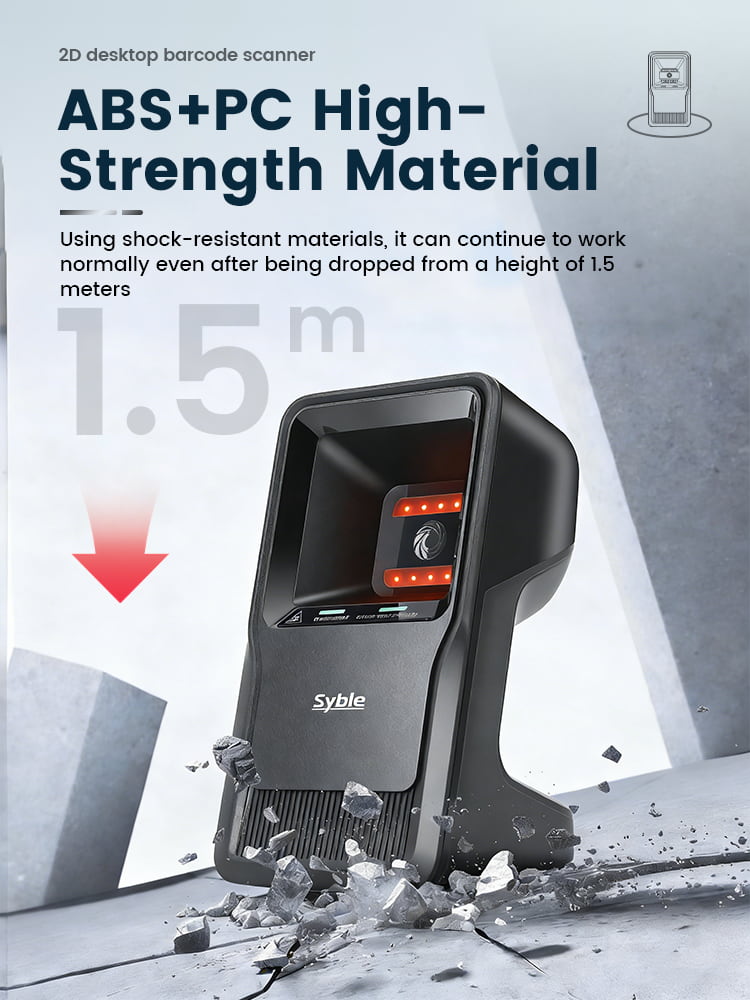

Can withstand 1.5m free fall |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
