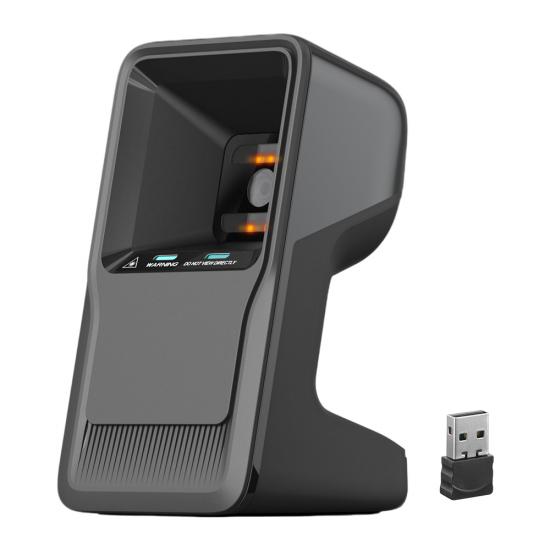

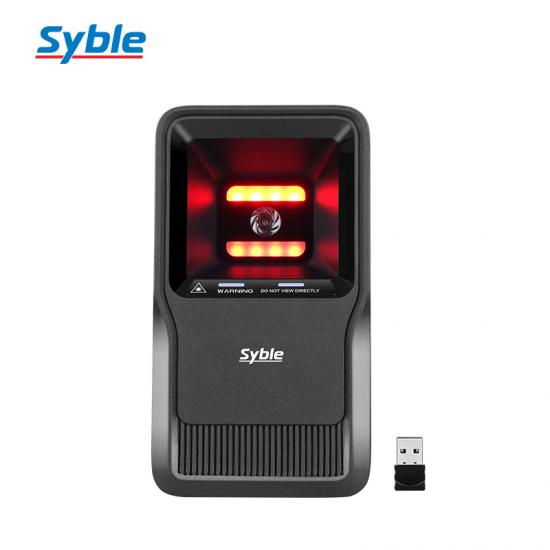

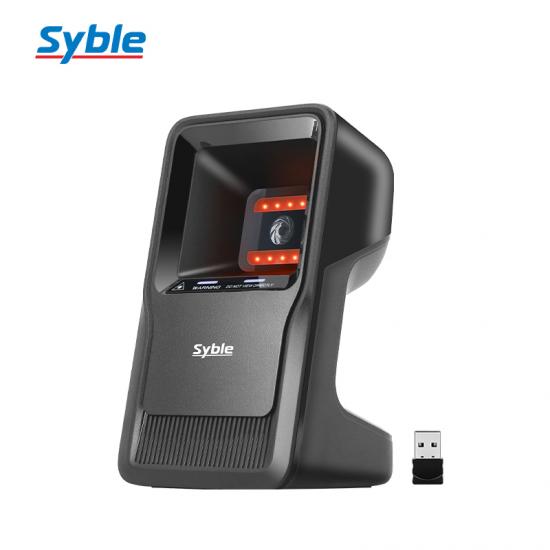

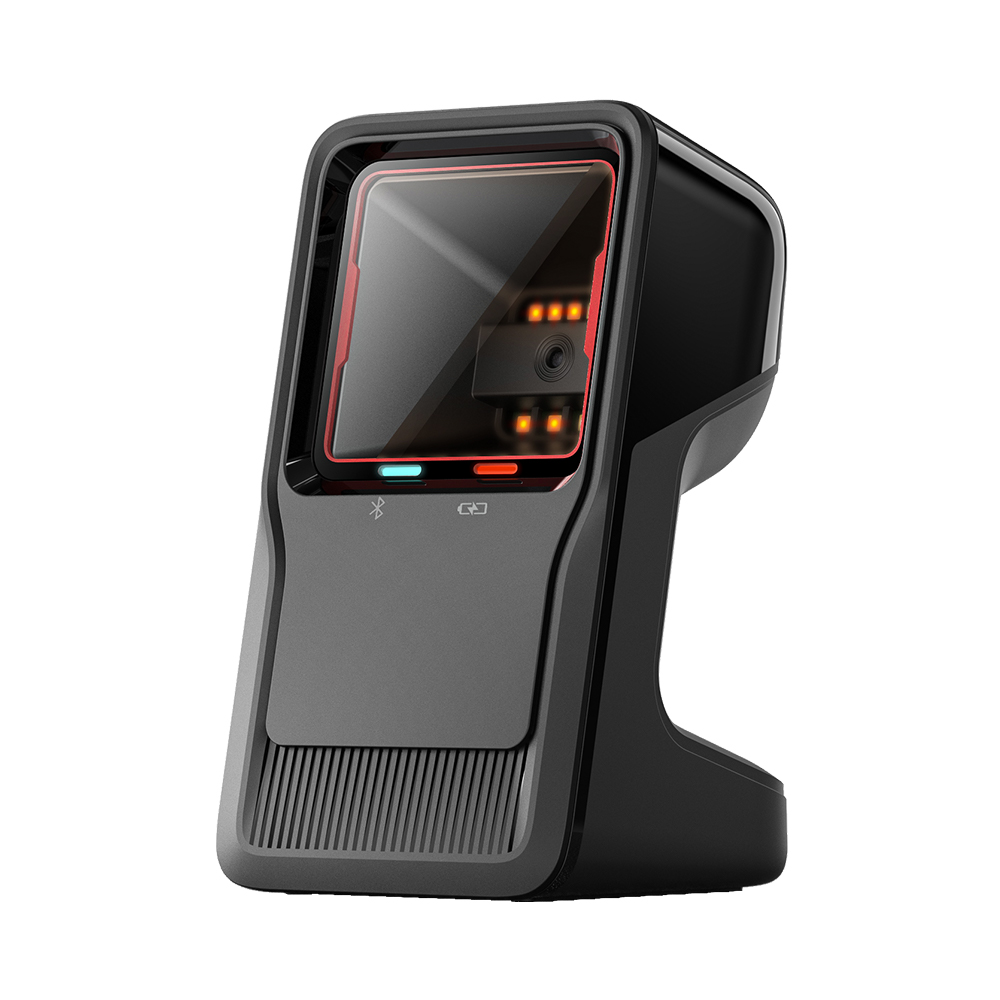

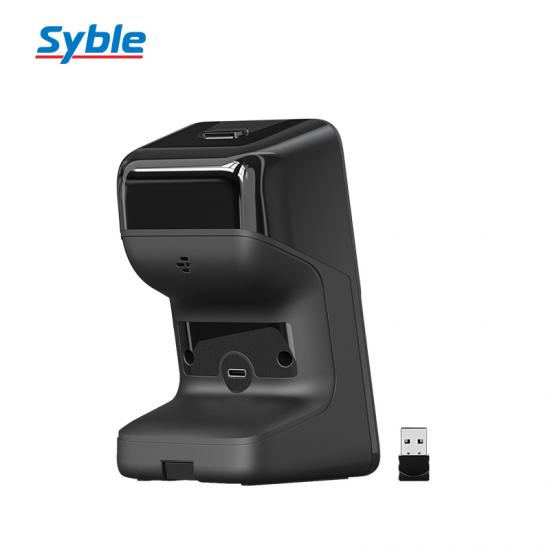

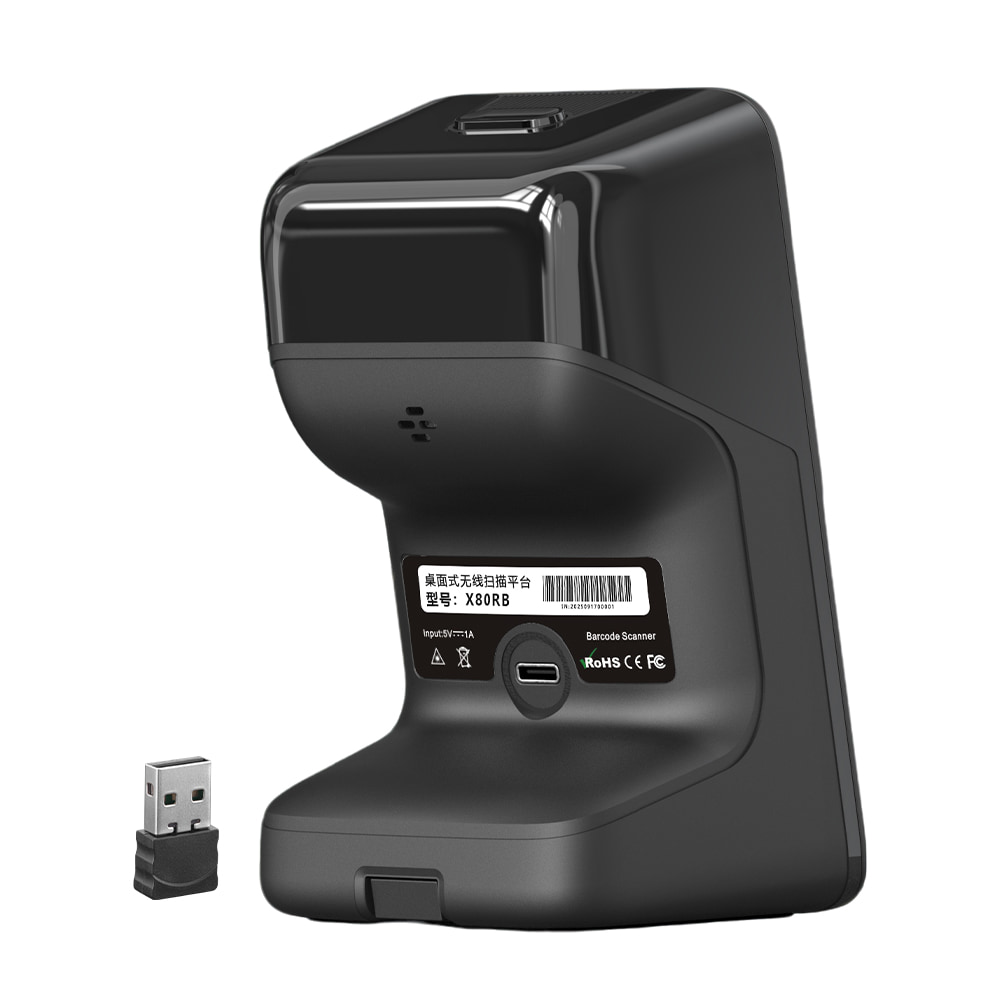

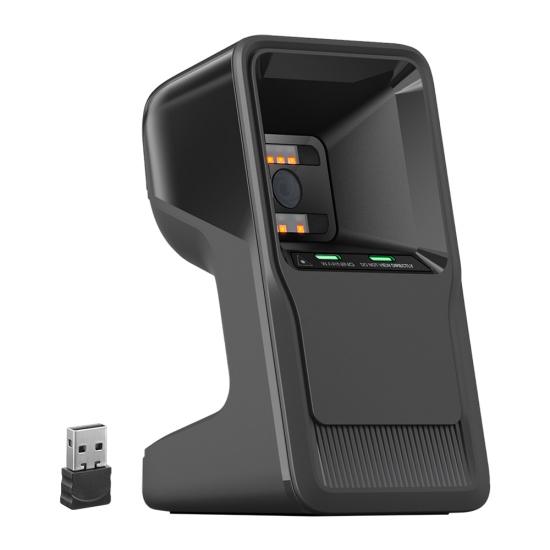

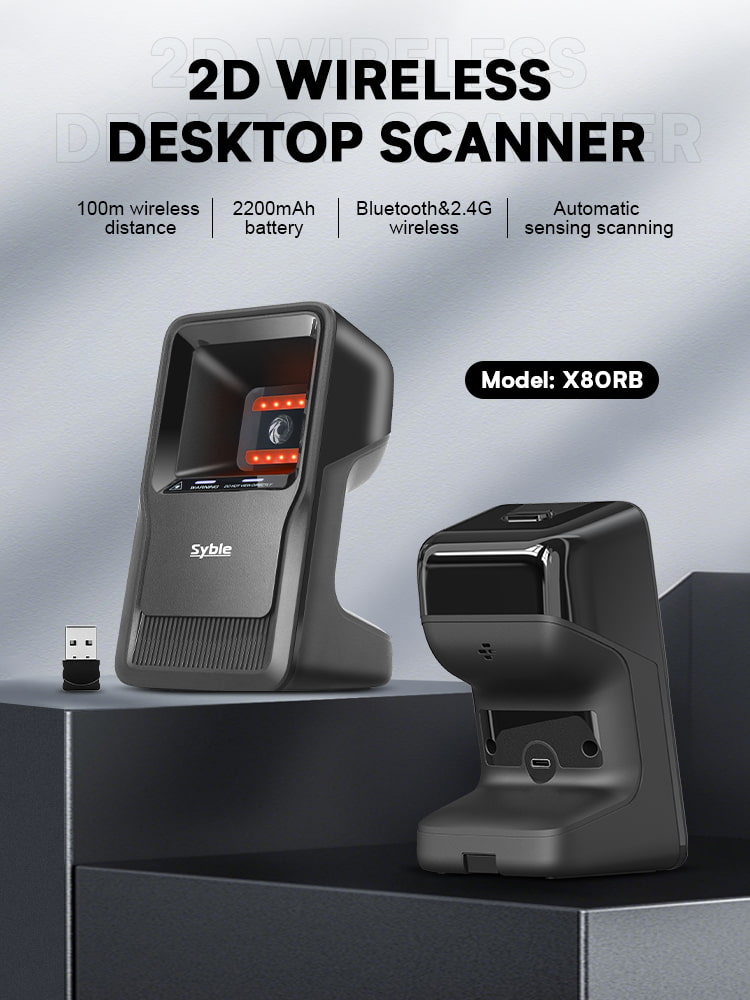

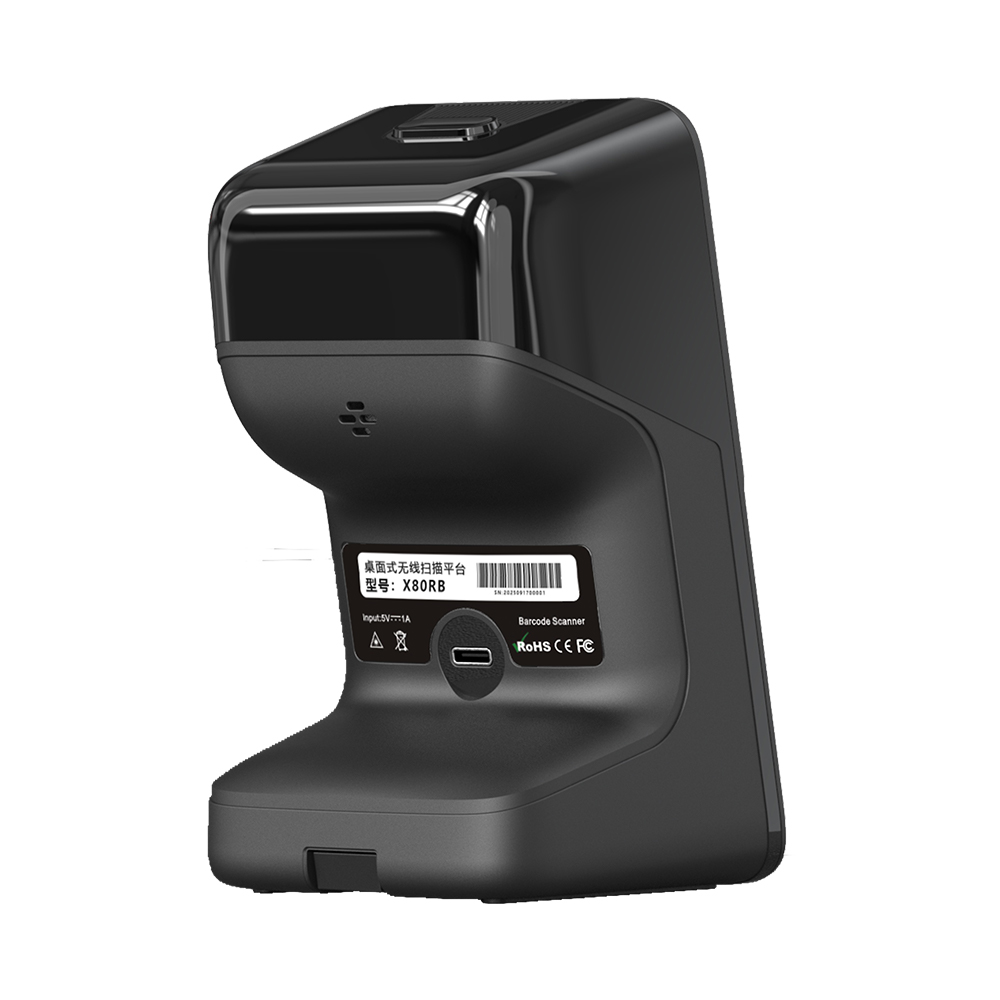

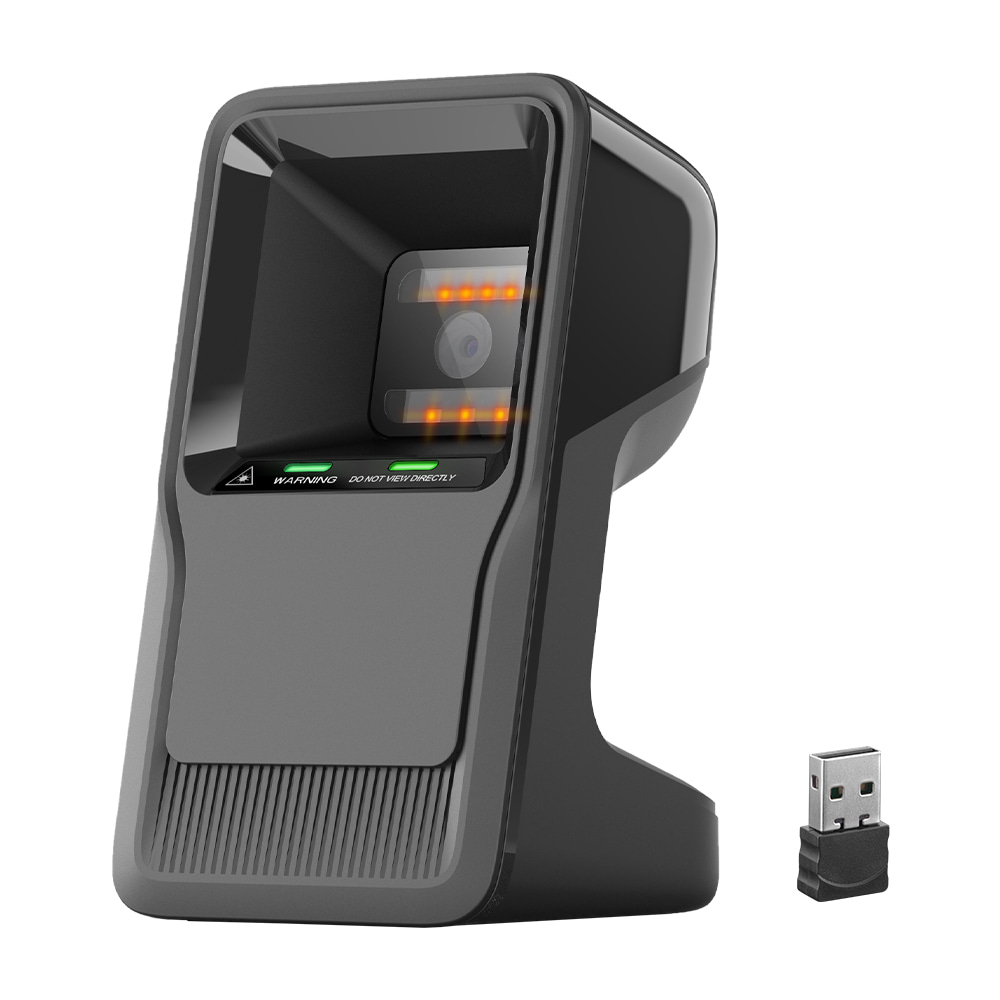

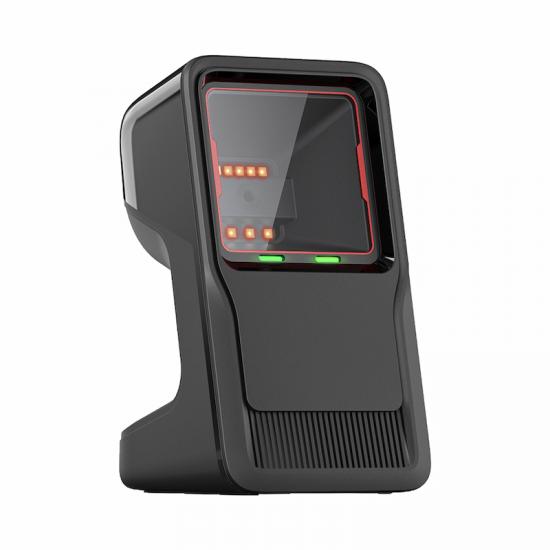

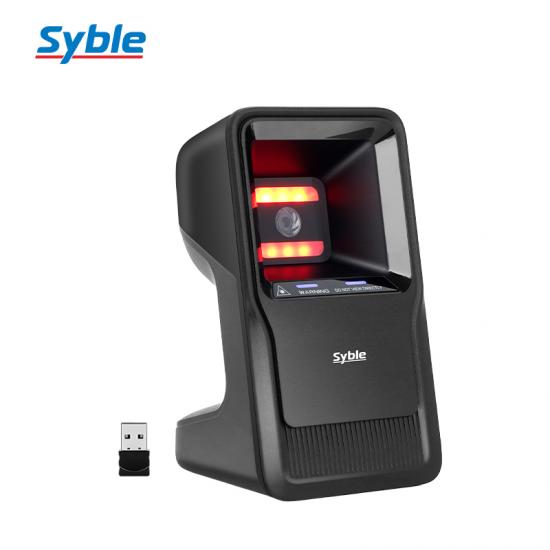

The Syble XB-X80RB is a compact, uniquely designed 2D wireless desktop reader with a global resolution of 300,000 pixels. It supports 2.4G and Bluetooth connections, making it more convenient for mobile use. It is suitable for small to medium-sized supermarkets, snack shops, specialty stores, and more.
Item NO.:
XB-X80RBPayment:
EXW/FOBProduct Origin:
ChinaColor:
BlackShipping Port:
GuangzhouLead Time:
7-10days2D Wireless Bluetooth&2.4G Small Desktop Scanner
Product Features

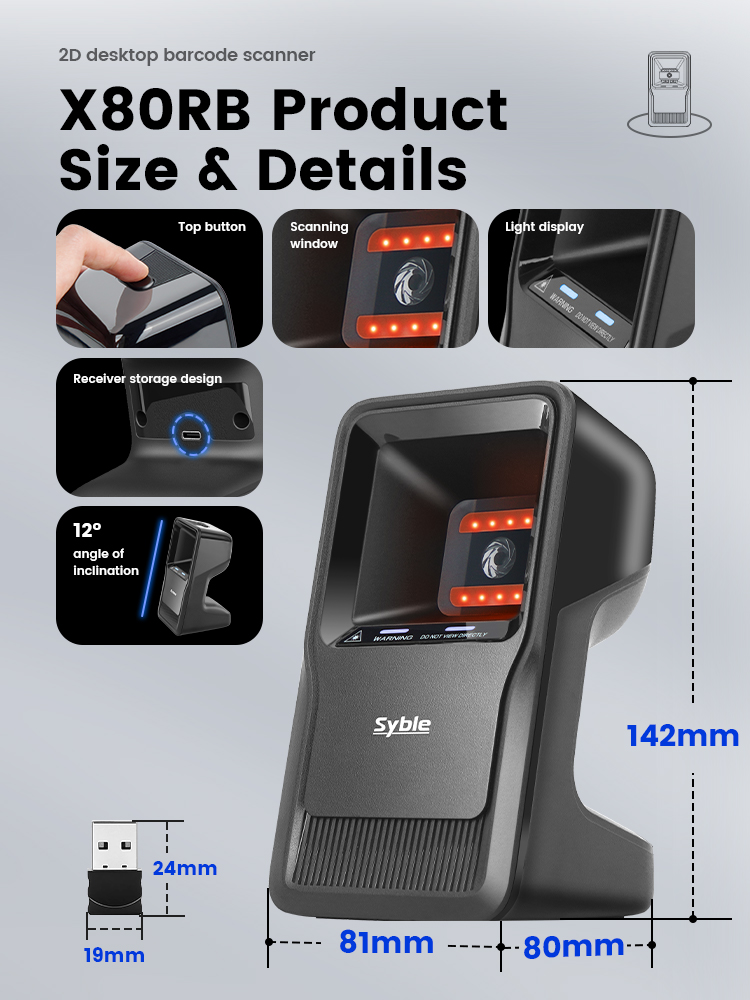

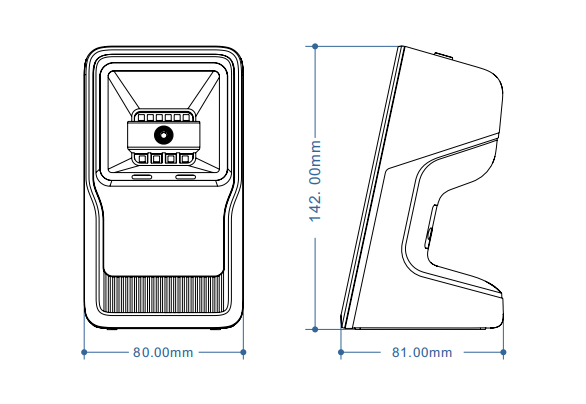

Product Size
Applications
The XB-80RB 2D QR wireless small desktop scanner is suitable for a wide range of scanning scenarios, including small and medium-sized supermarkets, snack shops, specialty stores, mobile payments, tea beverage establishments, and office automation.
|
Performance Parameters |
|
|
Light source type |
Red LED illumination light |
|
Decoding capability |
1D:EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,CodaBar,Code 128,Code93,ITF-14,ITF-6,Interleaved 2 of 5,Industrial 2 of 5,Matrix 2 of 5,GS1 Databar(RSS),Code 39,Code 11,MSI-Plessey. 2D: QR Code,Data Matrix,PDF417,Micro PDF417,Micro QR,Aztec. |
|

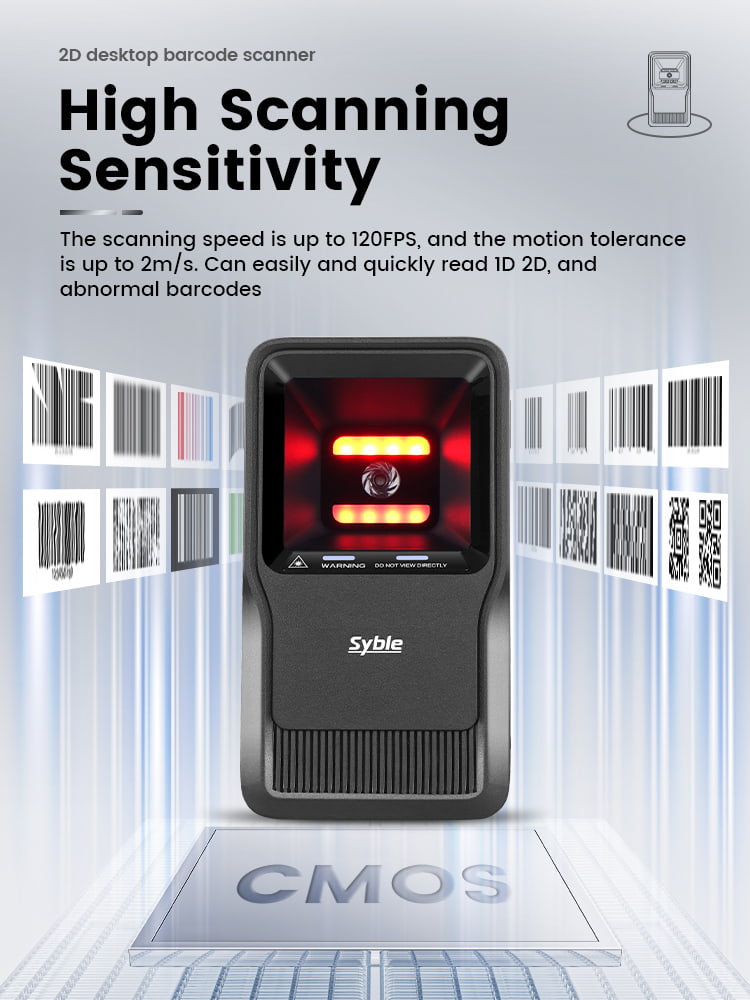

Scanning principle |
Imaging CMOS |
|
Sensor pixels |
640 pixels (H)x 480 pixels (V) |
|
Scanning mode |

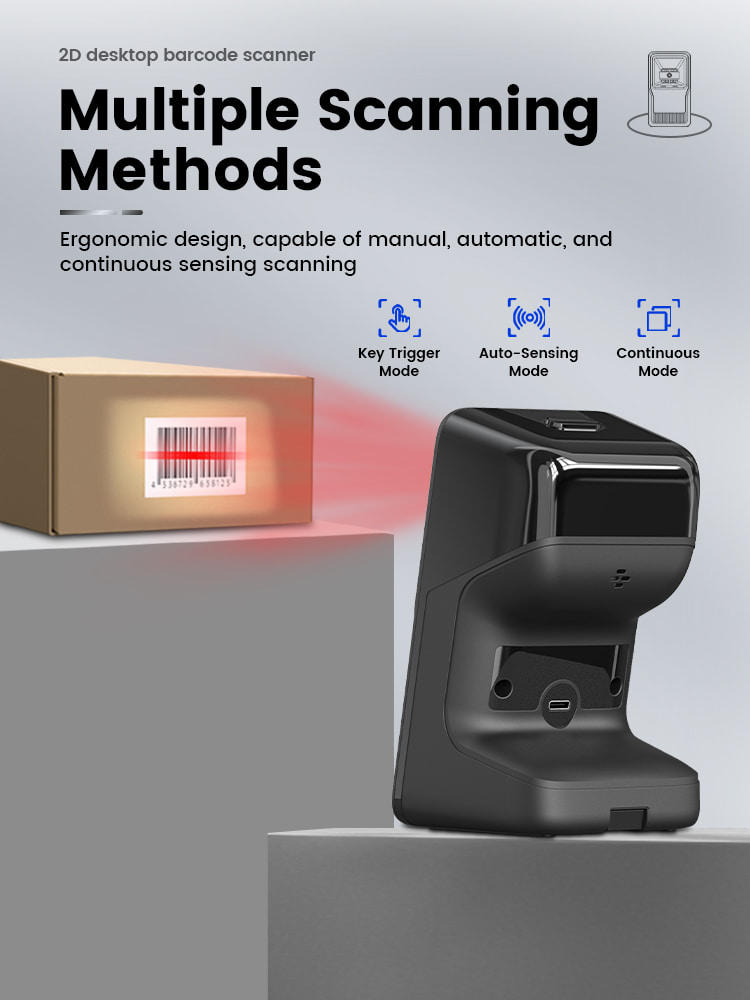

Automatic sensing scanning/manual triggering |
|
Button Function |
Power on/off button/manual trigger button |
|
Scanning accuracy |
≥4mil |
|
Scan Angle |
Rotation angle 360°,elevation angle ±60°,deflection angle ±60° |
|
Scan range |
30-130mm(13mil CODE 128) |
|
Communication interface |
USB-HID,USB-COM |
|
Wireless communication method |
Pairing dedicated receiver:2.4G communication; |
|
Wireless Distance |
Open distance:100 meters |
|
Receiving end |
Dedicated Bluetooth USB receiver for Android/iOS mobile devices |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
220mA |
|
Standby current |
0mA(battery power is cut off in standby mode) |
|
Lithium battery |
2200mAh lithium battery |
|
Continuous working time |
Scanning gun scans continuously for 1S, working time is 8 hours/scanning number is 30000 times |
|
Charging time |
5-6 hours |
|
Charging method |
Type-C interface, plug in and charge directly |
|
Physical Parameters |
|
|
Scanner size |
81*80*142MM |
|
Material |
ABS+PC |
|
Weight |
221g |
|
Charging cable standard |
0.8 meters |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~+50℃ |
|
Storage temperature |
-40℃~+70℃ |
|
Working humidity |
5%~95%(no condensation) |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q3: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. If the technical and quality problem during warranty,free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
3.Provide free maintenance technology and spare parts chargeable under out of warranty
