Item NO.:
XB-D15BTPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and RedProduct weight:
297gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days

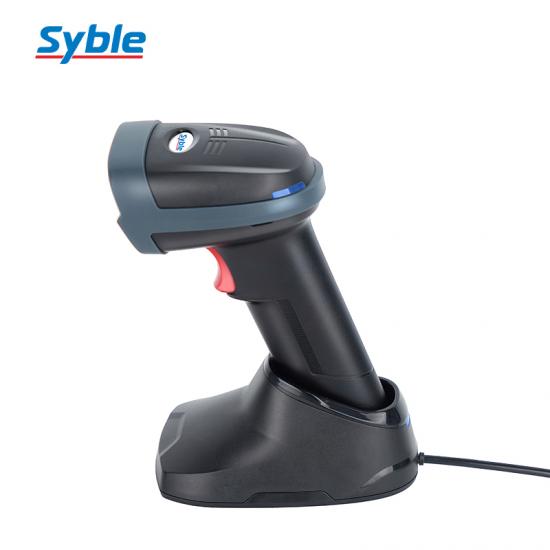

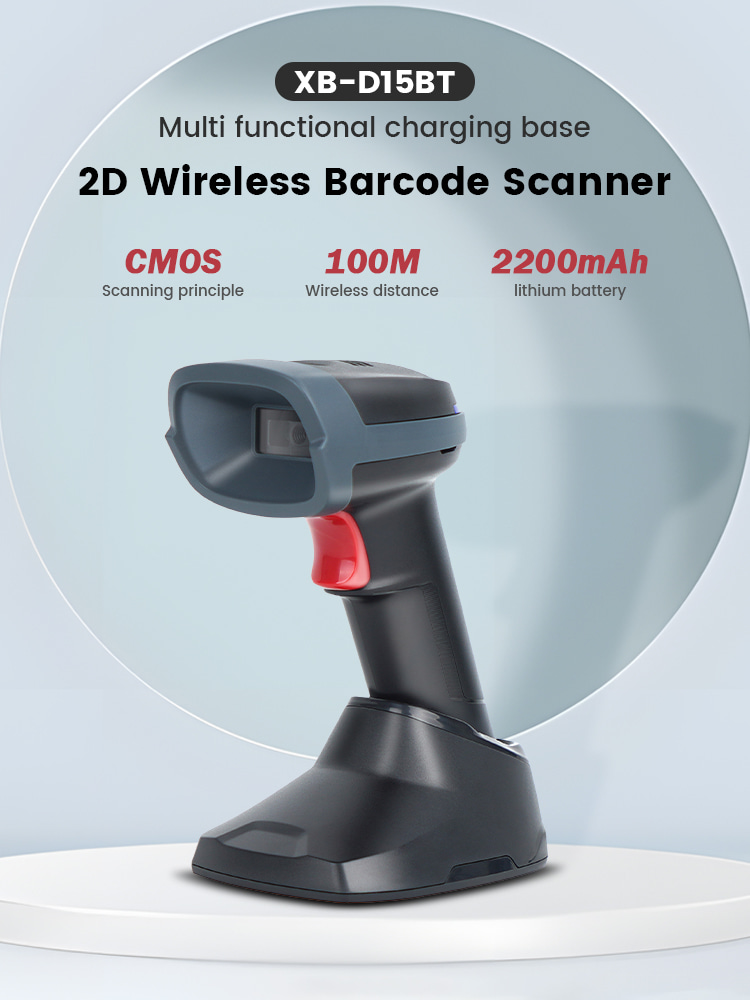

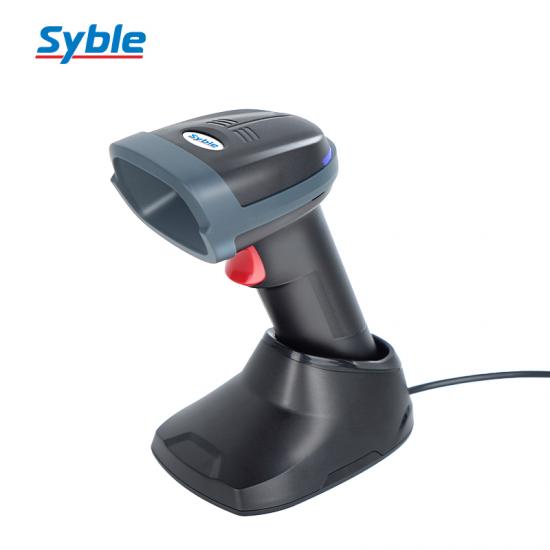

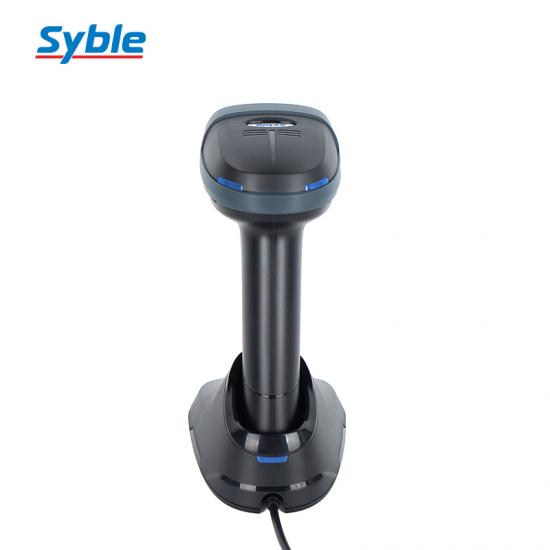

XB-D15BT is a 2D wireless bluetooth barcode scanner with charging base.The appearance is luxurious and the feel is comfortable. It supports 1D/2D code scanning and has Bluetooth/2.4G dual-mode connection. With a built-in 2200mAh large-capacity battery and offline storage function, this device can enhance workflow efficiency at an affordable price.
Product Features
Aesthetically appearance design
The XB-D15BT,with its soft rubber wrapped design and the intricate lines of the handle and top cover,imbues its cost-effective products with a sense of luxury.
High scanning accuracy

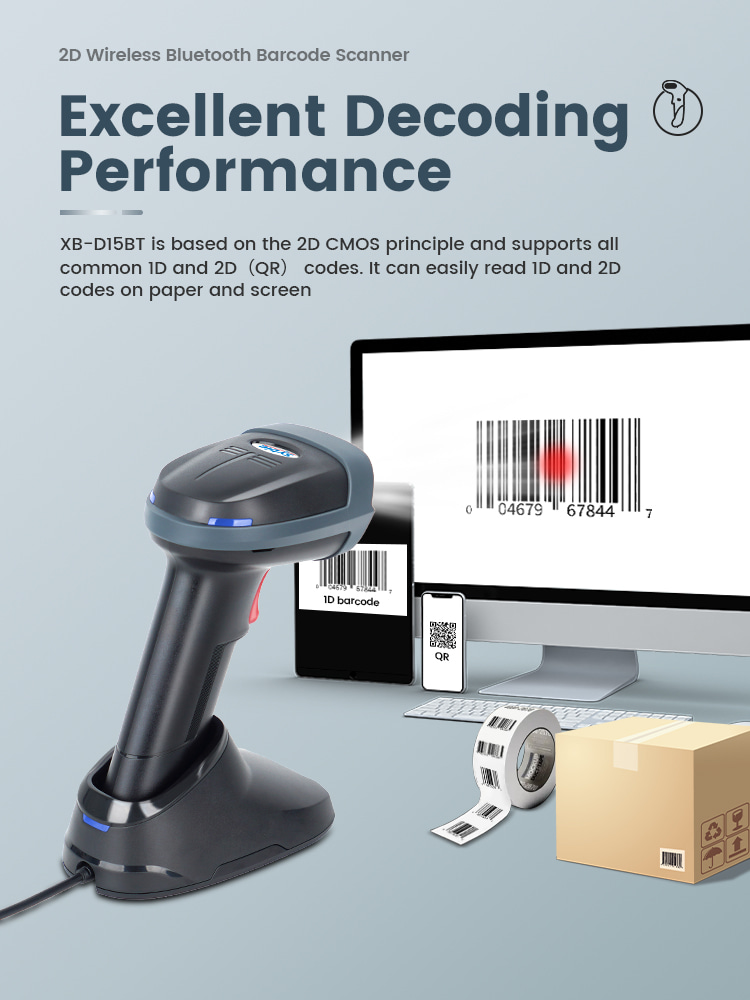

XB-D15BT has a scanning accuracy of 4mil and a fast scanning response speed.It supports most 1D and 2D code systems and can meet the vast majority of application scenarios.

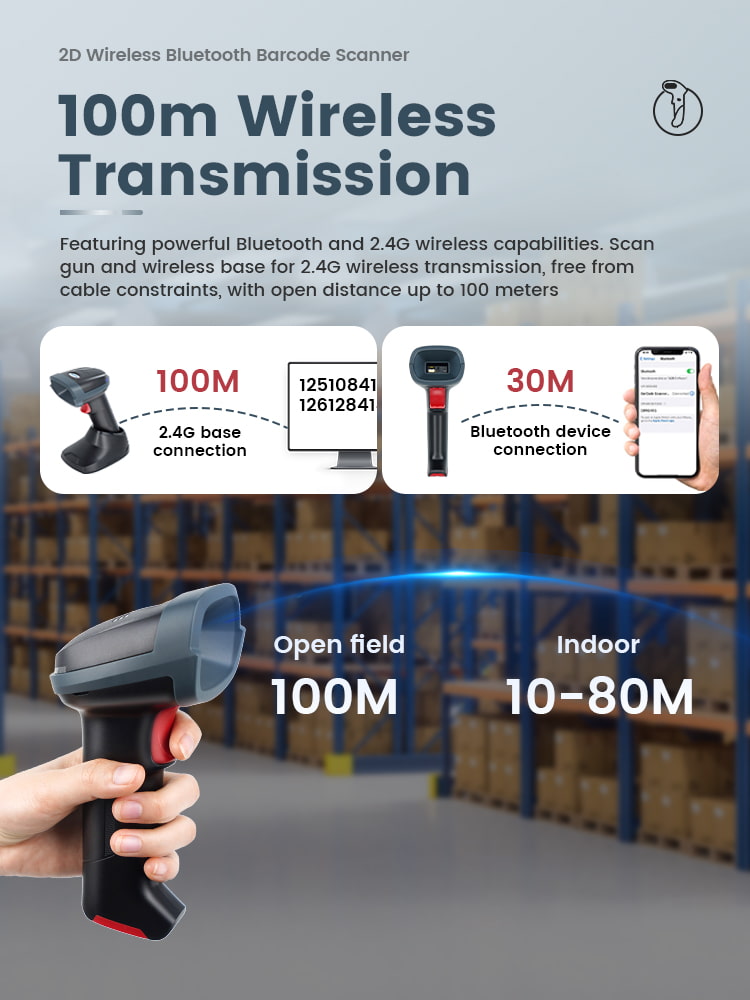

Dual Wireless Mode
XB-D15BT has powerful Bluetooth+2.4G wireless capabilities. Scanner and wireless base for 2.4G wireless transmission, free from cable constraints,with open distance up to 100 meters; Equipped with Bluetooth function, capable of Bluetooth connection and transmission with mobile devices such as tablets,phones, computers, etc.
Offline Storage & Inventory Mode
XB-D15BT supports offline storage mode. When the scanner is not connected or disconnected, the scanned data is automatically stored in the machine and automatically transmitted after reconnection. It also supports inventory mode. After entering the inventory mode, can conduct asset inventory without distance constraint.

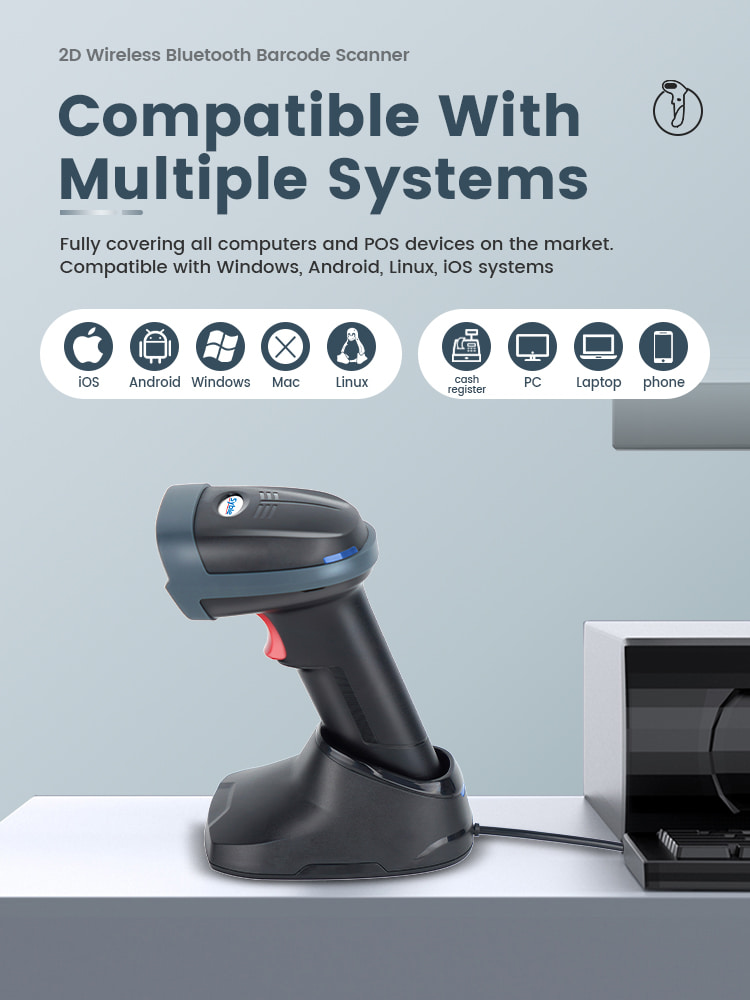

Plug and Play
Plug and play, no need to install any drivers, and compatible with all computers and POS devices on the market. Support Windows, Android, Linux, and iOS.

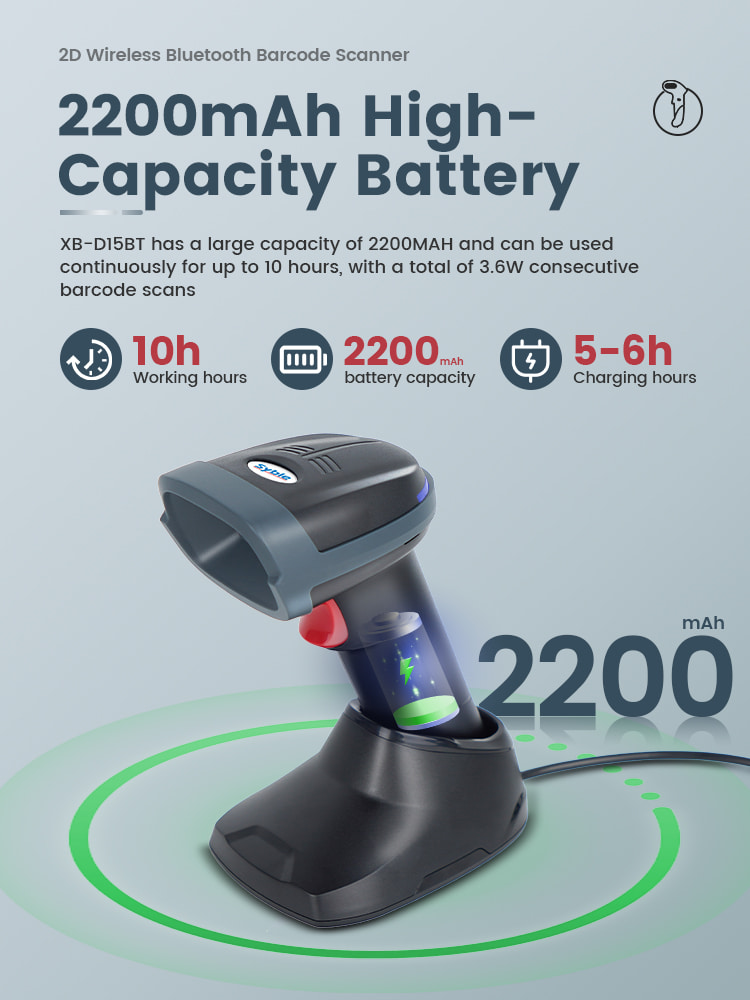

Large-Capacity Battery
Use 2200mAh battery,which support continuous scanning 10 hours (reading interval 1 second),equal to 36000scans.






Specification
|
Performance Parameters |
|
|
Light source type |
Red LED aiming light, white LED illumination |
|
Scanning principle |
Imaging CMOS |
|
Resolution |
640*480 |
|

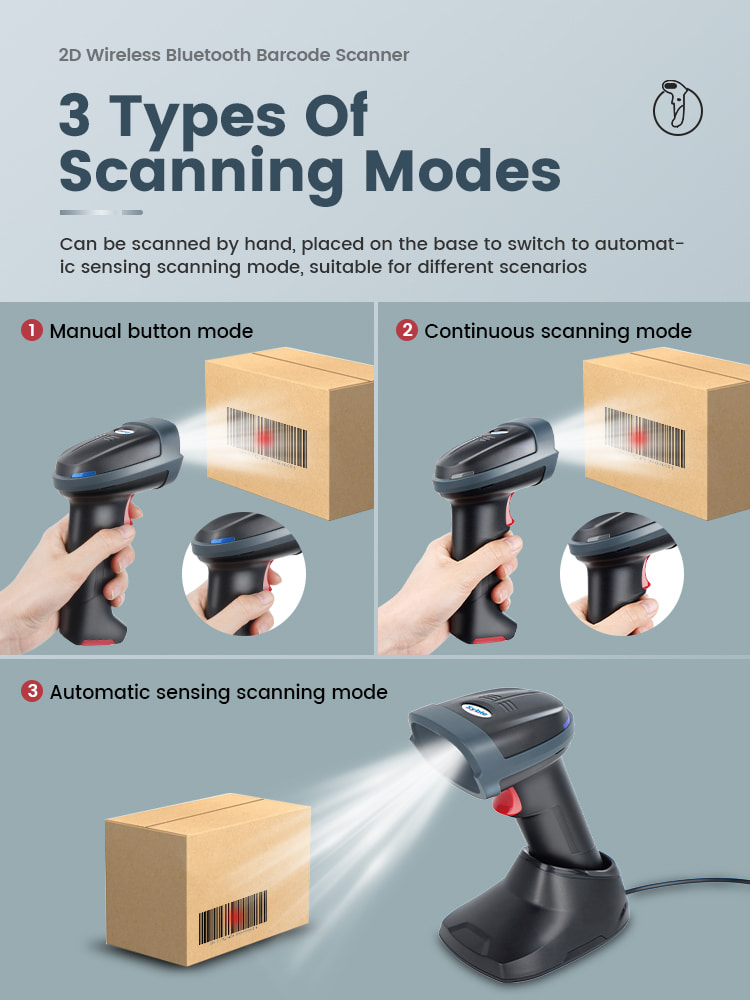

Trigger mode |
Manualscan/continuous scan/auto-sensing scan |
|
Scan Angle |
Rotation angle 360",elevation angle +60°, deflection angle +60° |
|
Scanning depth of field |
EAN 13 40mm-240mm(13mil); Code39 30mm-100mm(5mil) QR Code 30mm-180mm(15mil); Code128 50mm-120mm(5mil) |
|
Scanning accuracy |
4mil |
|
Bit Error Rate |
1/5 million |
|
Contrast |
≥20% |
|
Communication interface |
Receiver:USB-HID,USB-COM; Bluetooth: HID, BLE mode |
|
Wireless communication method |
Pairing dedicated receiver:2.4G communication; Pairing mobile Bluetooth device: Bluetooth communication |
|
Wireless transmission distance |
Open distance: 100 meters |
|
Receiving end |
Dedicated base receiver for Android/iOS mobile devices |
|
Decoding capability |
1D:EAN13, EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39,Code93,CodaBar, Interleaved 2of 5, Industrial 2 of 5, Matrix 2 of 5, Code11,MSl-Plessey, Standard 2 of 5, Plessey, China Post, Code16K,GS1 Databar(RSS-Expand, RSS-Limited,RSS- 14. |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
170mA |
|
Standby current |
0mA (battery power is cut off in standby mode) |
|
Lithium battery |
2200mAlithium battery |
|
Continuous working time |
Scanning gun scans continuously for 1S, working time is 10 hours/scanning number is 36000 times |
|
Charging time |
5-6 hours |
|
Charging method |
Place the base for direct charging |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~50℃ |
|
Storage temperature |
-40℃-70℃ |
|
Working humidity |
5%~95% (no condensation) |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
|
Physical Parameters |
|
|

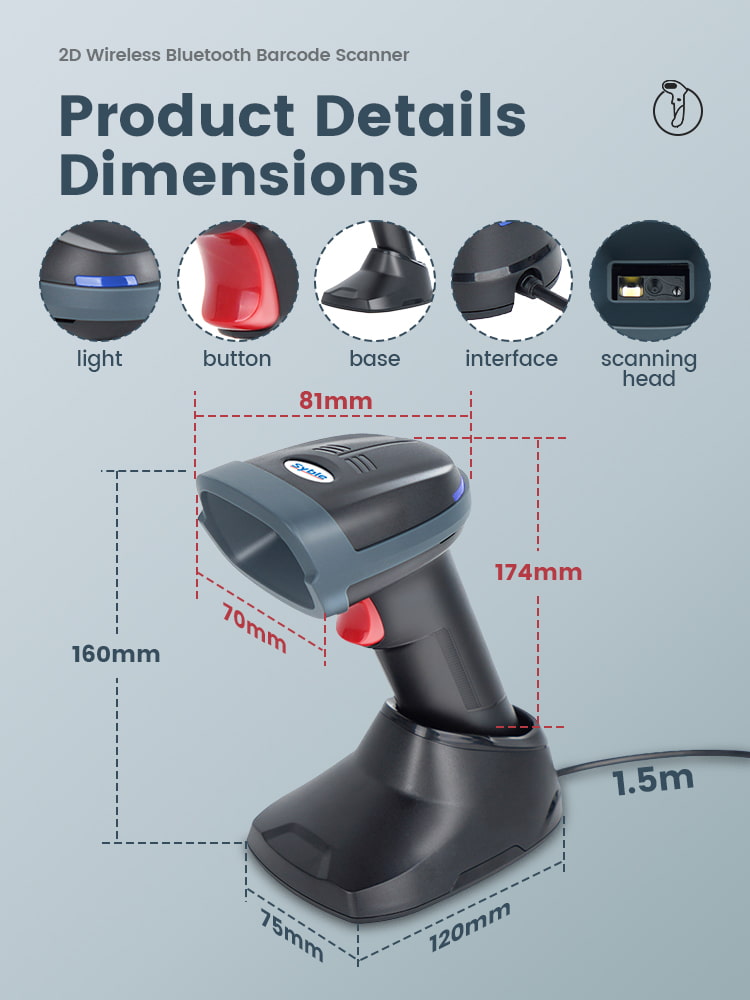

Scanner size |
70*81*140mm |
|
Material |
ABS+PC |
|
Charging cable standard |
1.5 meters |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:Is your production capacity and delivery schedule stable?
We have our own injection molding department, which offers greater control over the structure, materials and production schedule. This enables us to better ensure consistent quality and stable delivery times.
Q5:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q6:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
