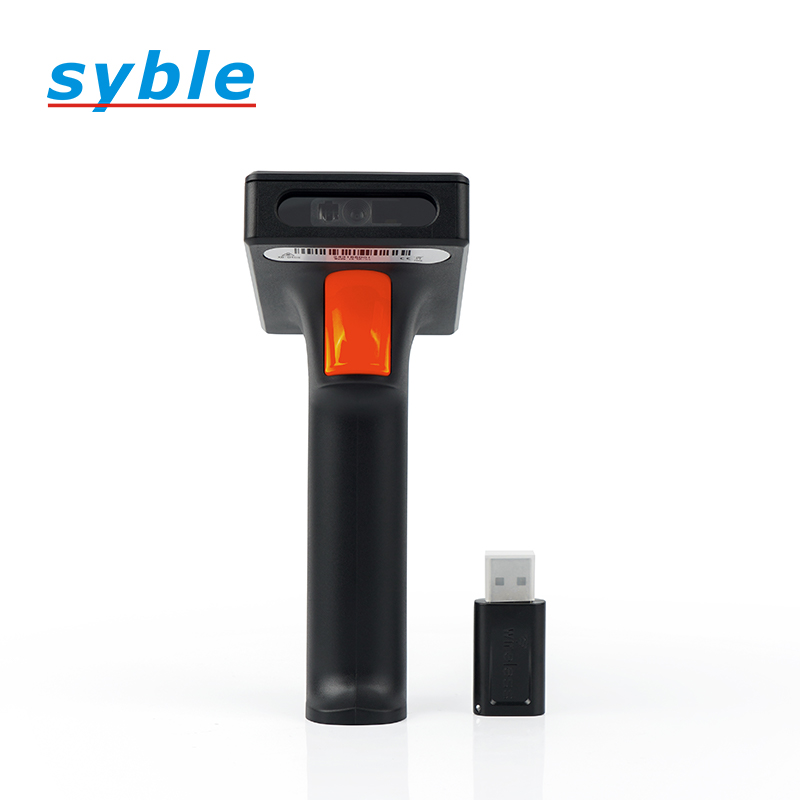

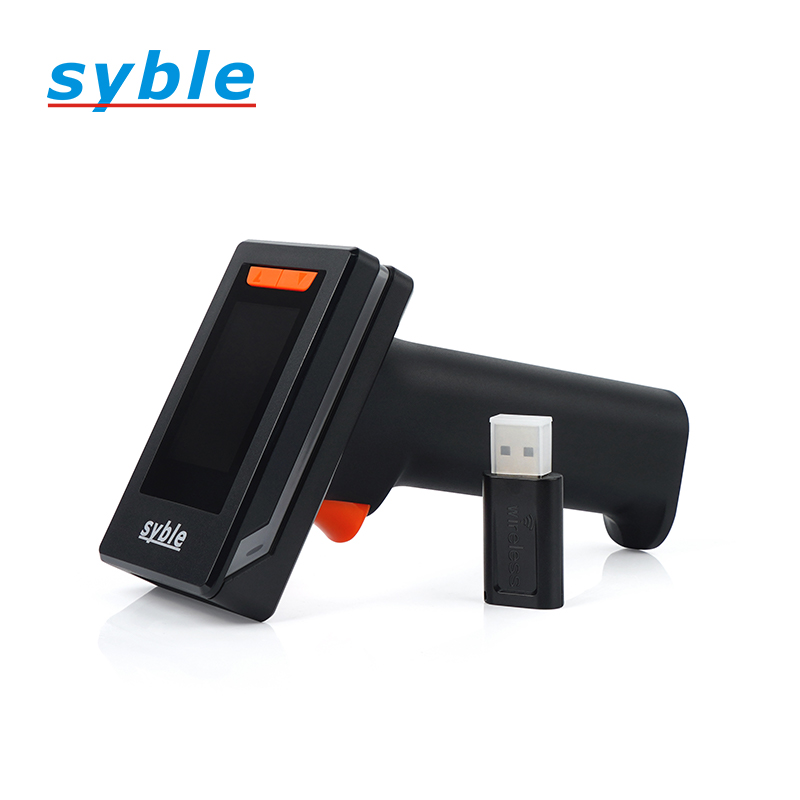

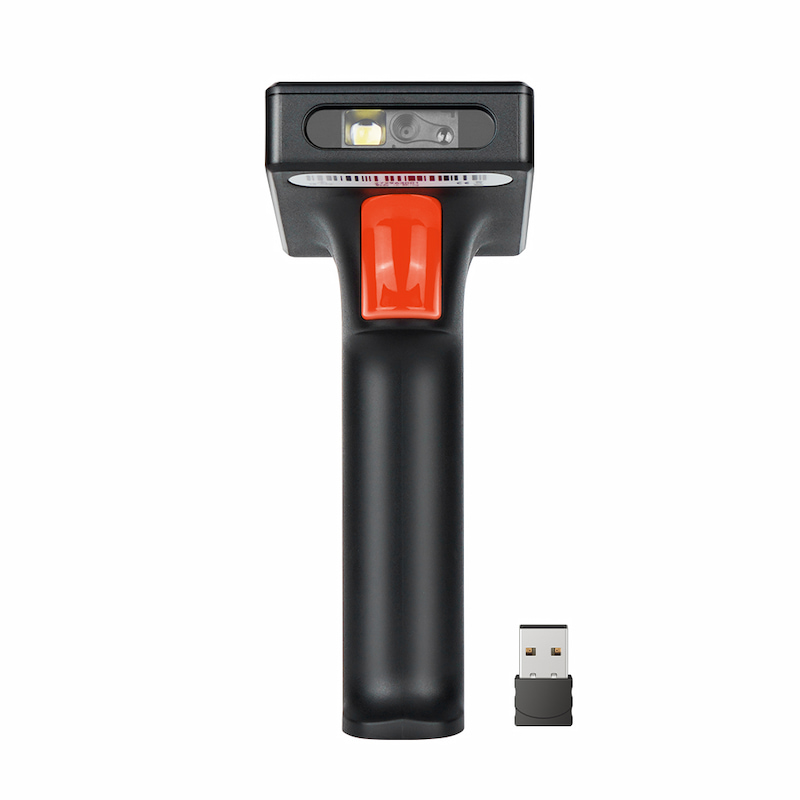

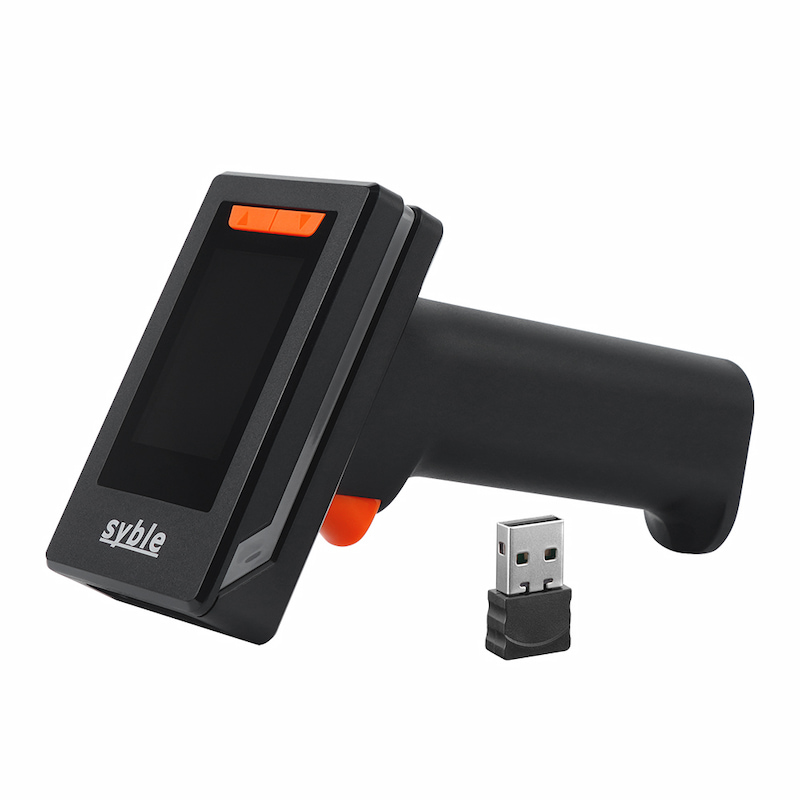

The XB-D40DB is a screen-equipped Bluetooth 2D barcode scanner from Syble. It is equipped with CMOS image decoding technology and can read various 1D/2D barcodes. It supports both Bluetooth 4.0 or 2.4G wireless connections, with a transmission range of 30-50 meters in an open area. The screen allows real-time viewing of data and battery level, and is suitable for scenarios such as supermarkets, warehouses, and library management.
Item NO.:
XB-D40DBPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
3-7days2D Cordless Handheld Barcode Scanner
Product Features：
Specification
Performance Parameters
Light Sources
617nm LED Aimer, White LED
Supported Symbology
1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39,Code93, CodaBar, Interleaved 2of 5, Industrial 2 of 5, Matrix 2 of 5.Code11, MSI-Plessey, Standard 2 of 5, Plessey, China Post,Code16K, GS1 Databar(RSS-Expand, RSS-Limited, RSS-14.
Scanning Principle:
Image CMOS
Resolution
640*480
Scan Method
Manual scan/Continuous scan/Auto-sensing scan
Scan Angle
Rotation angle 360°, elevation angle ± 55°, deflection angle±55°
Depth of scan field
EAN13 40mm-200mm (13mil); QR Code 40mm-180mm (20mil).
Contrast
≥10%
Error Rate
1/5 million
Communication Interface
Receiver: USB-HID, USB-COM; Bluetooth: HID, BLE mode
Wireless Transmission Distance
30-50 meters (Open distance)
Offline storage mode: When the scanner leaves the connectionrange,the data is automatically stored.
Inventory storage mode: the scanner can enter inventory mode.
1) View stored data in real time;
2) Real-time check electricity;
3) real-time time display;
4) The scanner can be set through the screen.
Physical Parameters
Material
ABS+PC
Dimension
146.5*58*89mm
Cable Length
0.8M
Environmental Parameters
Operating Temperature
-20℃ ~50℃
Storage Temperature
-40℃~70℃
Relative Humidity
5%~95% RH（Non-condensing）
Ambient lighting
0~100000LUX
Drop/Shock Resistance
Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Working Voltage
DC5V±5%
Operating Current
when not scanning code ≥ 26mA; when scanning code > 280mA
Standby Current
0mA(Standby is to cut off battery power)
Battery Working Time
Continuous work for 5 hours
Charging Time
3.5h
Lithium battery
1200mAh
Charging Model

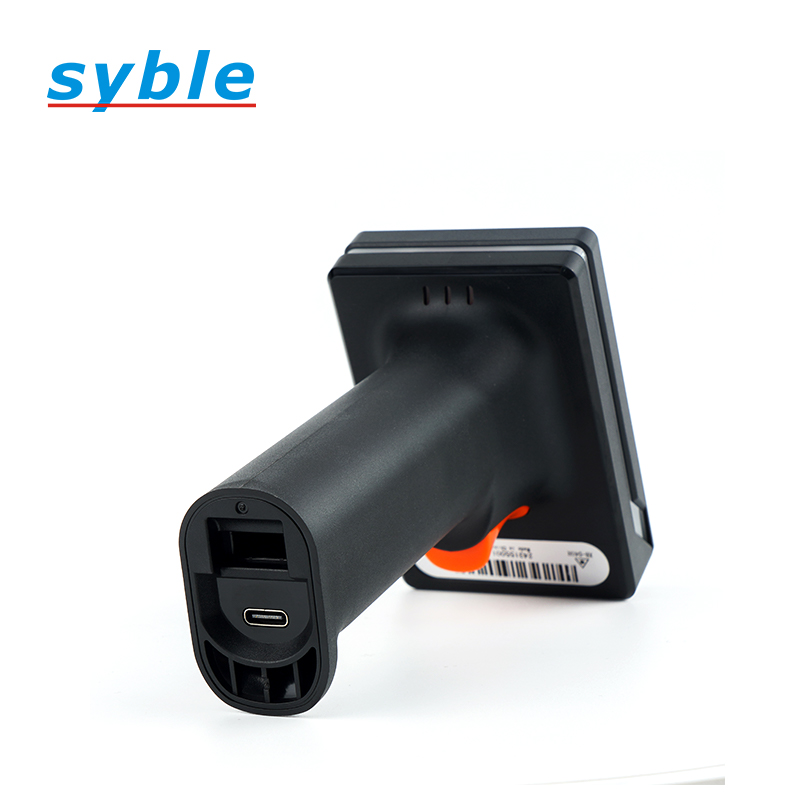

Type C USB charging cable, plug-in direct charging.
2D: QR, PDF417, DataMatrix(ECC200), Aztec, Hanxin Code,Maxicode, Micro QR, Micro PDF417.
Precision
1D≥5mil, 2D≥10mil,
Storage Mode
Pairing Mode
One-to-one: one scanner paired with one receiver
Screen functions
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
