Item NO.:
XB-6221BTPayment:
EXW/FOBProduct Origin:
ChinaColor:
Black and GrayProduct weight:
143.2gShipping Port:
GuangzhouLead Time:

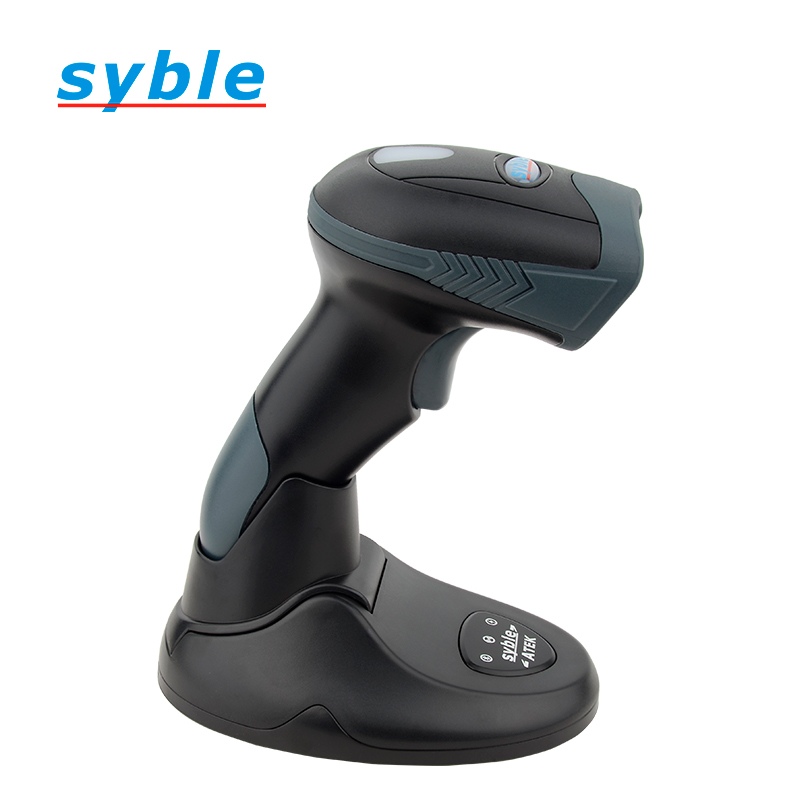

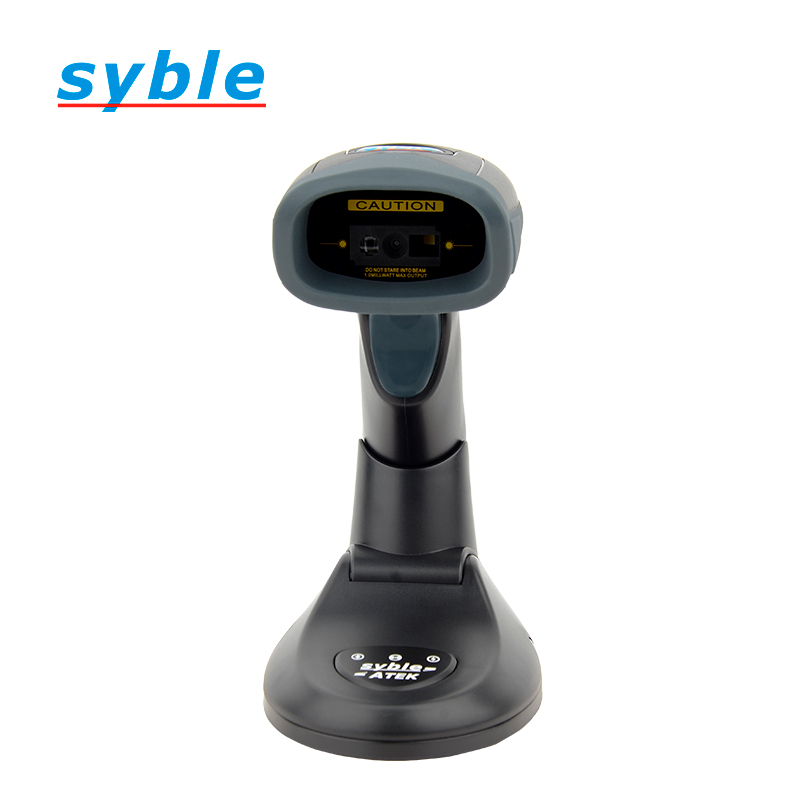

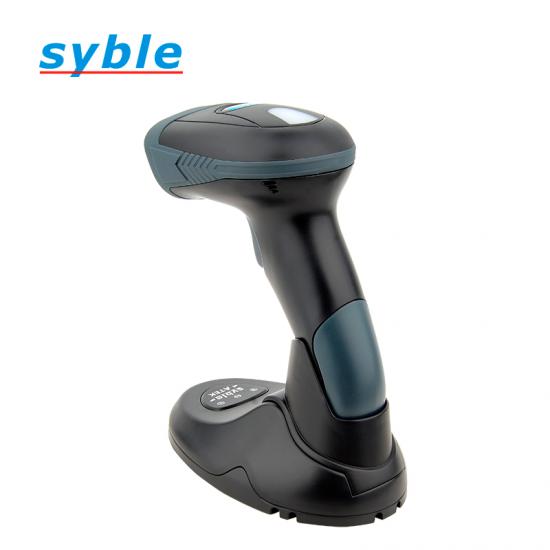

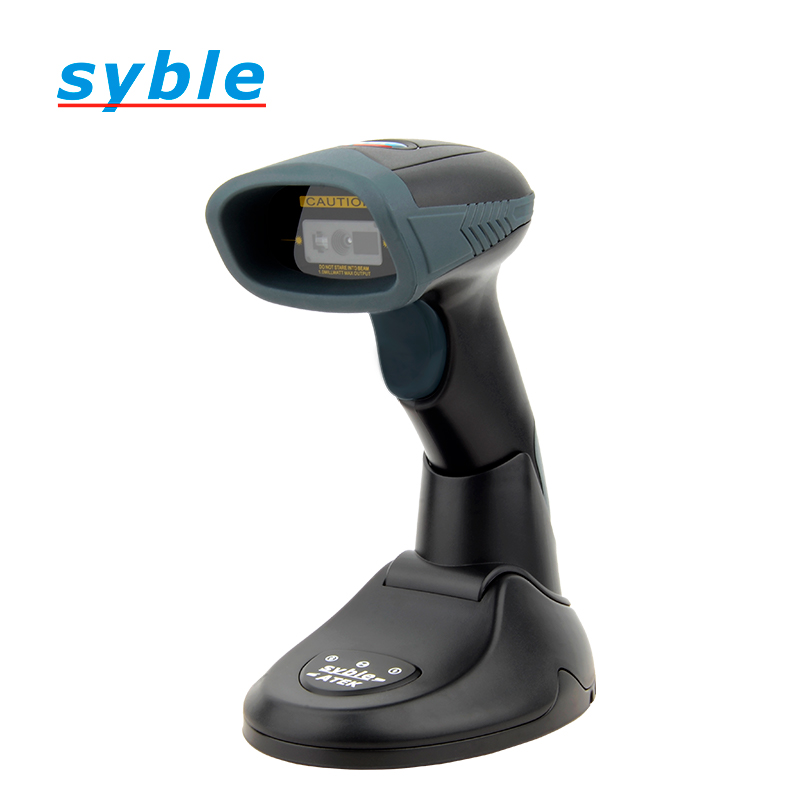

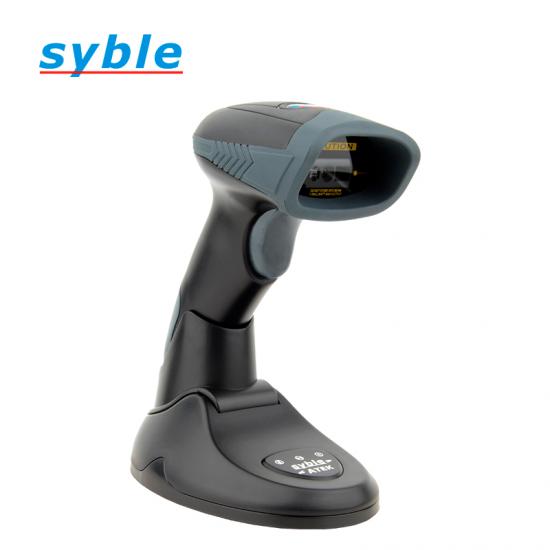

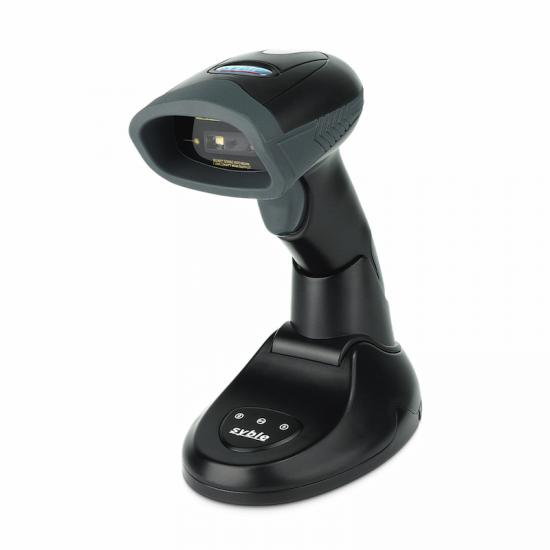

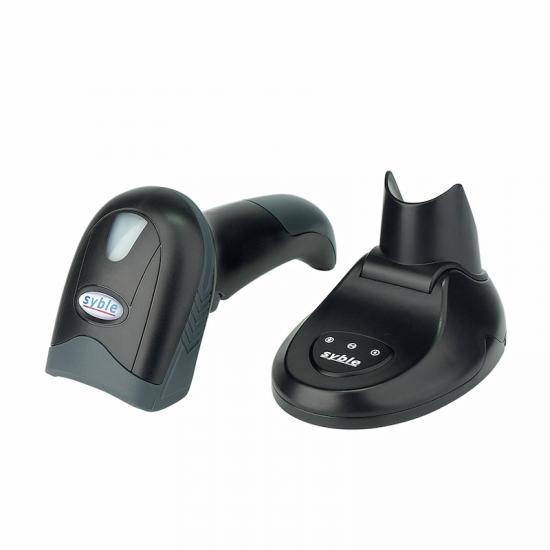

5-7 daysSyble 2D Bluetooth 2.4G Wireless Barcode Scanner
Syble XB-6221BT 2D Wireless Handheld Barcode Scanner supports 1D/2D barcodes and is compatible with retail/logistics-specific codes. Equipped with a high-efficiency CMOS sensor, it decodes quickly and accurately. Features dual-mode wireless connectivity and offline storage capabilities, with industrial-grade drop and splash resistance. Its lightweight body ensures comfortable grip. The 1400mAh battery supports 8 hours of continuous operation. Ideal for diverse mobile scanning scenarios including retail warehousing, logistics inventory management, and production line oversight, it enhances operational efficiency.
Product Features
Application

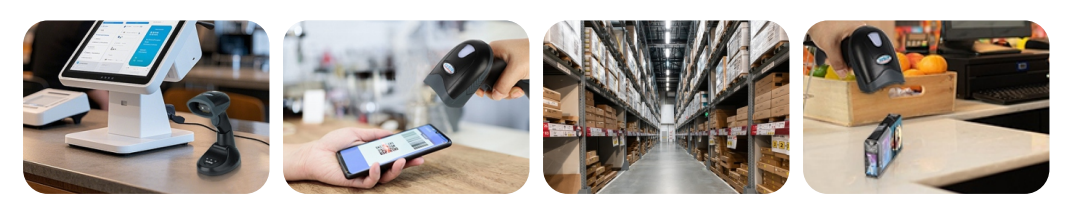

The Syble XB-6221BT 2D QR wireless barcode scanner is affordable and suitable for scanning scenarios in supermarkets, retail, electronic vouchers, industry, light industry, express logistics, and other fields.
Specifications
|
Model Number |
XB-6221BT |
| Performance Parameters | |
| Light Sources | Warm yellow lighting lamp,red aiming light |
| Supported Symbologies |
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93,ITF-14, ITF-6, Interleaved 2of 5, Industrial 2 of 5, Matrix 2of 5,GS1 Databar(RSS), Code 39, Code 11, MSl-Plessey. |
| Scan Type | Image COMS |
| Scan Method |
Manual/Continuous/Automatic Scintillation
|
|
Resolution |
640*480 |
| Scan Angle | Yaw ±65°,Rotation 360°,Pitch ±60° |
| Precision |
≥5mil
|
| Depth of scan field | 30-250mm(EAN13, 13mil,90%PCS) |
| Error Rate | Less than 1/5 million |
| Interface | USB-HID，USB-COM |
| Operating Current | 170mA |
| Transmission Distance | 100M(Open yard) |
| Storage Ability | 200000 Bytes |
|
Communication mode
|
Paired dedicated receiver: 2.4g communication;
Paired mobile bluetooth devices: bluetooth BLE4.0
|
|
Storage Mode
|
Offline Storage Mode: When the scanner exits the connection range,the data is automatically stored. Storage capacity is 200000 characters.
Inventory storage mode: Scanner can enter inventory mode,storage capacity is 200000 characters.
|
|
Pairing Mode
|
One to One: One Scanning Gun Pairs One Receiver,One scanner paired with a Bluetooth mobile device.
|
| Physical Parameters | |
| Dimensions | 69mm*79.7mm*187mm |
| Weight | 143.2g |
| Material | ABS+PC |
| Cable Length | 1.2M |
| Environmental Parameters | |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 5%~95%（Non-condensing） |
|
Drop/Shock Resistance
|
Withstands multiple times 1.5 meters drops to concrete
|
|
Electrical Parameters |
|
| Voltage | DC5V±5% |
| Lithium battery | 1400mA |
| Battery Working Times | Work continuously for 8 hours |
| Charging Time |
4h |
| Standby Current | 0mA |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
Leave A MessageSyble Long range 2D Wireless Handheld QR code Barcode Scanner with USB Base,read all common 1d and 2d barcodes from paper and mobile devices displays.
Syble XB-6266MBT 2D Wireless Barcode Scanner with Charging Base. Supports fast scanning of all kinds of 1D and 2D codes.
2D wireless barcode scanner with display screen 2.4G communications and bluetooth qr code scanner for retails store supermarket warehouse library pharmacy logistics.
The new design item 2D bluetooth wireless barcode scanner with charging base can read 1D& 2D barcode and upload the huge data quickly. Use directly with mobile phones/tablets/laptops with Bluetooth function.
The 2D barcode scanner is 2.4G wireless bluetooth barcode scanner, it can scan more 1D and 2D code, PDF417, QR Code, DM Code etc. Supporting for POS retails store supermarket warehouse library pharmacy logistics.
Syble XB-D15RB 2D Wireless Handheld Barcode Scanner, with a minimum battery life of 10 hours, featuring durability and robustness. Made of pure ABS material, it can withstand a fall of 1.5 meters. Extremely cost-effective, it can effectively meet various barcode scanning needs. Ideal for libraries, warehouses, retail stores, etc.
The cost-effective XB-D15BT features a soft rubber wrapped design, making it shock-resistant and durable. The key press lifespan exceeds 5 million times. The material thickness is over 3 millimeters. It is made of pure ABS and non-mixed ABS raw materials, offering both texture and feel. Efficiently identify 1D/2D codes, suitable for scanning scenarios in retail, logistics and warehouses
2D Barcode Scanner 2.4G Wireless Barcode Reader with USB Receiver XB-6208RB
