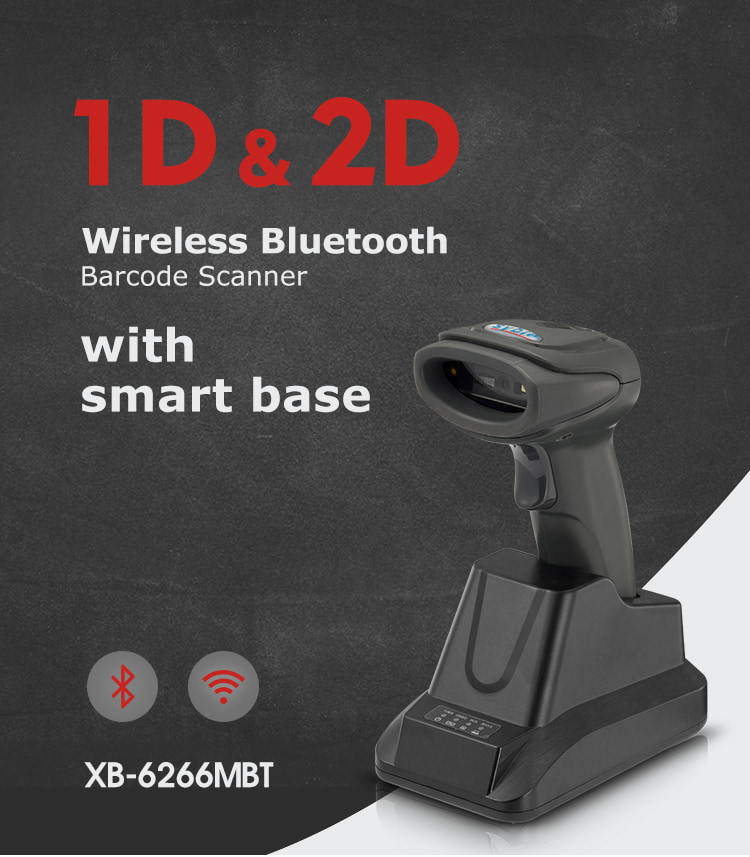

Syble XB-6266MBT 2D Wireless Barcode Scanner with Charging Base. Supports fast scanning of all kinds of 1D and 2D codes.
Item NO.:
XB-6266MBTPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackProduct weight:
317.9gShipping Port:
Guanghzhou/ShenzhenLead Time:

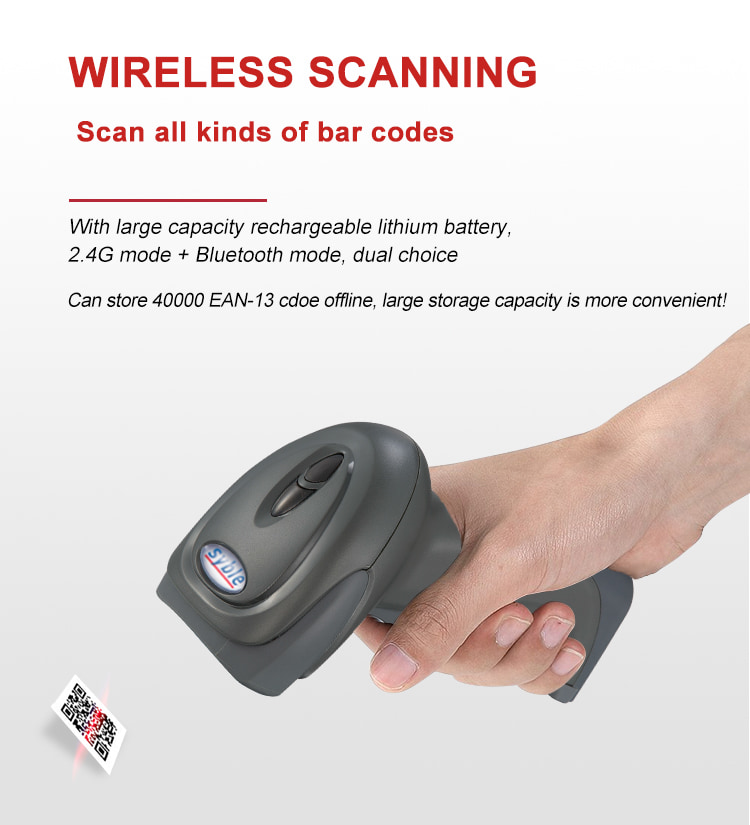

7-10daysXB-6266MBT is a hot-selling model of wireless Barcode Scanner with charging base which is developed by Syble, Syble is a leading professional Barcode Scanner Manufacturer from China. This QR Barcode Reader have two wireless module, which make the strong performance to read various 1D/2D barcodes. With large capacity rechargeable lithium battery, 2.4G mode + Bluetooth mode, dual choice, can store 40000 EAN-13 code offline, large storage capacity is more convenient. Two connected methods, 2.4G wireless for laptop and desktop and Bluetooth for mobile phone and tablet. Widely used in various industries, such as shopping malls, retails, express delivery, libraries, pharmacy etc.
Product Features
Specification
Performance Parameters
Light Sources
617nm LED Aimer,White LED
Supported Symbologies
1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleave 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.
2D: QR Code, Data Matrix, PDF417, Micor PDF417, Aztec, Maxicode, Micor QR, Hanxin.
Scan Type
Image COMS
Scan Mode
Manual/Contnuous/Automatic inductive scanning
Scan Angle
Yaw 65°,Rotation 30°,Pitch 60°
Precision
≥5mil
Depth of scan field
EAN13 50-200MM (13MIL) ;
QR 25-240MM(20MIL) ;
PDF147 30-130MM(6.67MIL)
Error Rate
Less than 1/5million
Interface
USB-HID, USB-COM
Transmission Distance
≤100M (Open yard)
Communication Mode
Paired dedicated receiver: 2.4g communication
Paired mobile bluetooth devices: bluetooth BLE4.0
Storage Mode
Offline Storage Mode: When the scanner exits the connection range,
the data is automatically stored. Storage capacity is 512000 characters.
Inventory storage mode: Scanner can enter inventory mode,
storage capacity is 512000 characters.
Pairing Model
One to One: One Scanning Gun Pairs One Receiver,
One scanner paired with a Bluetooth mobile device.
Receiving End
Dedicated Bluetooth receiving base, Android, IOS Mobile devices.
Physical Parameters

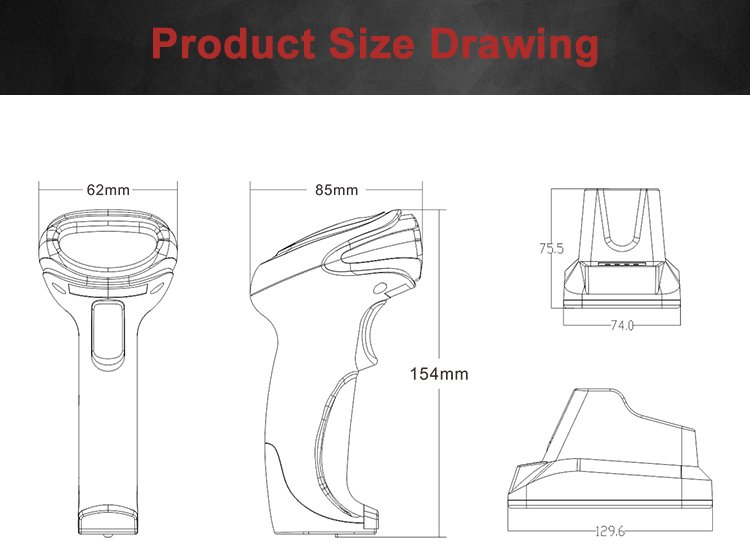

Dimensions
85mm*62mm*154mm
Weight
317.9g
Material
ABS+PC
Cable Length
1.2M
Environmental Parameters
Operating Temperature
-20℃ ~50℃
Storage Temperature
-40℃~70℃
Relative Humidity
0%~95% RH（Non-condensing）
Drop/Shock Resistance
Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Voltage
DC5V±5%
Operating Current
280mA
Standby Current
0mA(Standby is to cut off battery power)
Charging Mode
Contact the charging
Battery Working Time
7h
Charging Time
5h

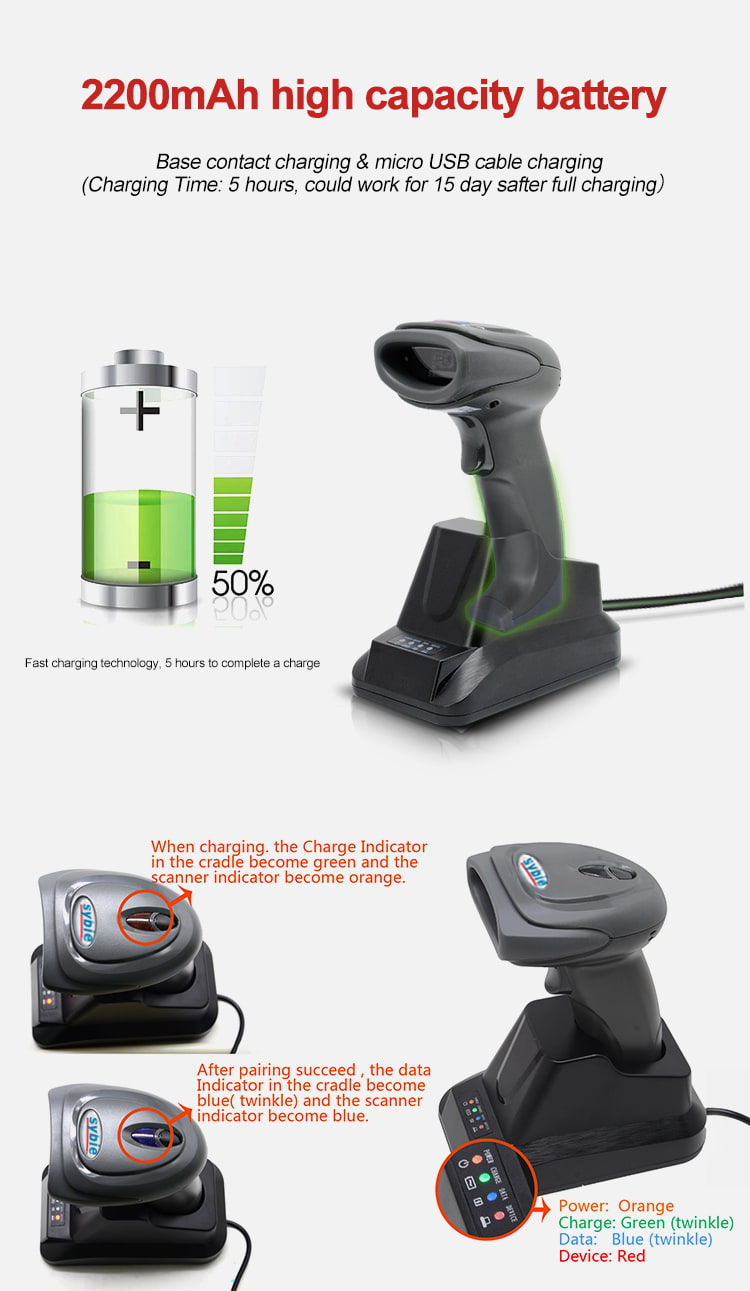

Lithium battery
2200mA
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q3: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem.
During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
Q5 :What Value-added services can be provided
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
