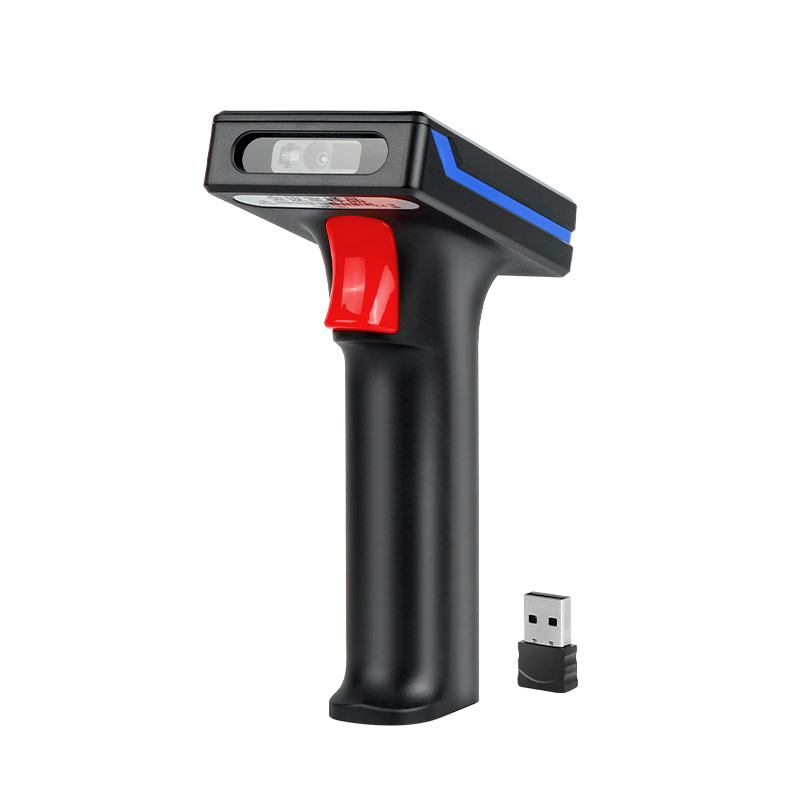

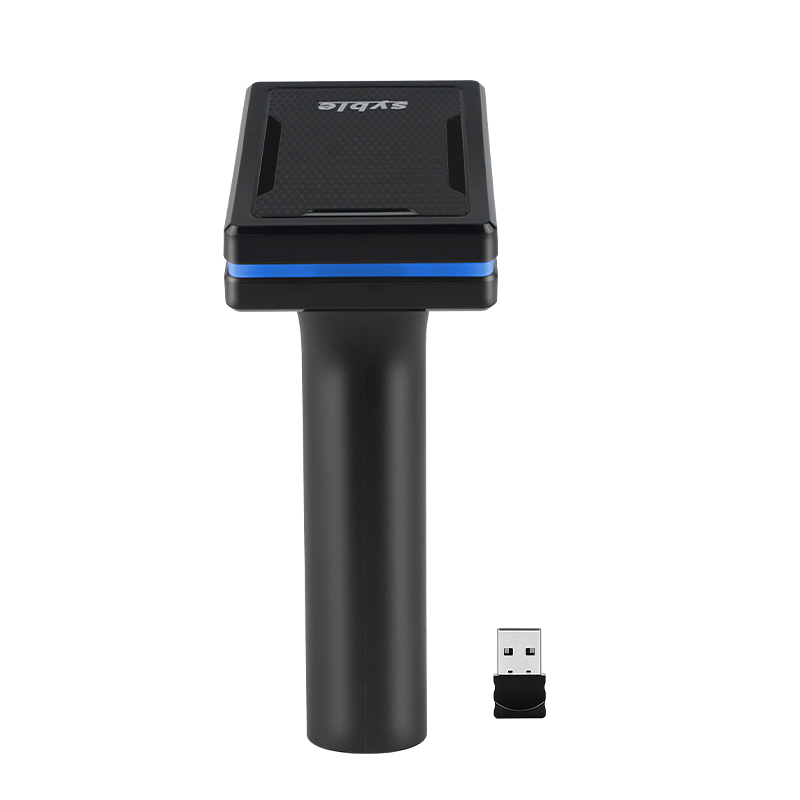

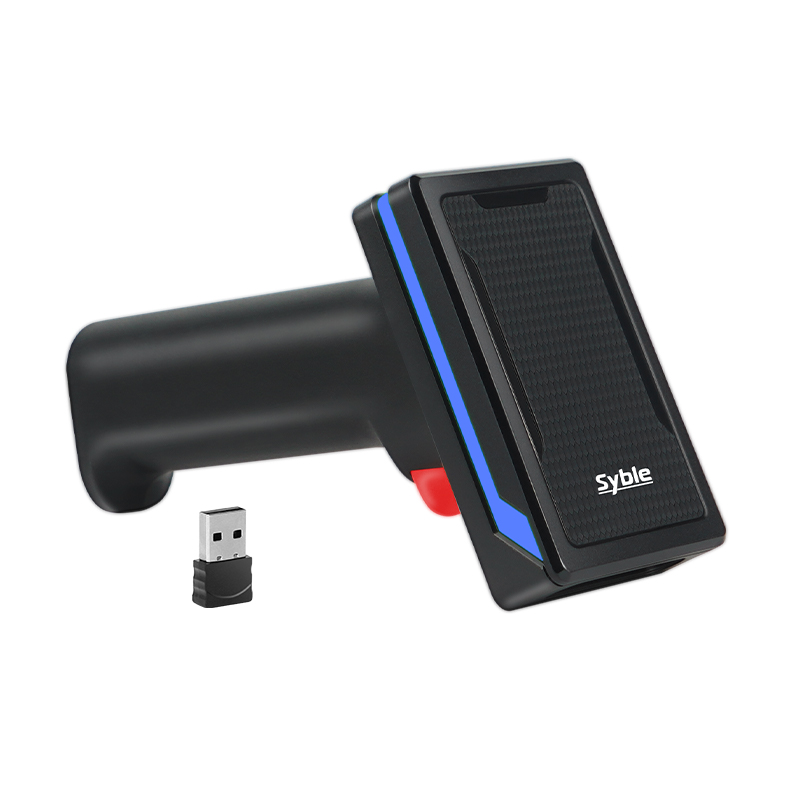

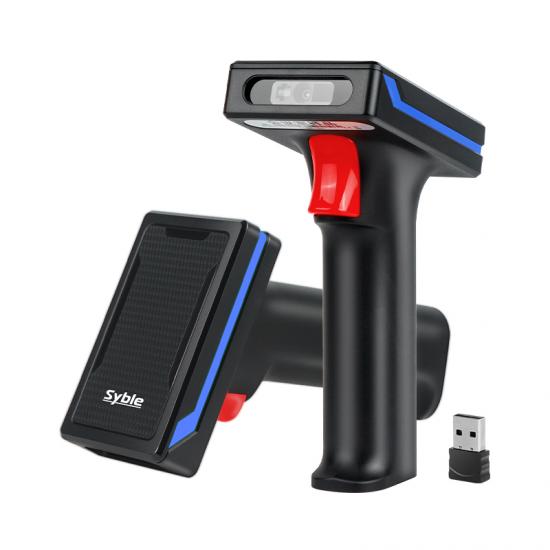

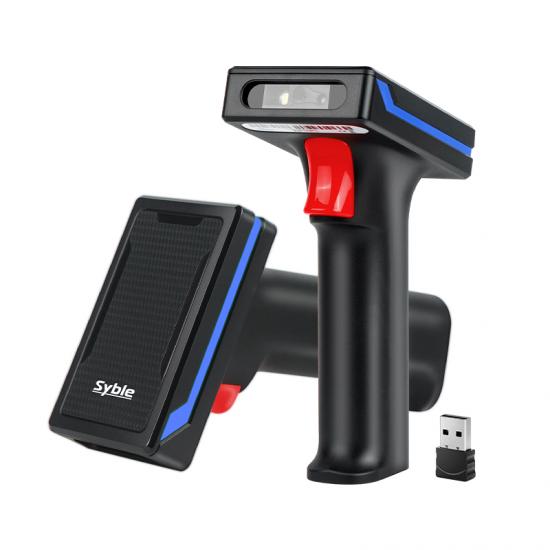

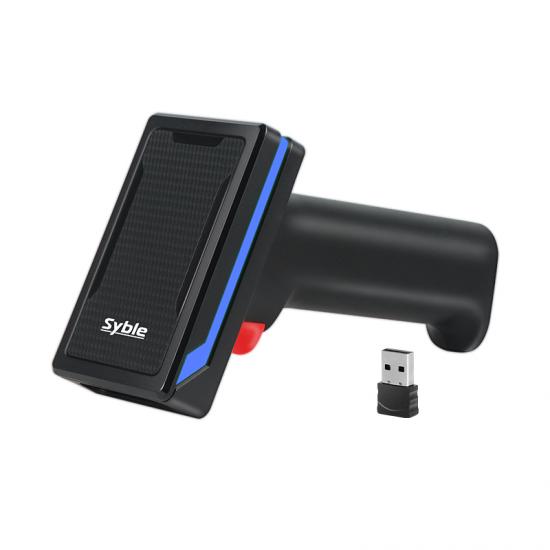

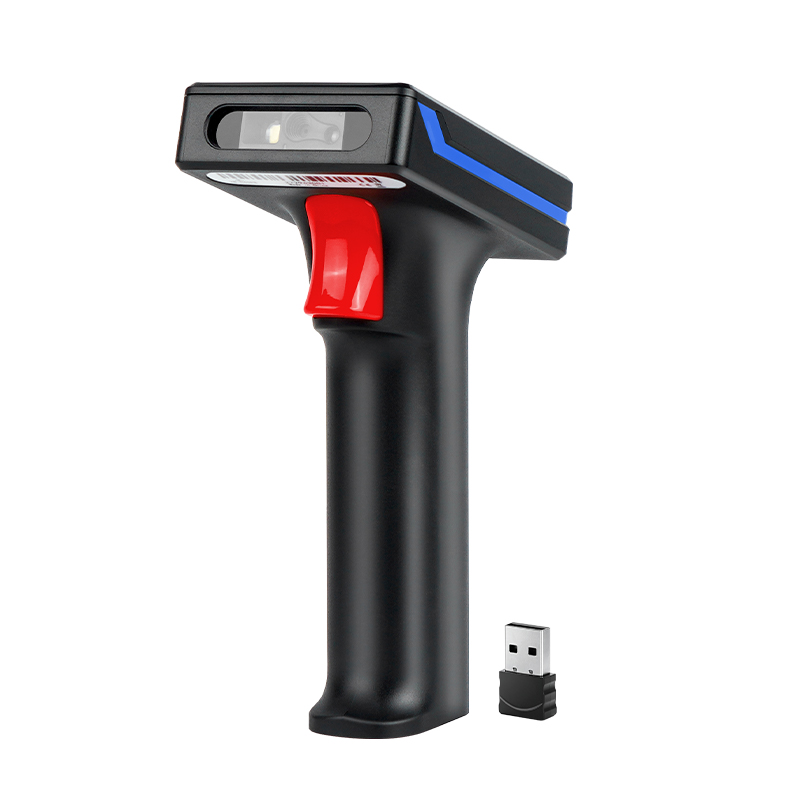

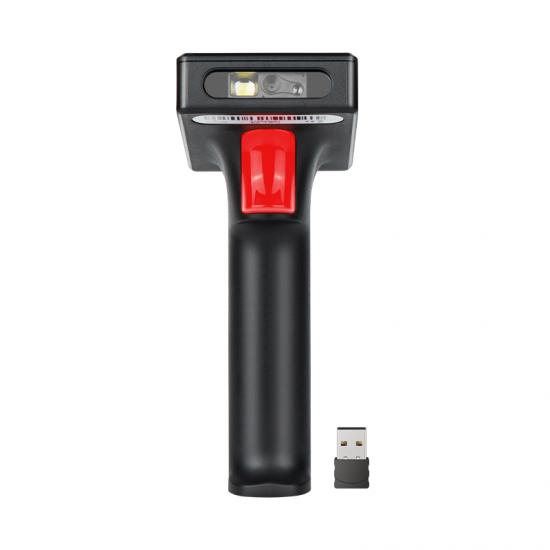

Syble XB-D40RB 2d wireless handheld barcode scanner combines stylish design with exceptional durability (10M+ trigger life, 1.5m drop resistance). It offers plug-and-play compatibility across all systems and dual wireless modes (2.4G + Bluetooth), plus offline storage and inventory support. With 4mil precision and fast 1D/2D scanning, it’s a cost-effective solution for retail, logistics, and inventory management.
Item NO.:
XB-D40RBPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
7-10days2D Cordless Handheld Barcode Scanner

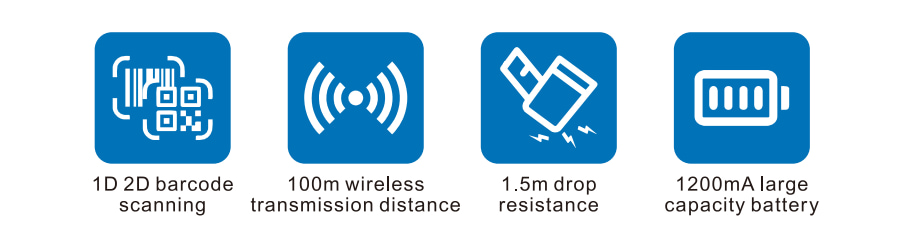

Product Features：
Specification
Performance Parameters
Light Sources
White lighting lamp, red aiming lamp
Supported Symbology
1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39,Code93, CodaBar, Interleaved 2of 5, Industrial 2 of 5, Matrix 2 of 5.Code11, MSI-Plessey, Standard 2 of 5, Plessey, China Post,Code16K, GS1 Databar(RSS-Expand, RSS-Limited, RSS-14.
Scanning Principle:
Image CMOS
Resolution
640*480
Scan Method
Manual scan/Continuous scan/Auto-sensing scan
Scan Angle
Rotation angle 360°, elevation angle ± 60°, deflection angle±60°
Depth of scan field
EAN13 60-220mm(13mil)
Contrast
≥20%
Error Rate
1/5 million
Communication Interface
Receiver: USB-HID, USB-COM; Bluetooth: HID, BLE mode
Wireless Transmission Distance
100 meters (Open distance)
Physical Parameters
Material
ABS+PC
Dimension
68*85*181mm
Cable Length
0.8M
Environmental Parameters
Operating Temperature
-20℃ ~50℃
Storage Temperature
-40℃~70℃
Relative Humidity
5%~95% RH（Non-condensing）
Ambient lighting
0~100000LUX
Drop/Shock Resistance
Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Working Voltage
DC5V±5%
Operating Current
210mA
Standby Current
0mA(Standby is to cut off battery power)
Battery Working Time
The scanning gun continuously scans codes, with a workingtime of up to 7 hours
Charging Time
4-5h
Lithium battery
1200mAh
Charging Model
Type C USB charging cable, plug-in direct charging.
2D: QR, PDF417, DataMatrix(ECC200), Aztec, Hanxin Code,Maxicode, Micro QR, Micro PDF417.
Scanning accuracy
≥4mil
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
