Item NO.:
XB-D15RBPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and RedProduct weight:
187gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days
Product Features
Aesthetically appearance design
The XB-D15RB,with its soft rubber wrapped design and the intricate lines of the handle and top cover,imbues its cost-effective products with a sense of luxury.
Materials and texture
The design material thickness of XB-D15RB product is greater than 3mm, and pure and non mixed ABS raw materials are used to ensure the texture of the product.

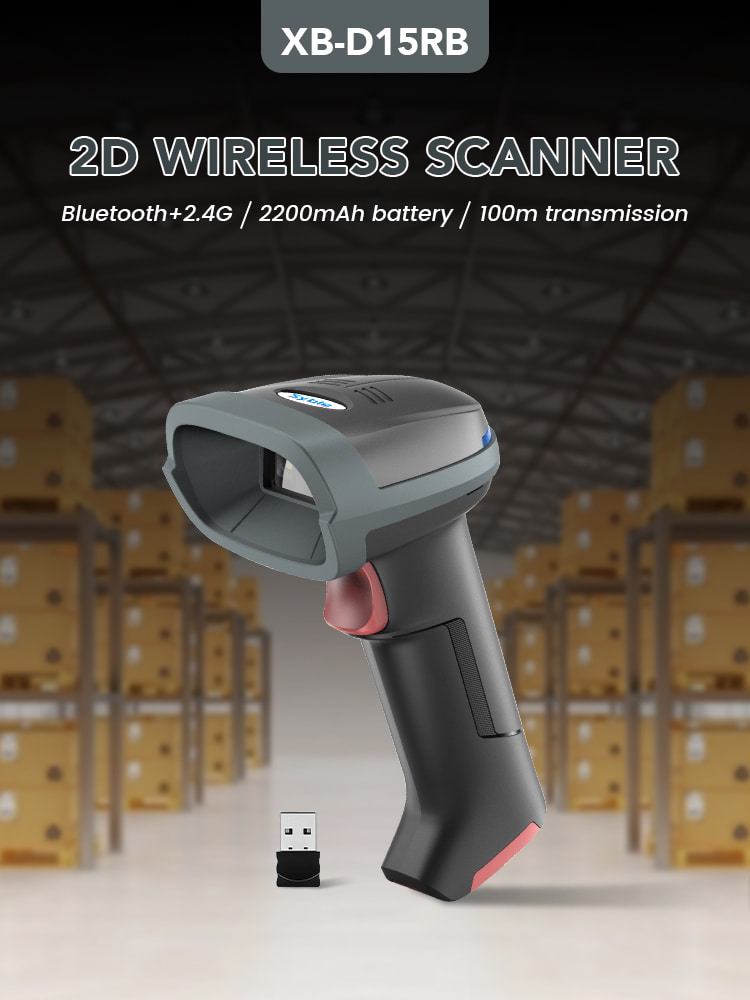

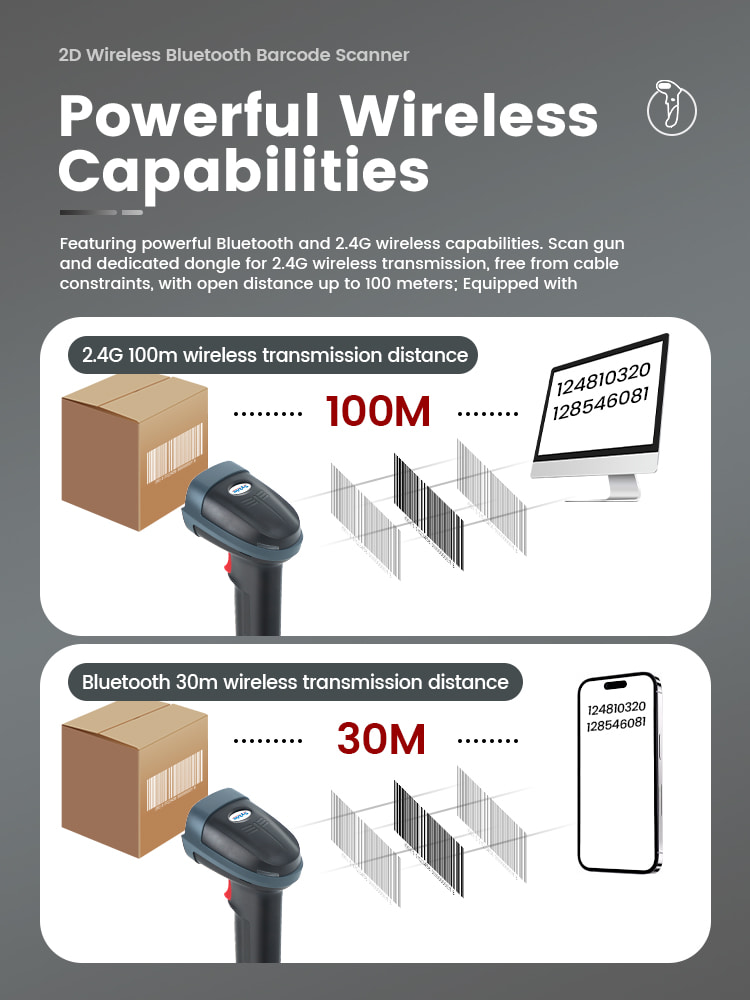

Dual Wireless Mode
2.4G and Bluetooth dual wireless mode .The scanner and usb dongle transmit data through stable and fast 2.4G frequency,in the open yard transmit distance reach 100m. also the scanner can connect totablets,mobile,laptop etc bluetooth devices
Offline Storage & Inventory Mode
XB-D15RB supports offline storage mode. When the scanner is not connected or disconnected, the scanned data is automatically stored in the machine and automatically transmitted after reconnection. It also supports inventory mode. After entering the inventory mode, can conduct asset inventory without distance constraint.
Plug and Play
Plug and play, no need to install any drivers, and compatible with all computers and POS devices on the market. Support Windows, Android, Linux, and iOS.

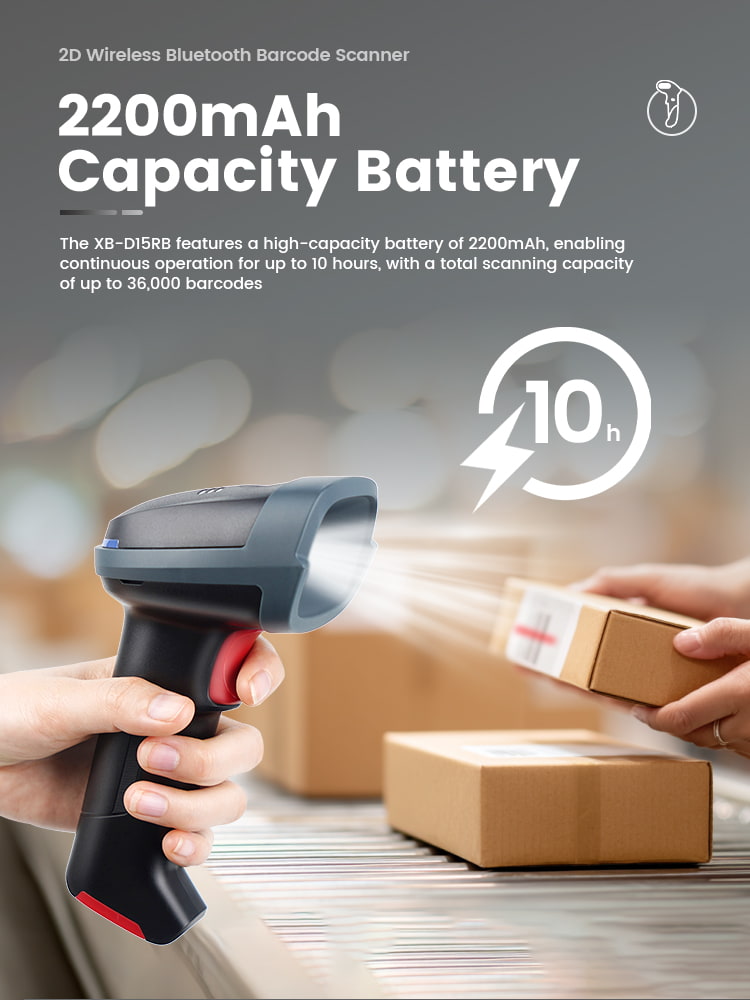

Large-Capacity Battery
Use 2200mAh battery,which support continuous scanning 10 hours (reading interval 1 second),equal to 36000scans.





Specification
|
Performance Parameters |
|
|
Light source type |
Red LED aiming light, white LED illumination |
|
Scanning principle |
Imaging CMOS |
|
Resolution |
640*480 |
|
Trigger mode |
Manual scan/continuous scan/auto-sensing scan |
|
Scan Angle |
Rotation angle 360",elevation angle ±60°, deflection angle ±60° |
|
Scanning depth of field |
EAN 13 40mm-240mm(13mil); Code39 30mm-100mm(5mil) |
|
Scanning accuracy |
4mil |
|
Bit Error Rate |
1/5 million |
|
Contrast |
≥20% |
|
Communication interface |
Receiver:USB-HID,USB-COM; Bluetooth: HID, BLE mode |
|
Wireless communication method |
Pairing dedicated receiver:2.4G communication; Pairing mobile Bluetooth device: Bluetooth communication |
|
Wireless transmission distance |
Open distance: 100 meters |
|
Receiving end |
Dedicated base receiver for Android/iOS mobile devices |
|
Decoding capability |
1D:EAN13, EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39,Code93,CodaBar, Interleaved 2of 5, Industrial 2 of 5, Matrix 2 of 5, Code11,MSl-Plessey, Standard 2 of 5, Plessey, China Post, Code16K,GS1 Databar(RSS-Expand, RSS-Limited,RSS- 14. |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
170mA |
|
Standby current |
0mA (battery power is cut off in standby mode) |
|
Lithium battery |
2200mAlithium battery |
|
Continuous working time |
Scanning gun scans continuously for 1S, working time is 10 hours/scanning number is 36000 times |
|
Charging time |
5-6 hours |
|
Charging method |
Type-C interface, plug in and charge directly |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~50℃ |
|
Storage temperature |
-40℃-70℃ |
|
Working humidity |
5%~95% (no condensation) |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
|
Physical Parameters |
|
|

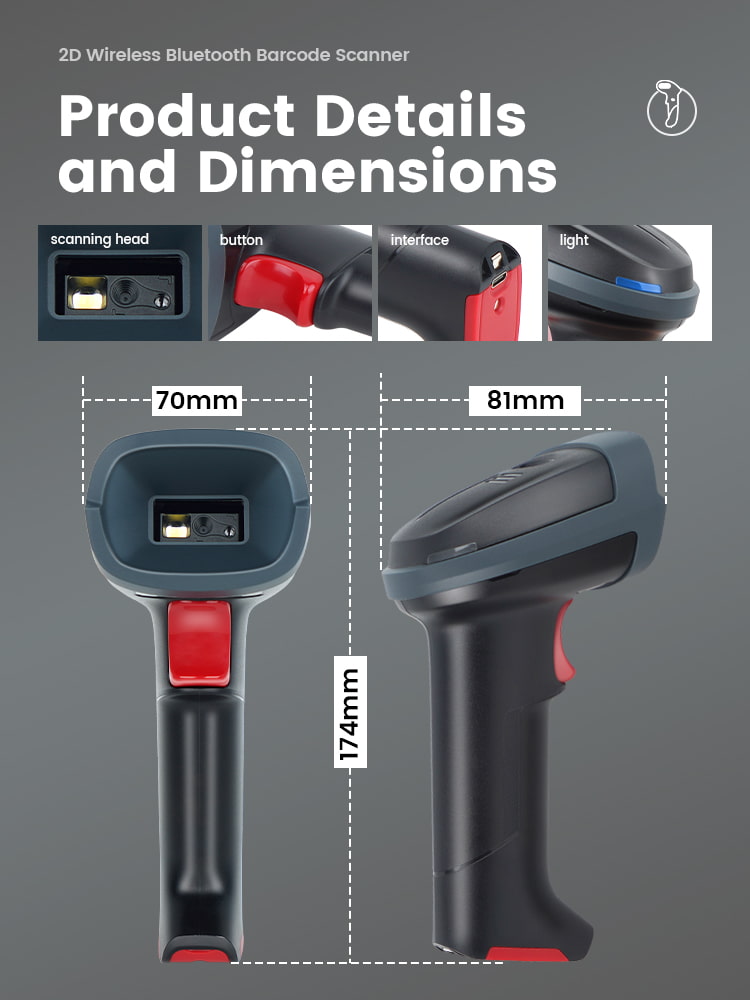

Scanner size |
70*81*140mm |
|
Scanner |
187g |
|
Material |
ABS+PC |
|
Charging cable standard |
0.8 meters |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is a professional barcode scanner manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:Is your production capacity and delivery schedule stable?
We have our own injection molding department, which offers greater control over the structure, materials and production schedule. This enables us to better ensure consistent quality and stable delivery times.
Q5:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q6:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
