Item NO.:
XB-D30BTPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and GreenShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days

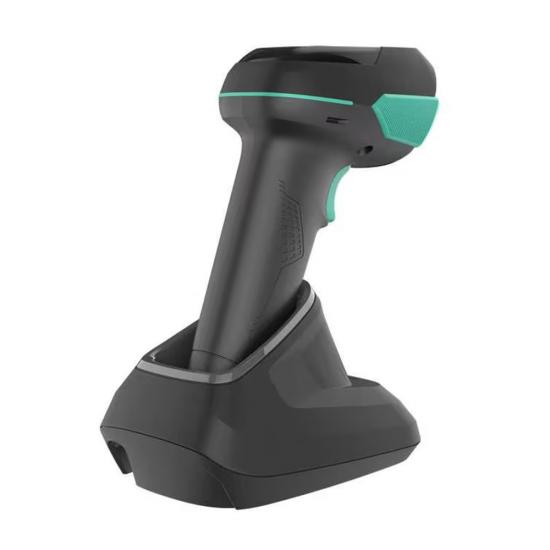

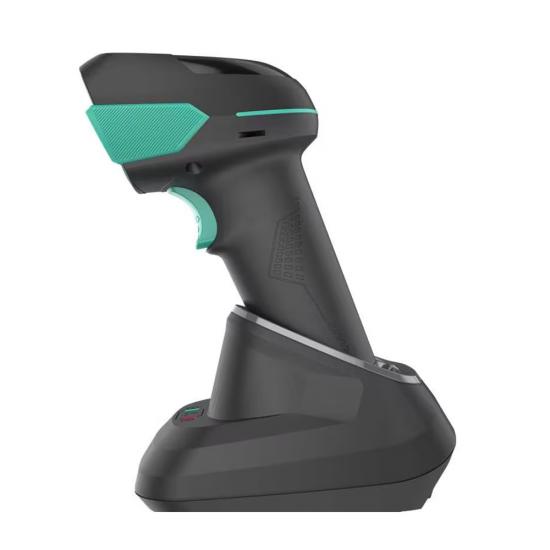

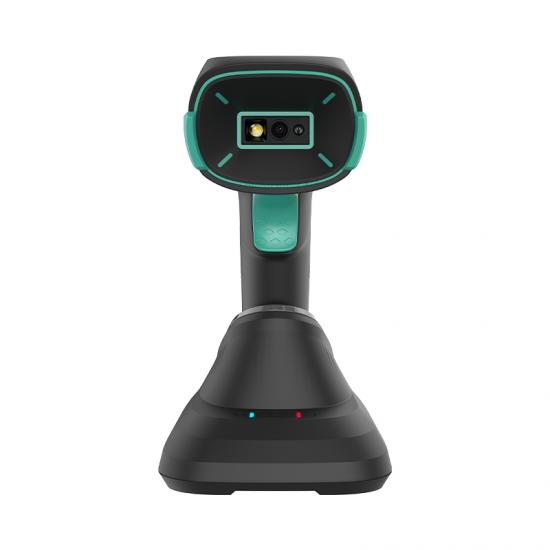

XB-D30BT is a 2D wireless bluetooth barcode scanner with charging base.This scanner with charging base combines convenience with professional performance, not only supports fast charging and wireless placement, but also gives the device a long battery life, allowing you to get rid of cables and complete scanning tasks efficiently anytime, anywhere.
Product Feature
The upper cover adopts two-color mold design, the product line is full, very visual impact.
2.4G and Bluetooth dual wireless mode.
The movement tolerance can reach 1 m/s
Support offline storage mode and inventory mode.
2200mAh battery, it can scan for 28 hours continuously and scan 100,000 times.
Easily passes multiple 1.5 meter drops.
All common 1D and 2D (QR) codes are supported.
The wireless charging cradle for XB-D30BT supports both data transmission and charging, as well as one-touch pairing.
Specification
|
Performance Parameters |
|
|
Light source type |
White illumination light, red aiming light |
|
Scanning principle |
Imaging CMOS |
|
Resolution |
640*480 |
|
Trigger mode |
Manualscan/continuous scan/auto-sensing scan |
|
Scan Angle |
Rotation angle 360°,elevation angle ±60°, deflection angle ±60° |
|
Scanning depth of field |
EAN 13 50mm-330mm(13mil); Code39 40mm-160mm(5mil) |
|
Bit Error Rate |
1/5 million |
|
Contrast |
≥10% |
|
Scan accuracy |
≥3mil |
|
Communication interface |
Receiver:USB-HID,USB-COM; Bluetooth: HID, BLE mode |
|
Wireless communication method |
Pairing dedicated receiver:2.4G communication; Pairing mobile Bluetooth device: Bluetooth communication |
|
Wireless transmission distance |
Open distance: 100 meters |
|
Receiving end |
Dedicated base receiver for Android/iOS mobile devices |
|
Decoding capability |
1D: EAN-13, EAN-8, UPC-A, UPC-E0, UPC-E1,Code 128, Code 39,Code 93, Codabar, Interleaved 2-of-5, Industrial 2-of-5, Matrix 2-of-5,Code 11, MSI-Plessey, Standard 2-of-5, Plessey, China Post, Code 16K,GS1 Databar(RSS-Expand, RSS-Limited, RSS-14). |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
170mA |
|
Standby current |
0mA (battery power is cut off in standby mode) |
|
Lithium battery |
2200mAlithium battery |
|
Continuous working time |
Scanning gun scans continuously for 1S, working time is 28 hours/scanning number is 100000 times |
|
Charging time |
5-6 hours |
|
Charging method |
Place the base for direct charging |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~50℃ |
|
Storage temperature |
-40℃-70℃ |
|
Working humidity |
5%~95% (no condensation) |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
|
Physical Parameters |
|
|
Scanner size |
173*67*79mm |
|
Material |
ABS+PC |
|
Weight |
191g (scanner) 130g (base) |
|
Charging cable standard |
1.5 meters |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why so competitive?
With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost.
Q3: How about the quality?
Professional QC team and testing machine.All the products pass CE,FCC,ROSH, etc.
Q4: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q5: What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranties.During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
