Syble XB-8808G 2D Desktop Barcode Scanner employs advanced 1.3-megapixel imaging CMOS technology to quickly and accurately read traditional 1D barcodes and 2D codes like QR and DataMatrix. It delivers outstanding performance even with screen codes, damaged, or blurred barcodes. Its rugged construction complements a compact, stylish form factor, saving space while withstanding high-frequency, high-intensity work environments. Plug-and-play functionality ensures seamless compatibility with mainstream operating systems and business software, greatly simplifying deployment. Designed for diverse applications including retail, logistics, office, and healthcare.
Item NO.:
XB-8808GPayment:
EXW/FOBProduct Origin:
ChinaColor:
BlackProduct weight:
497.1gShipping Port:
GuangzhouLead Time:
5-7days
Product Features

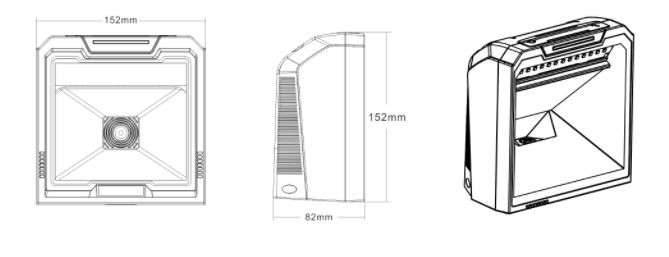

Product Size
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
SXGA-W(Width1280*high1024) Ratio（5:4） |
|
Supported symbologies |
1D: EAN-8, EAN-13, EAN-132 add-on, EAN-135add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128、GS1-128, GS1 DataBar(RSS14), GS1 DataBar Limited, GS1 DataBar Expanded. 2D: PDF417, MicroPDF417, QR-code、Micro QR, Data Matrix, QR, Aztec. |
|
Scan Range |
5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(Code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm |
|
System compatibility |
Linux、Android、Windows XP/7/8/10/MAC |
|
Minimum recognition accuracy |
Code 39 4mil |
|
Motion tolerance |
3.8meters/second |
|
Scan Mode |
Continuous Scanning |
|
Print contrast |
20% |
|
Recognition angle range |
Turn ±360°, elevation ±60°, declination ±70° |
|
Mutual Move |
Indicator light: Red and blue dual color indicator light: Blue light flashing code reading prompt, blue light power indicator; Red light: turn off QR code reading. Buzzer: start prompt, read code prompt; Key: switch three tones; 1D code switch. |
|
Interface |
USB(Drive-Free), RS232, USB-COM |
|
Physical Parameters |
|
|
Dimensions |
152mm*82mm*152mm |
|
Weight |
497.1g |
|
Material |
ABS+PC |
|
Cable length |
2M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ - 55℃ |
|
Storage Temperature |
-20℃-60℃ |
|
Humidity |
5% to 95% RH.Non-condensing |
|
Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |
|
Ambient Ligh |
0-70000LUX |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Current |
USB: Standby current 180mA; Working current 210mA; RS232: Standby current 180mA; Working current 210mA |
FAQ:
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: Why so competitive? With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost. |
|
Q3: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q4: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q5:What’s the warranty policy for the barcode scanners? Syble provide 24 months maintenance warranty. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
Value-added services: |
Leave A MessageThe 2d desktop barcode scanner is new design item ,quick speed and accurate reading barcode. Ultra wide scan wide angle and ultra far reading distance. Square code reader is scan scan more 1d and 2d barcode,widely be used in fixed device wechat ,Alipay ,supermarket etc.,
1d 2d desktop barcode Scanner can easily capture bar codes 1D, 2D on labels, paper, and mobile phone Sensitive and accurately Plug and Play, no need for any driver or software. the scanner into USB port of windows/Linux PC, Mac,etc.
The 2d desktop barcode scanner is new design item ,compatible with Linux,Android,Windows XP,7,8,10,MAC. Quick and accurate reading of universal 1D and 2D code.
The 2D omni Barcode Scanner is the hot selling item, it is support multi-language ,which is can scan various 1d code and QR code .High quality withstands multiple times 1.5meters drops to concrete.
The 2d desktop scanner is a excellent 1d/2d reading performance , supports 1d and 2d barcodes.Fast and accurate decoding to improve user experience and support all kinds of bar code scanning.
This hands-free 2d barcode scanner can capture 1D, QR, and 2D barcode on paper and screen easily. The scanner’s sleek and elegant design blends in retail environments seamlessly, providing superior-performance scanning of all printed barcodes, and digital barcode on any smart device.
This 2d desktop barcode reader with professional technology, newly upgraded decoding chip. Scanning and reading 1D/2D high-density barcode information. Improve the real-time, accuracy and efficiency of data acquisition. Greatly improve the speed of scanning code, and has a large screen recognition angle, adjustable scanning window elevation angle ±65°, rotation angle ±360°, deflection angle ±65°, which meet diversified scanning application scenarios.
1D 2D Wired Desktop Hands-free Barcode Scanner, Cheap but Efficient. With auto-sensing scanning mode, smart recognition and then scan barcodes.
