Item NO.:
XB-6221RBPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guanghzhou/ShenzhenLead Time:

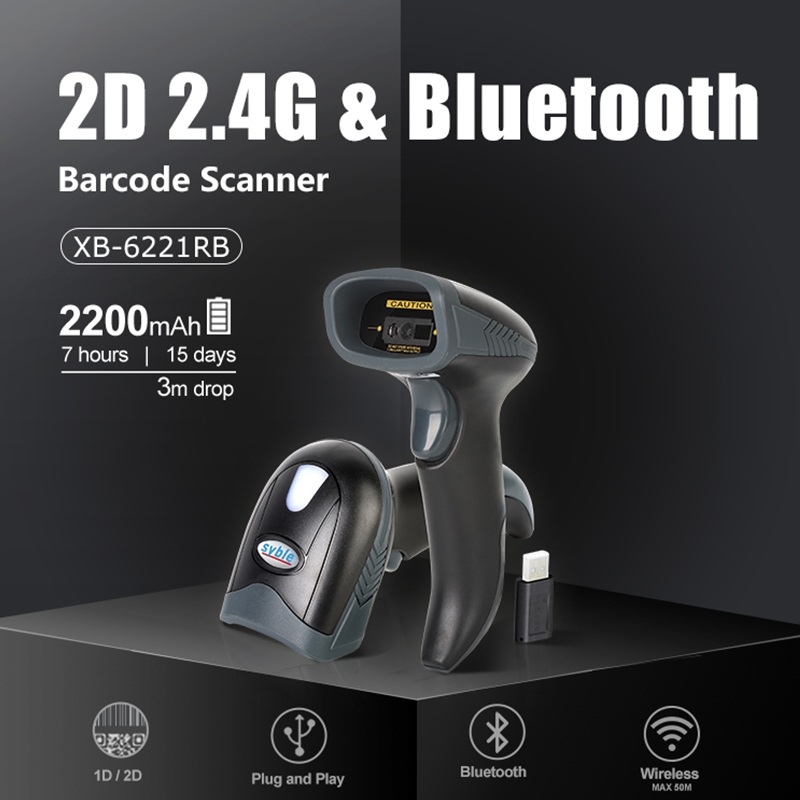

7-10daysXB-6221RB is high cost effective and stylish 2D 2.4G bluetooth wireless barcode scanner of Syble barcode scanner manufacturer. The max wireless transmission range can be 30-50m and the connection is very stable. It can read various 1D & 2D codes, built-in new decoding chip, interpretation of various 1D and 2D barcodes. High-speed and accurate, it can scan not only paper codes but also screen codes. Fast charge and long endurance, built-in battery, after fully charged, it can work continuously for 6 hours. The housing case of the scanner is covered with thick PS+ABS material, withstands multiple times 3m drops to concrete. XB-6221RB are widely used, and are the best assistant in supermarket, library, hospital, pharmacy, express, retail store, warehouse and other industries.
Features：

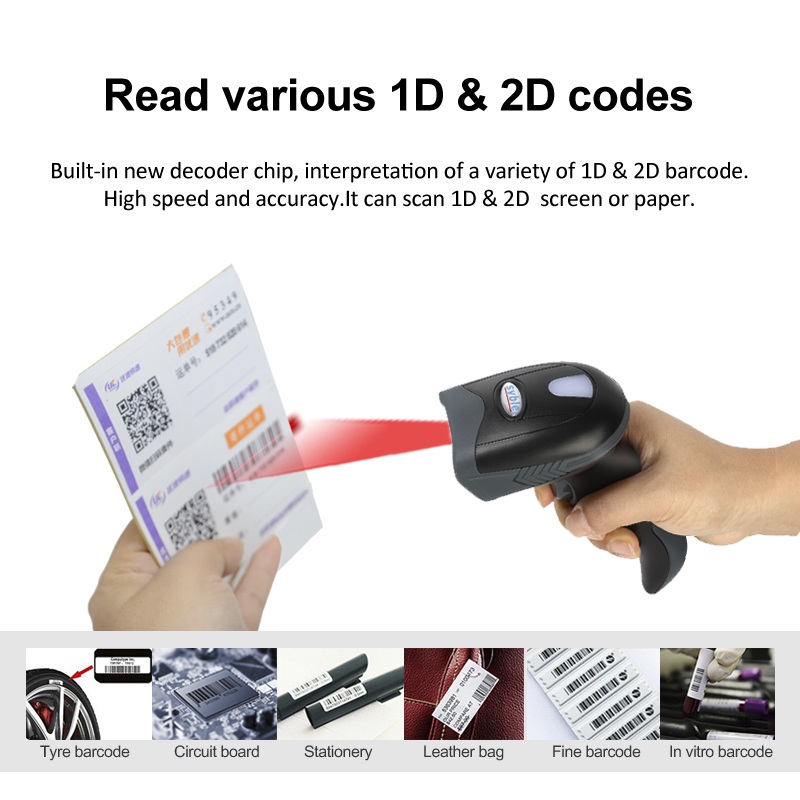

1. New decoding chip interrupts various 1D/2D codes.
2. USB Bluetooth Receiver supports plug and play, easy to set up and quickly match.

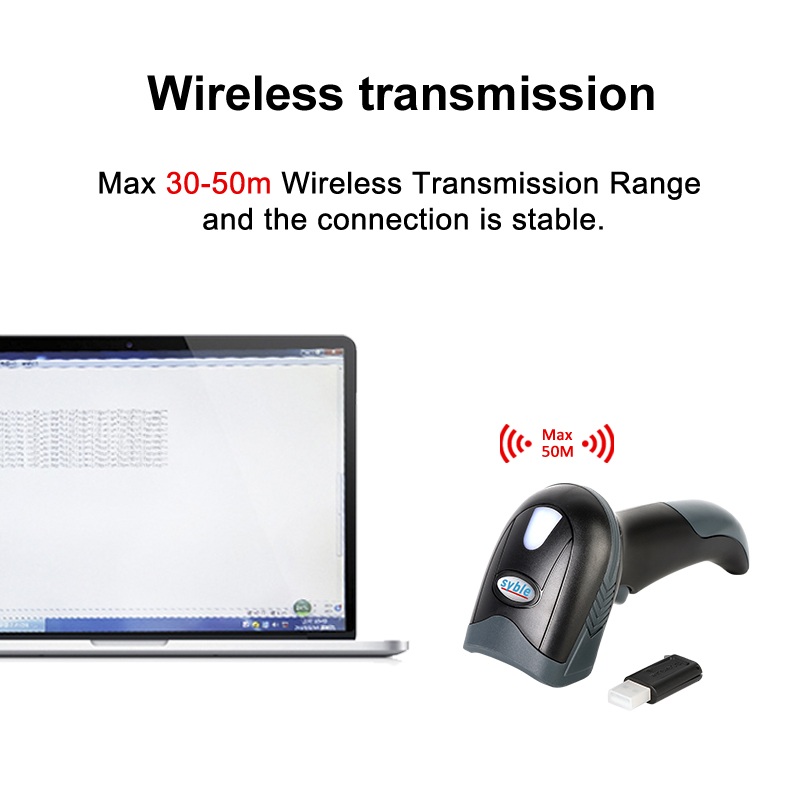

3. Wireless Bluetooth transmission distance: 30-50 meters(open area).
4. 512,000 characters can be stored in offline/inventory storage mode.
5. Can be paired directly with Bluetooth-enabled mobile phones, tablets and laptops.
Model Name: XB-6221RB

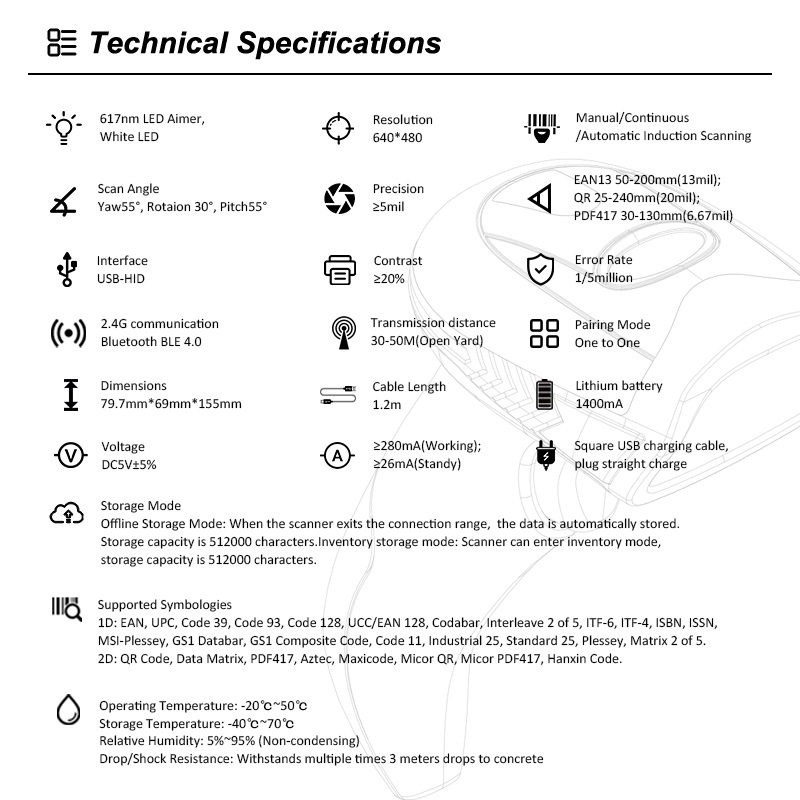

Specification
Performance Parameters
Light Sources
617nm LED Aimer,White LED
Supported Symbologies
1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar,
Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar,
GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey,
Matrix 2 of 5.
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code.
Resolution
640*480
Scan Method
Manual/Contnuous/Automatic inductive scanning
Scan Angle
Yaw 65°,Rotation 360°,Pitch 55°
Precision
≥5mil
Contrast
20%
Depth of scan field
EAN13 50-200mm(13mil);
QR 25-240mm(20mil);
PDF417 30-130mm(6.67mil)
Error Rate
Less than 1/5million
Interface
USB-HID
Wireless Communication
Pairing dedicated receiver: 2.4G communication
Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0
Transmission Distance
30-50M (Open yard)
Storage Mode
Offline Storage Mode: When the scanner exits the connection range,
the data is automatically stored. Storage capacity is 512000 characters.
Inventory storage mode: Scanner can enter inventory mode,
storage capacity is 512000 characters.
Pairing Mode
One to One: One Scanning Gun Pairs One Receiver,
One scanner paired with a Bluetooth mobile device.
Physical Parameters
Dimensions
79.7mm*69mm*155mm
Weight
223.9g
Material
ABS+PC
Cable Length
1.2M
Environmental Parameters
Operating Temperature
-20℃ ~50℃
Storage Temperature
-40℃~70℃
Relative Humidity
5%~95% RH（Non-condensing）
Ambient lighting
0~100000LUX
Drop/Shock Resistance
Withstands multiple times 3 meters drops to concrete
lectrical Parameters
Voltage
DC5V±5%
Operating Current
when not scanning code ≥26mA; when scanning code ≥280mA
Standby Current
0mA(Standby is to cut off battery power)
Charging Mode
Contact the charging
Battery Working Time
7h
Charging Time
5h
Lithium battery
2200mA
Charging Model
Square USB charging cable, plug straight charge
