Item NO.:
XB-5055RPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackProduct weight:
155gShipping Port:
GuangzhouLead Time:

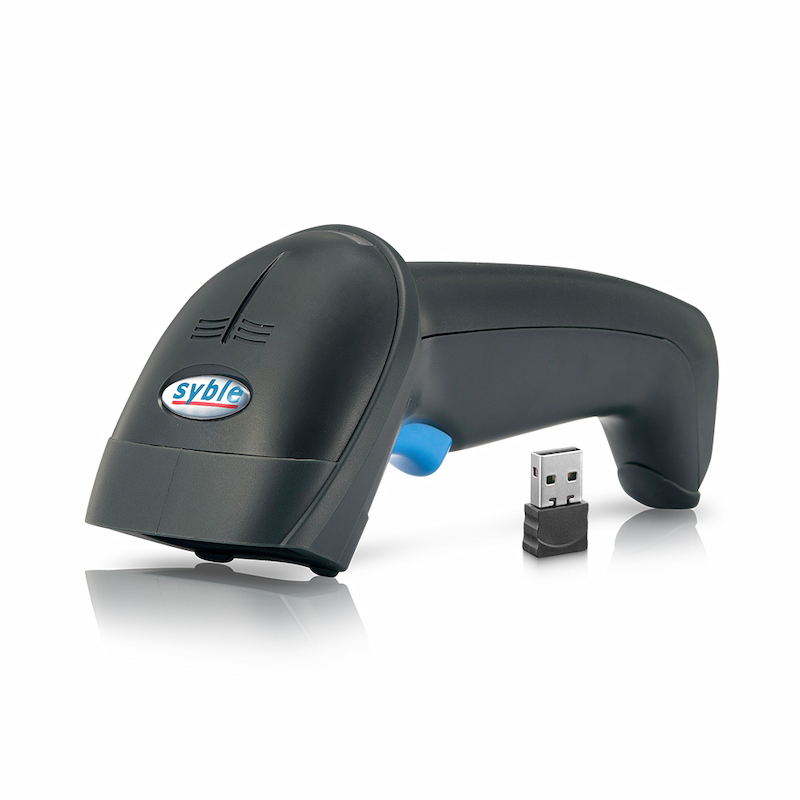

3-7 days1D High resolution laser Wireless handheld Barcode Scanner XB-5055R ,which is designed special for retail ,logistic ,warehouse and point of sale check out management.
Product features
Product overview
Specification
|
Model Number |
XB-5055R |
|
Performance Parameters |
|
|
Light Sources |
617nm Lsaer(Safe visible laser diode) |
|
Supported Symbologies |
UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII,China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5,Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN,Code 32(Italian pharm code), Code 39 extended, ITF-14, RSS 14, etc. |
|
Scan Type |
Single Laser |
|
Scan Speed: |
≥150 times/s |
|
Scan Method |
Manually/Successive/Automatical Scanning(Optional) |
|
Scan Angle |
Yaw 55°,Rotation 30°,Pitch 65° |
|
Precision |
4mil(1mil) |
|
Depth of scan field |
10-250mm(0.33mm,PCS90%) |
|
Error Rate |
Less than 1/5 million |
|
Interface |
USB-HID |
|
Operating Frequency |
2.4G |
|
Transmission Distance |
50-80M(Open Yard) |
|
Storage Ability |
512000 Bytes |
|
Pairing Model |
One to one |
|
Physical Parameters |
|
|
Dimensions |
83mm*70mm*172mm |
|
Weight |
152.2g |
|
Material |
ABS+PC，lameresistant material |
|
Cable Length |
1.2M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~40℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
0%~85%（Non-condensing） |
|
Drop/Shock Resistance: |
Withstands multiple times 1.5 meters drops to concrete |
|
Electrical Parameters |
|
|
Voltage |
DC5V±10% |
|
Current |
85mA(Operating); 150uA(Quiescent Current) |
|
Lithium battery |
550mA |
