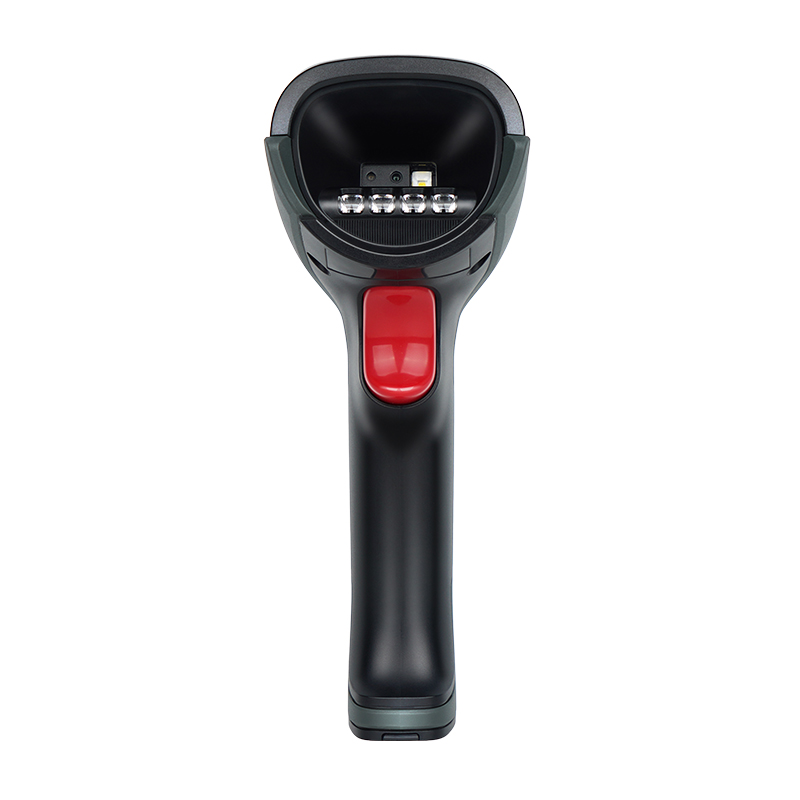

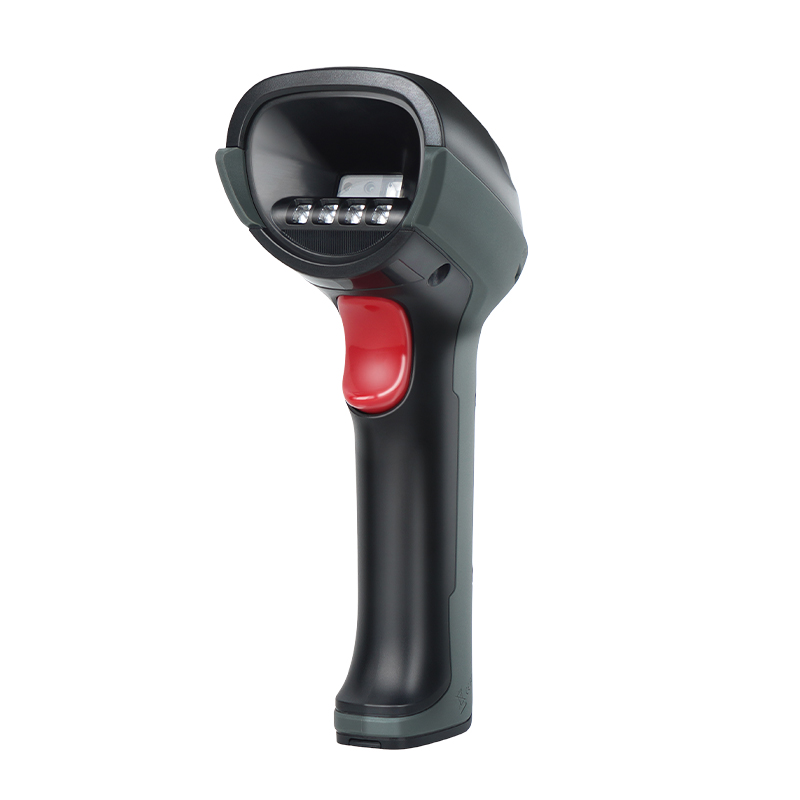

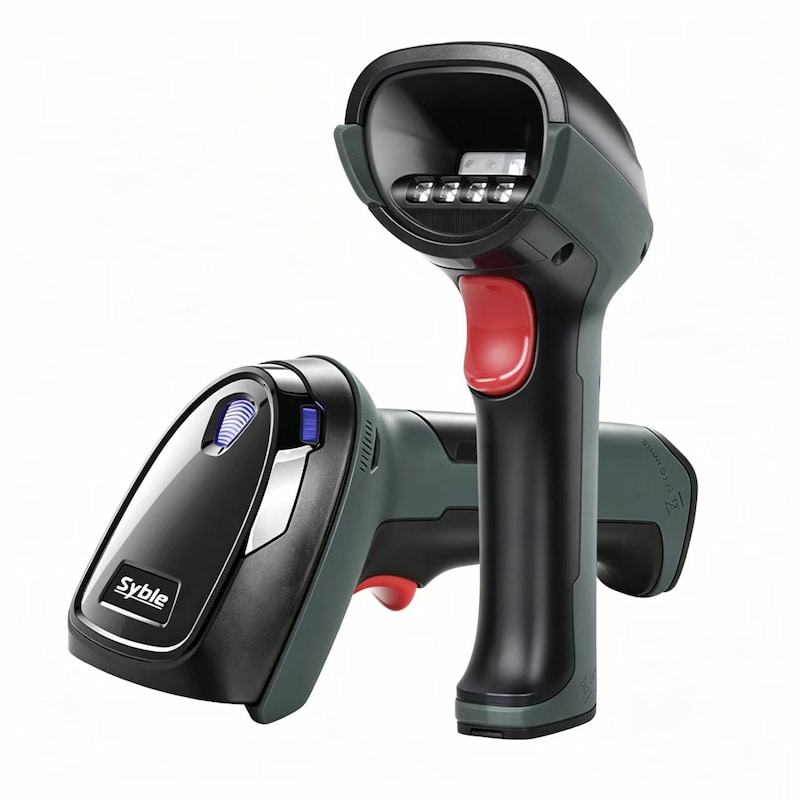

The XB-D70-XD is an industrial-grade wired 2D handheld scanner that utilises AI algorithms and a 1.4-megapixel sensor, designed specifically for scanning DPM codes
Item NO.:
XB-D70-XDPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days
Product Features
Utilising industry-leading Al decoding technology with a customized Al chip and deploys a full-link Al deep decoding algorithm, supporting the reading of complex DPM barcodes.
The XB-D70-XD is equipped with a flexiblecustomizable intelligent light source, allowingusers to set it according to their own needs.
With high-performance CMOS sensor and professional two-dimensional lens, the scanning depth of field up to 400MM.
The trigger has a unique silicone protection design, and the life of trigger over 10 million times.
Plug and play, no need to install any drivers, and compatible with all computers and POS devices on the market. Support Windows, Android, Linux, and IOS.
The XB-D70-XD features an internal anti-shock buffer design and a dual-color design ofhard and soft rubber, delivering strong dropresistance.
It easily passes multiple 1.5-meterdrop tests and is equipped with a 1.5-meterdrop testreport.
Support USB-HID, USB-COM, RS232 interfaces.


Specification
|
Performance Parameters |
|
|
Light source type |
White light illumination LED, red laser LED aiming |
|
Decoding capability |
1D: Code 39, Code93, Code128, EAN-8, EAN- 13, Interleaved 2 of 5,UPC, Pharmacode, Codabar. 2D: QR code, DataMatrix, Maxicode, Aztec, Micro QR, PDF417. |
|
Decoding capability |
Imaging CMOS |
|
Resolution |
1288pixels (H)*1088pixels (V) |
|
Trigger mode |
Manual scan/continuous scan/auto-sensing scan |
|
Scan Angle |
Rotation angle 360°,elevation angle ±65°,deflection angle ±65° |
|
Field of view |
Horizontal 35.5°,Vertical 30.2° |
| Precision |
≥3mil |
|
Scanning depth of field |
EAN 13 55mm-400mm(13mil) Code39 50mm-230mm(5mil) QR Code 75mm-270mm(15mil) Code 128 65mm-220mm(5mil) |
|
Bit Error Rate |
1/5 million |
|
Contrast |
≥20% |
|
Communication interface |
USB-HID,USB-COM,RS232 |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
550mA |
|
Standby current |
150mA |
|
Environmental Parameters |
|
|
Working temperature |
-20℃ - 50℃ |
|
Storage temperature |
-40℃ - 70℃ |
|
Working humidity |
5%~95%(no condensation) |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
|
Physical Parameters |
|
|
Scanner size |
181*68*85MM |
|
Material |
ABS+PC |
|
Charging cable standard |
1.5 meters |
FAQ:
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: Why so competitive? With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost. |
|
Q3: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q4: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q5:What’s the warranty policy for the barcode scanners? Syble provide 24 months maintenance warranty. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
