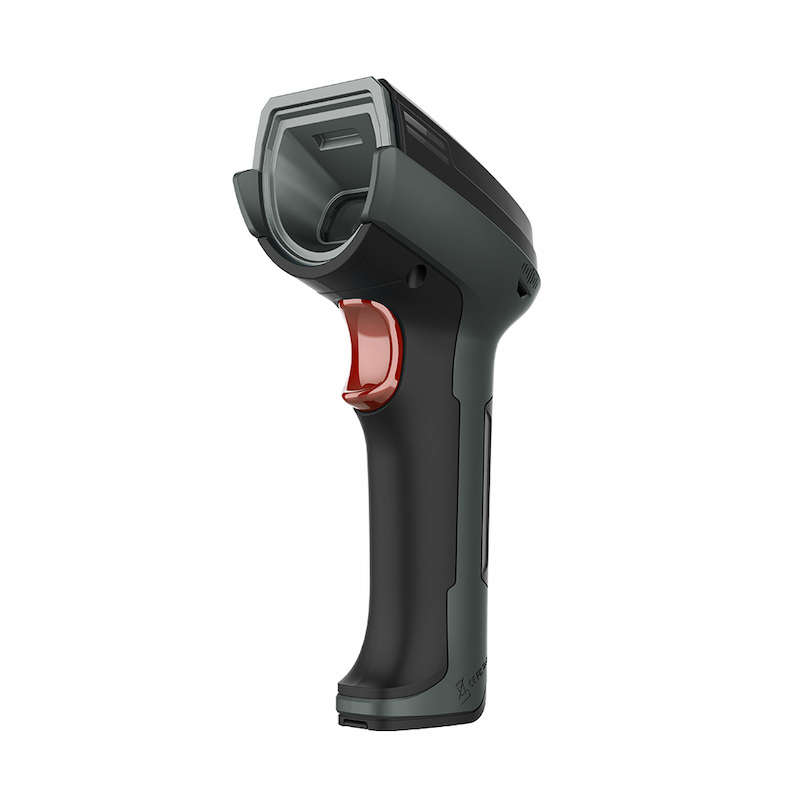

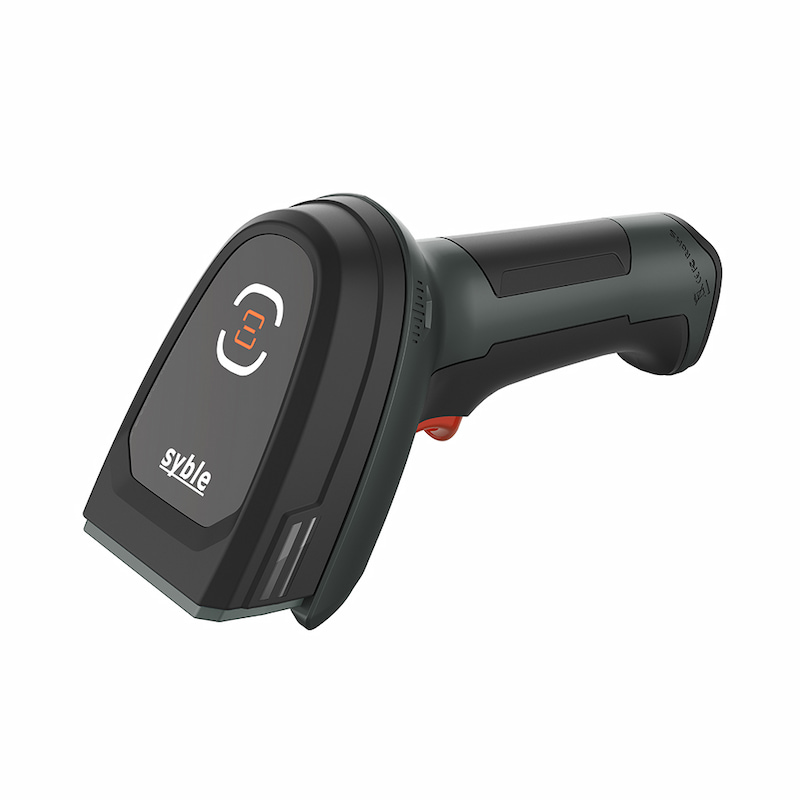

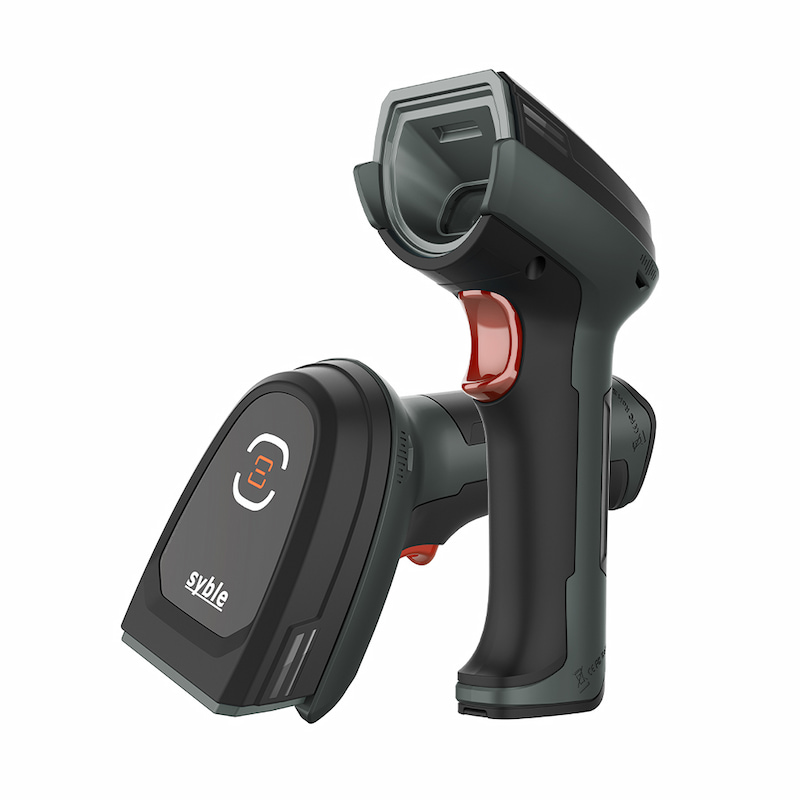

2D QR Code Wired Handheld Barcode Reader

Product Features

• Based on 2D CMOS principle ,it supports all common 1D and 2D（QR）codes. It can easily read 1D and 2D codes on paper and screen.

• It uses 1.2G ultra-high frequency chip, the fast and accurate scanning features allow it use in various scenarios ,which can decode dirty ,wrinkled and damaged barcodes easily.

• Scanning speed 120FPS and movement tolerance 2 m/s.

• Plug and play, no need to install any drivers, and compatible with all computers and POS devices on the market. Support Windows, Android, Linux, and IOS.

• The trigger has a unique silicone protection design, and the life of trigger over 10 million times.

• Adopting the unique dual-sound chamber design, the indication sound is loud and can easily cope with various noisy environments.

• Support USB-HID, USB-COM, RS232 interfaces. Supports secondary development,and can provide technical support and SDK packages

















  Specification

  Performance Parameters
  Light source type	Green LED aiming light, white LED illumination
  Decoding capability	1D:Codabar, Code 39, Code 32, Pharmaceutical (PARAF), Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8,EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited,GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Post. 2D:PDF417, Micro PDF417, Data Matrix, GS1 Composite Codes,MaxiCode, Aztec, HANXIN, Codeblock A, Codeblock F,QR Code.
  Decoding capability	Imaging CMOS
  Resolution	640*480 global shutter
  Trigger mode	Manual scan/continuous scan/auto-sensing scan
  Scan Angle	Rotation angle 360°,elevation angle ±65°,deflection angle ±65°
  Field of view	Horizontal 34°, Vertical 28°
  Precision	3mil
  Scanning depth of field	Code 128  20mm-130mm (4mil) EAN 13      20mm-250mm (13mil) QR           20mm-280mm (15mil)
  Bit Error Rate	1/5 million
  Contrast	≥20%
  Communication interface	USB-HID，USB-COM，RS232
  Electrical Parameters
  Voltage	DC5V±5%
  Working current	170mA
  Environmental Parameters
  Working temperature	-20℃ - 50℃
  Storage temperature	-40℃ - 70℃
  Working humidity	5%~95%(no condensation)
  Ambient light	0~100000LUX
  Drop resistance	Can withstand 1.5m free fall
  Physical Parameters
  Scanner size	181*68*85MM
  Material	ABS+PC
  Charging cable standard	1.5 meters




  FAQ:

  Q1: Is OEM or ODM available? Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.

  Q2: Why so competitive? With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost.

  Q3: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

  Q4: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.

  Q5:What’s the warranty policy for the barcode scanners? Syble provide 24 months maintenance warranty. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary  or new barcode scanners replacement in the next order. Value-added services: 1. Provide long time maintenance services 2. Provide extended warranty as required
