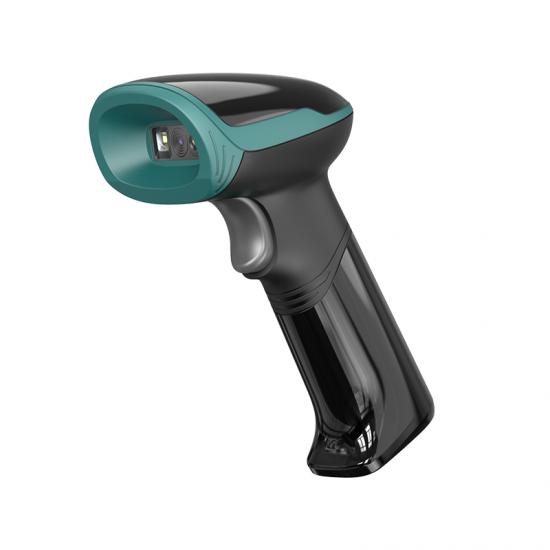

The XB-D39 is a 2D barcode scanner with an eye-catching appearance. It features a bright black and light gray color scheme, making it highly recognizable. It supports 1D/2D code reading, offers precise scanning, can withstand 1.5 meters of impact, is sturdy and durable, and is plug-and-play compatible with multiple systems. It is suitable for various cashier and warehouse scanning scenarios.
Item NO.:
XB-D39Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackProduct weight:
130gShipping Port:
Guanghzhou/ShenzhenLead Time:

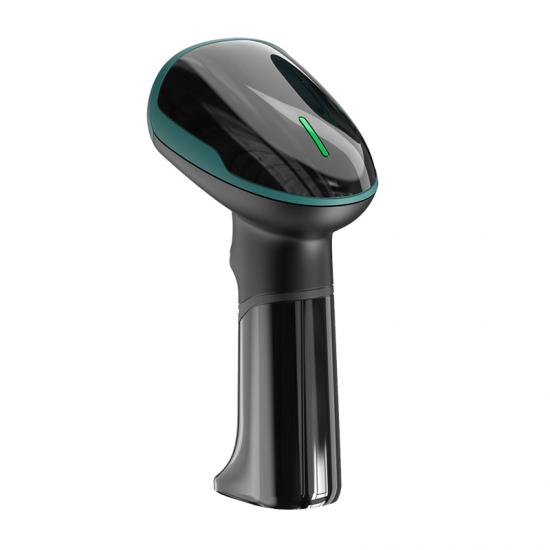

3-7daysThe XB-D39 features an overall glossy black finish with striking gray buttons. A prominent green indicator light is located at the front,delivering high visual recognition.
The XB-D39 adopts an internal shock-absorbing and buffer design, which easily withstands multiple drops from 1.5 meters.
The trigger of this handheld barcode scanner has a unique silicone protection design, and the life of trigger over 10 million times
Plug and play, the scanner no need to install any drivers, and compatible with all computers and POS devices on the market. Support Windows, Android, Linux, and iOS
Syble XB-D39 is based on the 2D CMOS principle and supports all common 1D and 2D（QR） codes. It can easily read 1D and 2D codes on paper and screen
Support USB-HID, USB-COM, RS232 interfaces. Supports secondary development, and can provide technical support and SDK packages.
|
Performance Parameters |
|
|
Light source type |
Red LED aiming light, white light illumination LED |
|
Decoding capability |
1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,CodaBar, MSI, RSS-14, RSS-Ltd, RSS-Expand, Standard 2 of 5, Plessey 2D:PDF417, QR Code, Data Matrix, Micro QR. |
|
Scanning principle |
Imaging CMOS |
|
Resolution |
640pixels (H) x 480pixels (V) |
|
Trigger mode |
Manual scan / continuous scan / auto-sensing scan |
|
Scan Angle |
Rotation angle 360°，elevation angle ±50°，deflection angle ±50° |
|
Field of view |
Horizontal 44°，vertical 33° |
|
Scanning depth of field |
EAN 13 50mm-240mm(13mil) Code39 45mm-150mm(5mil) QR Code 30mm-160mm(15mil) Code 128 40mm-155mm(5mil) |
|
Bit Error Rate |
1/5million |
|
Contrast |
≥20% |
|
Communication Interface |
USB-HID，USB-COM，RS232 |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working Current |
160mA |
|
Environmental Parameters |
|
|
Working temperature |
-20℃ - 50℃ |
|
Storage temperature |
-40℃ - 70℃ |
|
Working humidity |
5%~95%（no condensation） |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
|
Physical Parameters |
|
|
Scanner size |
165*70*82MM |
|
Material |
ABS+PC |
|
Weight |
130g |
|
Charging cable standard |
1.5m |
