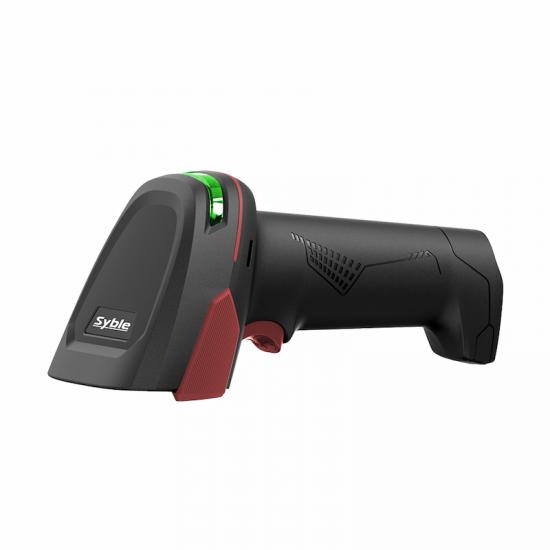

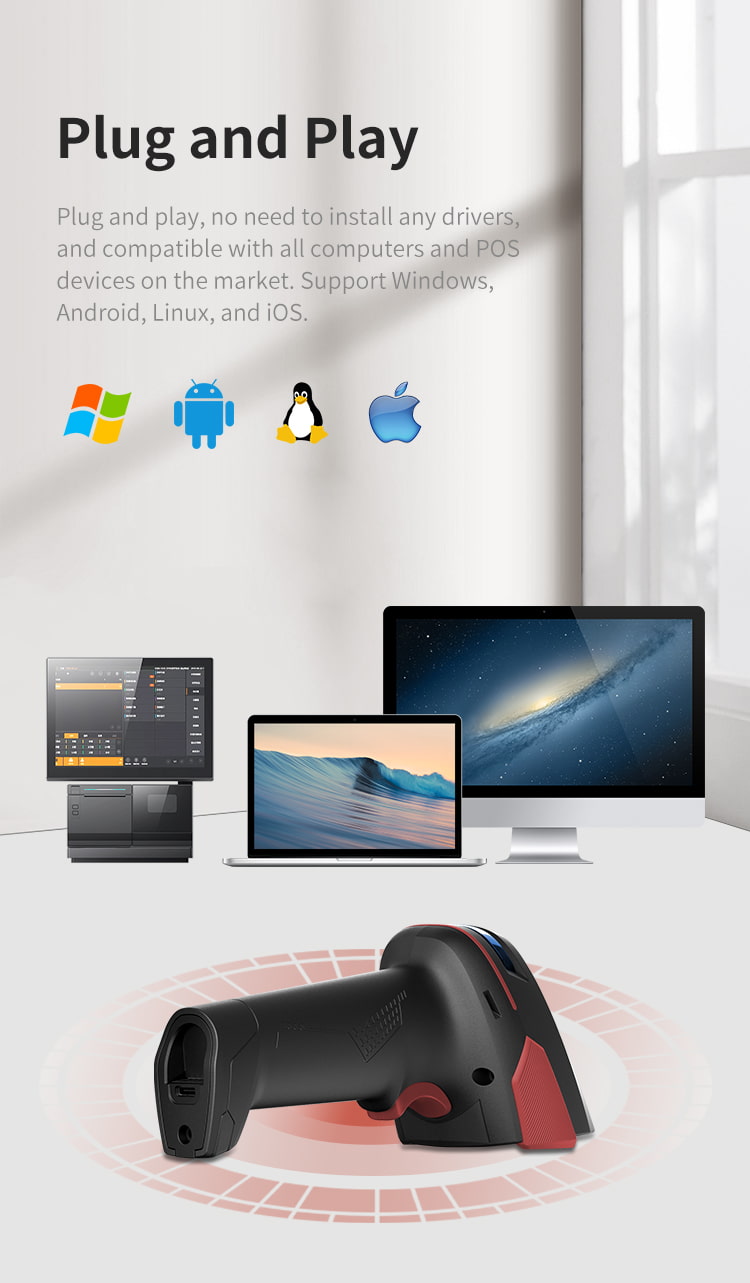

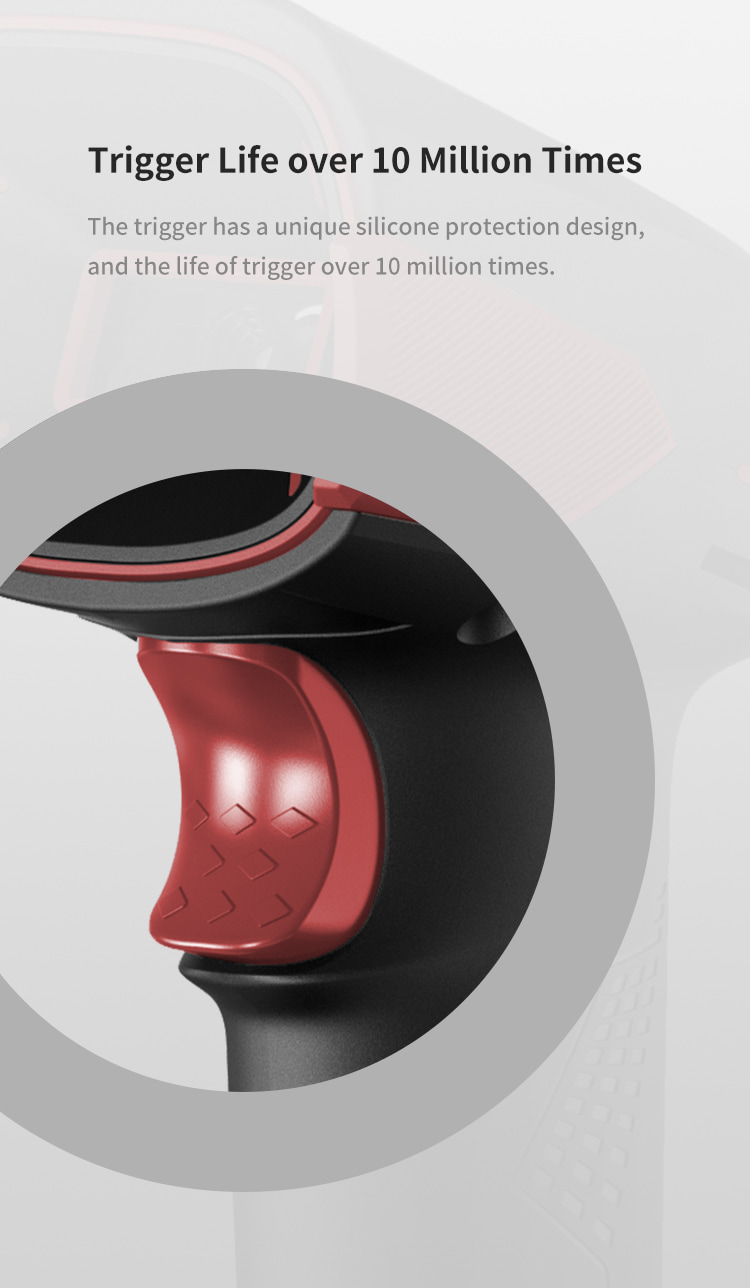

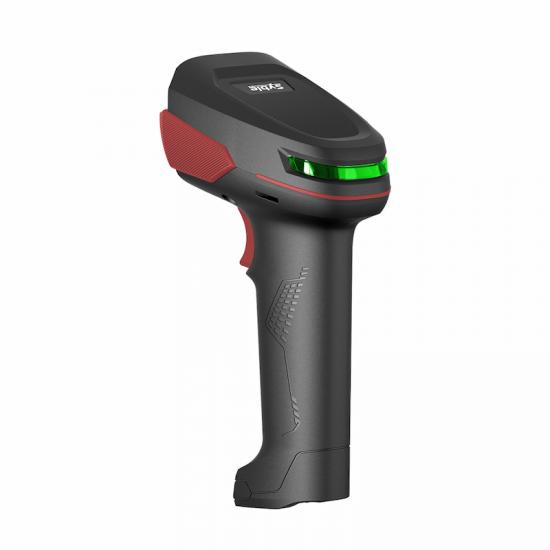

The XB‑D35 is a handheld 2D barcode scanner with a Moon-shaped LED indicator. Equipped with a high-performance CMOS sensor, it supports the reading of 1D and 2D barcodes on both paper and screens, with a scanning depth of field of up to 240 mm. The device is plug-and-play, requires no drivers, and is compatible with multiple operating systems including Windows, Android, Linux and iOS. With a button lifespan exceeding 10 million presses and the ability to withstand drops from a height of 1.5 metres, it delivers accurate and stable decoding, making it suitable for a wide range of scanning scenarios including point-of-sale, warehousing and retail.
Item NO.:
XB-D35Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and RedProduct weight:
130gShipping Port:
Guanghzhou/ShenzhenLead Time:
5-7days
|
Performance Parameters |
|
|
Light source type |
Green LED aiming light，white LED illumination |
|
Decoding capability |
1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39,Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11,CodaBar, MSI, RSS-14, RSS-Ltd, RSS-Expand, Standard 2 of 5,Plessey, GS1 Composit.
|
|
Scanning principle |
Imaging CMOS |
|
Resolution |
640pixels (H) x 480pixels (V) |
|
Trigger mode |
Manual scan / continuous scan / auto-sensing scan |
|
Scan Angle |
Rotation angle 360°，elevation angle ±50°，deflection angle ±50° |
|
Scanning depth of field |
EAN 13 50mm-240mm(13mil) Code39 45mm-160mm(5mil) QR Code 30mm-160mm(15mil) Code 128 40mm-165mm(5mil)
|
|
Bit Error Rate |
1/5million |
|
Contrast |
≥20% |
|
Communication Interface |
USB-HID，USB-COM，RS232 |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working Current |
160mA |
|
Standby current |
100mA |
|
Environmental Parameters |
|
|
Working temperature |
-20℃ - 50℃ |
|
Storage temperature |
-40℃ - 70℃ |
|
Working humidity |
5%~95%（no condensation） |
|
Ambient light |
0~100000LUX |
|

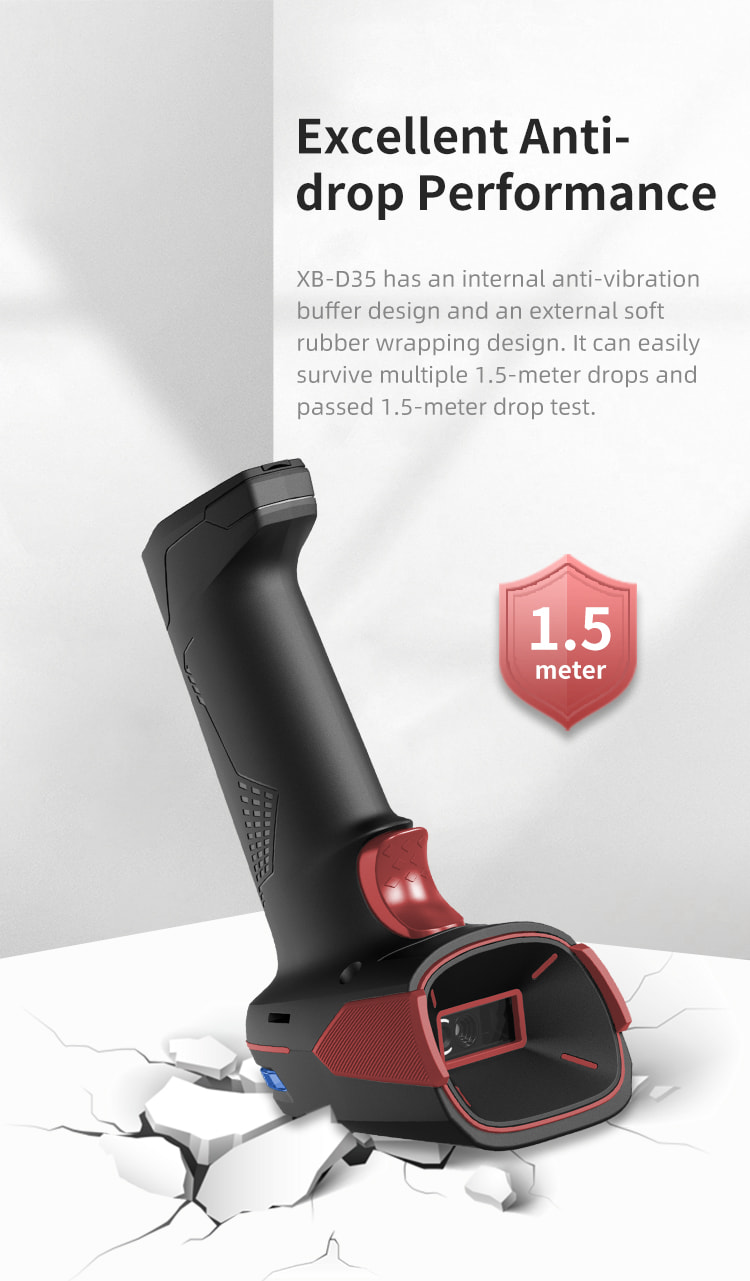

Drop resistance |
Can withstand 1.5m free fall |
|
Physical Parameters |
|
|
Scanner size |
173*79*67MM |
|
Material |
ABS+PC |
|
Charging cable standard |
1.5m |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
