QR code CMOS Handheld Wired Barcode Scanner

XB-6269 is a high-performance wired 2d barcode scanner. It features a dual-color ergonomic design for a comfortable grip. It can easily read 1d and 2d codes on paper and screens, with a maximum scanning depth of up to 300mm. It is plug-and-play without the need for drivers, compatible with multiple systems including Windows, Android, Linux, and iOS, and supports multiple interfaces such as USB-HID, USB-COM, and RS232. It suitable for various barcode scanning scenarios such as retail, warehousing, and cashiering.

Item NO.:
XB-6269
Payment:
EXW/FOB
Product Origin:
Guangzhou
Color:
Black, grey and orange
Shipping Port:
Guangzhou/Shenzhen
Lead Time:
3-7days

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Syble 2D Wired Handheld Barcode Scanner

Product Features

Adopts two-color mold design,unique indicate ledlight with smooth outline and great visual impact.
Support All Common 1D and 2D（QR）codes.
Trigger life over 10 million times.
Achieve 4mil scanning accuracy, with outstanding scanning performance, suitable for various scanning scenarios.
With high-performance CMOS sensors and professional 2D lenses, the scanning depth can reach 300 millimeters, far exceeding the standards of similar products in the industry.
By adopting an internal shock-absorbing buffer structure and external soft rubber coating. It can withstand multiple drops from 1.5 meters, with relevant 1.5m drop test reports available.
Plug and play,compatible with all computers and POS devices on the market.Support Windows,Android,Linux,and iOS.
Supports secondary development,and can provide technical support and SDK packages.

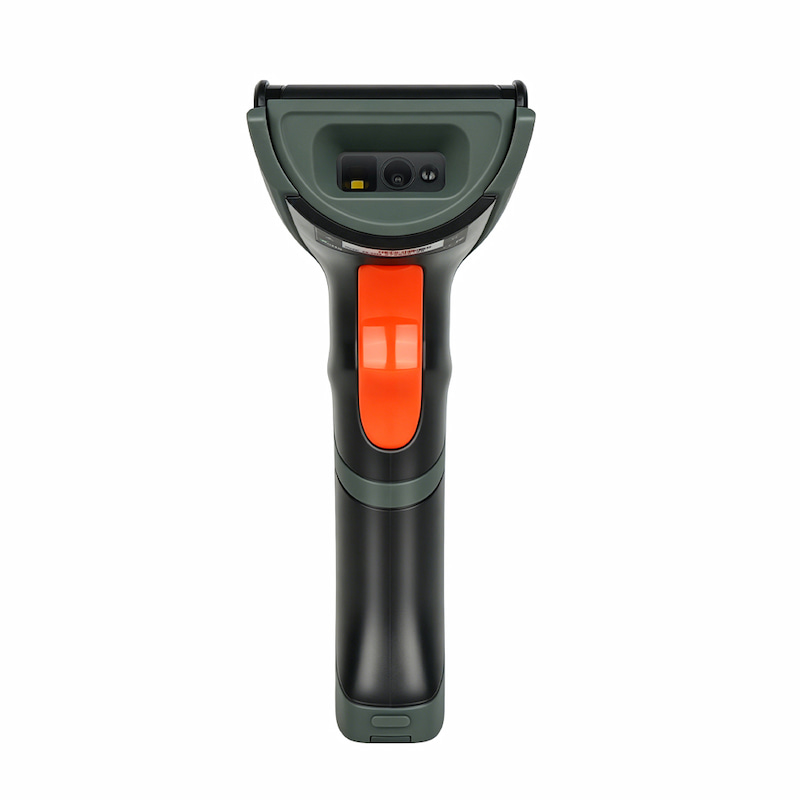

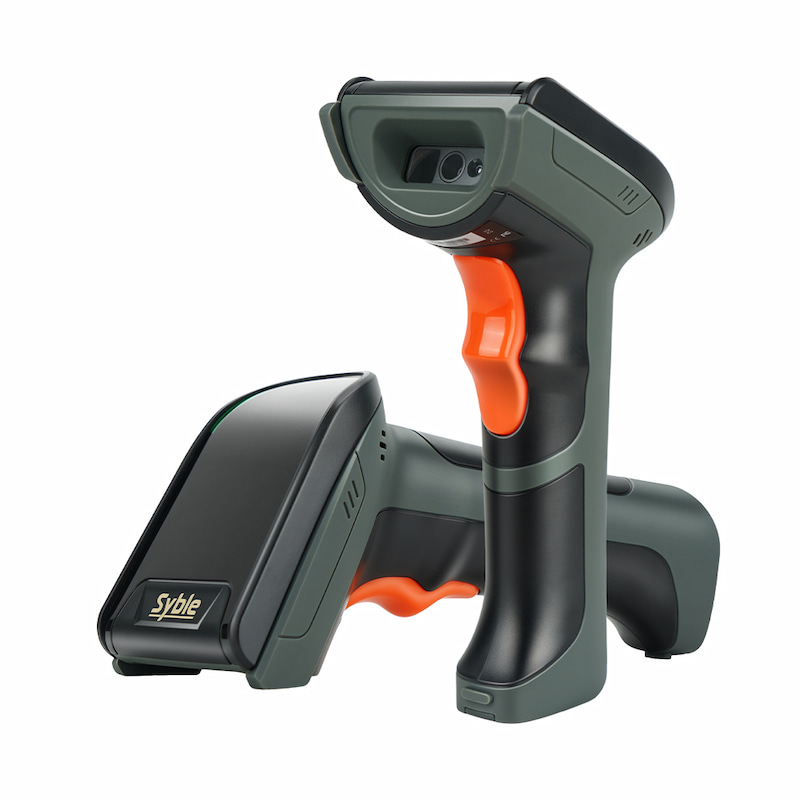

2d handheld barcode scanner
qr code scanner china

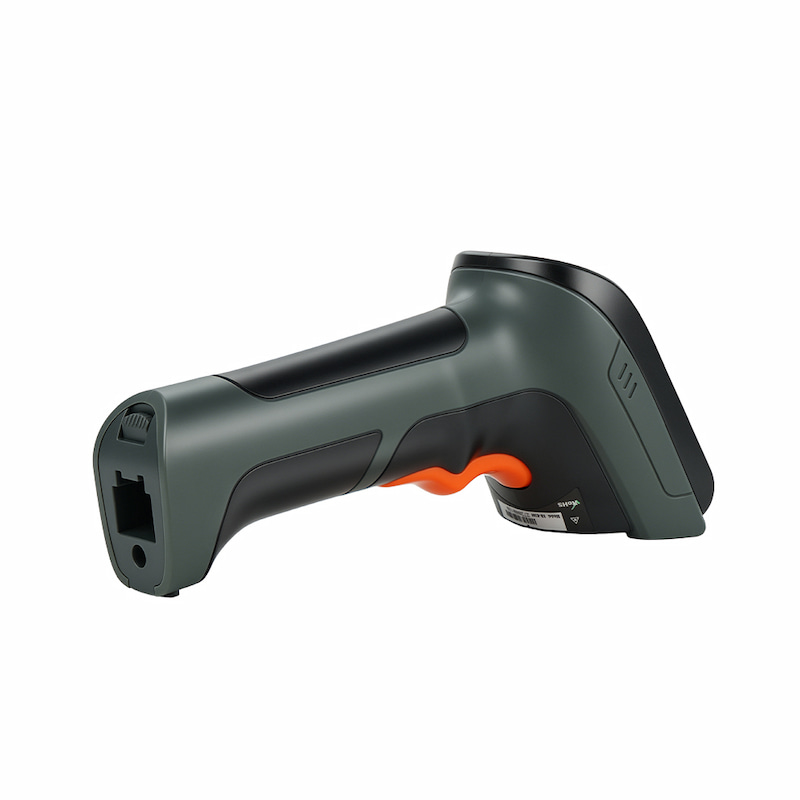

china barcode scanner

Specification

Performance Parameters
Light source type	White lighting, green aiming light
Decoding capability	1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11.CodaBar. MSI, RSS-14, RSS-Ltd, RSS-Expand, Standard 2 of 5,Plessey. GS1 Composit. 2D: PDF417, QR Code, Data Matrix.
Scanning principle	Imaging CMOS
Resolution	640*480
Trigger mode	Manual scan / continuous scan / auto-sensing scan
Scan Angle	Rotation angle360°，elevation angle±65°，deflection angle±65°
Scanning Precision	≥4mil
Scanning depth of field	EAN 13 50mm-240mm(13mil); Code39 45mm-150mm(5mil); QR Code 30mm-160mm(15mil); Code 128 40mm-165mm(5mil)
Bit Error Rate	1/5million
Contrast	≥20%
Communication Interface	Receiver：USB-HID、USB-COM Bluetooth：HID、BLE mode
Electrical Parameters
Voltage	DC5V±5%
Working Current	160mA
Physical Parameters
Scanner size	1708368MM
Material	ABS+PC
Charging cable standard	1.5m
Environmental Parameters
Working temperature	-20℃~+50℃
Storage temperature	-40℃~+70℃
Working humidity	5%~95%（no condensation）
Ambient light	0~100000LUX
Drop resistance	Can withstand 1.5m free fall

FAQ

Q1: Is OEM or ODM available?

Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.

Q2: Why so competitive?

With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost.

Q3: How about the quality?

Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

Q4: How to control the performance stable?

Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.

Q5. What’s the warranty policy for the barcode scanners?

Syble provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.

Hot Tags : 2d barcode reader 2d wired barcode scanner 2d cmos barcode scanner handheld 2d barcode reader 2d handheld barcode scanner qr code scanner china
