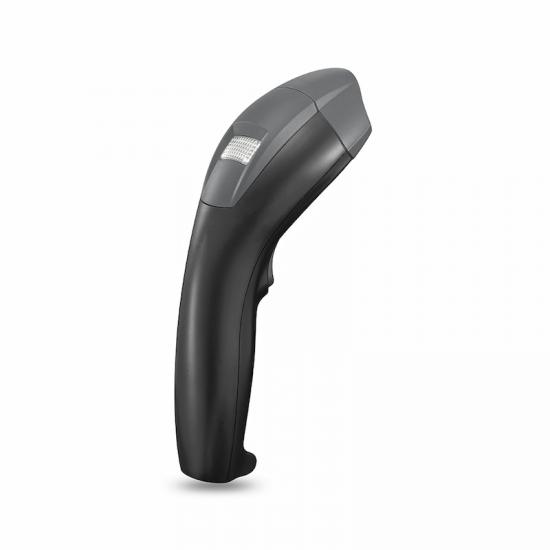

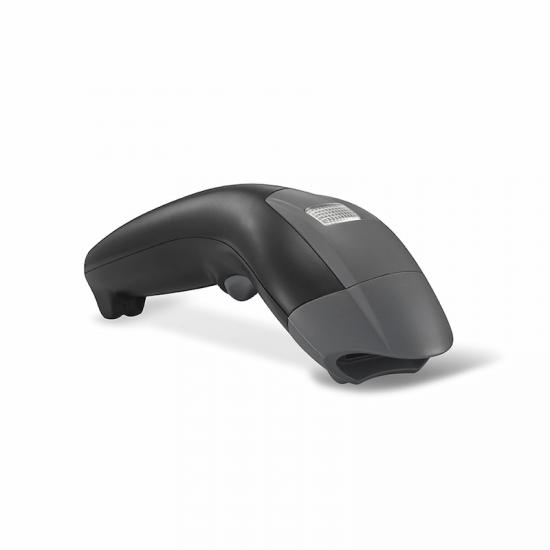

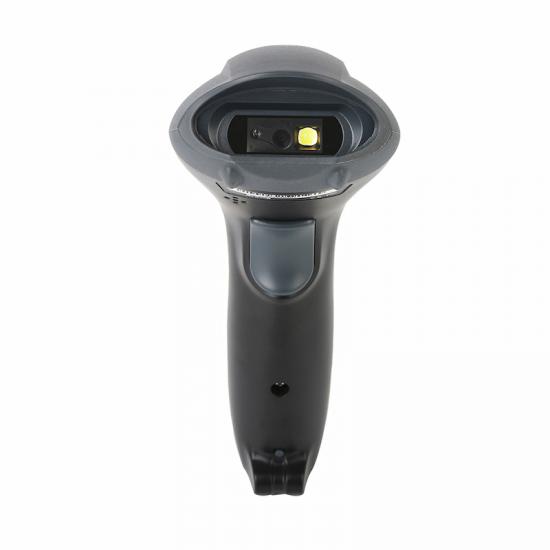

XB-S60 2D wired barcode scanner features ergonomic curved handle for comfortable grip. It reads 1D&2D barcodes with 4mil precision and 240mm reading range. Plug & play, compatible with multiple systems. It supports USB & RS232 interfaces and secondary development. Passed 1.5m drop test for durability. Ideal for checkout, warehousing and inventory.
Item NO.:
XB-S60Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and GrayProduct weight:
125.2gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7daysProduct Features
Specification
|
Performance Parameters |
|
|
Light source type |
Red LED aiming light, white LED illumination |
|
Scanning principle |
Imaging CMOS |
|
Resolution |
640pixels (H)x480pixels(V) |
|
Trigger mode |
Manual scan/continuous scan/auto-sensing scan |
|
Scan Angle |
Rotation angle 360°,elevation angle ±60°, deflection angle ±60° |
|
Scanning depth of field |
EAN 13 40mm-240mm(13mil); Code39 30mm-100mm(5mil) |
|
Field of view |
Horizontal 32°,Vertical 24° |
|
Scanning accuracy |
4mil |
|
Bit Error Rate |
1/5 million |
|
Contrast |
≥20% |
|
Communication interface |
USB-HID,USB-COM; RS232 |
|
Decoding capability |
1D:EAN13, EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39,Code93,CodaBar, Interleaved 2of 5, Industrial 2 of 5, Matrix 2 of 5, Code11,MSl-Plessey, Standard 2 of 5, Plessey, China Post, Code16K,GS1 Databar(RSS-Expand, RSS-Limited,RSS- 14. |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
170mA |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~50℃ |
|
Storage temperature |
-40℃-70℃ |
|
Working humidity |
5%~95% (no condensation) |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
|
Physical Parameters |
|
|
Scanner size |
70*81*140mm |
|
Material |
ABS+PC |
| Weight | 125.2g |
|
Charging cable standard |
1.5 meters |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:Is your production capacity and delivery schedule stable?
We have our own injection molding department, which offers greater control over the structure, materials and production schedule. This enables us to better ensure consistent quality and stable delivery times.
Q5:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q6:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
