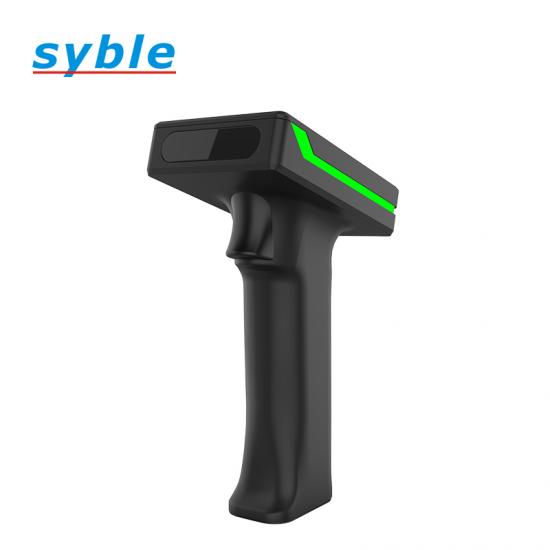

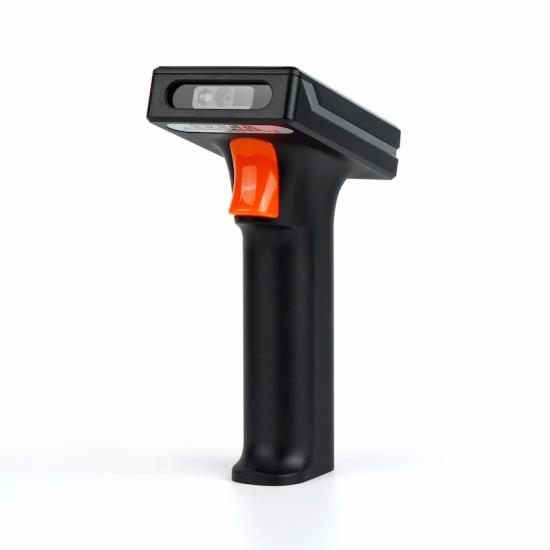

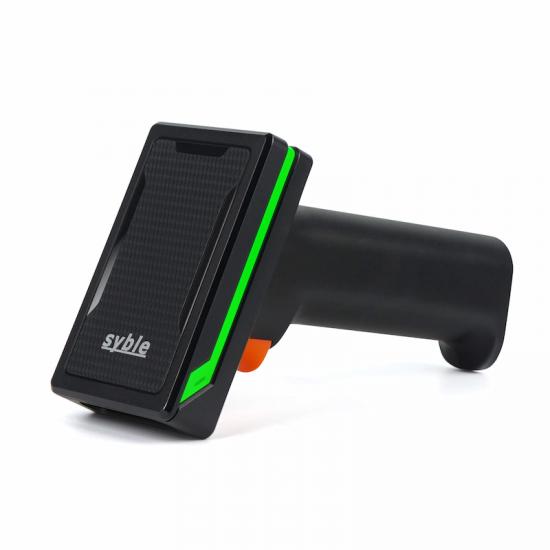

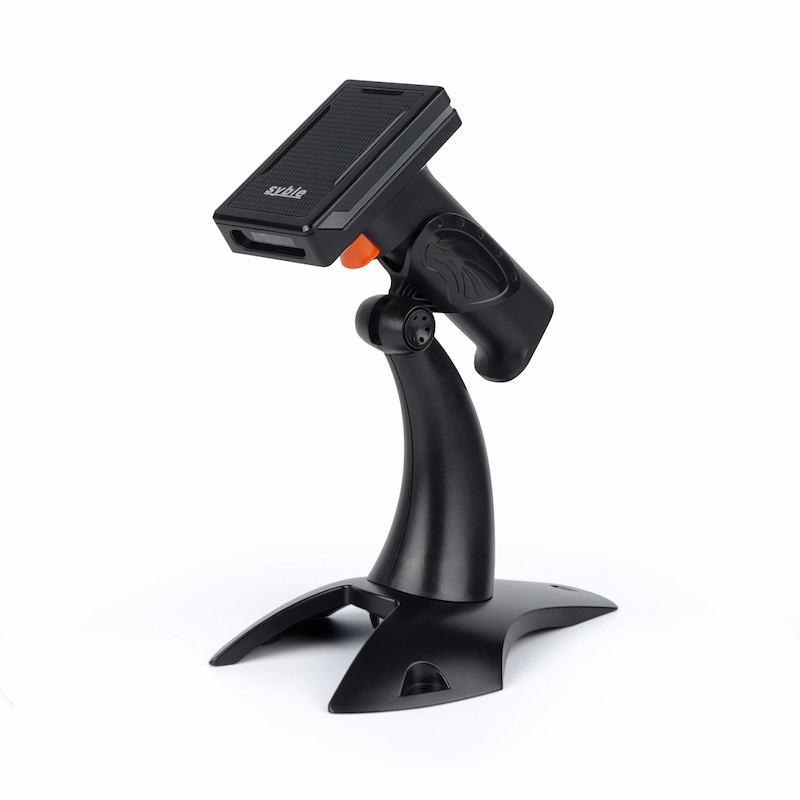

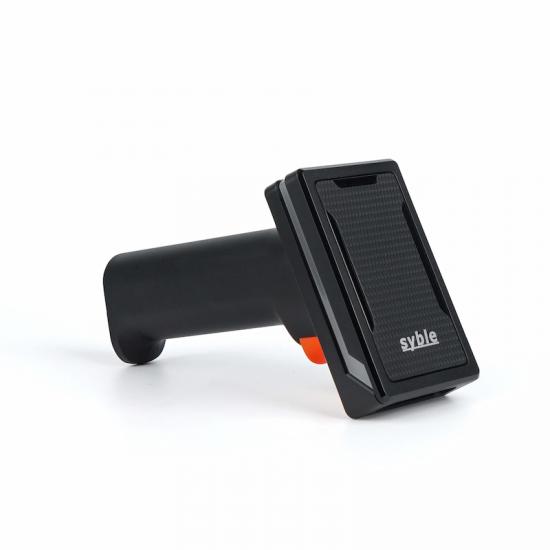

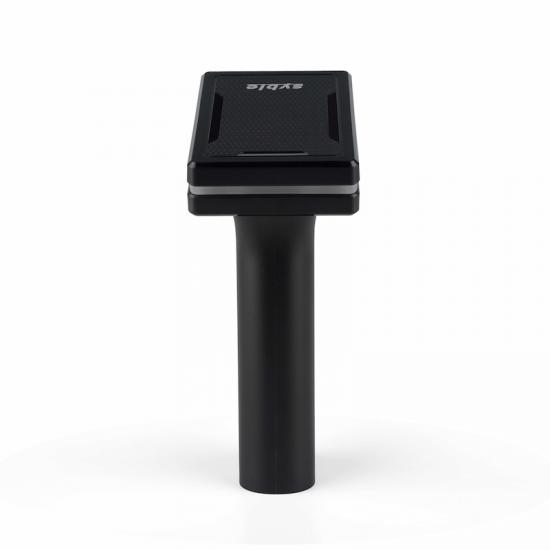

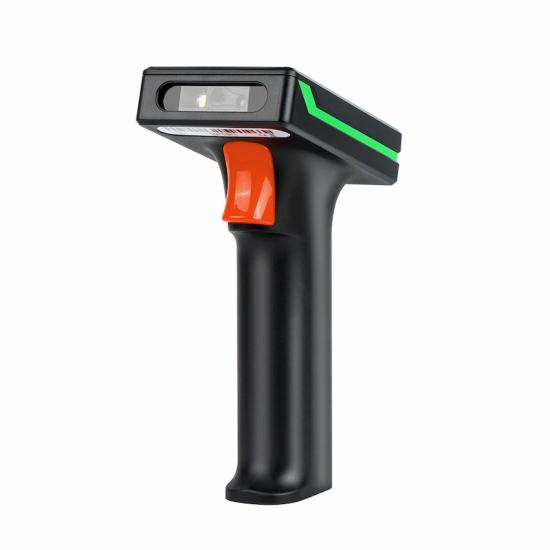

High-cost effective Wired Handheld 2D Barcode Scanner Handheld CMOS Image Bar Code Reader for Warehouse Library Supermarket Pharmacy Logistics
Item NO.:
XB-D40Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days
Features:
|
Performance Parameters |
|
|
Light Sources |
617nm LED Aimer, White LED |
|
Supported Symbologies |
1D: Codabar, Code 39, EAN-13, EAN-8, UPCA, UPCE0, UPCE1, Code 128, Code 93, MSI-Plessey, Interleave 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, RSS-14, Qualified RSS, Extended RSS. 2D: QR Code, Data Matrix(ECC200), PDF417. |
|
Scan Type |
Image CMOS |
|
Sensor |
640*480 |
|
Scan Method |
Manual/Continuous/Automatic Induction Scanning |
|
Scan angle |
Yaw 360°, Rotation ±60°, Pitch ±60° |
|
Precision |
1D: ≥5mil, 2D: ≥10mil |
|
Depth of scan field |
35-190MM(13MIL, EAN13, PCS90%) |
|
Bit Error Rate |
1/5million |
|
Interface |
USB-HID, RS232,USB-COM |
|
Physical Parameters |
|
|
Material |
ABS+PC |
|
Cable Length |
2M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~+60℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Drop/Shock Resistance |
Withstands multiple times 3meters drops to concrete |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Current |
120MA |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q3: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4. What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. Barcode scanners can be replaced during the first month if the technical and quality problem.
During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
Q5. What Value-added services can be provided
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
Leave A MessageHot selling Handheld 2D Barcode Scanner with usb cable 2D Barcode Scanner Wired Handheld Automatic QR Data Matrix PDF417 bar Codes Imager for Mobile Payment Computer Screen.
2D CMOS QR PDF417 DM barcode scanner supports Screen and Paper 1D &2D Bar Code. Plug and play ,easy to set up and quickly match.
The XB-6255M 2d wired Barcode Scanner is one hot selling product from Syble .Plug and paly , easy to use . with competitive price and high stable performance ,it help us achieved a big market share both from domestic and overseas markets
This 2d handheld barcode scanner use image type CMOS, automatic sensor scanning, easy to operate, widely used in various industries.
2D handheld Wired Barcode Scanner, supports various 1D 2D PDF417 QR DM codes etc.
XB-6277, easy to use, plug and play, no neeed to install driver. Compatible with windows XP, 7/8/10, Linux, MAC, etc. Convenient operating system, as long as the devices have standard USB port.
This 1D/2D code reader is a new developed 2D Imager Barcode Scanner, it can read the 2D barcodes from the liquor bottle and medicine package quicckly and accurately, it is the best choice for small convenience stores and drugstores.
Hot-selling Wired Handheld 2D Barcode Scanner Support Data Matrix QR PDF417 Various 1D 2D Barcode.
