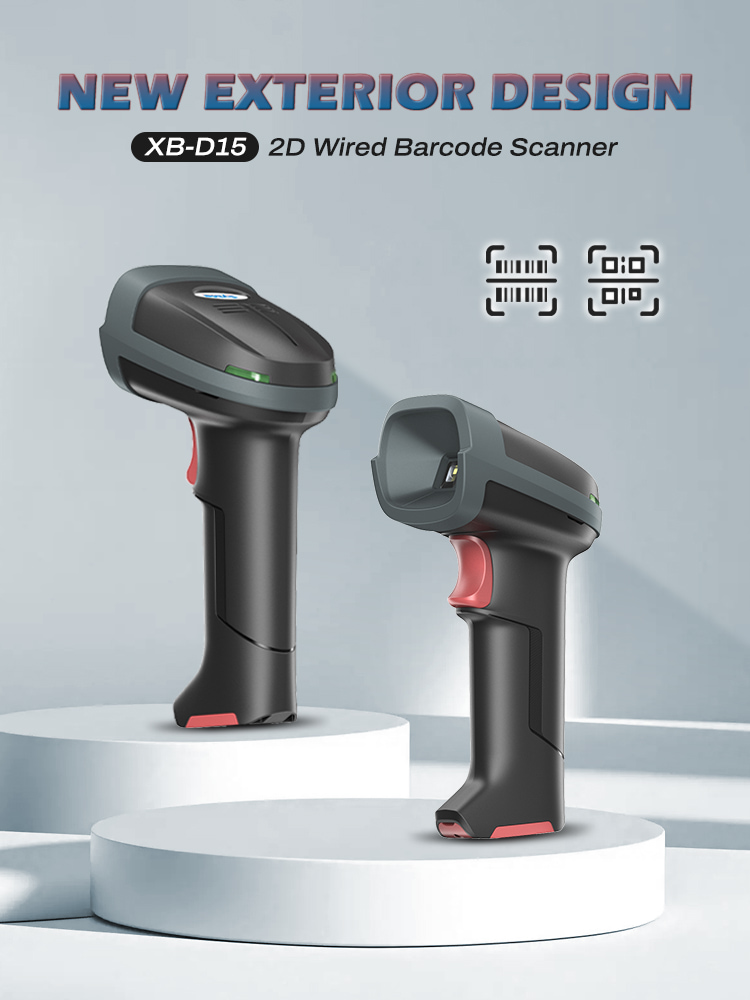

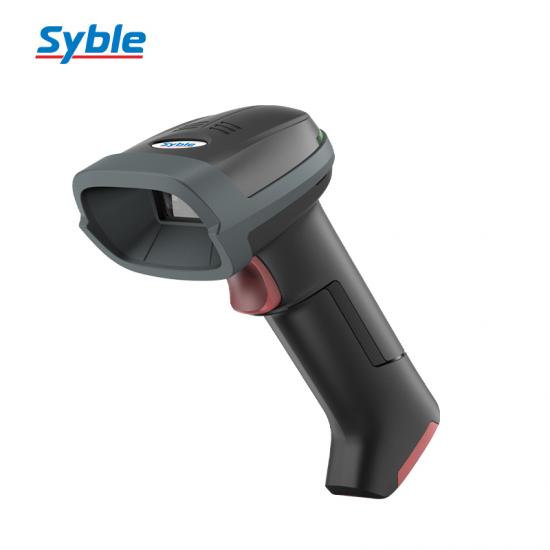

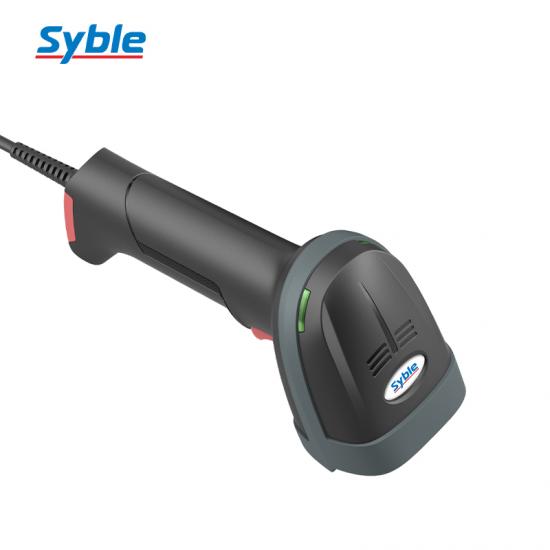

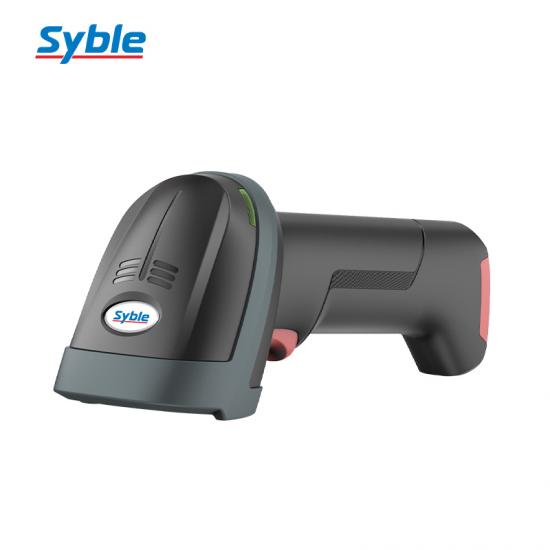

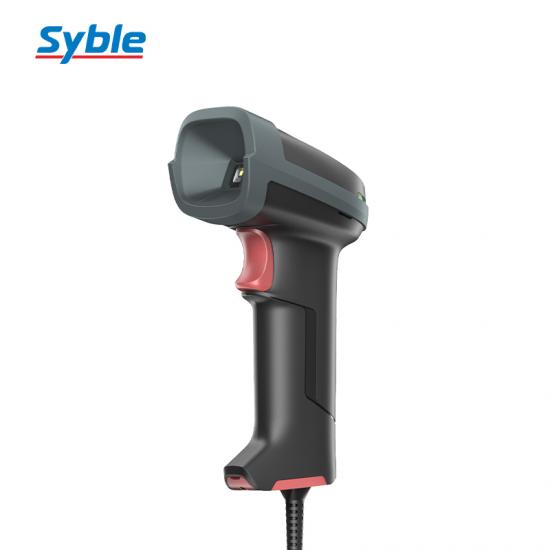

Syble XB-D15 2D Wired Barcode Reader Combines sleek aesthetics with premium build quality. Over 3mm thick pure ABS construction ensures durability. Multiple interfaces enable plug-and-play operation. Delivers precise scanning compatible with multiple systems. Ideal for supermarkets, warehouses, retail stores, and pharmacies.
Item NO.:
XB-D15Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and RedProduct weight:
139gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days2D Corded Handheld Barcode Scanner
The newly launched XB-D15 2D handheld barcode scanner features 4mil high-precision scanning capabilities, supporting both 1D and QR code scanning. It is plug-and-play compatible with multiple systems. With a variety of interfaces and secondary development support, it offers excellent cost-performance to meet the diverse scanning needs.
Product Features

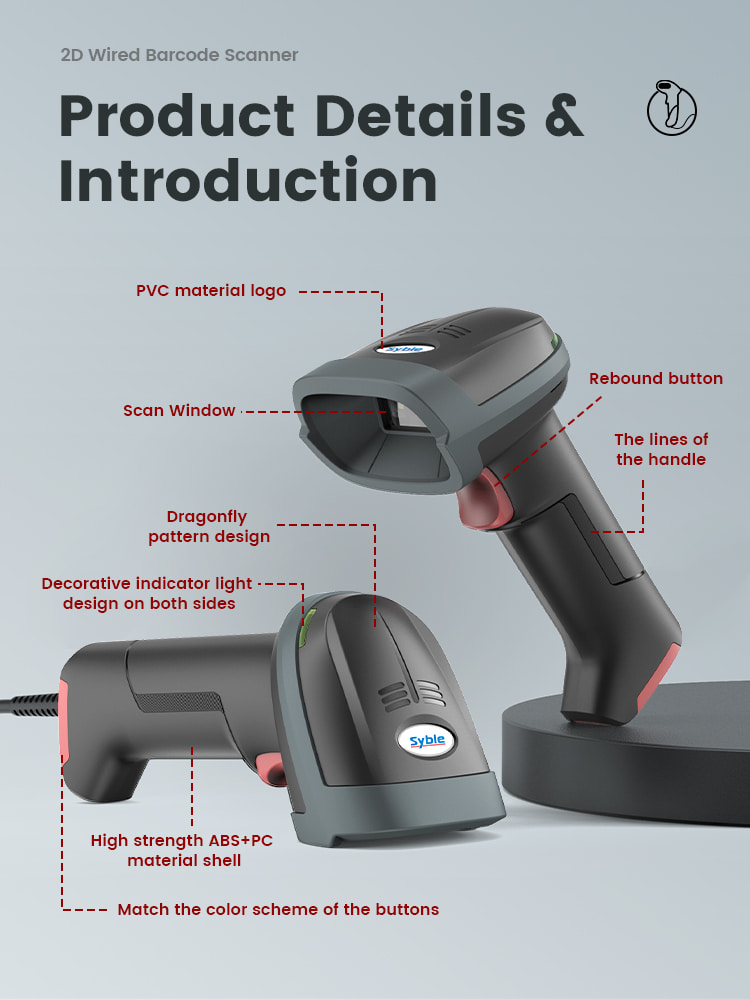

Aesthetically appearance design
The XB-D15,with its soft rubber wrapped design and the intricate lines of the handle and top cover,imbues its cost-effective products with a sense of luxury. Additionally,the use of color accents on the bottom cover and buttons adds a visual touch of innovation and trendiness to the product.

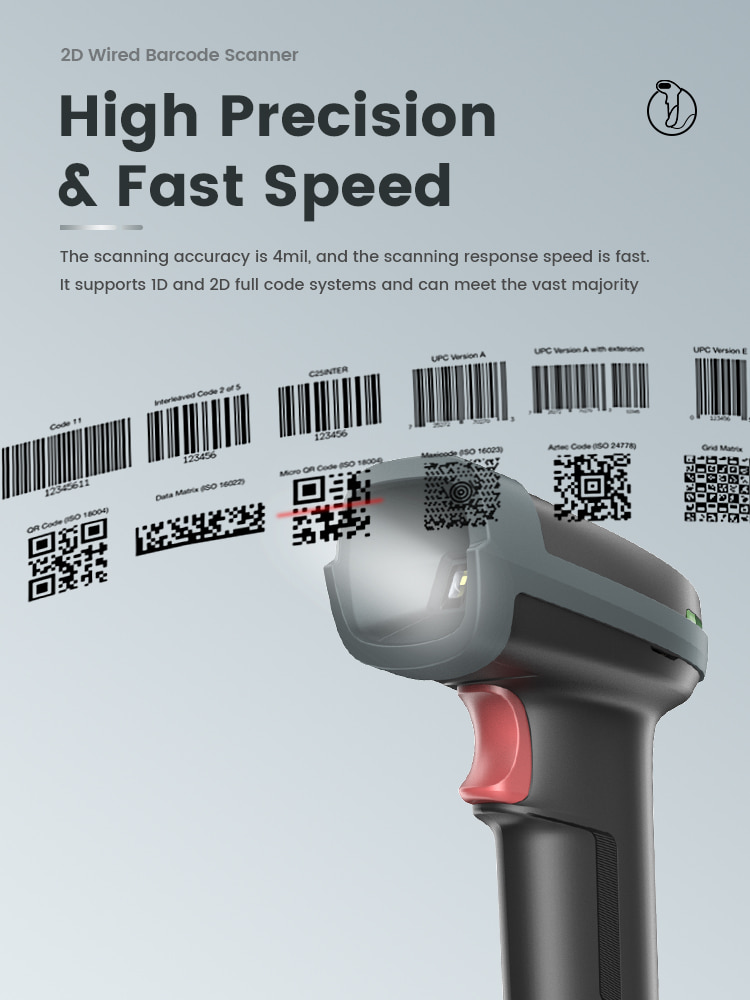

High scanning accuracy
XB-D15 has a scanning accuracy of 4mil and a fast scanning response speed.It supports most 1D and 2D code systems and can meet the vast majority of application scenarios.
Product materials and texture
The design material thickness of XB-D15 product is greater than 3mm, and pure and non mixed ABS raw materials are used to ensure the texture of the product.
Rich interface types
XB-D15 supports USB-HID, USB-COM, and RS232 interfaces. Support secondary development, provide technical support and SDK packages.

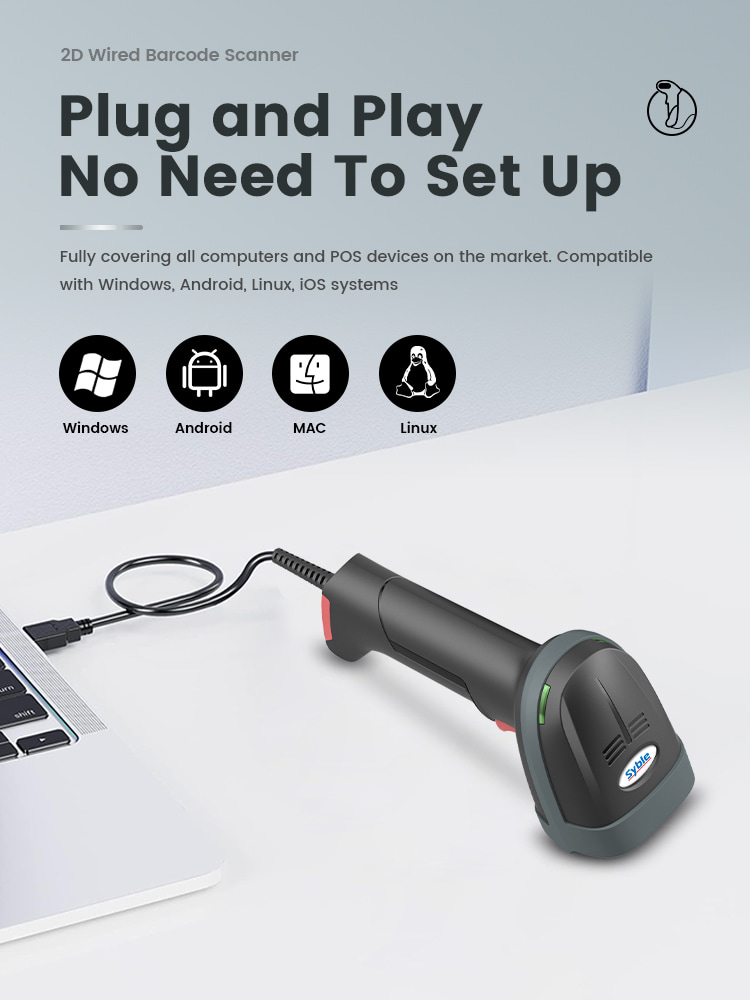

Plug and Play
Plug and play, no need to install any drivers, and compatible with all computers and POS devices on the market. Support Windows, Android, Linux, and iOS systems.
Specification
|
Performance Parameters |
|
|
Light source type |
Red LED aiming light, white LED illumination |
|
Scanning principle |
Imaging CMOS |
|
Resolution |
640pixels (H)x480pixels(V) |
|
Trigger mode |
Manual scan/continuous scan/auto-sensing scan |
|
Scan Angle |
Rotation angle 360",elevation angle ±60°, deflection angle ±60° |
|
Scanning depth of field |
EAN 13 40mm-240mm(13mil); Code39 30mm-100mm(5mil) |
|
Field of view |
Horizontal 32°,Vertical 24° |
|
Scanning accuracy |
4mil |
|
Bit Error Rate |
1/5 million |
|
Contrast |
≥20% |
|
Communication interface |
USB-HID,USB-COM; RS232 |
|
Decoding capability |
1D:EAN13, EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39,Code93,CodaBar, Interleaved 2of 5, Industrial 2 of 5, Matrix 2 of 5, Code11,MSl-Plessey, Standard 2 of 5, Plessey, China Post, Code16K,GS1 Databar(RSS-Expand, RSS-Limited,RSS- 14. |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
170mA |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~50℃ |
|
Storage temperature |
-40℃-70℃ |
|
Working humidity |
5%~95% (no condensation) |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
|
Physical Parameters |
|
|
Scanner size |
70*81*140mm |
|
Material |
ABS+PC |
| Weight | 139g |
|
Charging cable standard |
1.5 meters |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:Is your production capacity and delivery schedule stable?
We have our own injection molding department, which offers greater control over the structure, materials and production schedule. This enables us to better ensure consistent quality and stable delivery times.
Q5:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q6:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
