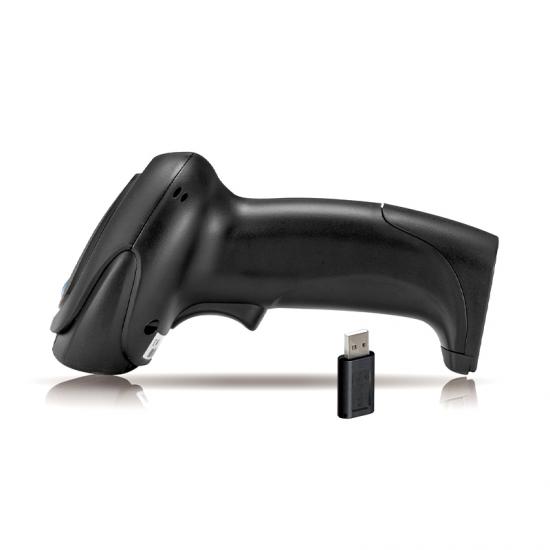

Syble XB-5066B wireless laser barcode scanner, featuring two connection methods: 2.4G and Bluetooth. With a transmission range of 100 meters and supporting offline storage of 512,000 characters, it can withstand a drop of 3 meters and is suitable for warehouse, express delivery, and retail scenarios.This 1d laser barcode scanner enhances the workflow efficiency in an affordable price.
Item NO.:
XB-5066BPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou1D wireless laser barcode scanner
Product features
Application
The XB-5066B 1D wireless laser barcode reader is suitable for use in supermarkets, retail stores, specialty shops, logistics, warehousing and other fields.
Specification
|
Model Number |
XB-5066B |
|
Performance Parameters |
|
|
Light Sources |
Vlisible laser diode, wave length 650nm |
|
Supported Symbologies |
UPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39,Code 39 Full ASCll,China Post, Plessey, MSl,Code 93, Code 128, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5, Code 11, ISBN, ISSN, Code 32(ltalian pharm code),Code 39 extended, ITF-14, RSS 14 etc 1D barcode |
|
Scan Speed: |
≥150 times/s |
|
Scan Method |
Manual /Continuous /Automatic flashing |
|
Precision |
≥4mil |
|
Depth of scan field |
10-250mm(0.33mm,PCS90%) |
|
Error Rate |
Less than 1/5 million |
|
Interface |
USB-HID,USB-COM |
| Transmission Distance | ≤100M（Open Yard） |
|
Wireless communication method |
Pairing dedicated receiver: 2.4G communication; |
| Pairing Mode |
One on one: pairing one scanner with one receiver; Pair a scanner with a Bluetooth mobile device |
|
Storage Mode |
Offline Storage Mode: When the scanner exits the connection range,the data is automatically stored. Storage capacity is 512000 characters.Inventory storage mode:Scanner can enter inventory mode,storage capacity is 512000 characters |
|
Physical Parameters |
|
|
Dimensions |
85mm*62mm*154mm |
|
Weight |
365g |
|
Material |
ABS+PC,flame retardant material |
|
Cable Length |
1.2M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~40℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
0%~85%（Non-condensing） |
|
Drop/Shock Resistance: |
Withstands multiple times 3meters drops to concrete |
|
Electrical Parameters |
|
|
Voltage |
DC5V±10% |
|
Current |
135mA(Working); 150uA(Standy) |
|
Lithium battery |
2200mA |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:Is your production capacity and delivery schedule stable?
We have our own injection molding factory, which offers greater control over the structure, materials and production schedule. This enables us to better ensure consistent quality and stable delivery times.
Q5:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q6:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
Leave A Message1D laser wireless handheld barcode scanner use high-resolution laser scanning engine to interpret various 1D codes
The handheld wireless barcode scanner XB-5066BT,with its reliable and outstanding scan performance become one of our best Android Barcode Scanner after launched.
The 1D laser handheld wireless barcode scanner use high-resolution laser scanning engine to interpret various 1D codes.
Syble XB-5066B 1D wireless handheld laser scanner supports both Bluetooth and 2.4G dual wireless connections. It can scan various common 1D codes. The scanning speed is fast, it can withstand drops from a height of 3 meters, and has strong durability. It is equipped with a 2200mAh long battery life and is suitable for efficient scanning needs in various scenarios such as supermarkets, logistics, and warehouses.
Syble XB-868RB is a high performance 2D desktop barcode scanner designed for retail, logistics, warehousing and office scenarios. It supports omni-directional scanning of 1D/2D barcode without handheld operation, and seamlessly integrates into your business system through wireless connection, dramatically improving work efficiency and accuracy.
The 2d desktop scanner is a excellent 1d/2d reading performance , supports 1d and 2d barcodes.Fast and accurate decoding to improve user experience and support all kinds of bar code scanning.
Syble XB-6278 corded 2d barcode scanner, featuring a global shutter decoding chip and Datalogic algorithm, rapidly reads various 1D/2D barcodes. Compatible with multiple systems and interfaces, it is rugged and durable. Widely applicable in retail, finance, and other scenarios.
Syble XB-D15RB 2D Wireless Handheld Barcode Scanner, with a minimum battery life of 10 hours, featuring durability and robustness. Made of pure ABS material, it can withstand a fall of 1.5 meters. Extremely cost-effective, it can effectively meet various barcode scanning needs. Ideal for libraries, warehouses, retail stores, etc.
