Item NO.:
XB-5055RPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackProduct weight:
155Shipping Port:
GuangzhouLead Time:

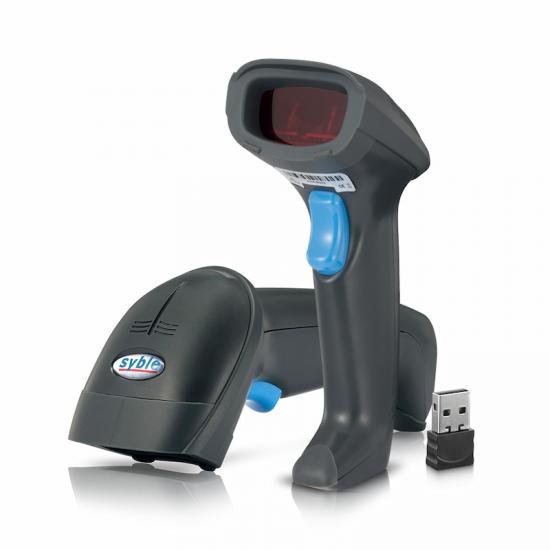

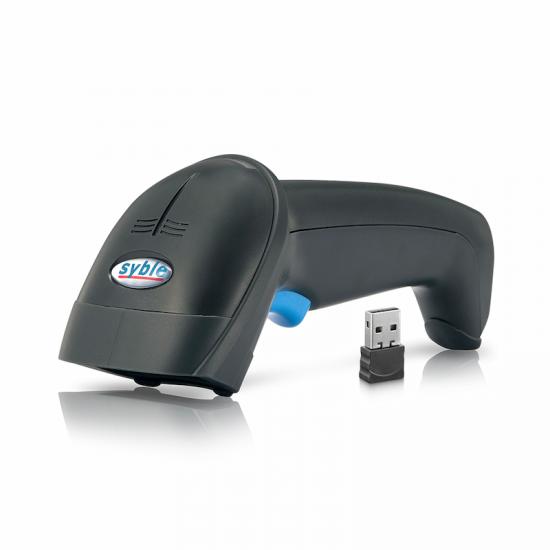

7-10 days1D High resolution laser Wireless handheld Barcode Scanner XB-5055R ,which is designed special for retail ,logistic ,warehouse and point of sale check out management.
Product feature
- USB wireless receiver, plug and play, simple setup, fast use
- Empty transmission distance of 50-80 meters
- Automatic storage beyond distance
- Can be used continuously for more than 12 hours
Specification
|
Model Number |
XB-5055R |
|
Performance Parameters |
|
|
Light Sources |
650nm laser(Safe visible laser diode) |
|
Supported Symbologies |
EAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128, EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5, Matrix 2 of 5,MSI,China Post Code and all 1D barcodes ects |
|
Scan Type |
Single Laser |
|
Scan Speed: |
≥300 times/s |
|
Scan Method |
Manually/Successive/Automatical Scanning(Optional) |
|
Scan Angle |
Yaw 55°,Rotation 30°,Pitch 65° |
|
Precision |
4mil(0.1mm) |
|
Depth of scan field |
0-250mm(0.33mm,PCS90%) |
|
Error Rate |
Less than 1/5 million |
|
Interface |
USB-HID |
|
Operating Frequency |
2.4G |
|
Transmission Distance |
50-80M(Open Yard) |
|
Storage Ability |
512000 Bytes |
|
Pairing Model |
One to one |
|
Physical Parameters |
|
|
Dimensions |
83mm*70mm*172mm |
|
Weight |
155g |
|
Material |
ABS+PC |
|
Cable Length |
2M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~40℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
0%~85%（Non-condensing） |
|
Drop/Shock Resistance: |
Withstands multiple times 3meters drops to concrete |
|
Electrical Parameters |
|
|
Voltage |
DC5V±10% |
|
Current |
85mA(Operating); 150uA(Quiescent Current) |
|
Lithium battery |
550mA |
Product overview
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacturer, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q3: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4. What’s the warranty policy for the barcode scanners?
Syble provide 1 month replacement and 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
Q5. What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
3.Provide free maintenance technology and spare parts chargeable under out of warranty
