Item NO.:
XB-5066BPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackProduct weight:
365gShipping Port:
GuangzhouLead Time:

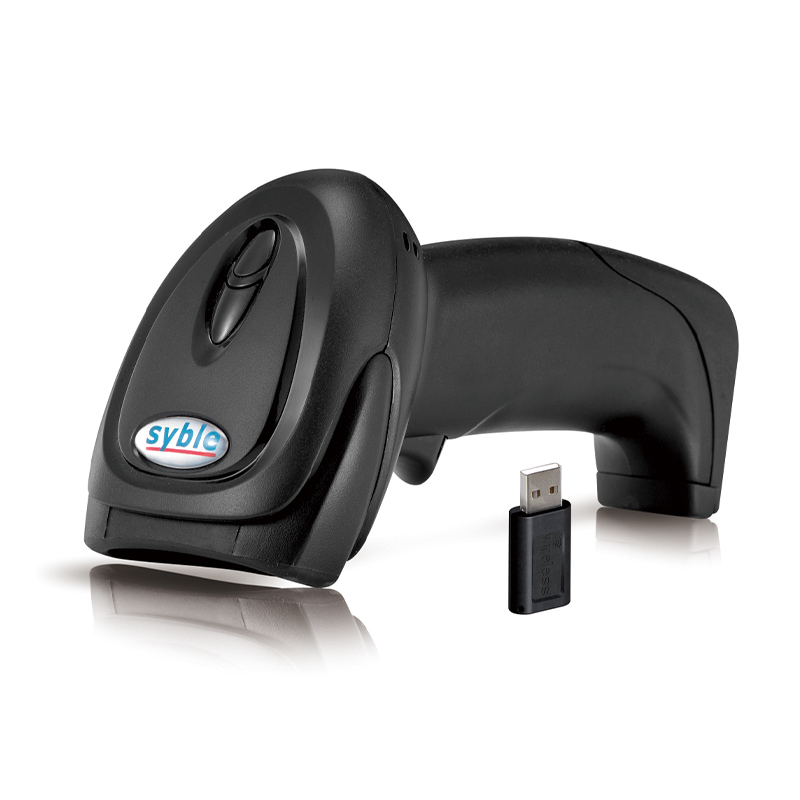

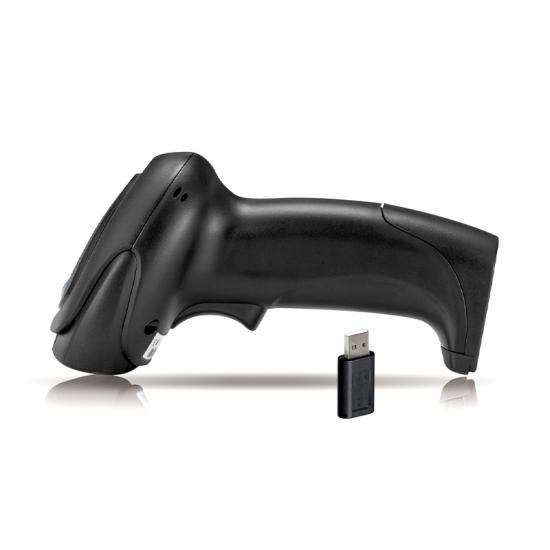

7-10 days1D Wireless Bluetooth&2.4G Laser Barcode Scanner
Product Features
Specification
|
Model Number |
XB-5066B |
| Performance Parameters | |
| Light Sources | 650nm laser(Safe visible laser diode) |
| Supported Symbologies |
UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39,Code 39 Full ASCIl,China Post, Plessey, MSI,Code 93, Code 128, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5, Code 11, ISBN, ISSN, Code 32(Italian pharm code),Code 39 extended, ITF-14, RSS 14 etc 1D barcode. |
| Scan Type | Single Laser |
| Scan Method | Manually/Contnuous/Automatic inductive scanning(Optional) |
| Precision | >4mil (1mil) |
| Depth of scan field | 10-250mm(0.33mm,PCS90%) |
| Error Rate | Less than 1/5 million |
| Interface | USB-HID,USB-COM |
| Transmission Distance | ≤100M(Open Yard) |
| Wireless communication method |
Pairing dedicated receiver: 2.4G communication; Pairing mobile Bluetooth devices: Bluetooth BLE4.0 |
| Pairing Model |
One on one: pairing one scanner with one receiver; Pair a scanner with a Bluetooth mobile device |
|
Storage Mode |
Offline Storage Mode: When the scanner exits the connection range,the data is automatically stored. Storage capacity is 512000 characters.Inventory storage mode:Scanner can enter inventory mode,storage capacity is 512000 characters |
| Physical Parameters | |
| Dimensions | 85mm*62mm*154mm |
| Weight | 365g |
| Material | ABS+PC，flame retardant material |
| Cable Length | 1.2M |
| Environmental Parameters | |
| Operating Temperature | -20℃~40℃ |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 0%~85%(Non-condensing) |
|
Drop/Shock Resistance |
Withstands multiple times 3 meters drops to concrete |
|
Electrical Parameters |
|
| Voltage | DC5V±10% |
| Current | 135mA(Operating); 150uA(Standy) |
| Lithium battery | 2200mA |
Product overview
Applicantion
The XB-5066B 1D wireless bluetooth handheld laser barcode scanner is suitable for barcode scanning scenarios in areas such as supermarket inventory, retail warehousing, electronic vouchers, industry, light industry, express logistics, and warehousing.
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
Leave A Message1D laser wireless handheld barcode scanner use high-resolution laser scanning engine to interpret various 1D codes
The handheld wireless barcode scanner XB-5066BT,with its reliable and outstanding scan performance become one of our best Android Barcode Scanner after launched.
The 1D laser handheld wireless barcode scanner use high-resolution laser scanning engine to interpret various 1D codes.
Syble XB-5066B wireless laser barcode scanner, featuring two connection methods: 2.4G and Bluetooth. With a transmission range of 100 meters and supporting offline storage of 512,000 characters, it can withstand a drop of 3 meters and is suitable for warehouse, express delivery, and retail scenarios.This 1d laser barcode scanner enhances the workflow efficiency in an affordable price.
