Item NO.:
XB-2108Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
blackProduct weight:
176.5gShipping Port:
GuangzhouLead Time:

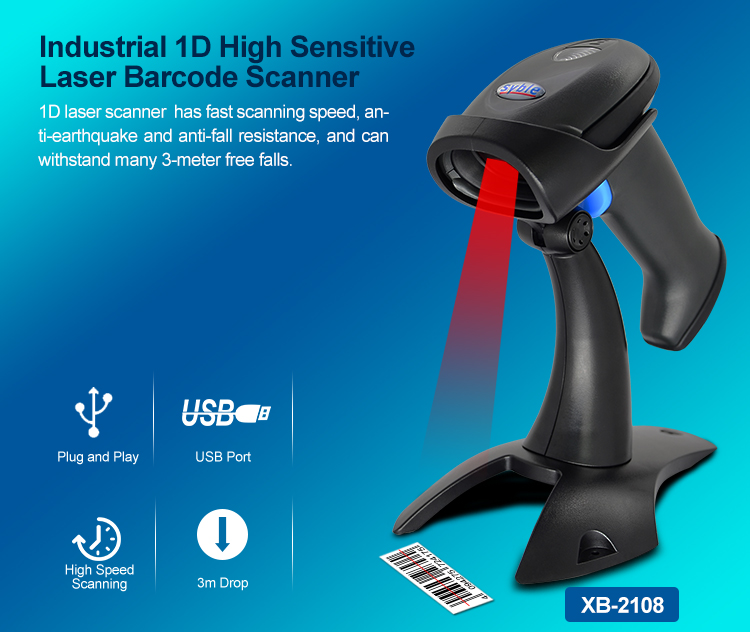

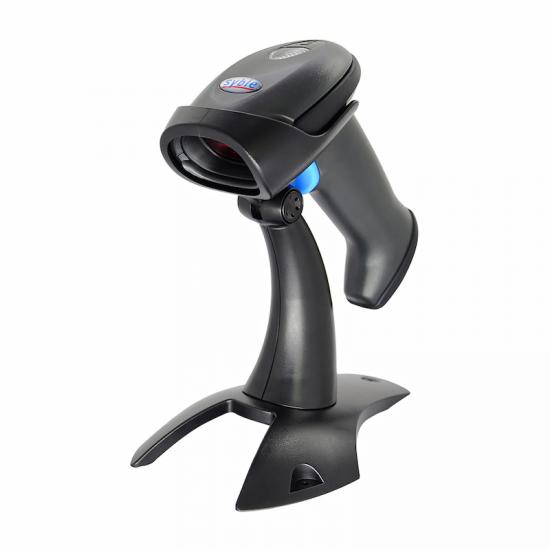

5-7days1D Laser Barcode Scanner
Product Features
Specification
| Performance Parameters | |
| Light Sources | 650nm laser(Safe visible laser diode) |

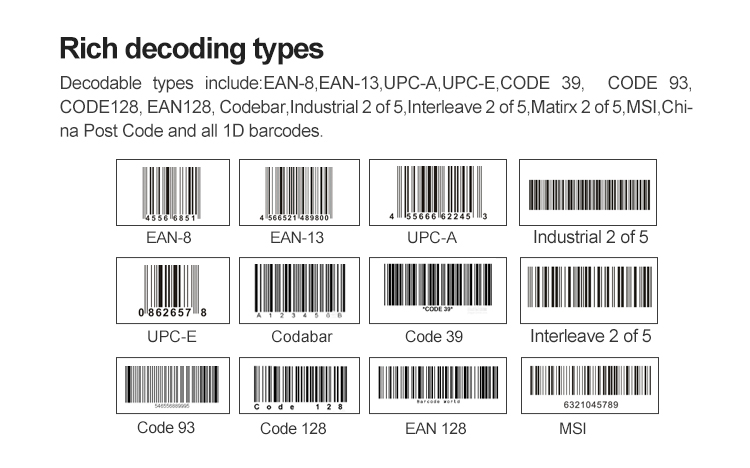

| Supported Symbologies |
UPC-A,UPC-E,EAN-13,EAN-8, Codabar, Code 39, Code 39 Full ASCll,China Post,Plessey, MSl, Code 93, Code 128, Industrial 2 of 5,Interleave 2 of 5, Matrix 2 of 5, Code 11,ISBN, SSN,Code 32(ltalian pharm code), Code 39 extended, GS1-128 and ITF-14,SISAS,GS1 Omnidirectional, GS1 Limited, Aviation25, RSS 14. |

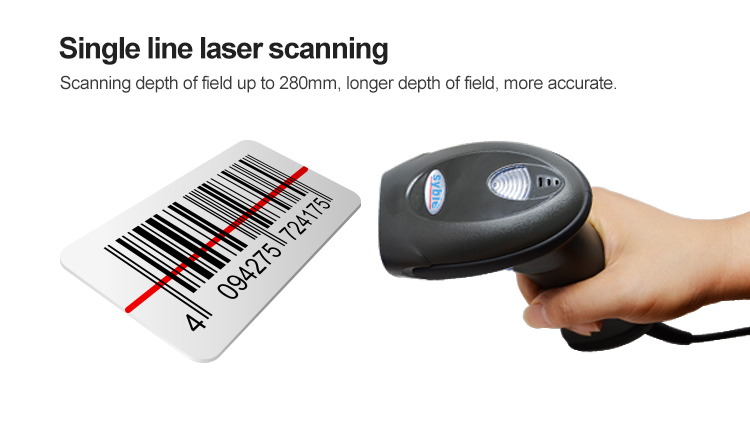

| Scan Type | Single Laser |
|
Scan Speed |
≥150 times/s |
| Scan Method | Manually/Contnuous/Automatic |
| Scan Angle | Yaw 55°,Rotation 30°,Pitch 65° |
| Precision | ≥3mil |
| Depth of scan field | 10-280mm(0.33mm,PCS90%) |
| Error Rate | Less than 1/5 million |
| Interface | USB-HID,USB-COM,PS2,RS232 |
| Physical Parameters | |
| Dimensions | 102mm*71mm*177mm |
| Weight | 176.5g |
| Material | ABS+PC |

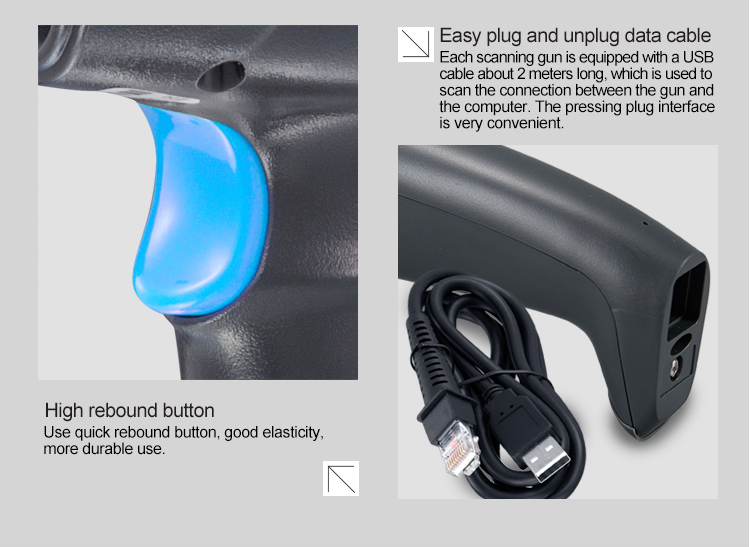

| Cable Length | 2M |
| Environmental Parameters | |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 5%~95%(Non-condensing) |
|
Electrical Parameters |
|
| Voltage | DC5V±1% |
| Operating Current | 85mA |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why so competitive?
With years of experience, Syble has a large share in both domestic and international markets, and large-scale production directly reduces raw material costs. In addition, mature technology is an important factor in saving costs.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q4: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q5:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
Value-added services:
1. Provide long time maintenance services
2. Provide extended warranty as required
