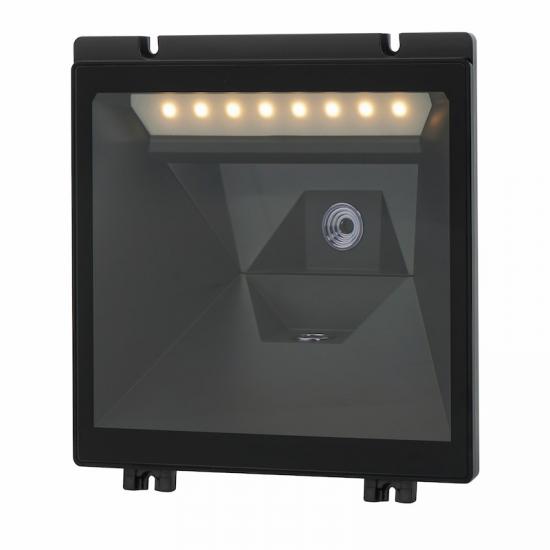

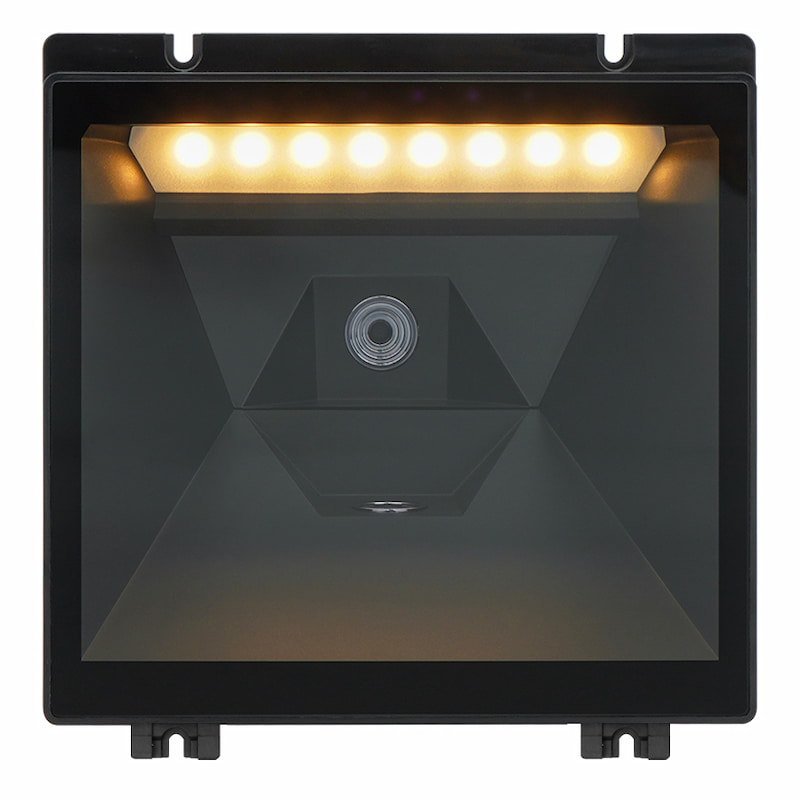

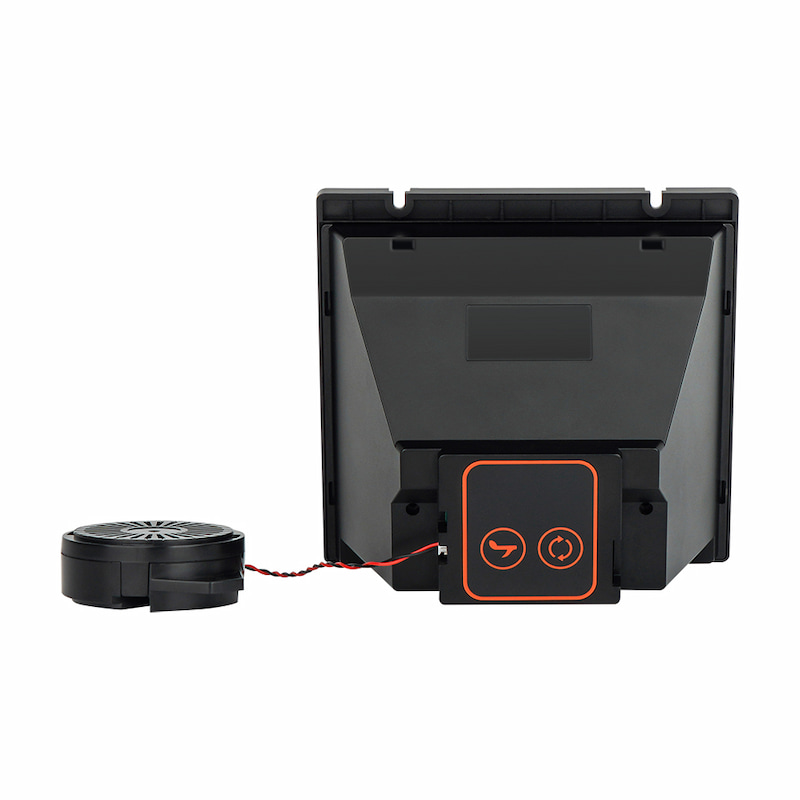

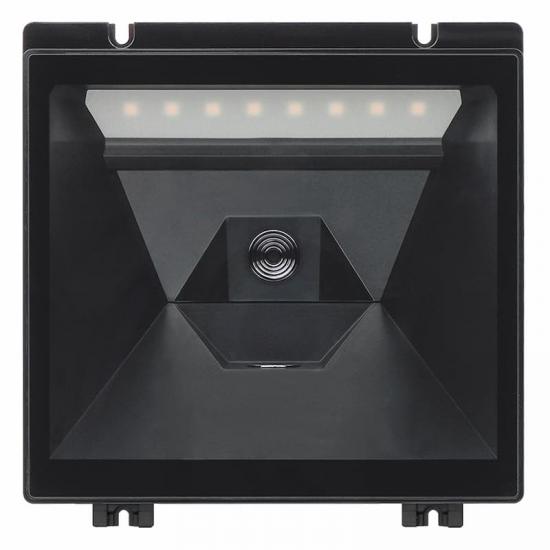

M5 is a high-performance 2D embedded scanner equipped with a global exposure scanning camera. Its scanning speed can reach 120FPS, with a maximum motion tolerance of 5m/s. It supports automatic barcode scanning. It can recognize most 1d and 2d barcodes, and is compatible with various interfaces such as USB and RS232. It is compatible with multiple operating systems including Linux, Android, and Windows. The device has strong environmental adaptability, with a working temperature range of -20℃ to +60℃. It is small in size and easy to integrate, and is widely used in various barcode-scanning scenarios such as self-checkout, gates, and query terminals.
Item NO.:
M5Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
GuangzhouLead Time:
5-7days
2D Embedded Scanner Engine
Features:

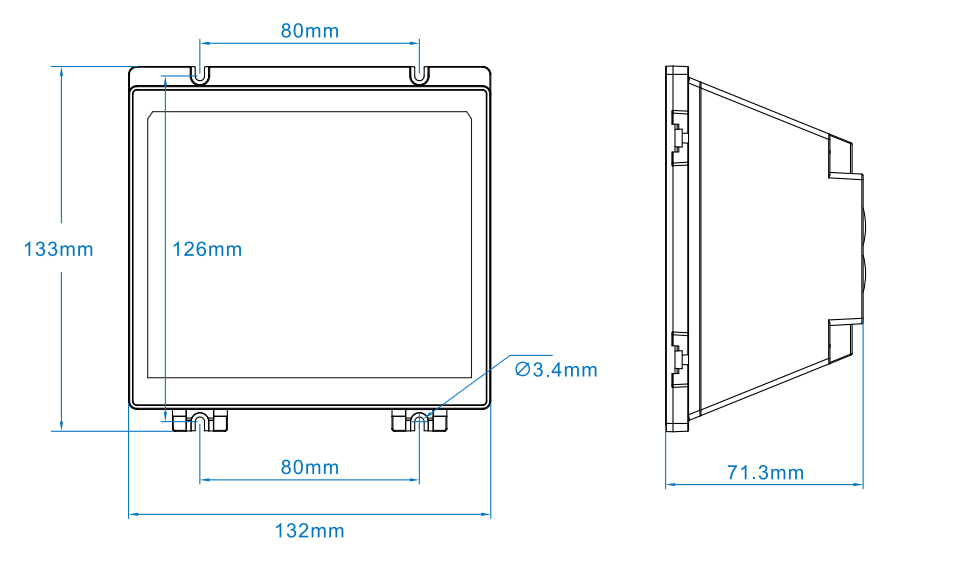

Product Size:
Specifications
|
Image Sensor |
1280 pixels (H) x 1024 pixels (V) |
| Fill light |
White |
|
Supported Symbologies |
1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5,Code 93, Straight 2 of 5, Industial, Straight 2 of 5, IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E,EAN/JAN-8EAN/JAN-13, MSI, GS1 DataBar Omnidirectional,GS1 DataBar Limited, GS1 DataBar Expanded,China Post(Hong Kong 2 of 5). 2D:PDF417, Micro PDE417, QR Code, Data Matrix, Aztec,HanXin, Codeblock A, Codeblock F, GS1 Composite Codes. |
|
ScanRange |
10mm-300mm(EAN13 13mil,PCS=90%) |
|
Buzzer |
Startup prompt, code reading prompt |
|
System compatility |
Linux,amdroid,windows XP/7/8/10/MAC |
|
Trigger method |
Automatic sensing scanning |
|
Scan angle |
Corner 360°,Elevation ±65°，Declination ±65° |
|
Contrast |
20% |
|
Precision |
≥4mil |
|
Motion tolerance |
5m/s |
|
Interface |
USB drive free, RS232, USB-COM |
|
Physical Parameters |
|
|
Dimensions |
132(L)x71.3(W)x133(H)mm |
|
Material |
ABS+PC |
|
Cable Length |
0.6M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
Ambient light |
0~100000LUX |
|
Relative Humidity |
5%~95%RH(Non-condensing) |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
240mA |
|
Standby Current |
190mA |
Application
Suitable for self-service vending machines, supermarket self-service cash registers,hospital self-service machines, parking lot payment self-service machines and other scenarios
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
