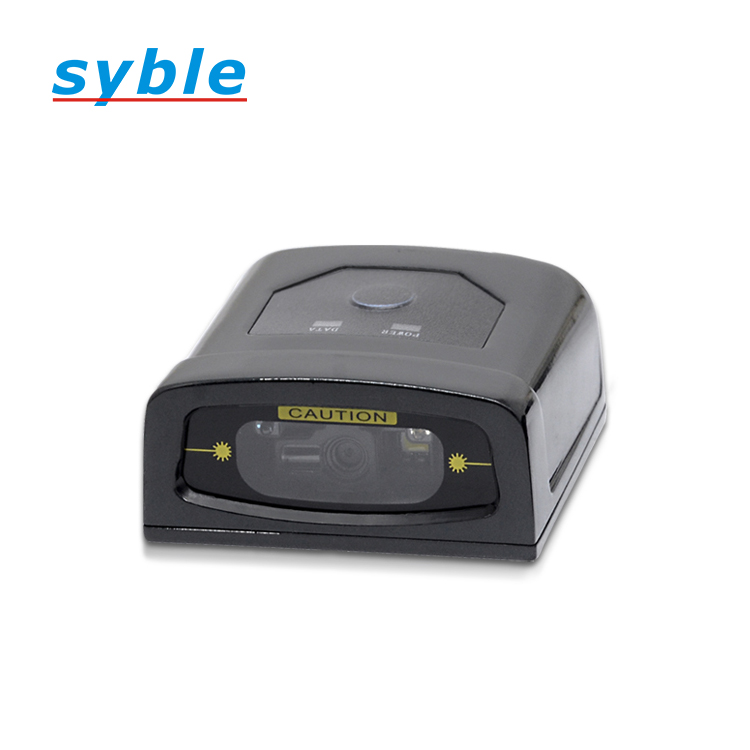

Syble 2D rugged embedded qr barcode scanner used in the small space

The embedded barcode reader is widely used in all kinds of self-service terminal equipment.It has a wide range of uses,greatly improves work efficency and saves time.
  • Item NO.:

    XB-7126
  • Payment:

    EXW/FOB
  • Product Origin:

    Guangzhou
  • Color:

    Black
  • Product weight:

    60
  • Shipping Port:

    Guangzhou
  • Product Details

2D rugged embedded qr barcode scanner used in the small space


Product Features:

-The 2D fixed scanner with new decoder chip. Interpretation of various one-dimensional / two-dimensional code

- Plug and play, set up simple, can be quickly used with other office equipment

- The wire adopts 0.01 mm copper wire, which contains pull-resistant nylon wire for longer service life

- Anti-freeze wire material, can be used at temperatures below minus 30 degrees


Model number:XB-7126

The rugged embedded qr barcode scanner made of Anti-freeze wire material.Can be used at temperatures below minus 30 degrees with good performance.


Specification

Light Sources

630nm Red LED

Supported Symbologies

1D:EAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128,   EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,China   Post Code and all 1D barcodes

2D:PDF417 、QR Code、Data Matrix(ECC200,050,ECC000,080,100,140) 、Hanxin

Indicator


LED,Speaker

Scan Speed:

≥270   times/s

Scan Method

Automatic inductive

Scan Angle

Yaw 55°,Rotation 30°,Pitch 65°

Precision

3mil(Code39),7.5mil(Data Matrix),4mil(PDF417)

Depth of scan field

20-330mm(0.33mm,PCS90%)

Error Rate

Less than 1/5 million

Interface

USB-HID,USB-COM,RS232

Physical Parameters

Dimensions

23.6mm*56.5mm*25mm

Weight

60g

Material

ABS+PC

Cable Length

2M

Environmental Parameters

Operating Temperature

0℃~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95%(Non-condensing)

Drop/Shock Resistance:

Withstands multiple times 3meters drops to concrete

Electrical Parameters

Voltage

DC5V±1%

Current

210mA(Operating)


Product Overview



FAQ

Q1:How about the quality?

Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

Q2: Why so competitive?

With almost many years experience,we owned a large domestic market in China.We are the best-seller in China.So large quantity will reduce our raw material cost directly.What’s more we have mature technology to save cost.

Q3: How to control the performance stable?

We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery.

Q4:Is OEM or ODM available?

Yes.We are the factory directly.We can make it as your requirement.

Q5:Why customer choose us?

Bcz our factory with strictly quality control system.Prompt after-sales service.

Q6:How about the factory?

We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
