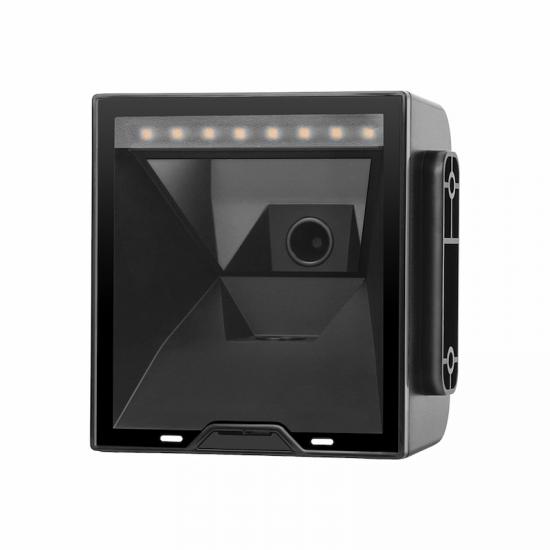

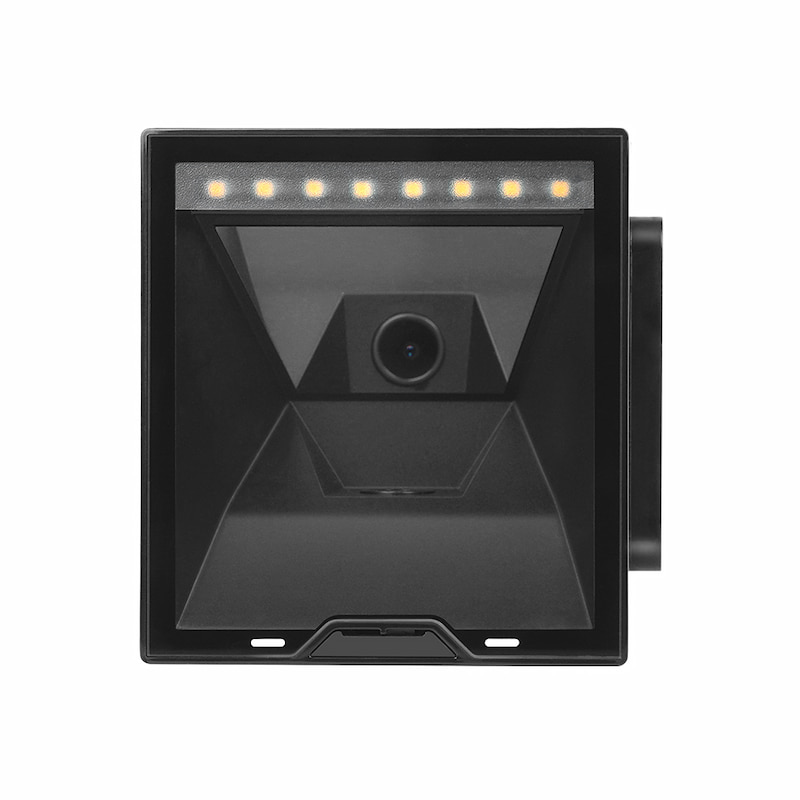

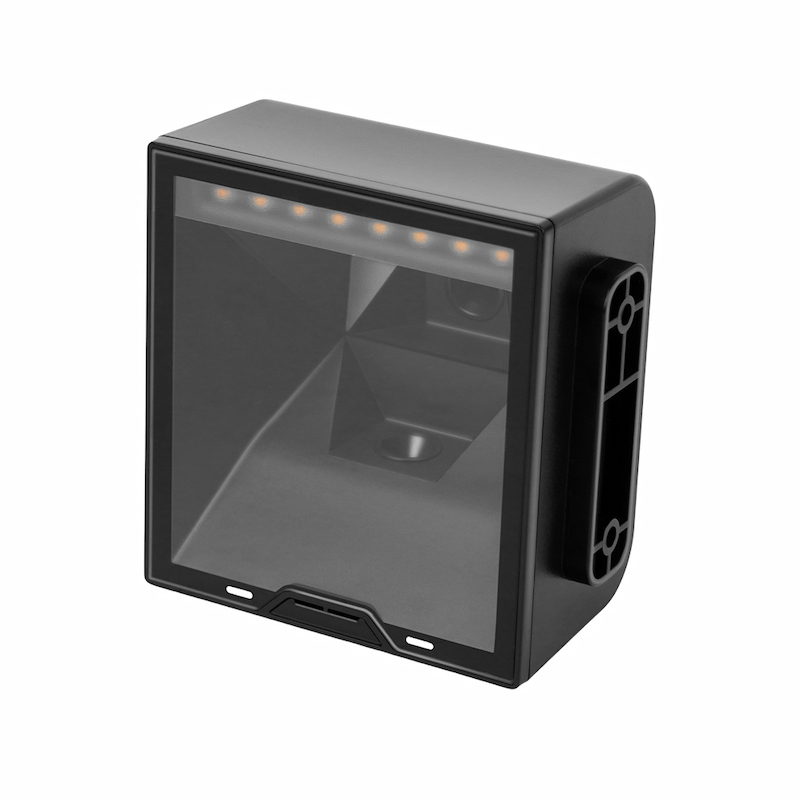

The M6 2D embedded scanning module is equipped with a 1.3-megapixel global exposure camera, enabling rapid and accurate code recognition. It is compatible with various devices such as self-service checkouts, intelligent express delivery cabinets, ticket gates, and self-service ticket vending machines. It is compatible with mainstream 1D/QR codes, multiple systems and various interfaces, is resistant to wide temperature and humidity, suitable for outdoor use.Compact and easy to embed, t can significantly improve the scanning and payment efficiency of devices.
Item NO.:
M6Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
GuangzhouLead Time:
5-7daysFeatures:
Product Size:
Specifications
|
Image Sensor |
1280 pixels (H) x 1024 pixels (V) |
|
Supported Symbologies |
1D: Codabar, Code39, Code32, Pharmaceutical (PARAF),Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5Industial,Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code128, GS1-128,UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, Korea Post,GS1 DataBar Omnidirectional, GS1 DataBarLimited,GS1 DataBar Expanded, China Post(Hong Kong 2 of 5). 2D:PDF417, Micro PDE417, QR Code, Data Matrix, Aztec,HanXin, GS1 Composite Codes. |
|
ScanRange |
10mm-300mm(EAN13-13mil) |
|
System compatility |
Linux,amdroid,windows XP/7/8/10/MAC |
|
Trigger method |
Automatic sensing scanning |
|
Scan angle |
Turn 360°,Elevation ±65°，Declination ±65° |
|
Contrast |
20% |
|
Precision |
≥4mil |
|
Motion tolerance |
4m/s |
|
Interface |
USB drive free, RS232, USB-COM |
|
Physical Parameters |
|
|

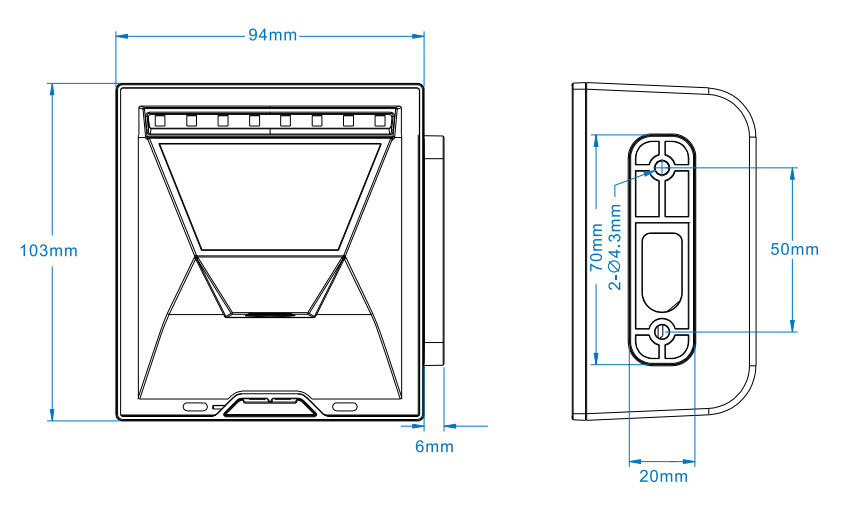

Dimensions |
56(L)x94(W)x103(H)mm |
|
Material |
ABS+PC |
|
Cable Length |
0.6M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
Ambient light |
0~100000LUX |
|
Relative Humidity |
5%~95%RH(Non-condensing) |
|
Seismic resistance |
1.5m |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
240mA |
|
Standby Current |
190mA |
Application
Suitable for self-service vending machines, supermarket self-service cash registers,hospital self-service machines, parking lot payment self-service machines and other scenarios
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
