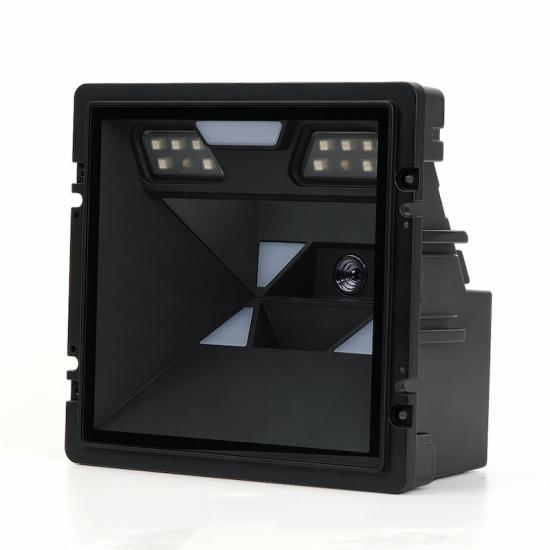

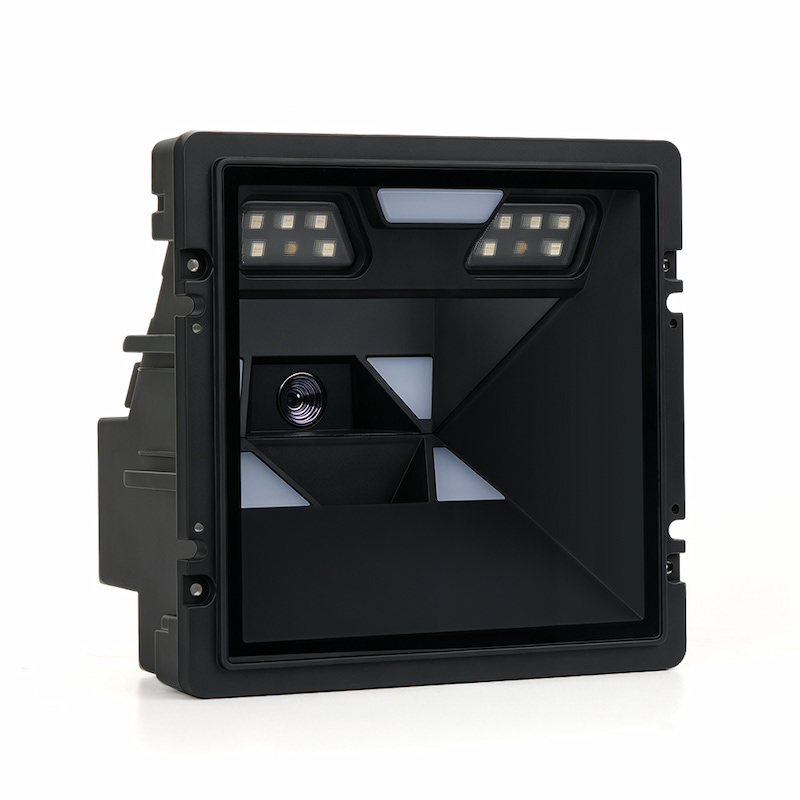

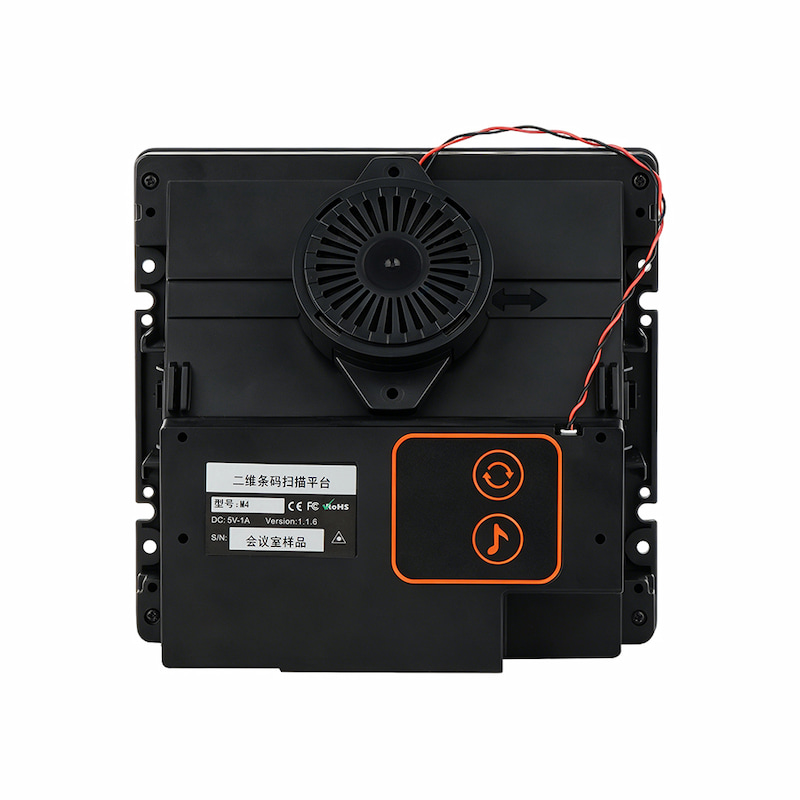

This embedded scan module adopts CMOS global exposure image sensor which support the reading in the process of movement. The appearance is clean and dedicate which can be embedded or external. And this 2d barcode scanner embeddeds upport 1D and 2D barcode, direct transmission of multi language barcode information.
Item NO.:
M4Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
GuangzhouLead Time:
5-7daysQR Code Scanner Embedded 2D Barcode Module Scanner Engine For Kiosk
This OEM embedded barcode scanners are widely used in applications such as service kiosks, airport boarding pass gates, EV charging posts, life science/lab automation and product dispensers. With 5m/s motion tolerance, extremely fast reading of barcode on paper and electronic screen barcode. Built-in RS232 and usb interfaces. This embedded fixed module which has large scanning window, ultra-thin baking paint fashion design, can be switched by scanning.
Features:
Specifications
|
Image Sensor |
1280 pixels (H) x 1024 pixels (V) |
|
Supported Symbologies |
1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5,Code 93, Straight 2 of 5, Industial, Straight 2 of 5, IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E,EAN/JAN-8EAN/JAN-13, MSI, GS1 DataBar Omnidirectional,GS1 DataBar Limited, GS1 DataBar Expanded,China Post(Hong Kong 2 of 5). 2D:PDF417, Micro PDE417, QR Code, Data Matrix, Aztec,HanXin, Codeblock A, Codeblock F, GS1 Composite Codes. |
|
ScanRange |
10mm-300mm(EAN13-13mil) |
|
System compatility |
Linux,amdroid,windows XP/7/8/10/MAC |
|
Trigger method |
Automatic sensing scanning |
|
Scan angle |
Turn 360°,Elevation ±65°，Declination ±65° |
|
Contrast |
20% |
|
Precision |
≥4mil |
|
Motion tolerance |
5m/s |
|
Interface |
USB,USB-COM,RS232 |
|
Physical Parameters |
|
|
Dimensions |
148(L)x77(W)x140(H)mm |
|
Material |
ABS+PC |
|
Cable Length |
1.5M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
Ambient light |
0~100000LUX |
|
Relative Humidity |
5%~95%RH(Non-condensing) |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
240mA |
|
Standby Current |
190mA |

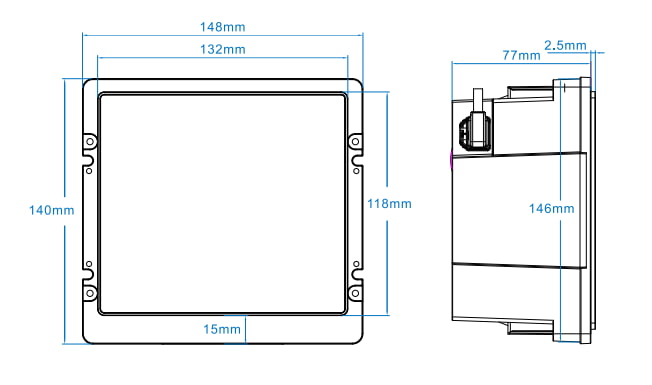

Product Size:

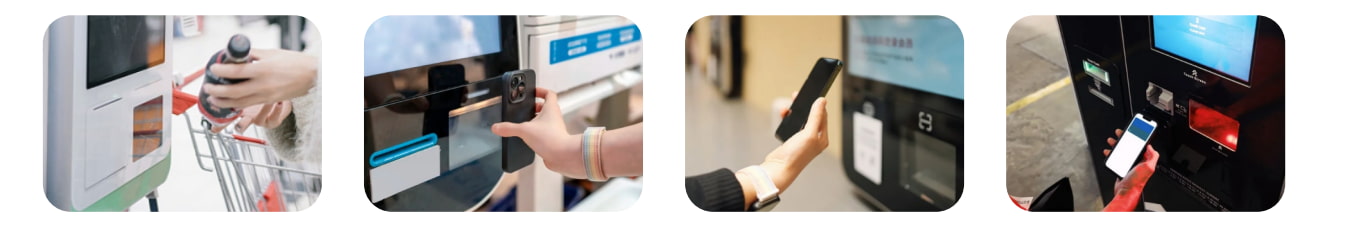

Application
Suitable for self-service vending machines, supermarket self-service cash registers,hospital self-service machines, parking lot payment self-service machines and other scenarios
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
