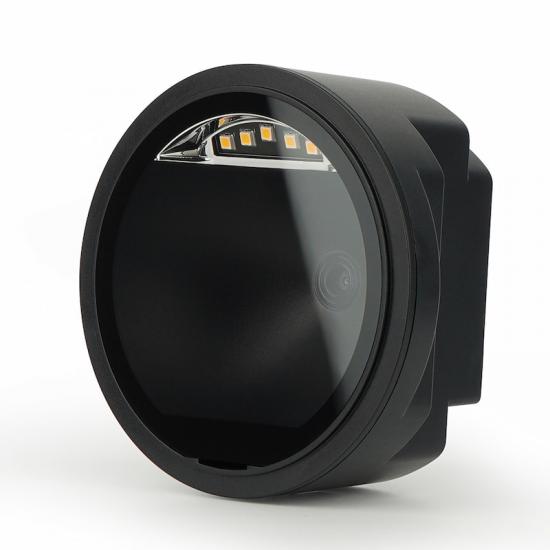

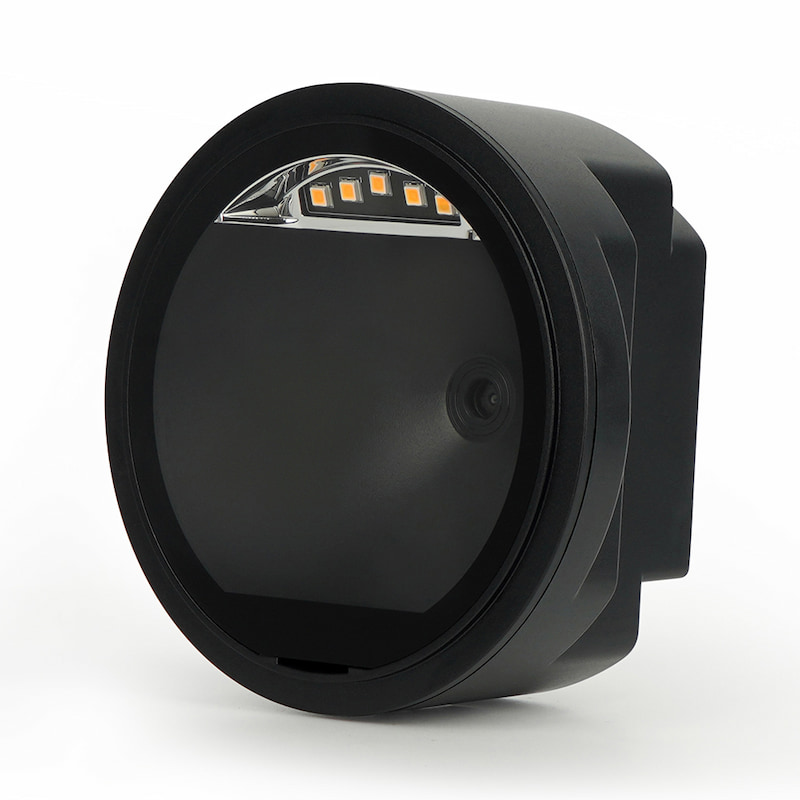

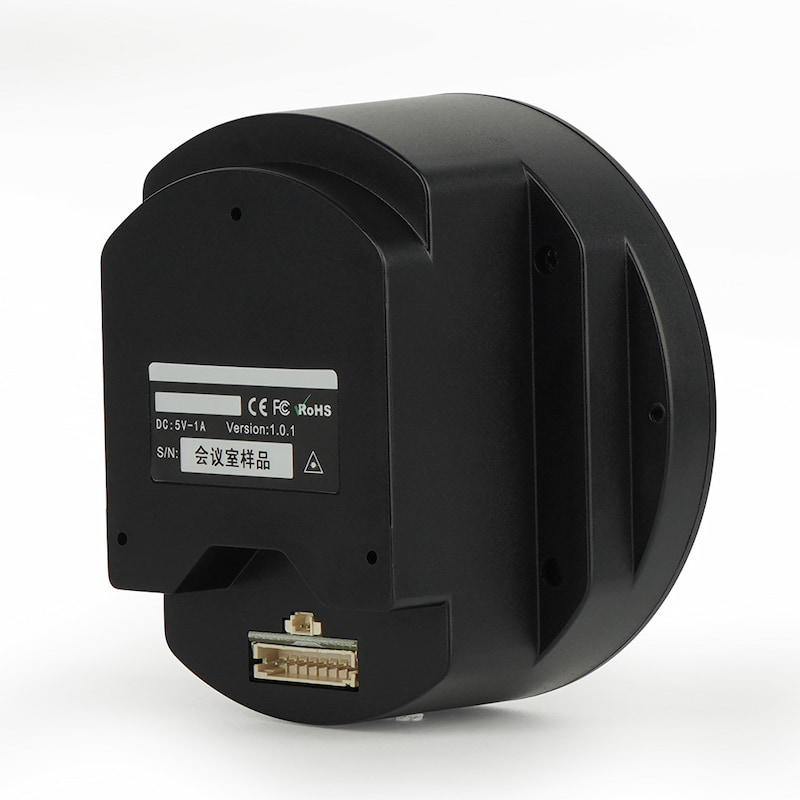

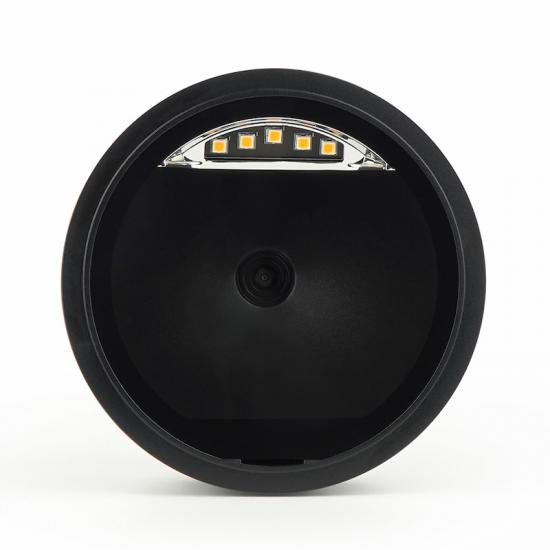

M1 is a high-performance 2D embedded scanning module with a circular design. It can be disassembled and integrated according to the structure of the device. It supports mainstream 1D and 2D code reading and is compatible with various interfaces such as USB and RS232. It provides a complete SDK, facilitating secondary development.
With a 300,000 pixel sensor, it automatically senses and scans, has a reading depth of 10-130mm, strong resistance to environmental light, and a wide recognition angle. It is compatible with systems such as Linux, Android, and Windows. It operates within a temperature range of -20°C to +55°C and is stable for various scanning scenarios such as self-service terminals and device embedding.
Item NO.:
M1Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
GuangzhouLead Time:
5-7days2D Embedded Scanner Engine
Features

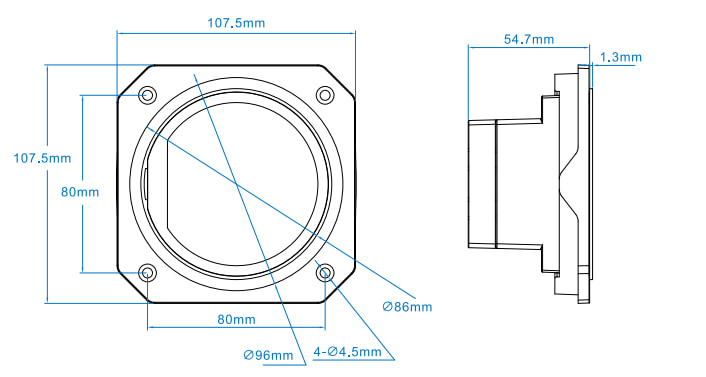

Product Size:
Specifications
|
Image Sensor |
640 pixels (H) x 480pixels (V) |
| Fill light |
White |
|
Supported Symbologies |
1D: Codabar, Code 39, Code 32 ,Interleaved 2 of 5, NEC 2 of 5,Code 93, Straight 2 of 5,Industial, Straight 2 of 5, IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E,EAN/JAN-8EAN/JAN-13, MSI, GS1 DataBar Omnidirectional,GS1 DataBar Limited, GS1 DataBar Expanded,China Post(Hong Kong 2 of 5). 2D:PDF417, Micro PDE417, QR Code, Data Matrix, Aztec,HanXin, Codeblock A, Codeblock F, GS1 Composite Codes. |
|
ScanRange |
10mm-130mm(EAN13 13mil,PCS=90%) |
|
System |
Linux, Android, Windows XP/7/8/10, MAC |
|
Trigger method |
Automatic sensing scanning |
|
Scan angle |
Corner 360°,Elevation ±65°，Declination ±65° |
|
Contrast |
20% |
|
Precision |
≥5mil |
|
Motion tolerance |
2m/s |
|
Interface |
USB drive free, RS232, USB-COM |
|
Physical Parameters |
|
|
Dimensions |
132(L)x71.3(W)x133(H)mm |
|
Material |
ABS+PC |
|
Cable Length |
1M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~55℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Ambient light |
0~100000LUX |
|
Relative Humidity |
5%~95%RH(Non-condensing) |
|
seismic resistance |
1.5m |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
240mA |
|
Standby Current |
190mA |
Application

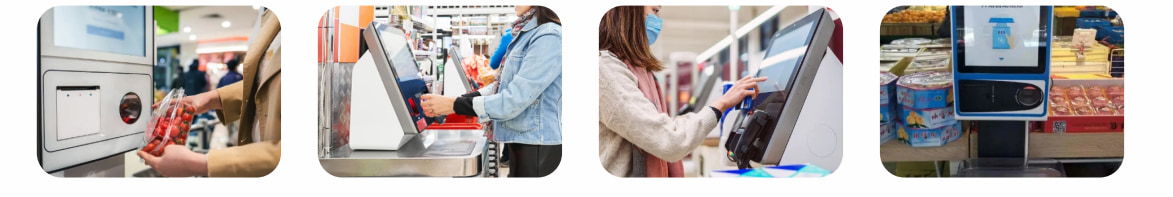

Suitable for scenarios such as self-service vending machines, supermarket self-service cash registers retail self-service cash registers, etc
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
