Syble 1D 2D Desktop Barcode Scanner High Performance Fast Speed Scan Various 1D 2D Barcode Factory Price

Syble High-end 2D Barcode Scanner Platform Omnidirectional Barcode Reader Support Multi Systems Scan Various 1D & 2D Barcode

  • Item NO.:

    AK-9808
  • Payment:

    EXW/FOB
  • Product Origin:

    Guangzhou
  • Color:

    Black and Silver
  • Shipping Port:

    Guanghzhou/Shenzhen
  • Lead Time:

    7-10days
Share To :
  • Product Details

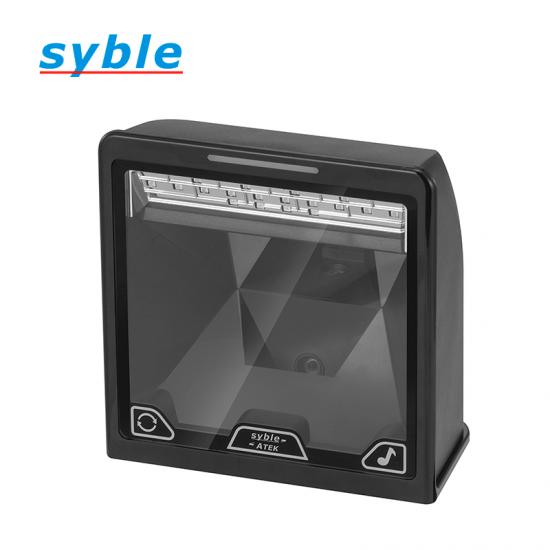

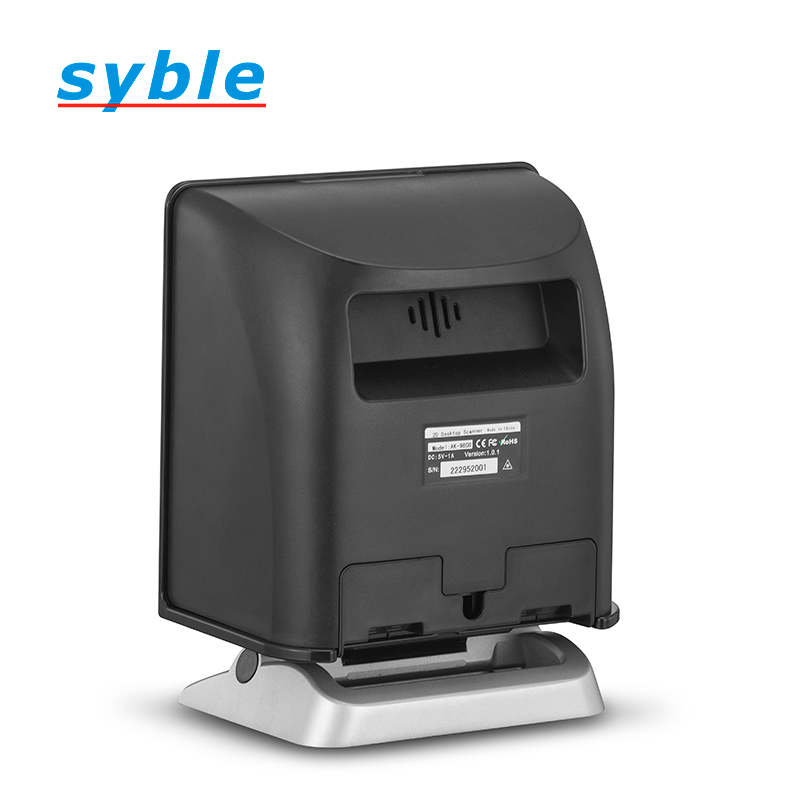

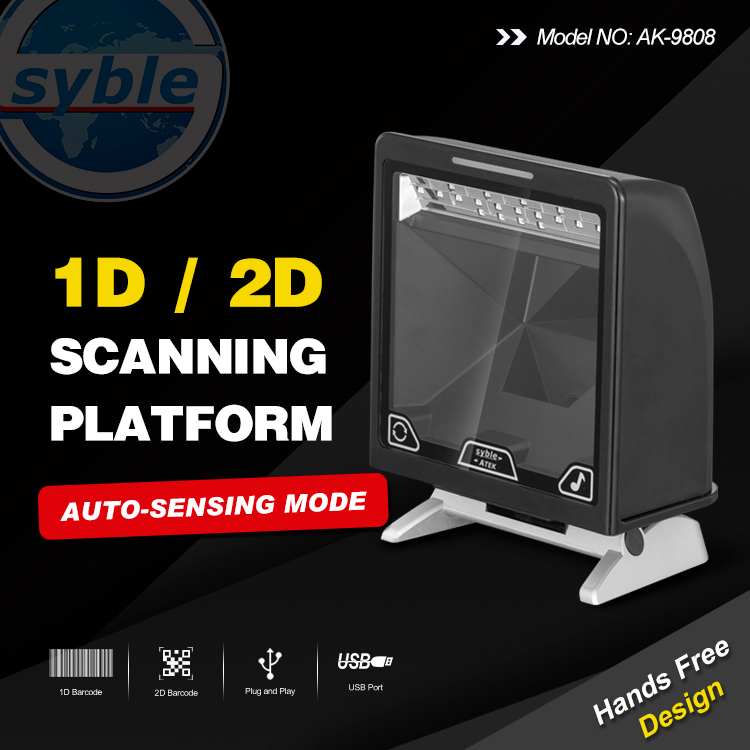

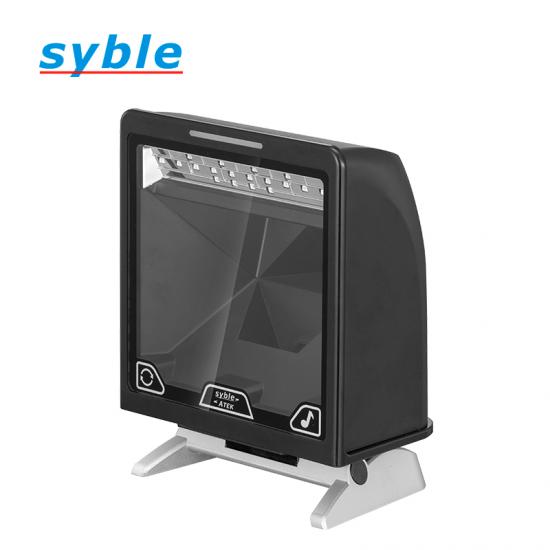

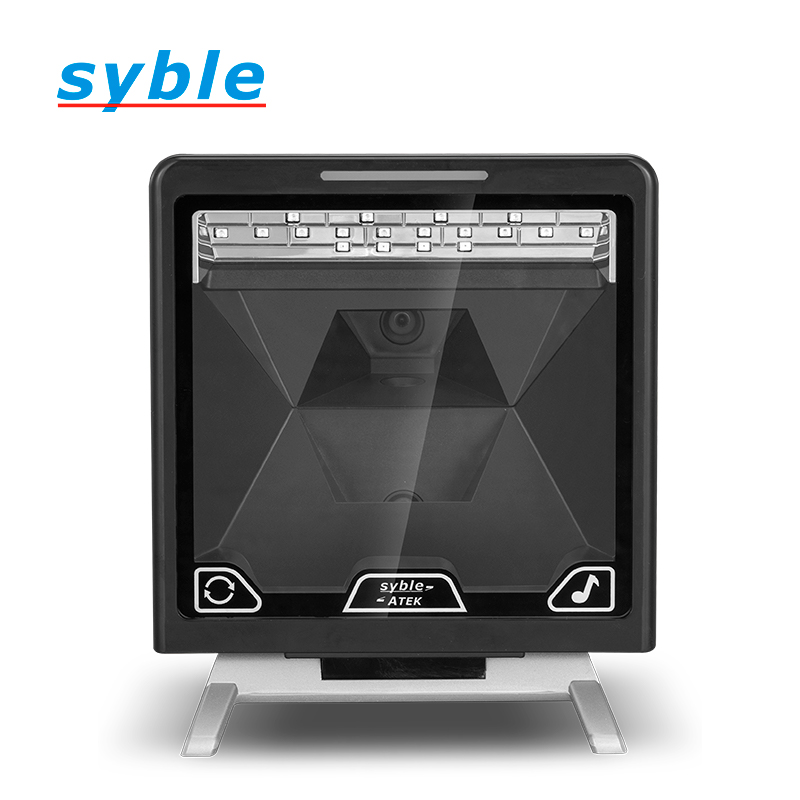

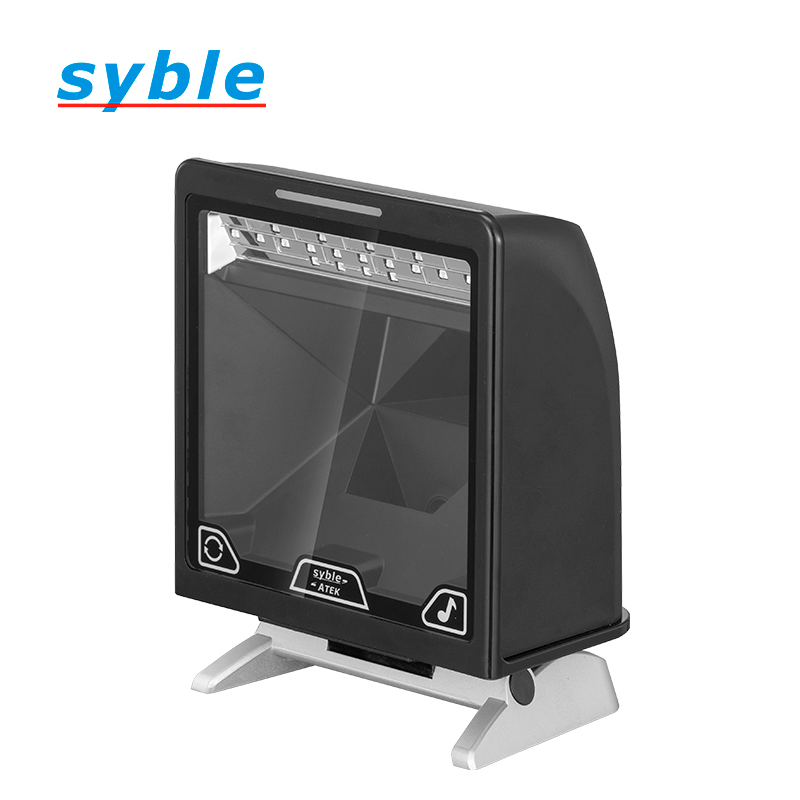

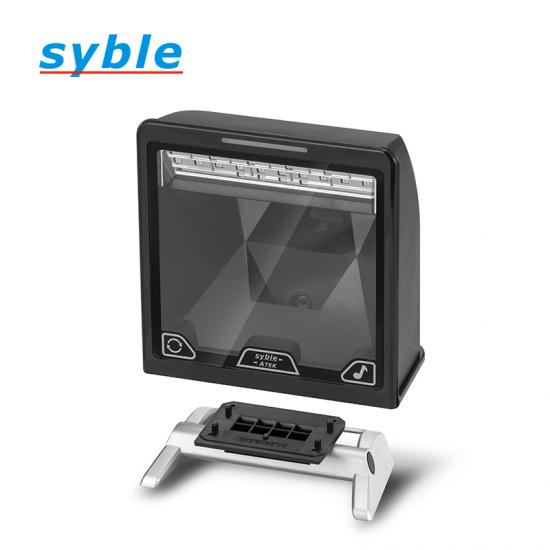

AK-9808 is one of the high-end series of Syble brand. The high performance 2D QR desktop barcode scanner with high-class silvering design which highly shows brand image.


Features

1. 1280*1024 high resolution CMOS, high image technology

2. High decoding ability fast scan various 1D 2D barcode

3. Solid material silvering high-class design

4. Long shot long depth of filed reaches 40mm

5. Compatible with Linux, Mac, Andriod, Windows 7/8/9/10 systems

1. Fill-in light on while scanning, wake-up light on while not scanning


Model No.: AK-9808


Specification

Performance Parameters

Light Sources

SXGA-W(Width1280*high1024) Ratio(5:4)

Supported symbologies

1D: EAN-8, EAN-13, EAN-132 add-on, EAN-135add-on, ISSN, ISBN, UPC-A, UPC-E,

Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5,

Interleaved 2 of 5, Matrix 2 of 5, ISBT-128GS1-128, GS1 DataBar(RSS14),

GS1 DataBar Limited, GS1 DataBar Expanded.

2D: PDF417, MicroPDF417, QR-codeMicro QR, Data Matrix, QR, Aztec.

Scan Range

3mil(Code39) 0cm~8cm; 5mil 0cm~21cm;

13mil(UPC-13) 0cm~43cm; 20mil(QR Code) 1cm~35cm

System compatibility

LinuxAndroidWindows XP7810MAC

Minimum recognition accuracy

Code 39 4mil

Motion tolerance

3.8meters/second

Scan Mode

Continuous Scanning

Print contrast

20%

Recognition angle range

Turn angle ±360°, elevation angle ±60°, declination angle ±70°

Mutual Move

Indicator light: Red and blue dual color indicator light: Blue light flashing code reading prompt, blue light power indicator; Red light: turn off QR code reading.

Buzzer: start prompt, read code prompt;Key: switch three tones; QR code switch.

Interface

USB(Drive-Free), RS232, USB-COM

Physical  Parameters

Dimensions

152mm*87mm*152mm

Weight

390g

Material

ABS+PC

Cable length

2M

Environmental Parameters

Operating Temperature

-20℃ - 55℃

Storage Temperature

-20℃-60℃

Humidity

5% to 95% RH.Non-condensing

Shock Resistance

Withstands multiple times 1.5 meters drops to concrete

Electrical Parameters

Voltage

DC5V±5%

Current

Standby current 160mA; Working current 310mA
