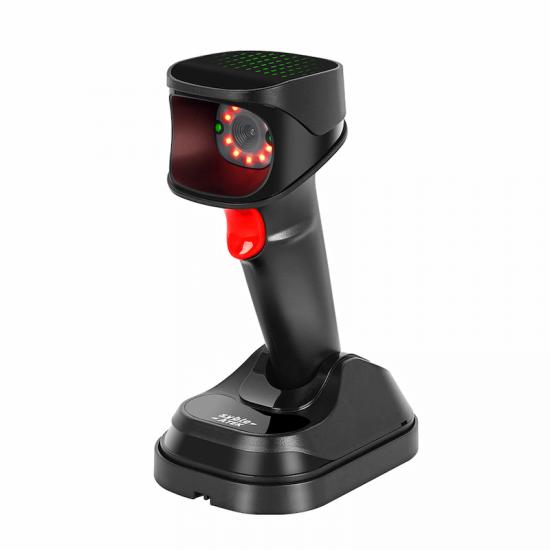

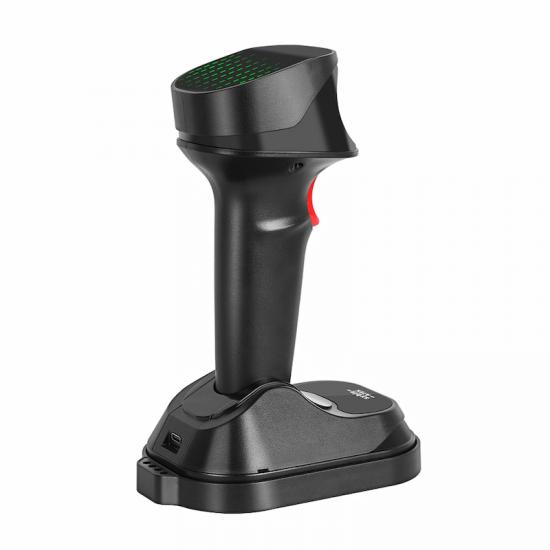

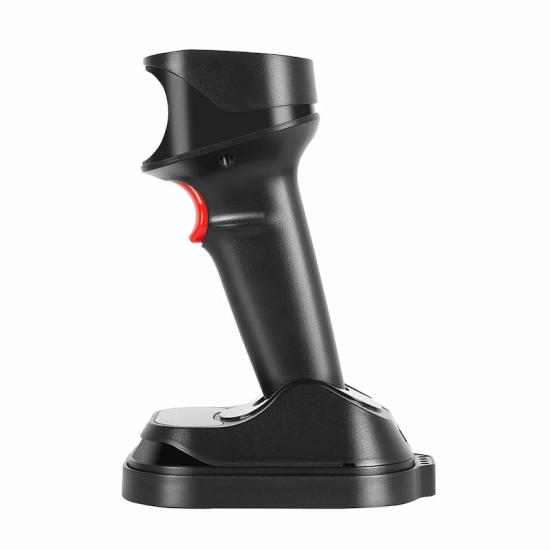

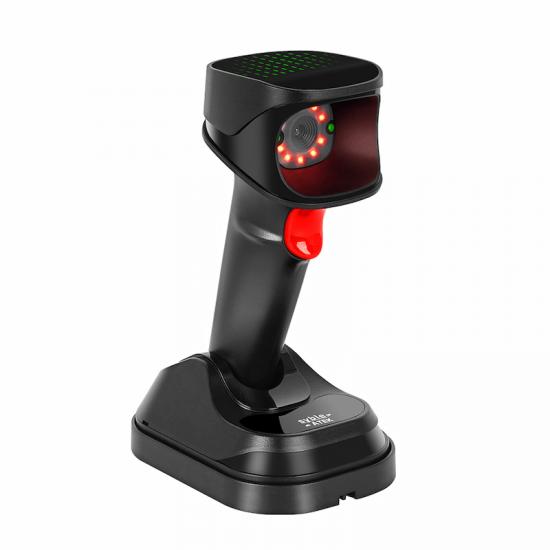

2D Wireless Bluetooth &433Mhz Handheld Scanning Platform

Performance Parameters

Supported Symbologies

1D: EAN-8,EAN-13,EaN-13-2add-on,EAN-13-5add-on,ISSN,ISBN,UPC-E, Code11,Code32,Code39,Code93,Code128,Codabar,Industrial 2 of 5,Interleaved 2 of 5, Matrix 2 of 5,ISBT-128,GS1-128,GS1Databar(RSS14),GS1DataBarLimited,GS1DataBarExpanded

2D: PDF417,MicroPDF417,QR-code,MicroQR,DataMatrix,Aztec.

Image Sensor

SXGA-W (width 1280*height 1024) ratio column (5: 4)

System Compatibility

Linux / Andriod / Windows 7 / 8 / 10 / MAC

Motion Tolerance

Code 39 4mil

Minimum Recognition Accuracy

3.8 meters / second

Scan Method

Automatic induction,manually triggered Scanning

Scan angle

Skew ±70°, Rotation 360°, Pitch ±60°

Contrast

≥20%

Depth of scan field

5mil (Code39) 10mm~150mm;

13mil(UPC) 10mm~345mm;

20mil(Code39) 10mm~420mm;

20mil(QR Code)  10mm~280mm

Interface

Receiver: USB-HID, Bluetooth: HID, BLE, SPP

Storage Mode

Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.

Human-Machine Interaction

Indicator light: Blue and green two-color indicator light;The blue light indicates the full code mode,and the code reading is successful and flashes;The red light indicates the read-only 1D codemode, and the code blinks successfully.
Buzzer: start reminder, code reading reminderButtons:
Buttons:1. Switch between three tones;
2. Switch to read-only 1D mode;
3. Manually trigger code reading;
4.Mode switching
>>> Place the desktop to automatically switch the platform mode;
>>>Pick up the device and switch to manual mode automatically

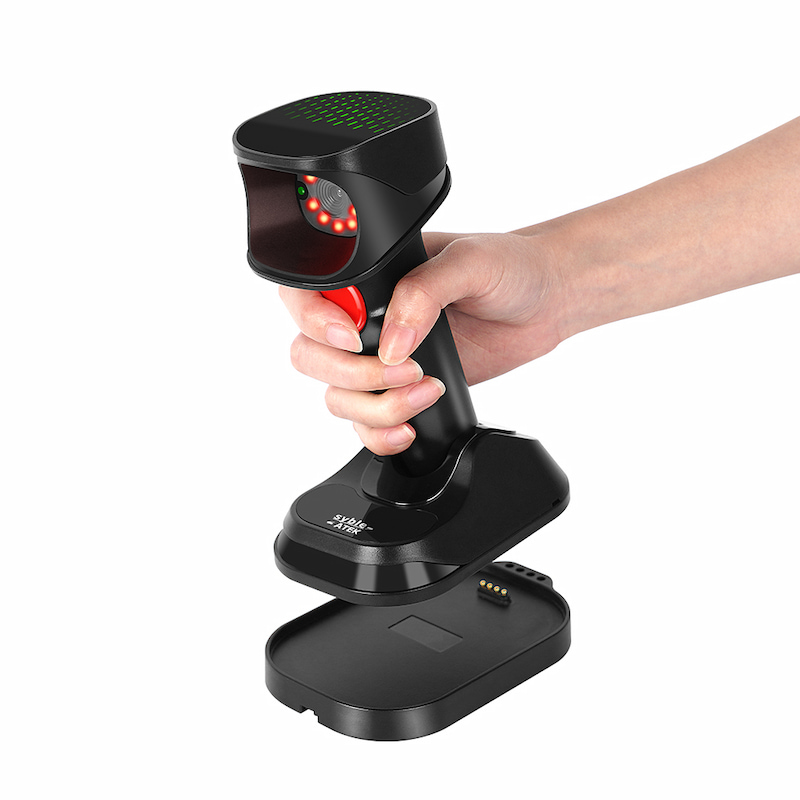

Pairing special charging receiving seat 433Mhz communication;

Pairing mobile Bluetooth devices: dual-mode Bluetooth.

Electrical Parameters

Voltage

DC5V±5%

Operating Current

≥80mA when not scanning the code

Standby Current

≥300mA when scanning the code
0mA (standby is to cut off the battery power supply)

Physical Parameters

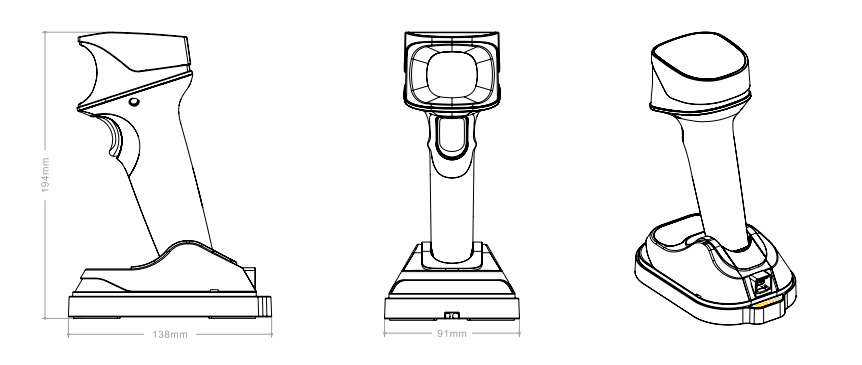

Dimensions

91mm*138mm*194mm

Material

ABS+PC

Cable Length

1.8m((±3m)

Environmental Parameters

Operating Temperature

-20℃~-55℃

Storage Temperature

-20℃~+60℃

Relative Humidity

5-95% RH(Non-condensing)

Ambient lighting

0~70000LUX

Drop/Shock Resistance

Withstands multiple times 1.5 meters drops to concrete
