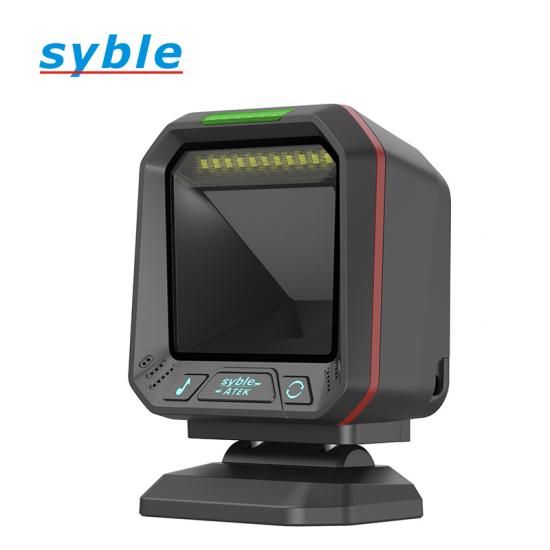

Quick And Accurate Reading 2d Desktop Image QR code reader Barcode Scanner

2D Desktop barcode scanner with good performance. Hands free of the workers, raise the working efficiency.
  • Item NO.:

    AK-9608
  • Payment:

    EXW/FOB
  • Product Origin:

    Guangzhou
  • Color:

    Black
  • Shipping Port:

    Guangzhou
  • Lead Time:

    7-10 days
Share To :
  • Product Details

Product  Features:

1.Automatic sleep and wake up mode which save power and extend life time

2.Multiple interface and easy to switch by change a cable

3.Powerfull decoding performance and reliability

4.Fast scan speed reach 150times per second in 1d barcodes and 60 images per second in 2d barcodes

5.Excellent motion tolerance

6.Read all 1d & 2d barcodes from paper printed as well as mobile devices displays.


Model number: AK-9608

2D Imager Barcode Scanner ,which we adopt latest and advanced digital imaging technology to provide intuitive and blazing decode of 1d and 2d barcodes without sacrificing scanning quality and performance ,it can read damaged ,poor printed ,dirty and distorted barcodes as well as barcodes from mobile devices display.


Specification

Performance Parameters

Light Sources

SXGA-W(Width1280*high1024) Ratio(5:4)

Supported Symbologies

1D:EAN-8、EAN-13、EAN-13 2 add-on、EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2 of 5、ISBT-128、GS1-128、GS1 DataBar(RSS14)、GS1 DataBar Limited、GS1 DataBar Expanded.

2D:PDF417、MicroPDF417、QR-code、MicroQR, Data Matrix、QR、Aztec.

Scan Range

5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm

System compatibility

Linux、Android、Windows XP、7、8、10、MAC

Minimum recognition accuracy

Code 39 4mil

Barcode Type

1d or 2d barcodes for Paper or Film;1d and 2d for screen ,like Phone tablets

Motion tolerance

3.8meters/second

Scan Mode

Automatic continuous reading mode

Support Keyboard

Support Multi-Language

Barcode output editing

Support for adding suffixes

Print contrast

20%

Recognition angle range

Turn angle ±360°, elevation angle ±60°, declination angle ±70°

Mutual Move

Led: Red and blue bi-color indicator: red light reading code, blue light power indicator.

Beeper: Startup prompts, reading tips.

Keys (touch keys): Key Switch and 2d barcodes.

Interfaces

USB(Drive - Free)、RS232

Physical Parameters

Dimensions

115mm*75mm*140mm

Weight

390g

Material

ABS+PC

Cable Length

180CM(±3CM)

Environmental Parameters

Operating Temperature

-20℃~55℃

Storage Temperature

-20℃~60℃

Relative Humidity

5%~95% RH(non-condensing/non-freezing)

Shock Resistance:

Withstands three times1 . 5 meters drops to concrete

Waterproof and Dustproof

IP54 standard

Ambient Ligh

0-70000LUX




Our service:

(1) Information provided: According to the different product types provide technical information to customers

(2) Product testing: Before shipping, we will do quality testing to ensure that products meet testing standards shipment.

(3) Customized service: individually tailored display and control plan according to customers'demand.

We insist on providing the best cost-effective solution for our customers.
