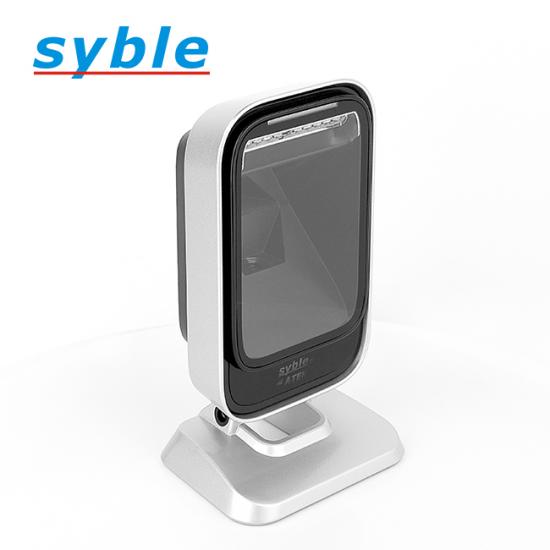

Large Screen Design Wired 1D 2D Desktop Barcode Scanner improve working efficiency Compatible with Multi Systems
Item NO.:
AK-9208HPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and SilverShipping Port:
Guangzhou/ShenzhenLead Time:
7-10daysSyble 2D desktop wired barcode scanner AK-9208H with very good price and fashionable design, brings more effective and comfortable scanning experience. Such barcode scanner is very suitable for many applications, such as supermarket, clothing store, pharmacy and various retail industries.
Features:
●Compatible with Linux, Android, Windows XP, 7, 8, 10, MAC
●Switch to read only 1D code, to prevent misreading adjacent 2D code
●Read the coated bar code and mobile phone payment code smoothly
●Quick and accurate reading of universal 1D & 2D code
●Ultra wide scan wide Angle and ultra far reading distance
●Soft color flls the light, does not hurt the eye
Specification:
|
Performance Parameters |
|
|
Image (Pixels) |
640pixels(H) x 480pixels(V) |
|
Supported Symbologies |
1D: EAN/JAN-13、EAN/JAN-8、ISBN、UPC-A、UPC-EO、UPC-E1、Code11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、NEC 2 of 5、Straight 2 of 5 IATA、Matrix 2 of 5、MSI、GS1 DataBar Limited、GS1 DataBar ExpandedGS1、DataBar-Omnidirectional. 2D:PDF417、MicroPDF417、QR-code、MicroQR, Data Matrix、China Post、Korea Post、Aztec Code、HongKong 2 of 5、Hai Xin code、Maxi code、GS1 Composte coder、Codablock A、Codablock F. |
|
Scan Range |
0-190mm(EAN13 13mil, PCS=90%) |
|
System compatibility |
Linux、Android、Windows XP、7、8、10、MAC |
|
Minimum recognition accuracy |
Code 128 4mil |
|
Scan Mode |
Continuous Scanning |
|
Support Keyboard |
Support Multi-Language |
|
Barcode output editing |
Support for adding suffixes |
|
Recognition angle range |
Turn angle ±360°, elevation angle ±65°, declination angle ±65° |
|
Interfaces |
USB(Drive - Free)、RS232、USB-COM |
|
Physical Parameters |
|
|
Dimensions |
80mm*68.4mm*160mm
|
|
Weight |
150g |
|
Material |
ABS+PC |
|
Cable Length |
180CM(±3CM) |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
Shock Resistance: |
Withstands three times 1 . 5 meters drops to concrete |
