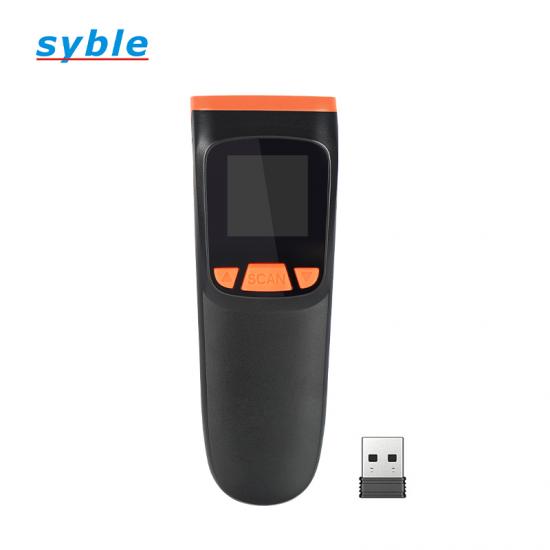

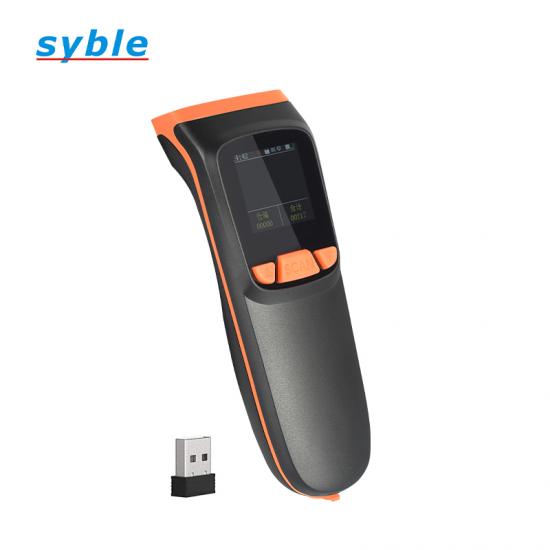

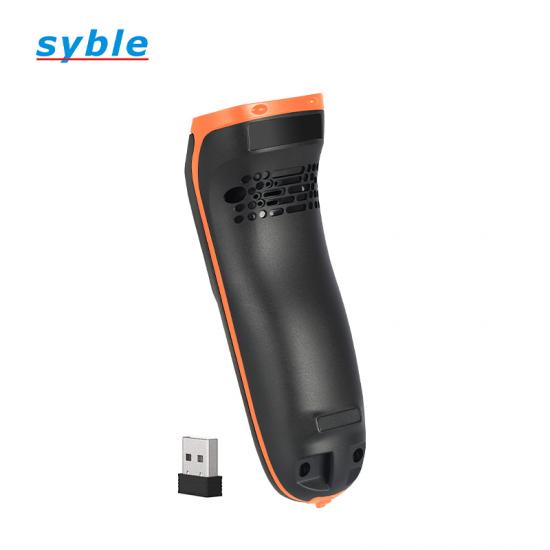

Portable Barcode Scanner With LED Screen Display 2D 2.4G Bluetooth Wireless Barcode Scanner QR code Reader

Specification

Performance Parameters

Light Sources

617nm LED Aimer,White LED

Supported Symbology

1D: EAN-13, EAN-8, UPC-A, UPC-E, UPC-A, Code 39, Code 93, Code 32, Code 128, Codabar, Interleaved 2 of 5, ISBN, ISSN, IATA 2 of 5, Industrial 2 of 5, MSI Plessey, Matrix 2 of 5.

2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec.

Resolution

640*480CMOS

Scan Method

Manual/Continuous/Automatic inductive scanning

Scan Angle

Yaw 45°,Rotation 360°,Pitch 45°

Field of View

48°(H)x36°(V)

Precision

≥5mil

Contrast

≥20%

Depth of scan field

40-250mm(EAN13 13mil); 40-100mm(Code39 4mil); 20-170mm(QR code 15mil)

Error Rate

Less than 1/5million

Interface

Receiver: USB-HID; Bluetooth: HID, BLE, SPP

Wireless Communication

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Dual Mode Bluetooth

Transmission Distance

50-100M (Open distance)

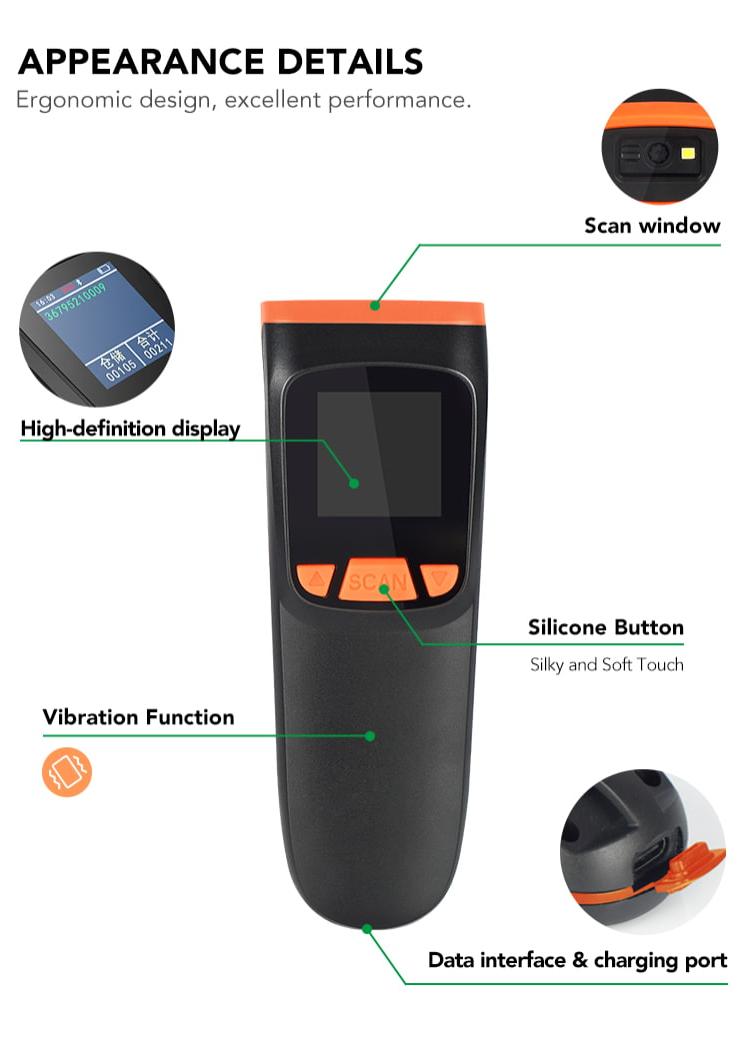

Screen Function

View barcode data in real time; View stored data in real time;

Check power in real time; Real time display;

Scanner can be set through the screen.

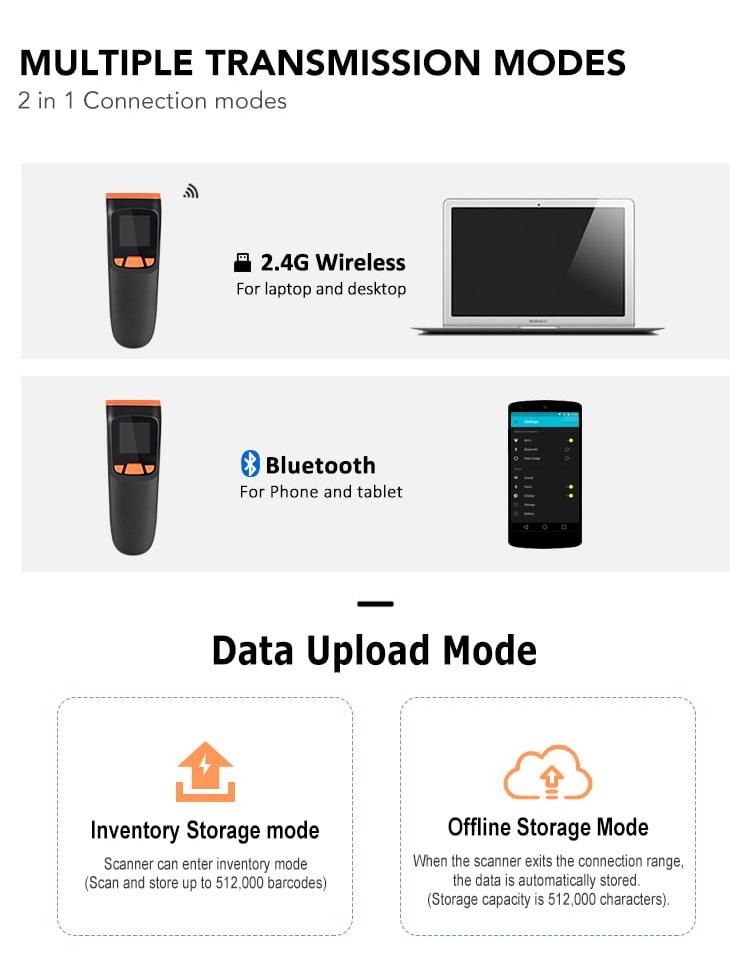

Storage Mode

Offline Storage Mode: When the scanner exits the connection range,

the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode,

storage capacity is 512000 characters.

Pairing Method

Pair by barcode; Set up pairing via screen.

Pairing Mode

One to One: One Scanner paired with One receiver,

One scanner paired with a Bluetooth mobile device.

Receiving End

Dedicated Bluetooth U disk receiver, Android/IOS mobile device

Physical  Parameters

Material

ABS+PC

Cable Length

1M

Environmental Parameters

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% RH（Non-condensing）

Ambient lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 1.5 meters drops to concrete

Electrical Parameters

Voltage

DC5V±5%

Operating Current

when not scanning code ≥26mA; when scanning code ≥250mA

Standby Current

0mA(Standby is to cut off battery power)

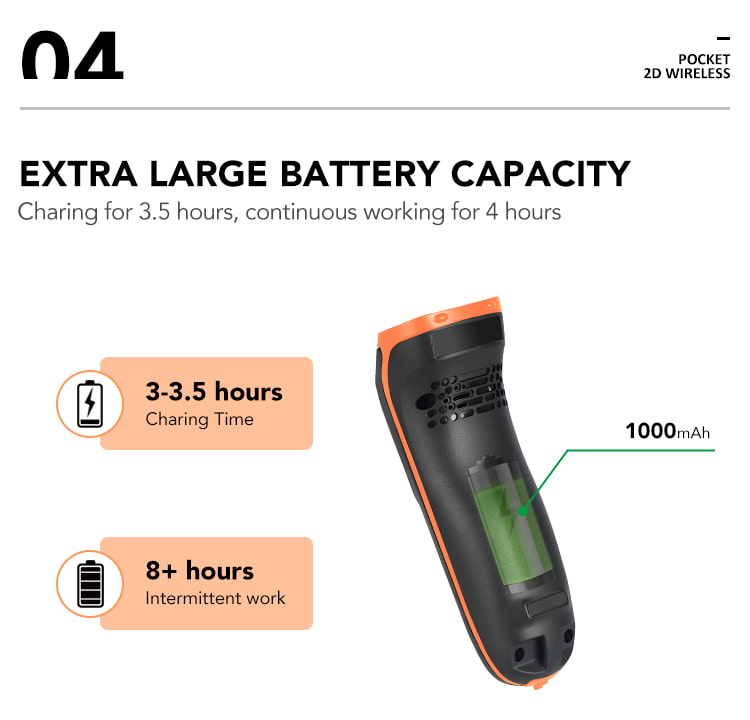

Battery Working Time

Continuous work for 4 hours; Intermittent work for more than 8 hours.

Charging Time

3-3.5h

Lithium battery

1000mA

Charging Model

Type C USB charging cable, plug-in straight charging.
