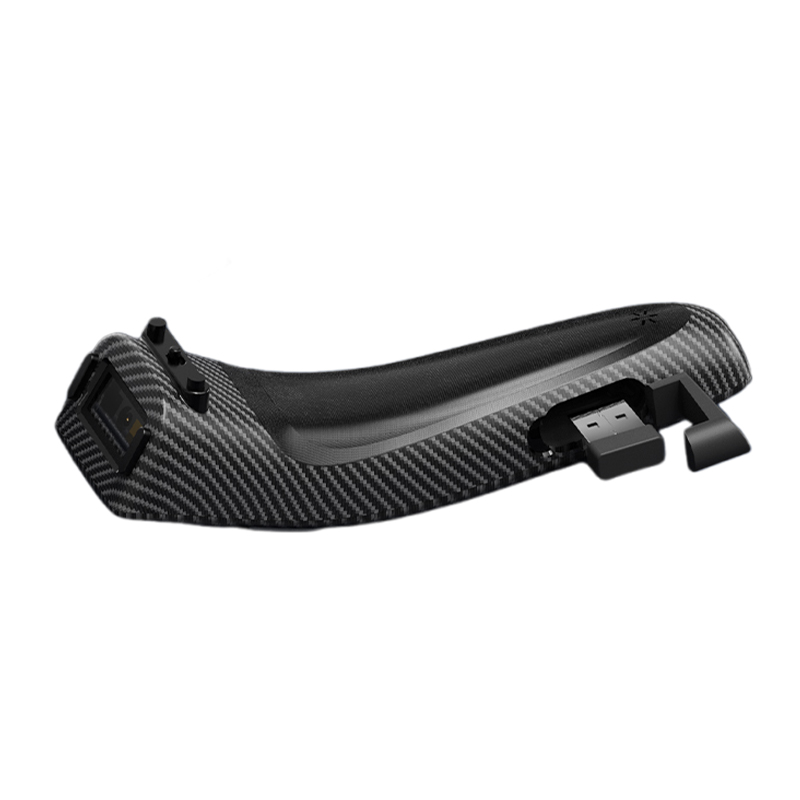

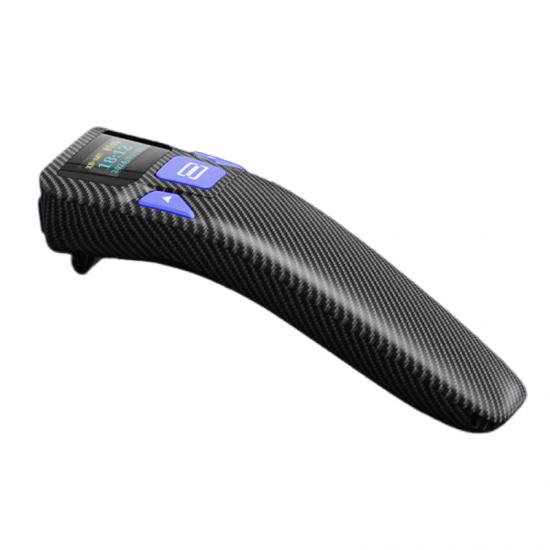

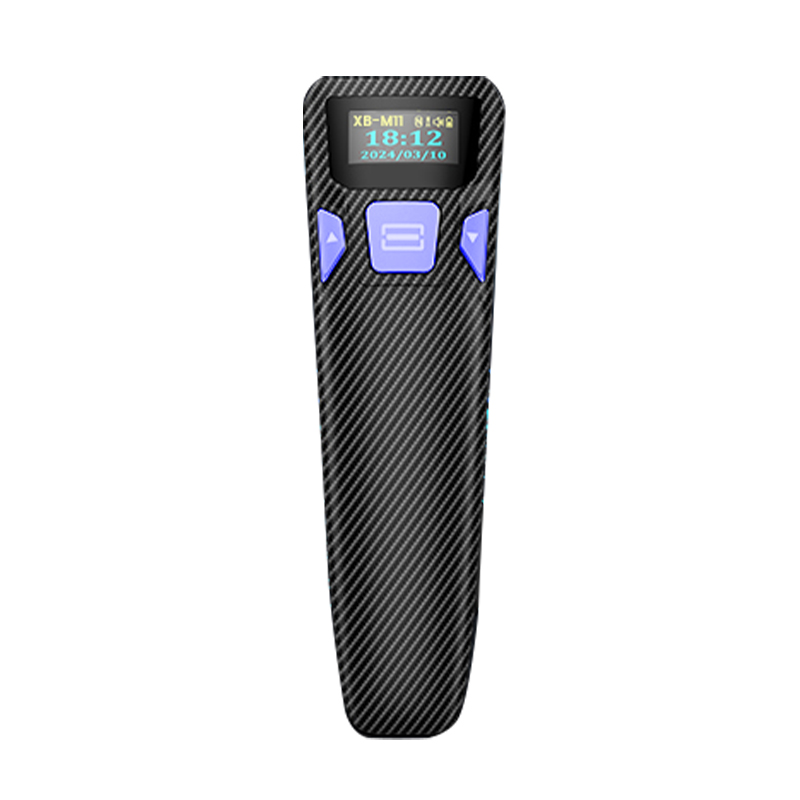

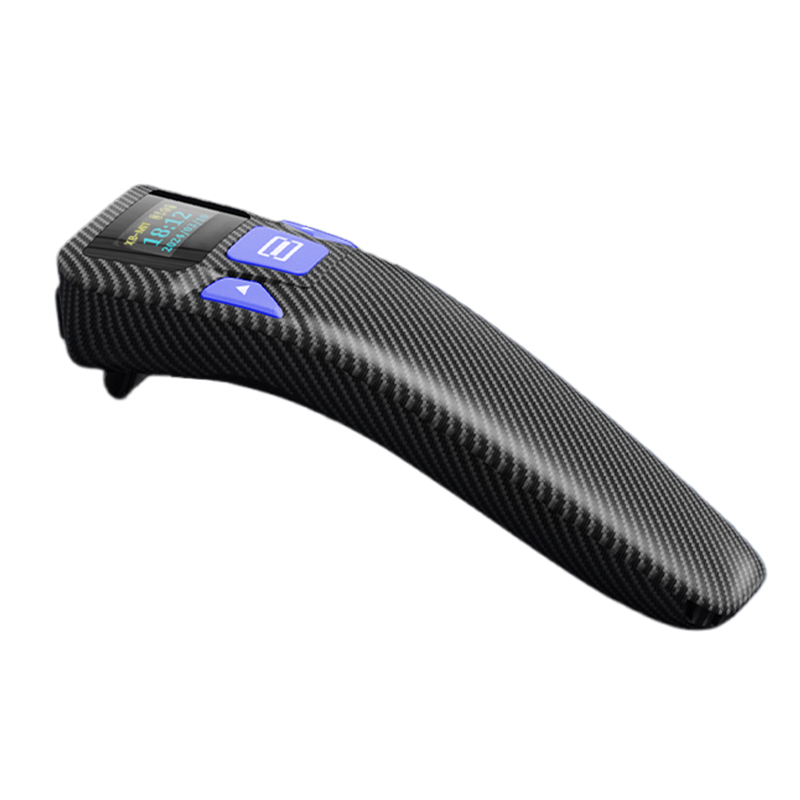

The XB-M11 portable mini barcode scanner is equipped with a colour display and supports the scanning of 1D and 2D barcodes. It is compatible with three connection modes: Bluetooth, 2.4 GHz wireless and USB wired, and features 16 MB of built-in flash memory. Powered by a 1,000 mAh lithium battery, it offers 20 hours of continuous operation on a full charge and up to 720 hours of standby time. Weighing just 65g, this compact and lightweight device is suitable for a wide range of settings, including supermarkets, warehouses and libraries.
Item NO.:
XB-M11Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackProduct weight:
65gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days
Product Features
•Equipped with 16M Flash Memory
• Multiple configurable options via screen file menu.
• Portable Mini Barcode Scannerwith Color Display
• 3mil high decoding precision, fits diverse scanning applications.
• Supports 2.4 GHz wireless, Bluetooth and USB wired connections, offering flexible options.
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
White auxiliary light, red aiming light |
|
Supported Symbology |
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code128, GS1-128,ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5,Industrial 2 of 5, Standard 2 of 5, IATA, code32, Codabar, NW-7, Plessey,MSI Plessey, RSS, China Post. |
|
Resolution |
640*480 |
|
Scan Method |
Manual/Continuous/Automatic inductive scanning |
|
Scan Angle |
Yaw ±65°, Rotation 360°, Pitch ±65° |
|
Precision |
≥3mil |
|
Contrast |
≥20% |
|
Depth of scan field |
EAN13 ≥150mm (13mil) |
|
Error Rate |
1/5million |
|
Wireless Transmission Distance |
2.4G Open Range: 80m |
|
Communication interface |
Receiver: USB-HID, USB-COM; Bluetooth Modes: HID, BLE, SPP |
|
Physical Parameters |
|
|
Scanner size |
137*32*43mm |
|
Screen Size |
25*16mm |
|
Material |
ABS+PC |
|
Cable Length |
0.8M |
|
Environmental Parameters |
|
|
Operating Temperature |
-10℃ ~50℃ |
|
Storage Temperature |
-10℃~50℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient lighting |
0~80000LUX |
|
Drop/Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
160mA |
|
Standby Current |
20mA |
|
Battery Working Time |
Continuous work for 20 hours |
|
Charging Time |
4-5h |
|
Lithium battery |
1000mA |
|
Charging Model |
TYPE-C charging cable, plug-in direct charging |
FAQ
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q3: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q4. What’s the warranty policy for the barcode scanners? Syble provide 24 months maintenance warranty. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order. Q5. What Value-added services can be provided: 1.Provide all technical documents as required 2.Provide the necessary professional training online or offline 3.Provide free maintenance technology and spare parts chargeable under out of warranty |
