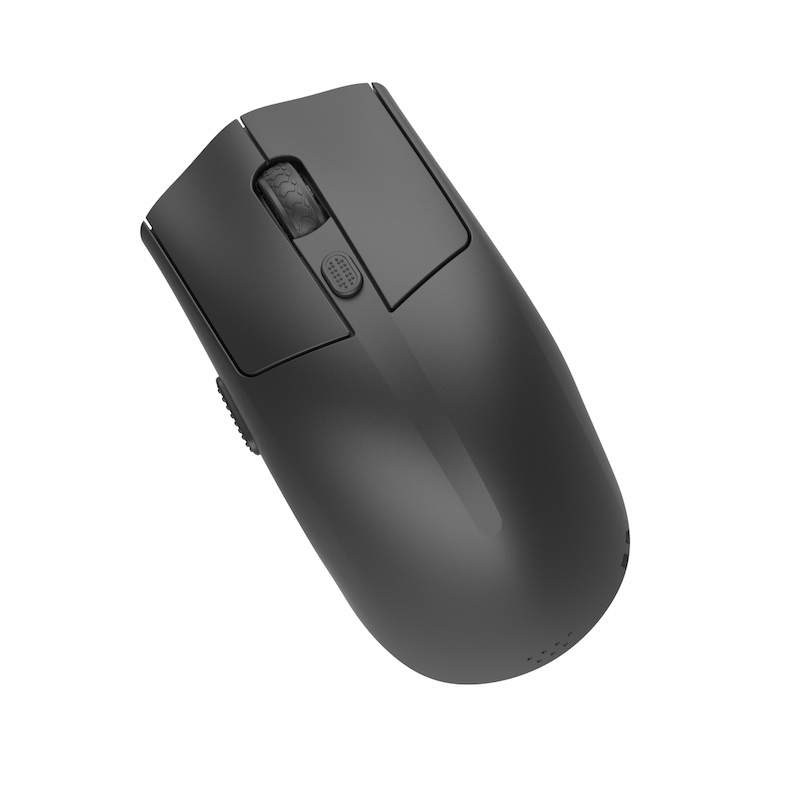

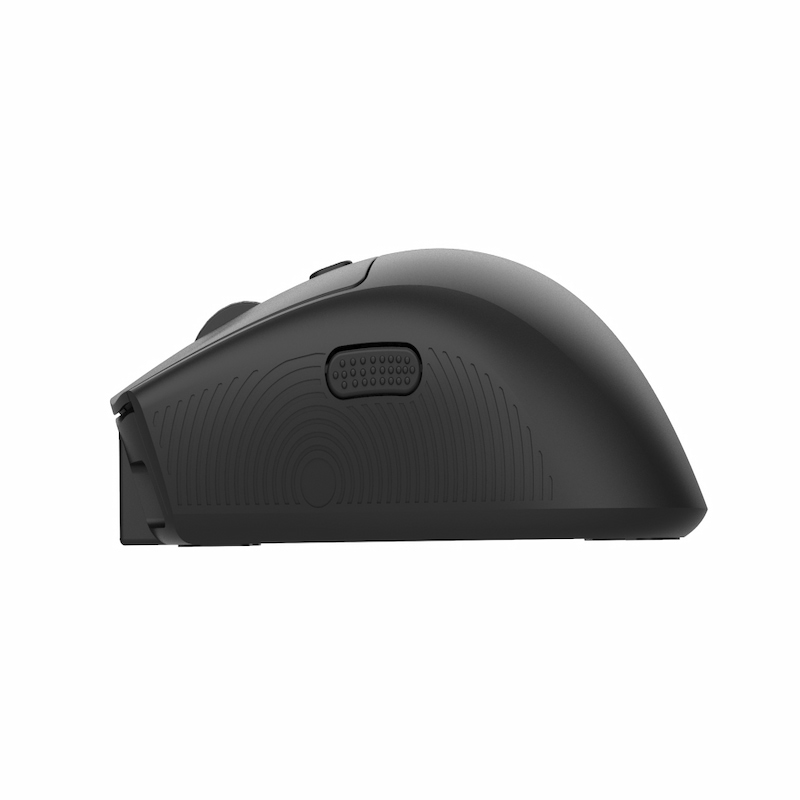

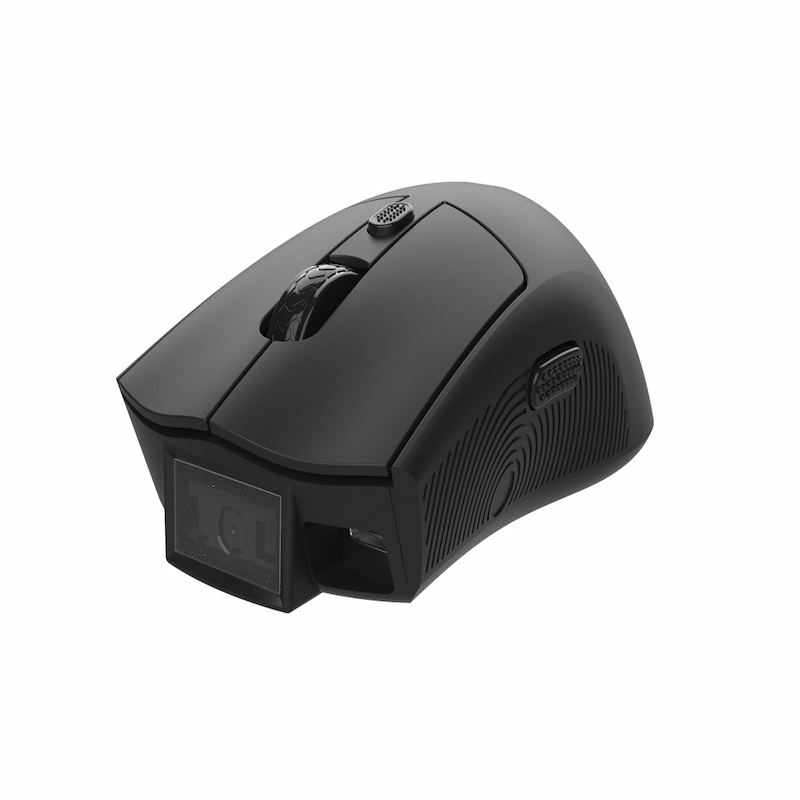

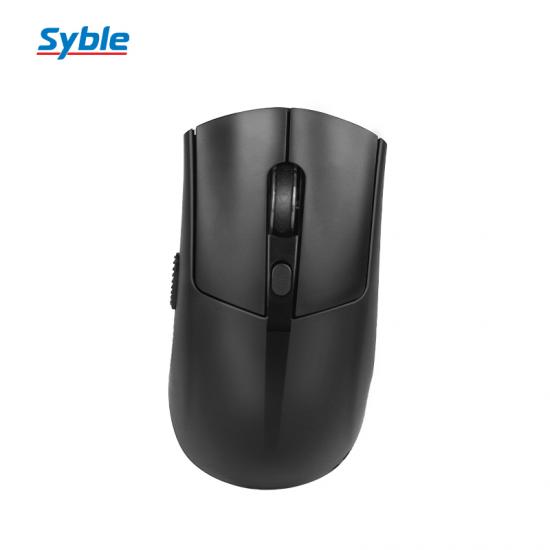

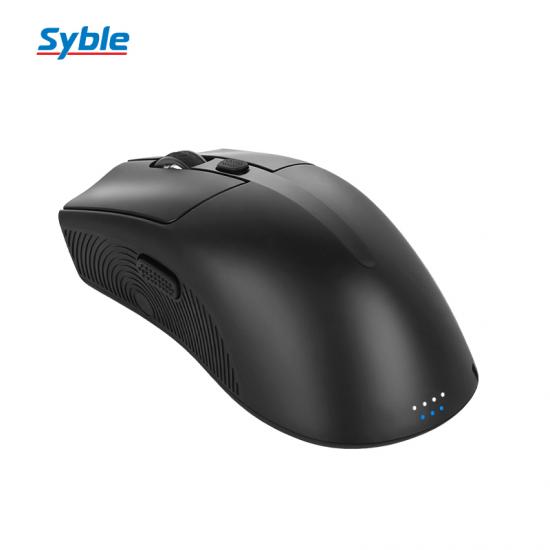

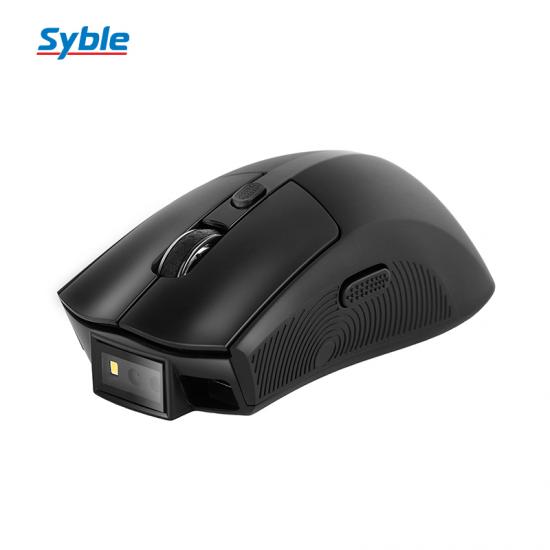

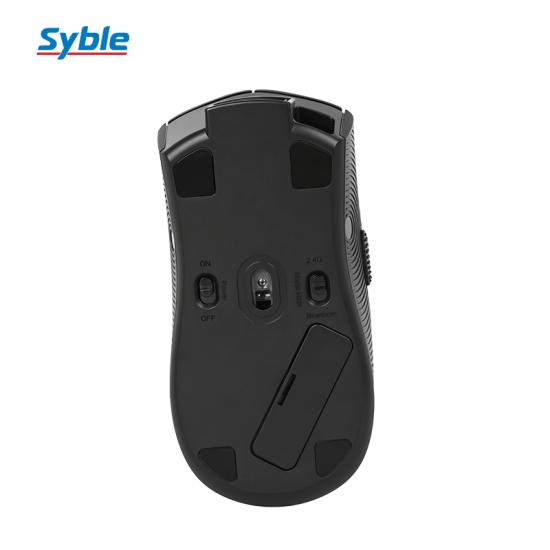

2D Wireless Mouse Barcode Scanner

Performance Parameters

Light Source

White auxiliary light, red aiming light

Scan type

CMOS

Resolution

640*480

Scan method

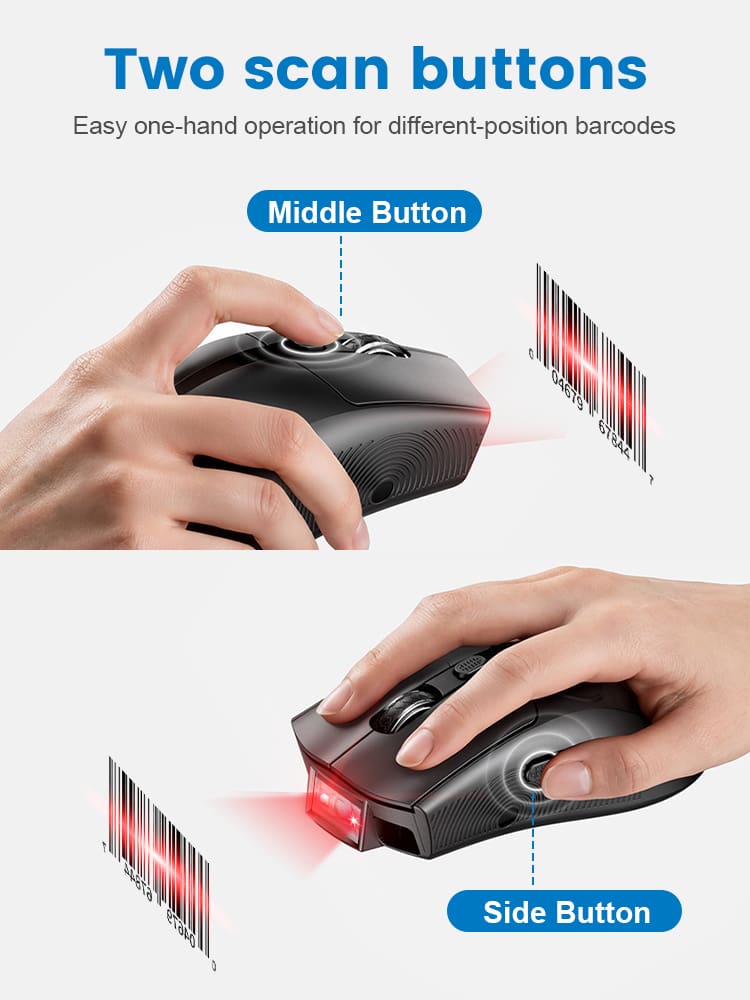

Manual scan/Continuous scan/Auto-sensing scan

Scan Angle

Rotation angle 360°, elevation angle  ±65°, deflection angle ±65°

Scanning accuracy

≥3mil

Depth of scan field

EAN13 >150mm (13mil)

Bite Error

1/5million

Communication interface

Receiver: USB-HID, USB-COM; Bluetooth: HID mode

Wireless transmission distance

2.4G Open Range:80m

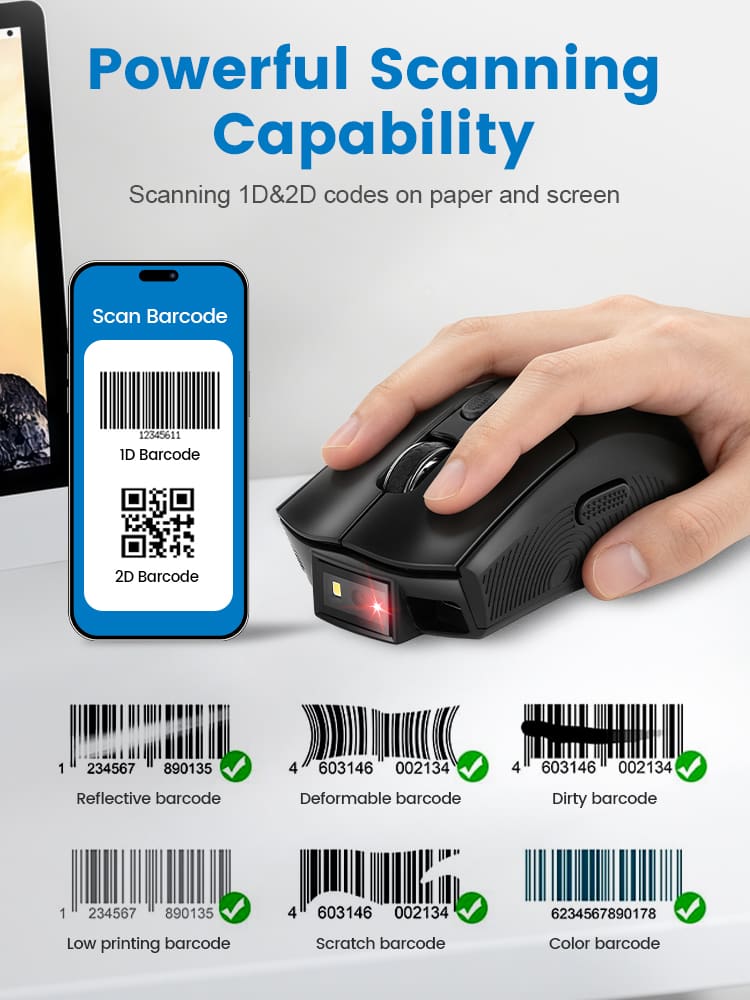

Supported Symbologies

1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code128, GS1-128,ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5,Industrial 2 of 5, Standard 2 of 5, IATA, code 32, Codabar, NW-7, Plessey,MSI Plessey, RSS, China Post.

2D: QR code, Data Matrix, PDF417, Aztec code, Maxi Code, Micro QR,Micro PDF417, HanXing Code,

Physical Parameters

House Materail

ABS+PC

Dimensions

119*57*43mm

Cable Length

0.8m

Environmental Parameters

Operating Temperature

-10℃-50℃

Storage Temperature

-10℃-50℃

Relative Humidity

5~95%(Non-condensing)

Drop Resistance

Can withstand 1.5m free fall

Ambient light

0~80000LUX

Electronic Parameters

Voltage

DC 5V±1%

Working current

160mA

Standby current

20mA

Charging time

4-5 hours

Lithium battery

1500mAlithium battery

Charging method

Type-C interface, direct charging via cable
