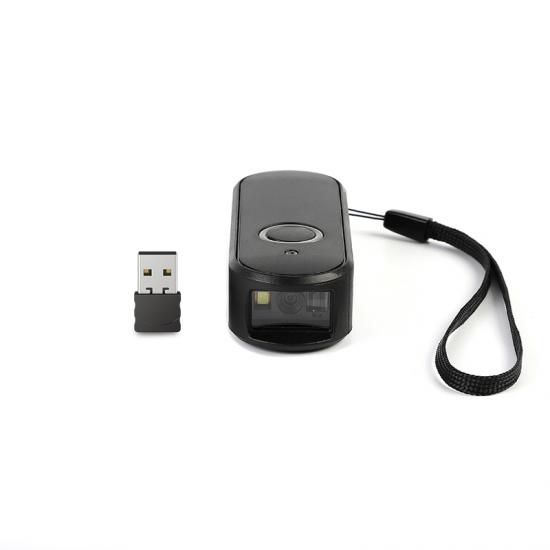

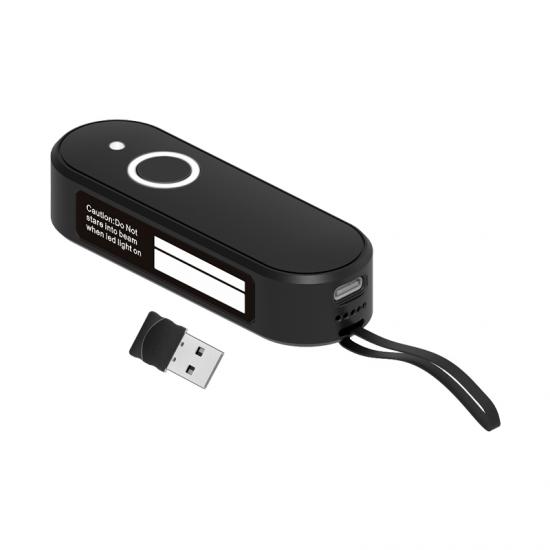

Portable wireless 1D/2D Barcode Scanner with Memory Bluetooth Barcode Readers Price with Display

Specification

Performance Parameters

Light Sources

Red aiming light, warm yellow LED illumination

Supported Symbologies

1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN128, Codabar,Interleave 2 of 5, Industrial 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey,GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.

2D: QR Code, Data Matrix, PDF417, MicorPDF417, Aztec, Maxicode, Hanxin Code, Direct Chinese QR code.

Resolution

640*480

Scan Mode

Manual/Continuous/Automatic Induction Scanning

Scan angle

Yaw±55°, Rotation 360°, Pitch±55°

Precision

≥5mil

Contrast

≥20%

Depth of scan field

Error Rate

Less than 1/5million

Wireless Communication

Pairing Mobile Bluetooth Devices: Bluetooth BLE 5.0

Wireless transmission distance

100meters (open distance)

Storage Mode

Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.

Pairing Mode

One to One: One scanner paired with a Bluetooth mobile device

Electrical Parameters

Voltage

DC5V±5%

Maximum Operating Current(MAX)

220mA

Standby Current

0mA (Standby is to cut off battery power)

Lithium battery

900mA

Continuous working time

The scanner continuously scans barcodes for 1 second per trigger,
offering up to 5 working hours or 18,000 scans.

Charging Time

3-4h

Charging Model

Type-C interface, plug in and charge directly

Physical Parameters

Dimensions

90mm*30mm*21mm

Material

ABS+PC

Cable

0.8M

Environmental Parameters

Operating Temperature

-20℃~+50℃

Storage Temperature

-40℃~+70℃

Relative Humidity

5%~95% RH（Non-condensing）

Ambient lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 1.2 meters drops to concrete
