Item NO.:
XB-C22Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and orangeShipping Port:
Guangzhou/ShenzhenLead Time:
7-15daysSyble barcode scanner manufacturer new released product XB-C22 is one of portable barcode scanner, wireless bluetooth 2.4G clip-on barcode scanner, easy to connect with mobile phone, no space limit, improve working efficiency, can replace PDA, scanning gun, mobile phone scanning.
Features:
1. Can interpret all kinds of 1D/2D codes
2. Support Android/IOS system, can replace PDA, scanning gun, mobile phone scanning
3. 512000 characters can be stored in offline/inventory storage mode
4. Bluetooth connection, easy and fast
5. Wireless Bluetooth open area 50-100 meters
Specification |
|
Performance Parameters |
|
Light Sources |
White LED lighting when decoding, gradient lighting wiht distance, laset cross indication |
Supported Symbologies |
1D: UPC-A, UPC-E,Code 39, Code 93, Code32, Code 128, EAN-8, EAN-13, Codabar, Interleave 2 of 5, ISBN, ISSN, MSI-Plessey, Code 11, Industrial 25, IATA25, Matrix 2 of 5. 2D: QR Code, Data Matrix, Micro QR, PDF417, Micro PDF417, Aztec. |
Scanning Principle |
Image CMOS |
Resolution |
1280*800 |
Scan Method |
Manual/Continuous/Automatic inductive scanning |
Scan Angle |
Yaw 45°, Rotation 360°, Pitch 45° |
Field of view |
48°(H) * 36°(V) |
Precision |
≥3mil |
Contrast |
≥20% |
Depth of scan field |
EAN-13: 4-55cm |
Error Rate |
Less than 1/5million |
Interface |
Receiver: USB-HID; Bluetooth: HID, BLE, SPP |
Communication Mode |
Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Dual-mode Bluetooth |
Transmission Distance |
100M (Open area) |
Storage Mode |
Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. |

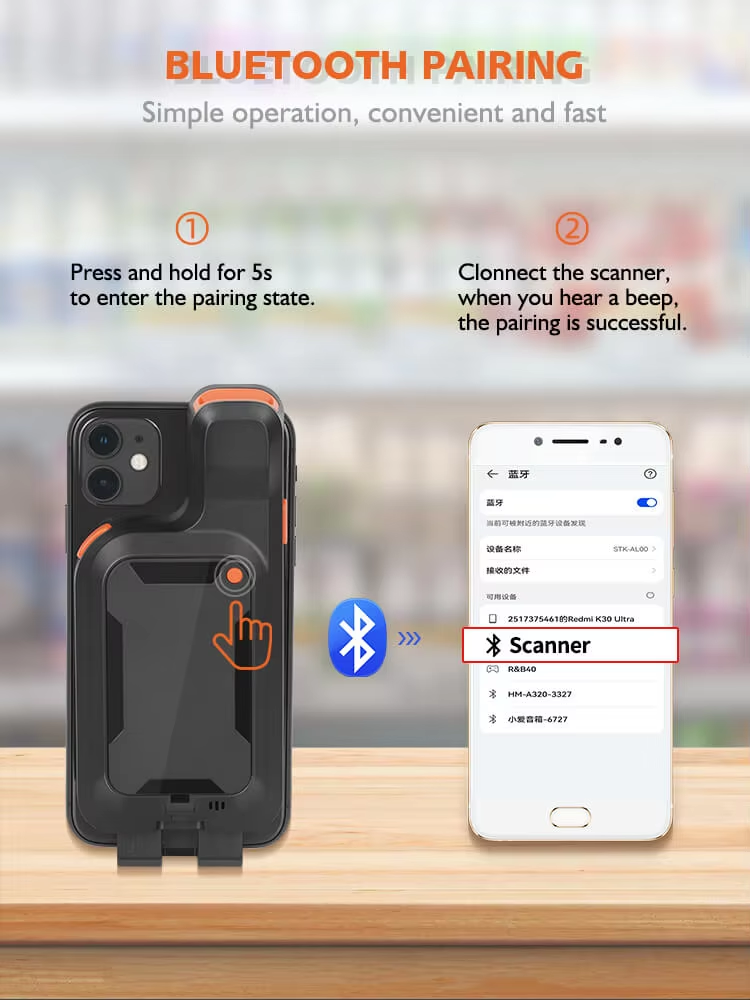

Pairing Mode |
One to One: One Scanner Pairs One Receiver, One scanner paired with a bluetooth mobile device. |
Prompt Function |
1. power prompt 2. connection prompt |
Receiver: |
Delicated Bluetooth flash drive receiver, Android/IOS mobile devices |
Physical Parameters |
|
Dimensions |
153mm*36mm*69mm |
Weight |
120g |
Material |
ABS+PC |
Cable Length |
1M |
Environmental Parameters |
|
Operating Temperature |
-20℃ ~50℃ |
Storage Temperature |
-40℃~70℃ |
Relative Humidity |
5%~95% RH(Non-condensing) |
Ambient lighting |
0~100000LUX |
Drop/Shock Resistance |
Withstands multiple times 3 meters drops to concrete |
Electrical Parameters |
|
Voltage |
DC5V±5% |
Operating Current |
when not scanning code ≥26mA; when scanning code ≥250mA |
Standby Current |
0mA(Standby is to cut off battery power) |
Charging Mode |
Square USB charging cable, plug straight charge |

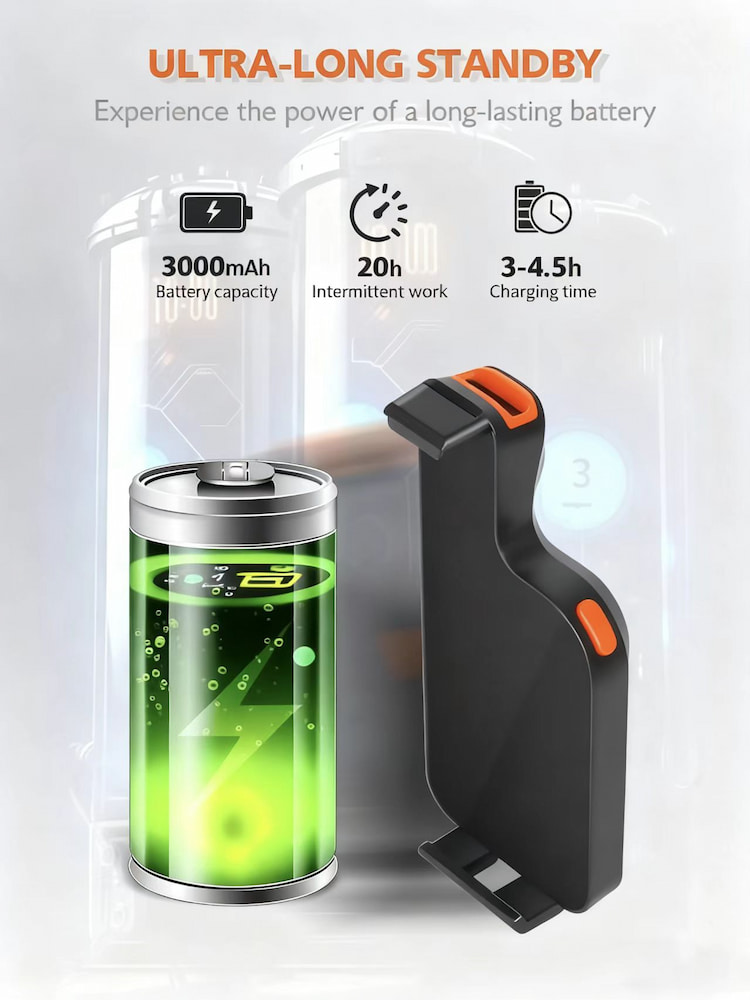

Battery Working Time |
12h |
Charging Time |
3-4.5h |
Lithium battery |
3000mA |
Charging Model |
TypeC charging cable, plug-in direct charging |
