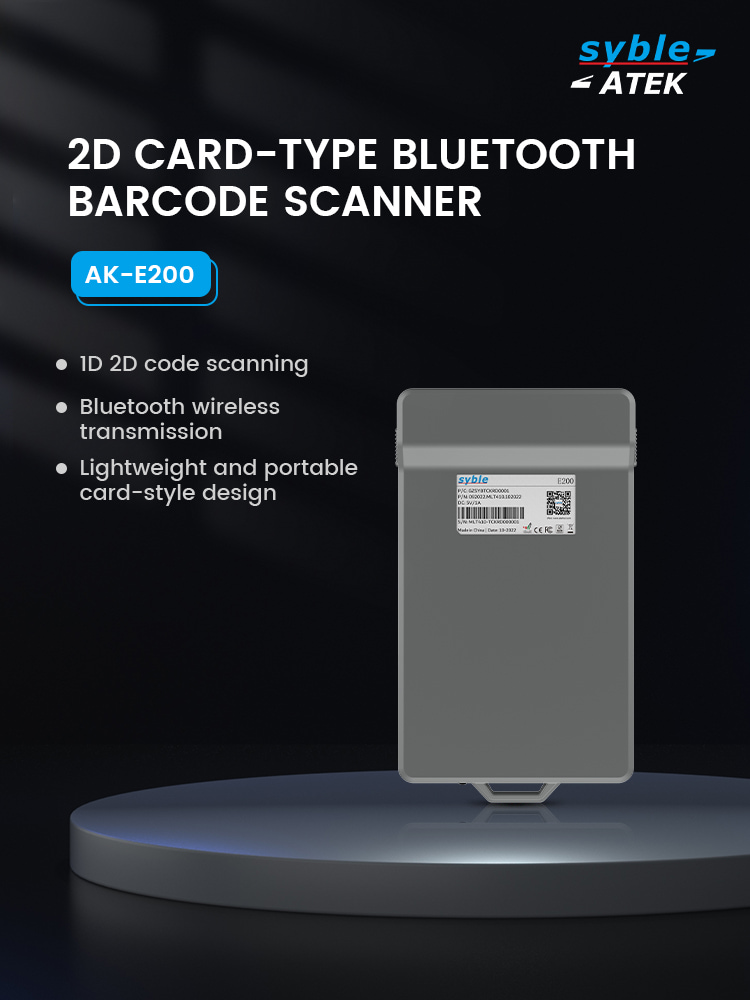

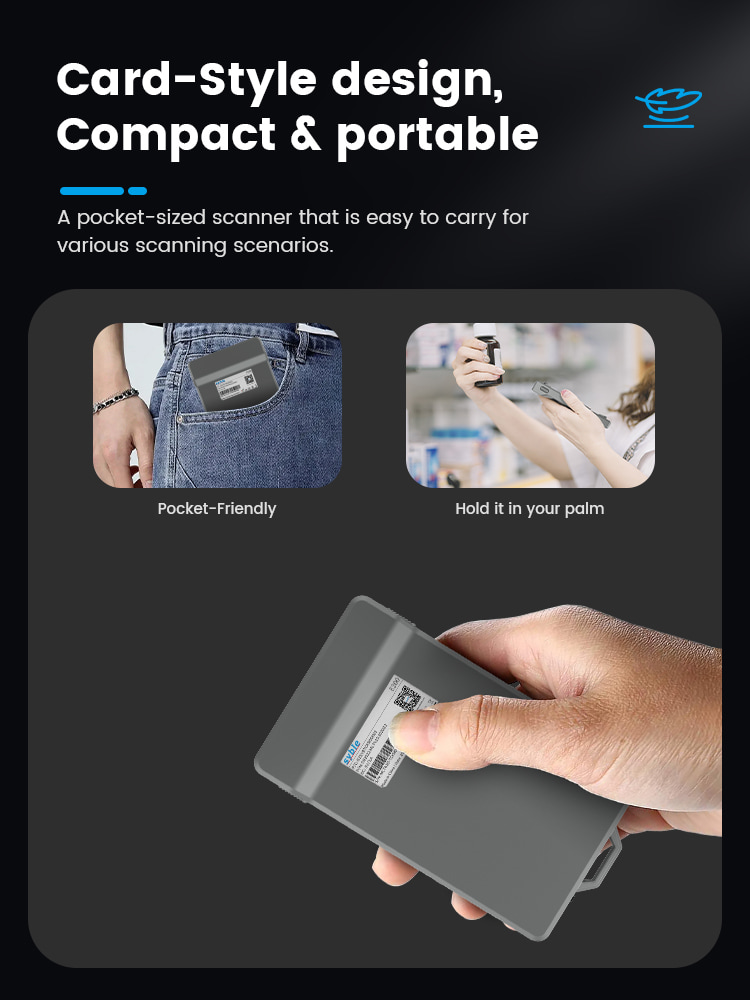

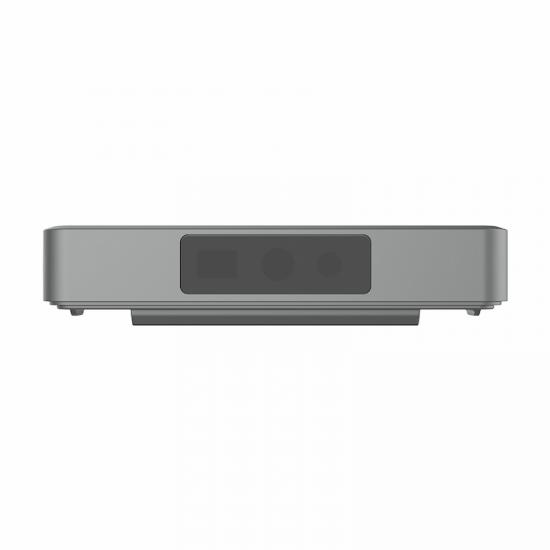

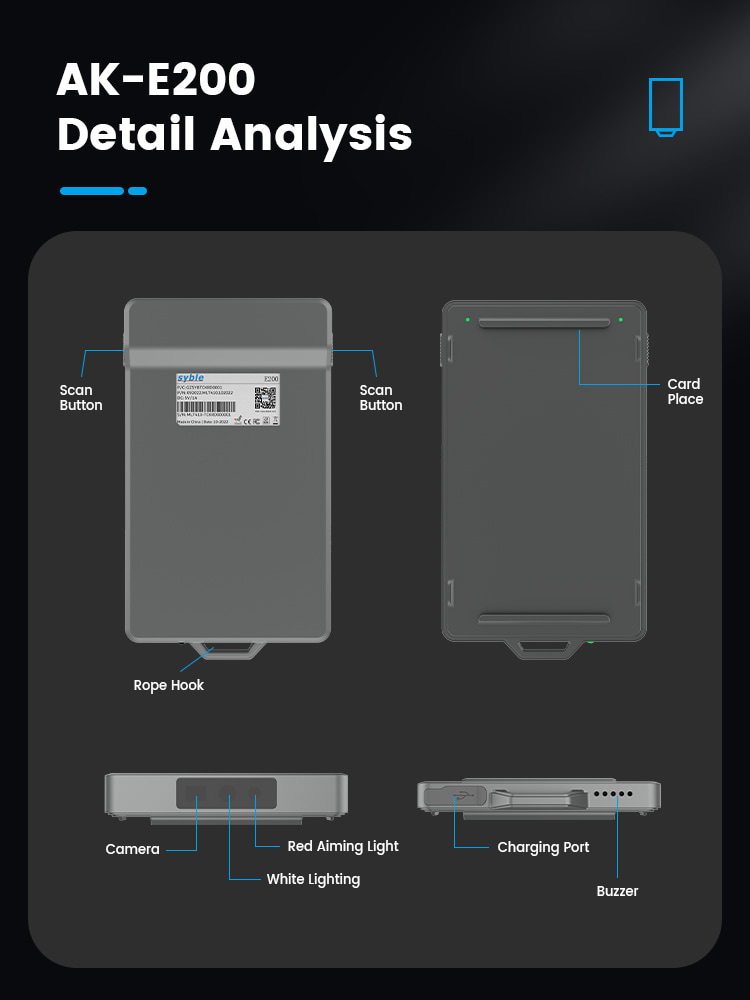

Syble AK-E200 is a card-type portable barcode scanner that supports 1D/2D barcodes and screen codes scanning. It features 50-meter wireless bluetooth transmission, a 700mAh long-lasting battery, a weight of less than 50g, a 1.5-meter shock-proof design, and is lightweight and portable. It is suitable for various scenarios such as warehousing and retail, meeting the efficient barcode scanning needs.
Item NO.:
AK-E200Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
GrayProduct weight:
49.8gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days
Product Features
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
White light illuminator, red light aiming light |
|

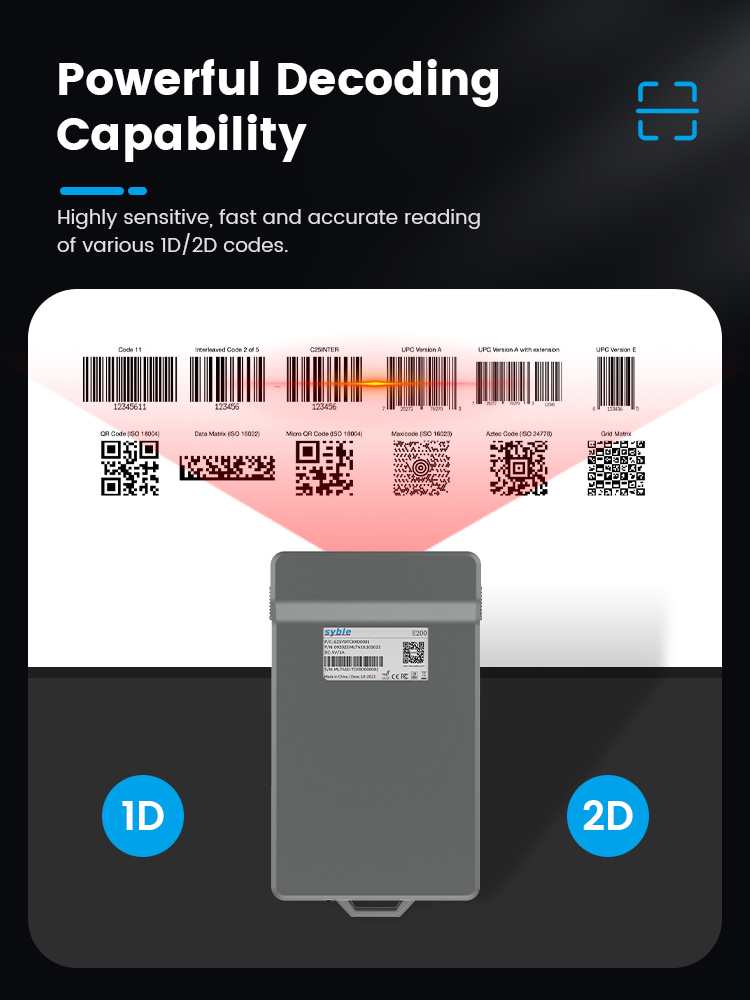

Supported Symbologies |
1D: Code 128 ( ISBT 128, AIM 128, GS1 128), EAN-13, EAN-8, UPC-E,UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93,Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GS1DataBar,Plessey, Febraban. |
|
Scanning Principle |
Image CMOS |
|
Resolution |
640*480 |
|
Scan Method |
Manual/Continuous/Automatic inductive scanning |
|
Scan Angle |
Yaw ±55°, Rotation 360°, Pitch ±55° |
|
Contrast |
≥10% |
|
Depth of scan field |
EAN-13 30mm-330mm (13mil 13 bytes) |
|
Error Rate |
Less than 1/5million |
|
Interface |
USB: Directly connected to computer; Bluetooth: HID, BLE, SPP |
|
Communication Mode |
Pairing mobile Bluetooth devices: Dual-mode Bluetooth |
|
Transmission Distance |
30-50 meters (open distance) |
|
Storage Mode |
Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. |
|
Pairing Mode |
One to One: One scanner paired with a bluetooth mobile device. |
|
Receiving end |
Android/IOS mobile devices |
|
Physical Parameters |
|
|
Dimensions |
105mm*63mm*13mm |
|
Weight |
49.8g |
|
Material |
ABS+PC |
|
Cable Length |
0.8M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient lighting |
0~100000LUX |
|
Drop/Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
when not scanning code ≥22mA; when scanning code ≥160mA |
|
Standby Current |
0mA(Standby is to cut off battery power) |
|

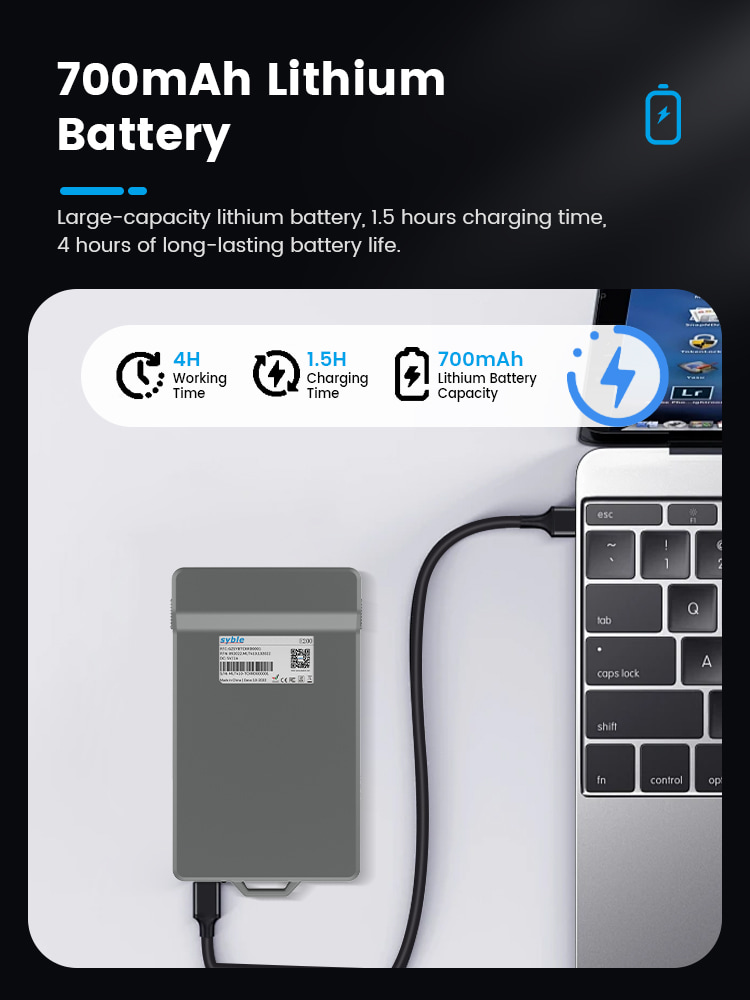

Battery Working Time |
Continuous work for 4 hours |
|
Charging Time |
1.5h |
|
Lithium battery |
700mAh |
|
Charging Model |
Type C charging cable, plug-in direct charging |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q4: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q5. What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Value-added services:
1. Provide long time maintenance services
2. Provide the regular routine maintenance services
