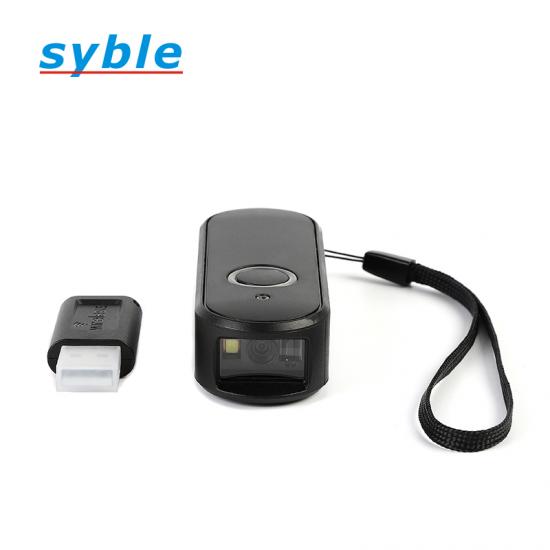

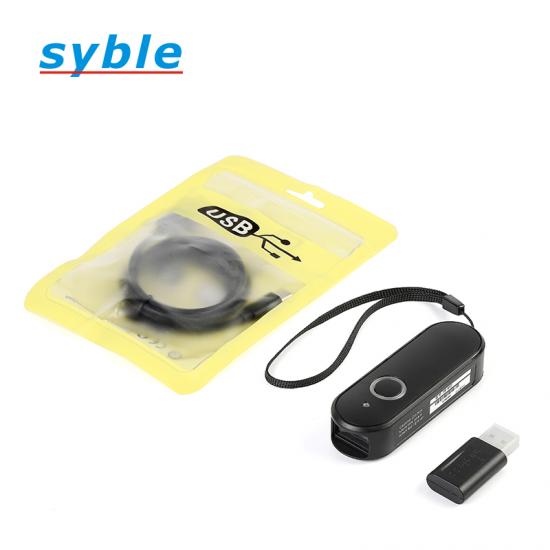

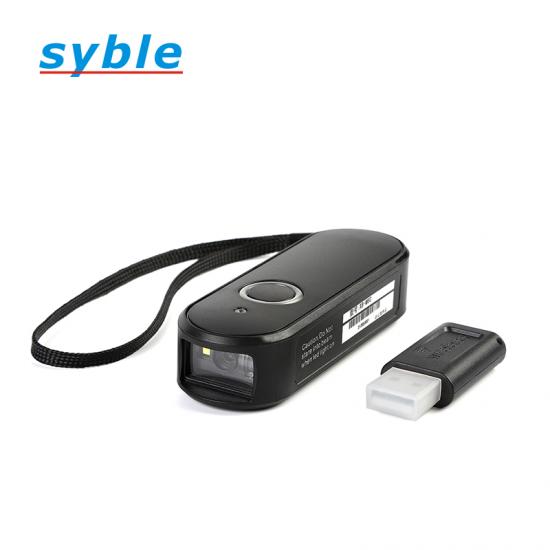

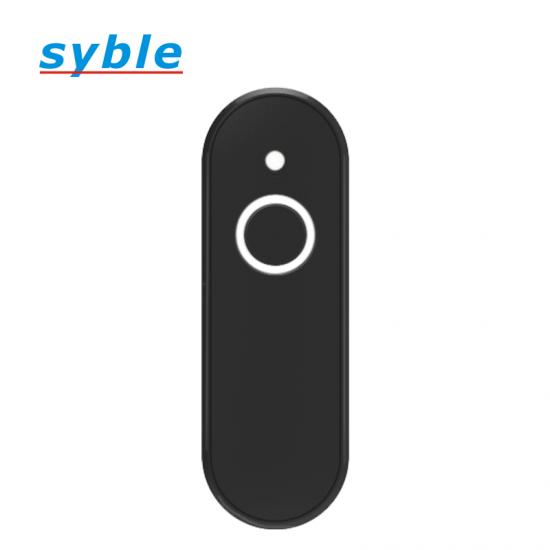

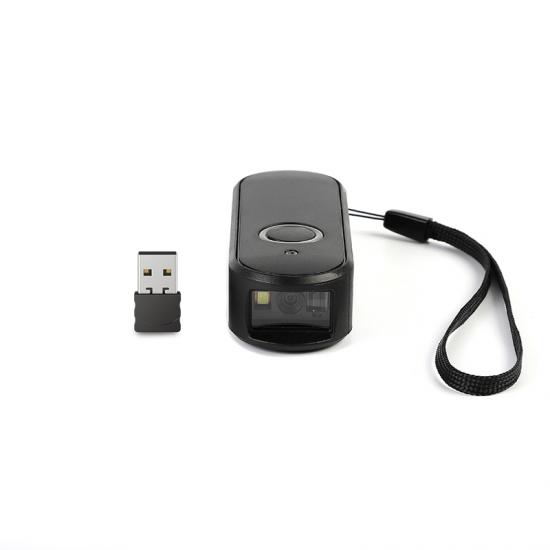

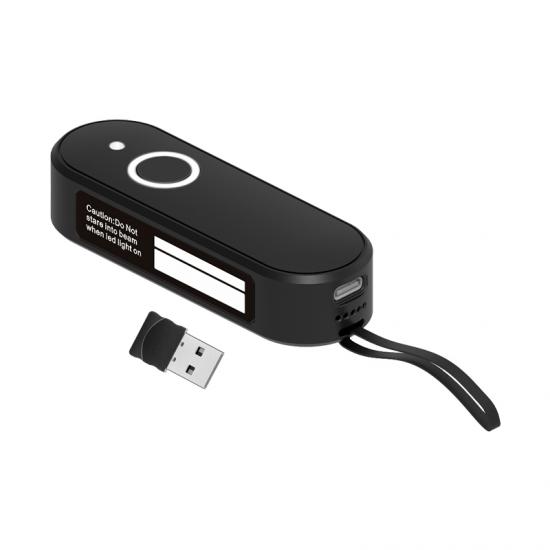

Mini 2D Portable Bluetooth Barcode Scanner Handheld Pocket Barcode Reader

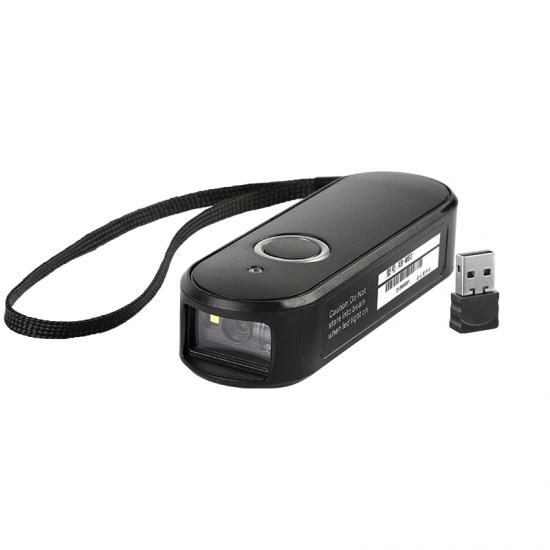

2D Wireless Bluetooth Portable Scanner

Product Features

• Can interpret various 1D/2D codes and Support Chinese direct transmission of QR code

• USB Bluetoth Receiver supports plug and play, easy to set up and quickly match
• Wireless Bluetooh transmission distance: 20 meters (open area)
• 512,000 characters can be stored in offline/inventory storage mode
• Can be paired directly with Bluetooth-enabled mobile phones, tablets, and laptops













  Specification
  Performance Parameters
  Light Sources	617nm LED Aimer, White LED
  Supported Symbologies	1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN128, Codabar,Interleave 2 of 5, Industrial 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey,GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5. 2D: QR Code, Data Matrix, PDF417, MicorPDF417, Aztec, Maxicode, Hanxin Code, Direct Chinese QR code.
  Resolution	640*480
  Scan Mode	Manual/Continuous/Automatic Induction Scanning
  Scan angle	Yaw±55°, Rotation 360°, Pitch±55°
  Precision	≥5mil
  Contrast	≥20%
  Depth of scan field	EAN13 25-150mm(13mil 90%PCS); QR 10-120mm(15mil 30 byte); PDF147 30-110mm(6.67mil 30 byte)
  Error Rate	Less than 1/5million
  Interface	USB-HID
  Wireless Communication	Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0
  Wireless transmission distance	20meters (open distance)
  Storage Mode	Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.
  Pairing Mode	One to One: One scanner paired with a Bluetooth mobile device
  Electrical Parameters
  Voltage	DC5V±5%
  Maximum Operating Current(MAX)	200mA
  Standby Current	0mA (Standby is to cut off battery power)
  Lithium battery	800mA
  Battery Working Time	4h
  Charging Time	2.5h
  Charging Model	Square USB charging cable, plug straight charge
  Physical Parameters

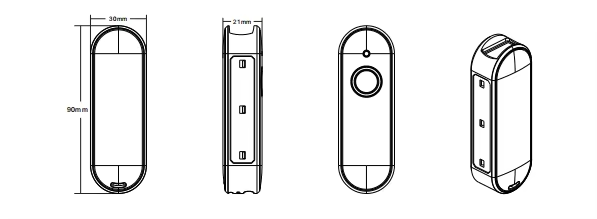

  Dimensions	90mm*30mm*21mm
  Material	ABS+PC
  Cable	0.8M
  Environmental Parameters
  Operating Temperature	-20℃~+50℃
  Storage Temperature	-40℃~+70℃
  Relative Humidity	5%~95% RH（Non-condensing）
  Ambient lighting	0~100000LUX
  Drop/Shock Resistance	Withstands multiple times 1.2 meters drops to concrete


  FAQ

  Q1. Is OEM or ODM available?

  Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.

  Q2. How about the quality?

  Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

  Q3.How to control the performance stable?

  Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.

  Q4. What’s the warranty policy for the barcode scanners?

  Syble provide 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem.

  During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.

  Q5. What Value-added services can be provided

  1.Provide all technical documents as required

  2.Provide the necessary professional training online or offline
