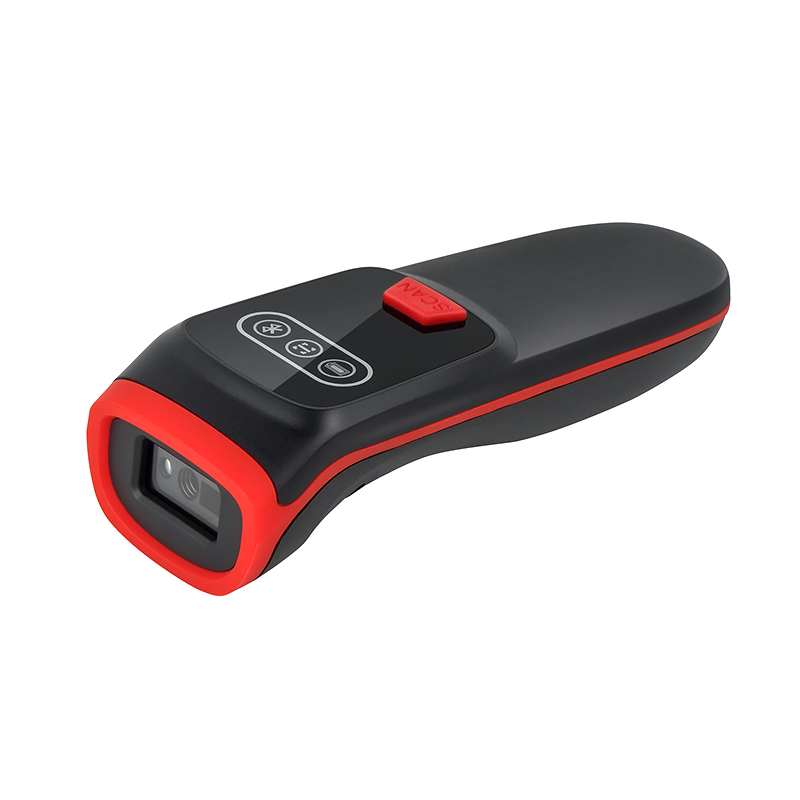

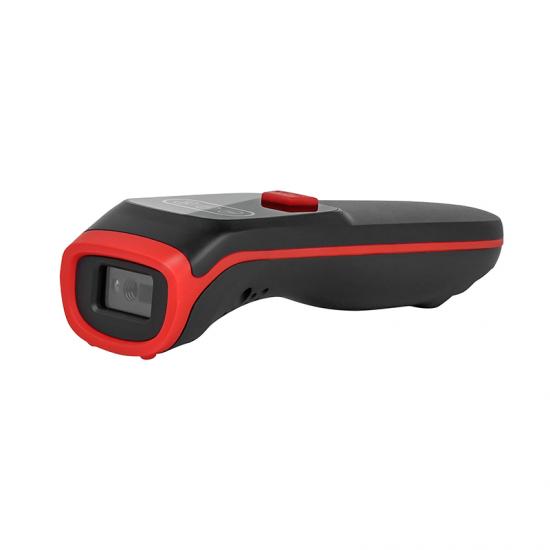

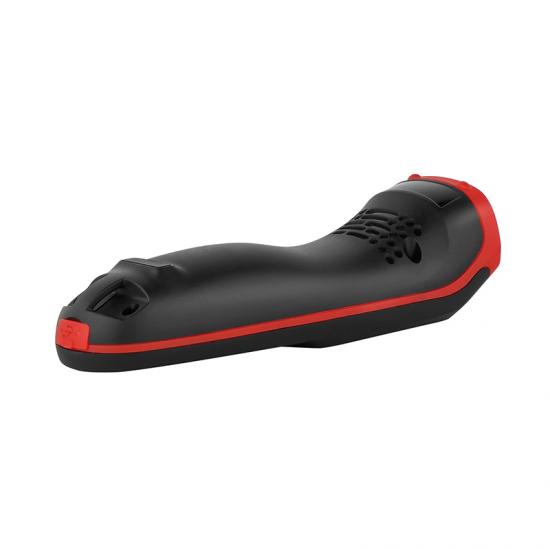

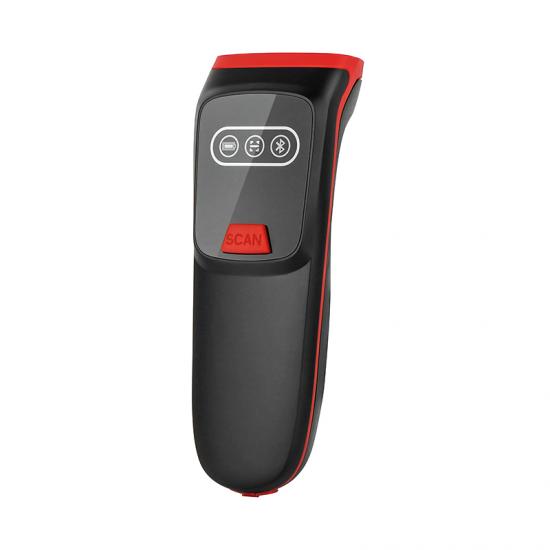

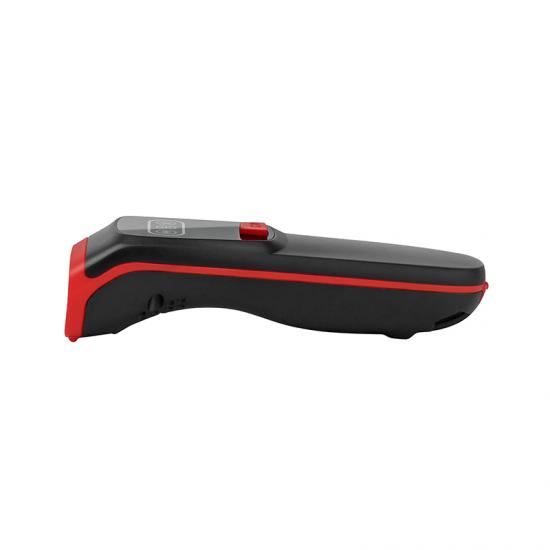

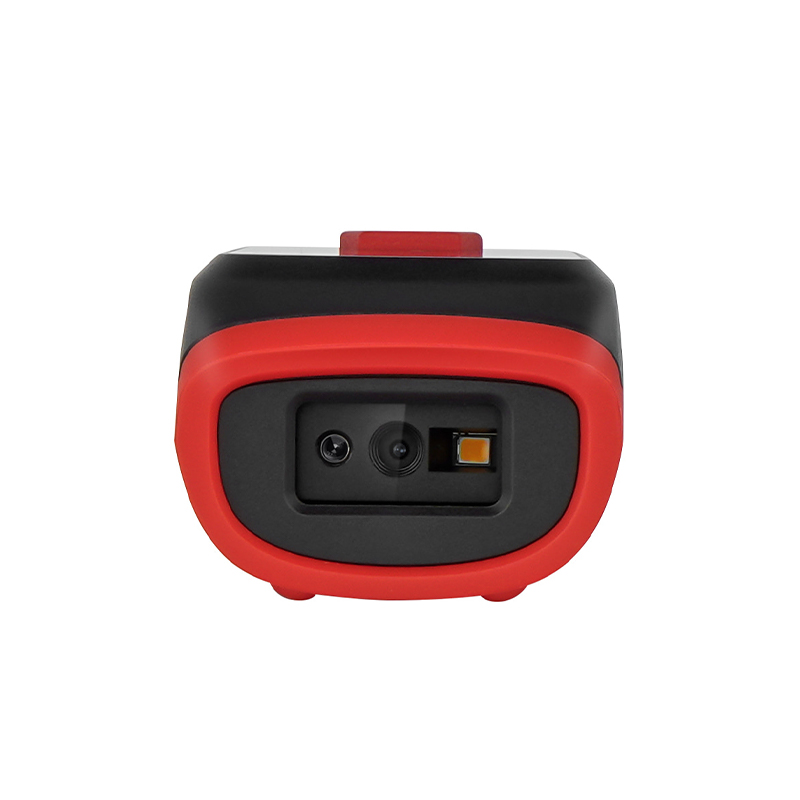

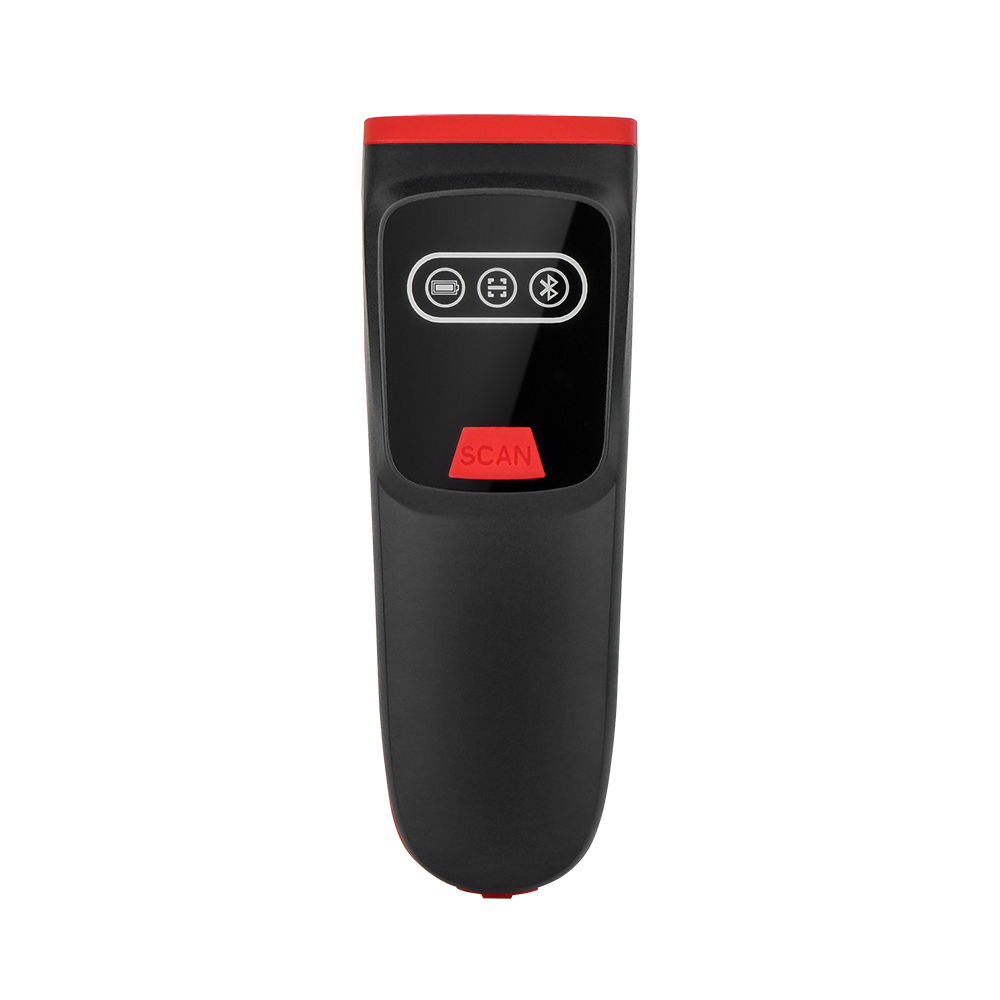

Syble Handheld 2D Barcode Scanner XB-M80 is compact and lightweight, easy to carry, with fast and accurate code scanning function, can be applied to supermarkets, warehouses,express logistics and other scenarios, the data transmission is convenient, it is a powerful tool for efficient data collection.
Item NO.:
XB-M80Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and orangeShipping Port:
Guangzhou/ShenzhenLead Time:
7-10days
Product Features
• High-tech chip, can read all kinds of 1D/2D codes
• Process body design, long-term grip without fatigue
• Wireless Bluetooth transmission distance: 100 meters (open area)
• 512,000 characters can be stored in offline/inventory storage mode
• Can be paired directly with Bluetooth-enabled mobile phones, tablets, and laptops

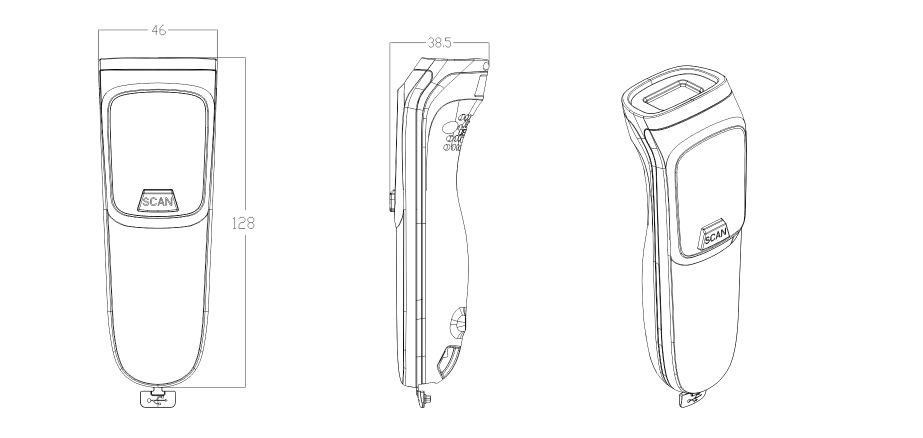

Product Size:46*38.5*128mm
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
Red aiming light,warm yellow LED illumination light |
|
Supported Symbology |
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISBN, ISSN, Cod a bar, Code 128, Code 93, ITF-4, ITF-6, Industrial 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 DataBarTM(RSS),Code 39, MSI-Plessey, etc. 2D: Q.R Code, Data Matrix, PDF417, Micro PDF417, Micro QR, Aztec. |
|
Resolution |
640*480 |
|
Scan Method |
Manual/Continuous/Automatic inductive scanning |
|
Scan Angle |
Yaw ±60°, Rotation 360°, Pitch ±60° |
|
Precision |
≥5mil |
|
Contrast |
≥20% |
|
Depth of scan field |
30mm-310mm (EAN 13 13mil 13bytes) |
|
Error Rate |
1/5million |
|
Interface |
Receiver: USB-HID; Bluetooth: HID, BLE, SPP |
|
Wireless Communication |
Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Dual Mode Bluetooth |
|
Wireless Transmission Distance |
100M (Open distance) |
|
Pairing Mode |
One on one: pairing a scanner with a Bluetooth mobile device |
|
Physical Parameters |
|
|
Dimension |
46*38.5*128mm |
|
Material |
ABS+PC |
|
Cable Length |
0.8M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient lighting |
0~100000LUX |
|
Drop/Shock Resistance |
Withstands multiple times 1.2 meters drops to concrete |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
when not scanning code ≥26mA; when scanning code ≥200mA |
|
Standby Current |
0mA(Standby is to cut off battery power) |
|
Battery Working Time |
Continuous work for 5 hours |
|
Charging Time |
2.5h |
|
Lithium battery |
1000mA |
|
Charging Model |
TYPE-C charging cable, plug-in direct charging |
FAQ
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q3: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q4. What’s the warranty policy for the barcode scanners? Syble provide 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order. Q5. What Value-added services can be provided: 1.Provide all technical documents as required 2.Provide the necessary professional training online or offline 3.Provide free maintenance technology and spare parts chargeable under out of warranty |
