Item NO.:
XB-D70RBPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and RedShipping Port:
Guangzhou/ShenzhenLead Time:

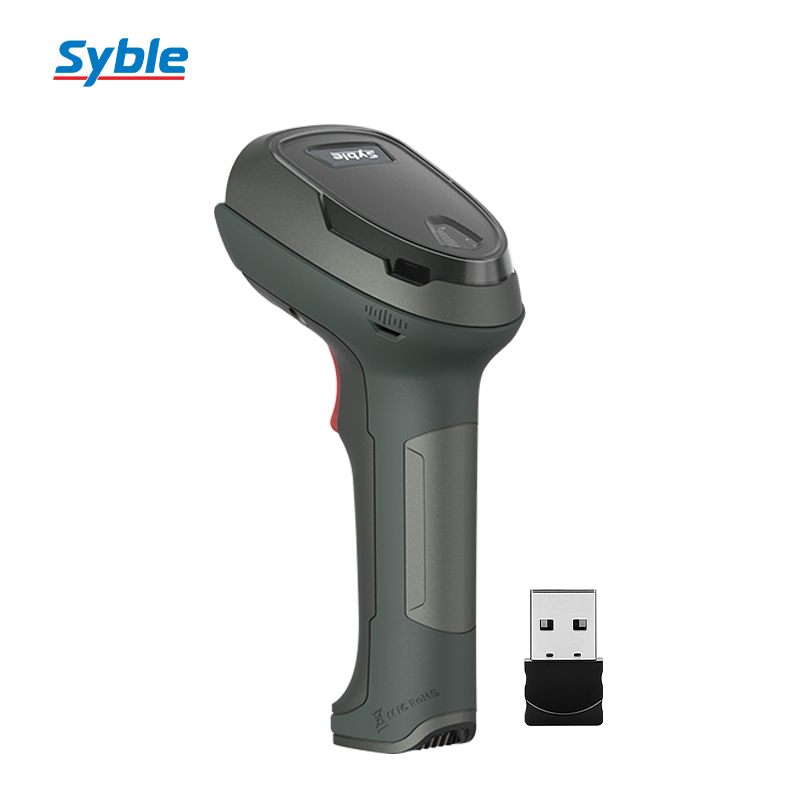

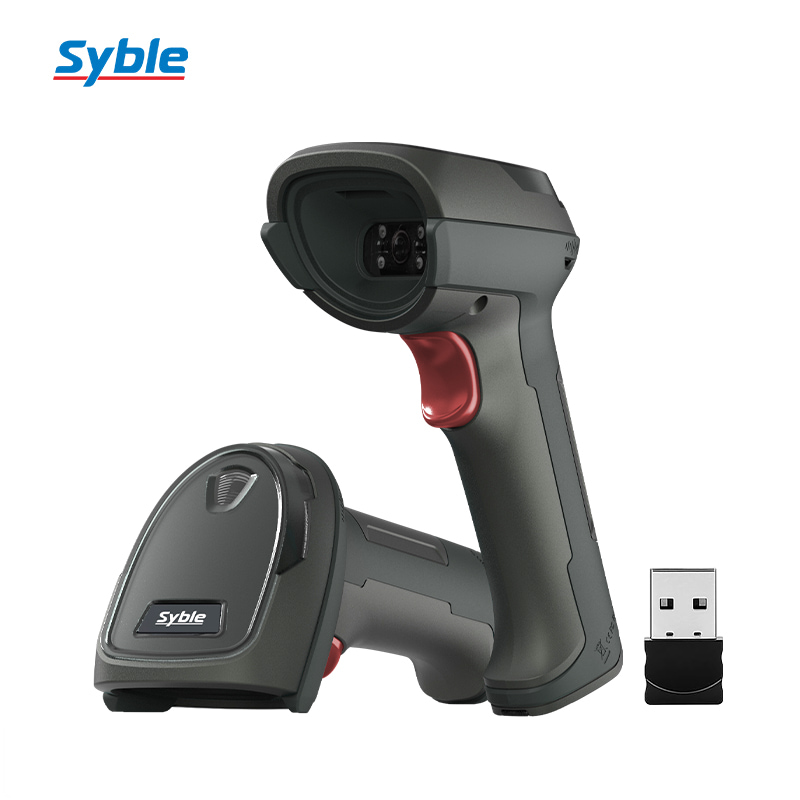

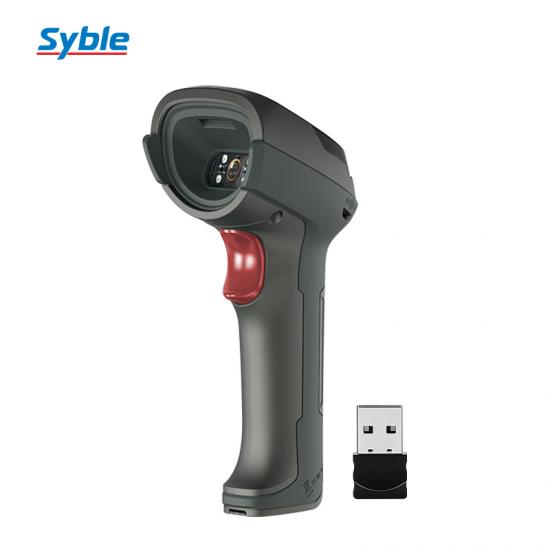

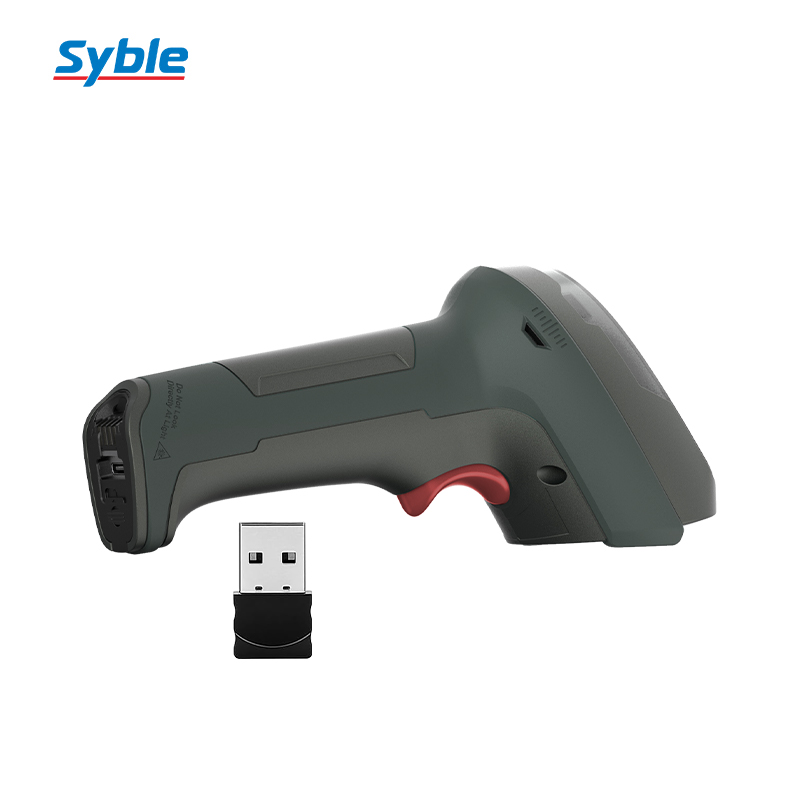

5-7daysXB-D70RB is a 2D wireless barcode scanner. Using 1.2G ultra-high frequency chip and global exposure scanning camera,the operation speed isextremely fast,High scanning performance,can copewith various scanning scenarios and various dirty,wrinkled and other barcodes.
Product Features
Specification
|
Performance Parameters |
|
|
Light source type |
White light illumination LED, green light aiming |
|
Decoding capability |
1D:Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post。 2D:Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN。 |
|
Scanning principle |
Imaging CMOS |
|
Resolution |
1280*1024 |
|
Trigger mode |
Manual scan/continuous scan/auto-sensing scan |
|
Scan Angle |
Rotation angle 360°,elevation angle±65°,deflection angle±65° |
|
Scanning depth of field |
EAN 13 55mm-400mm(13mil) Code39 50mm-230mm(5mil) QR Code 75mm-270mm(15mil) Code 128 65mm-220mm(5mil) |
| Accuracy |
≥3mil |
|
Bit Error Rate |
1/5 million |
|
Viewing angle |
Horizontal 44 °,vertical 33 ° |
|
Contrast |
≥20% |
|
Communication interface |
Receiver:USB-HID,USB-COM; Bluetooth:HID,BLE mode |
|

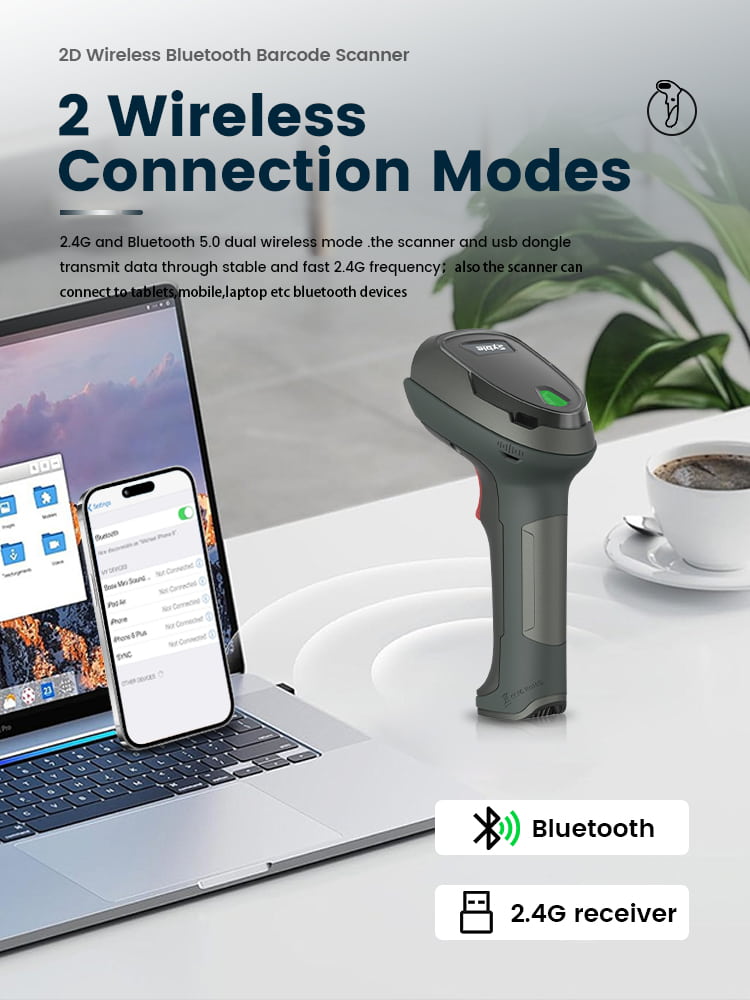

Wireless communication method |
Pairing dedicated receiver:2.4G communication;
Pairing mobile Bluetooth device:Bluetooth communication |
|
Wireless transmission distance |
Open distance:100 meters |
|
Receiver |
Dedicated receiver;Android/IOS mobile Bluetooth device |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
230mA |
|
Standby current |
0mA(battery power is cut off in standby mode) |
|
Lithium battery |
2200mA lithium battery |
|
Continuous working time |
Scanning gun scans continuously for 1S, working time is 7 hours/scanning number is 25000 times |
|
Charging time |
5 hours |
|
Charging method |
Type-C interface,plug in and charge directly |
|
Physical Parameters |
|
|
Scanner size |
181*68*85MM |
|
Material |
ABS+PC |
|
Charging cable standard |
0.8 meters |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~+50℃ |
|
Storage temperature |
-40℃~+70℃ |
|
Working humidity |
5%~95%(no condensation) |
|
Ambient light |
0~100000LUX |
|

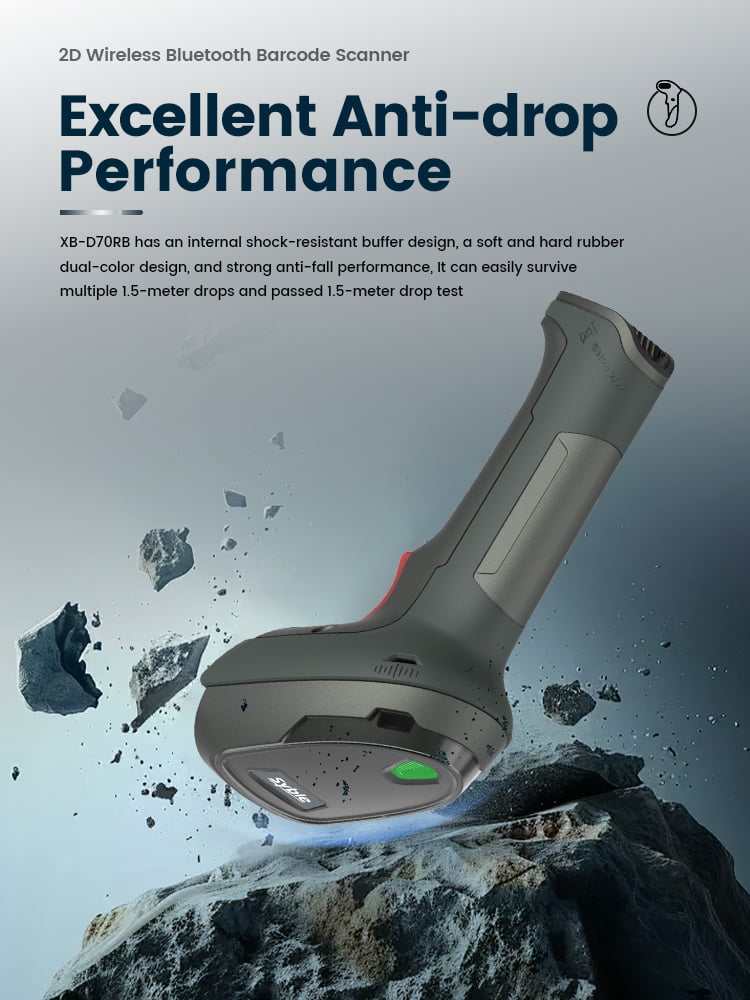

Drop resistance |
Can withstand 1.5m free fall |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is a professional barcode scanner manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why so competitive?
With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost.
Q3: How about the quality?
Professional QC team and testing machine.All the products pass CE,FCC,ROSH, etc.
Q4: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q5: What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
