Item NO.:
XB-D70BTPayment:
EXW/FOBColor:
Black and RedShipping Port:
Guangzhou/ShenzhenLead Time:

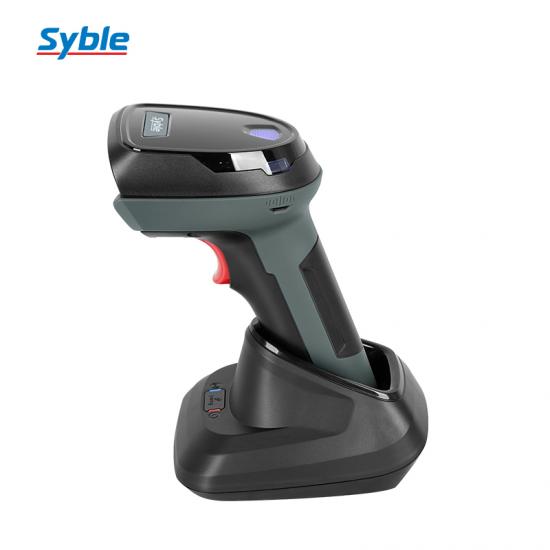

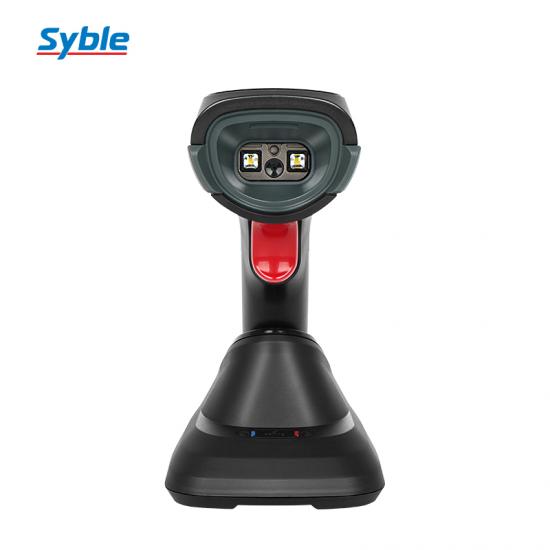

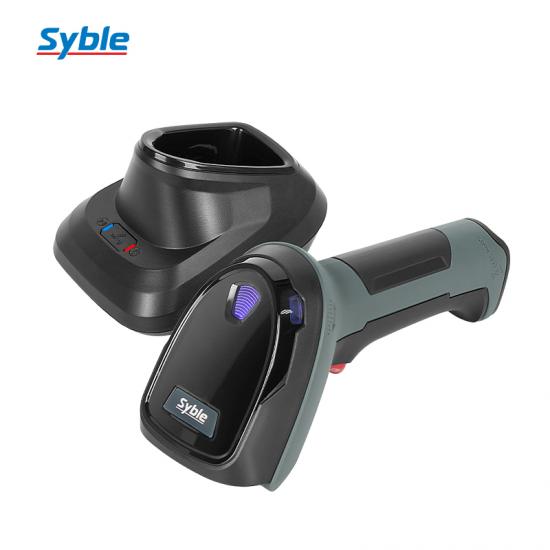

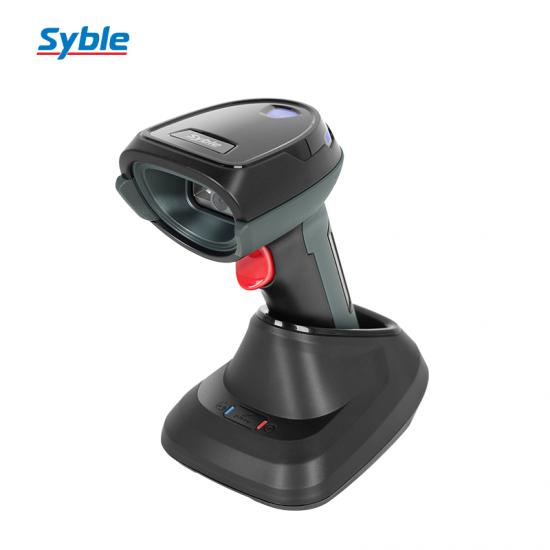

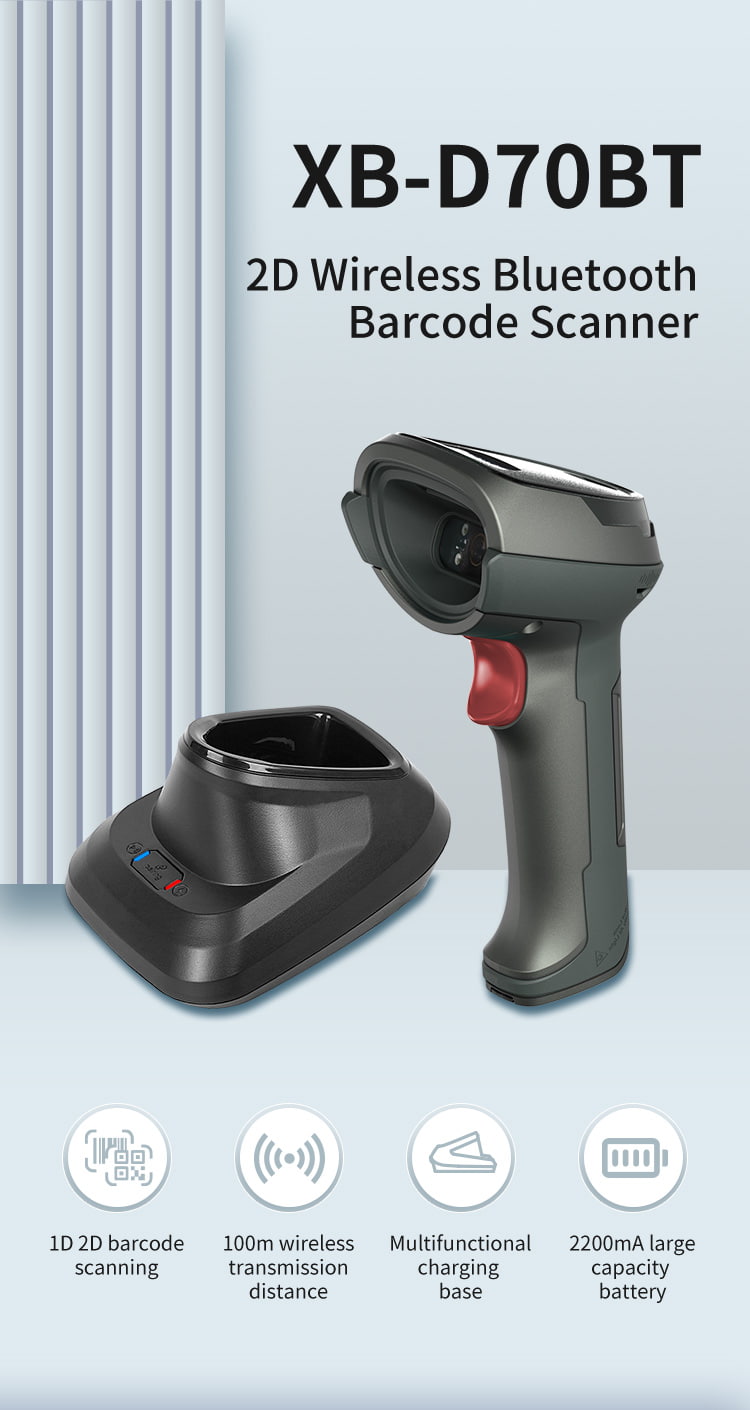

7-10days2D Wireless Barcode Scanner
Product Feature
XB-D70BT adopts a two-color mold design, with smooth product outlines, ergonomic design, and great visual impact.
With accurate cross laser positioning, it can better assist users to scan codes.
XB-D70BT uses 1.2G ultra-high frequency chip and global exposure scanning module. Scanning speed 120FPS and movement tolerance 2 m/s
Using high-performance CMOS sensor and professional two-dimensional lens, the scanning depth of field is as high as 400MM
Support offline storage mode and inventory mode
Trigger life over 10 million times
2.4G and Bluetooth 5.0 dual wireless mode
The removable 2200mA battery can be used continuously for up to 7 hours (reading interval 1s), and the total number of continuous code scanning is as high as 25,000.
Specification
|
Performance Parameters |
|
|
Light source type |
White lighting,cross laser positioning |
|
Decoding capability |
1D:Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industial,Straight 2 of 5 IATA,Matrix 2 of 5，Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post.
2D:QR Code,Data Matrix,Codeblock A,Codeblock F,PDF417,Micro PDF417, |
|
Scanning principle |
Imaging CMoS |
|
Resolution |
1280*800 |
|
Trigger mode |
Manual scan/continuous scan/auto-sensing scan |
|
Scan Angle |
Rotation angle 360°,elevation angle±65°, deflection angle±65° |
|
Scanning depth of field |
EAN 13 55mm-400mm(13mil) Code39 50mm-220mm(5mil) QR Code 75mm-260mm(15mil) Code 128 65mm-190mm(5mil) |
|
Bit Error Rate |
1/5 million |
|
Contrast |
≥20% |
|
Communication interface |
Receiver:USB-HID,USB-COM; Bluetooth: HID, BLE mode |
|
Wireless communication method |
Pairing dedicated receiver: 2.4G communication; |
|
Wireless transmission distance |
Open distance:100 meters |
|

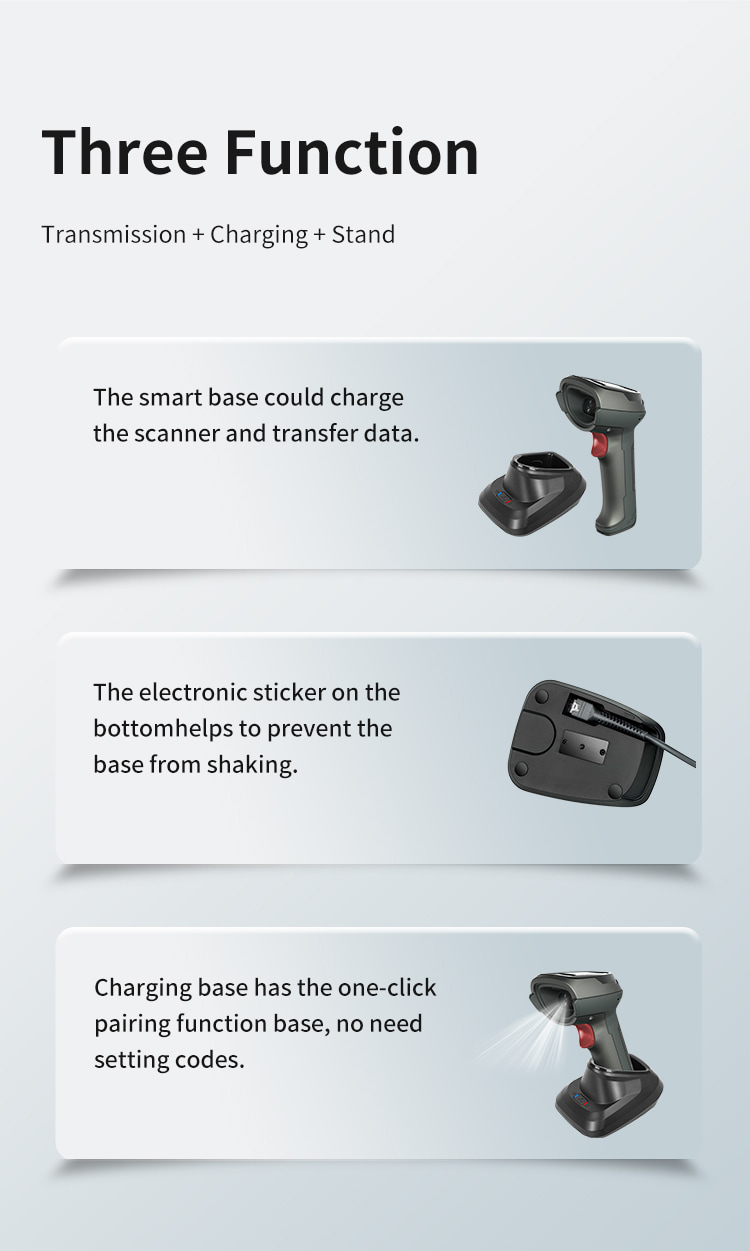

One-click pairing method |
Place the scanner on the base and press the base button to pair with one click |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Working current |
240mA |
|
Standby current |
0mA(battery power is cut off in standby mode) |
|
Lithium battery |
2200mA lithium battery |
|
Continuous working time |
Scanning gun scans continuously for 1s, working time is 7 hours/scanning number is 25000 times |
|
Charging time |
4-5hours |
|
Charging method |
Place the base for direct charging |
|
Physical Parameters |
|
|
Scanner size |
181*68*85mm |
|
Scanner weight |
210g |
|
Base weight |
130g |
|
Material |
ABS+PC |
|
Charging cable standard |
1.5 meters |
|
Environmental Parameters |
|
|
Working temperature |
-20℃~+50℃ |
|
Storage temperature |
-40℃~+70℃ |
|
Working humidity |
5%~95% (no condensation) |
|
Ambient light |
0~100000LUX |
|
Drop resistance |
Can withstand 1.5m free fall |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q3: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4. What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem.
During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
Q5. What Value-added services can be provided
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
