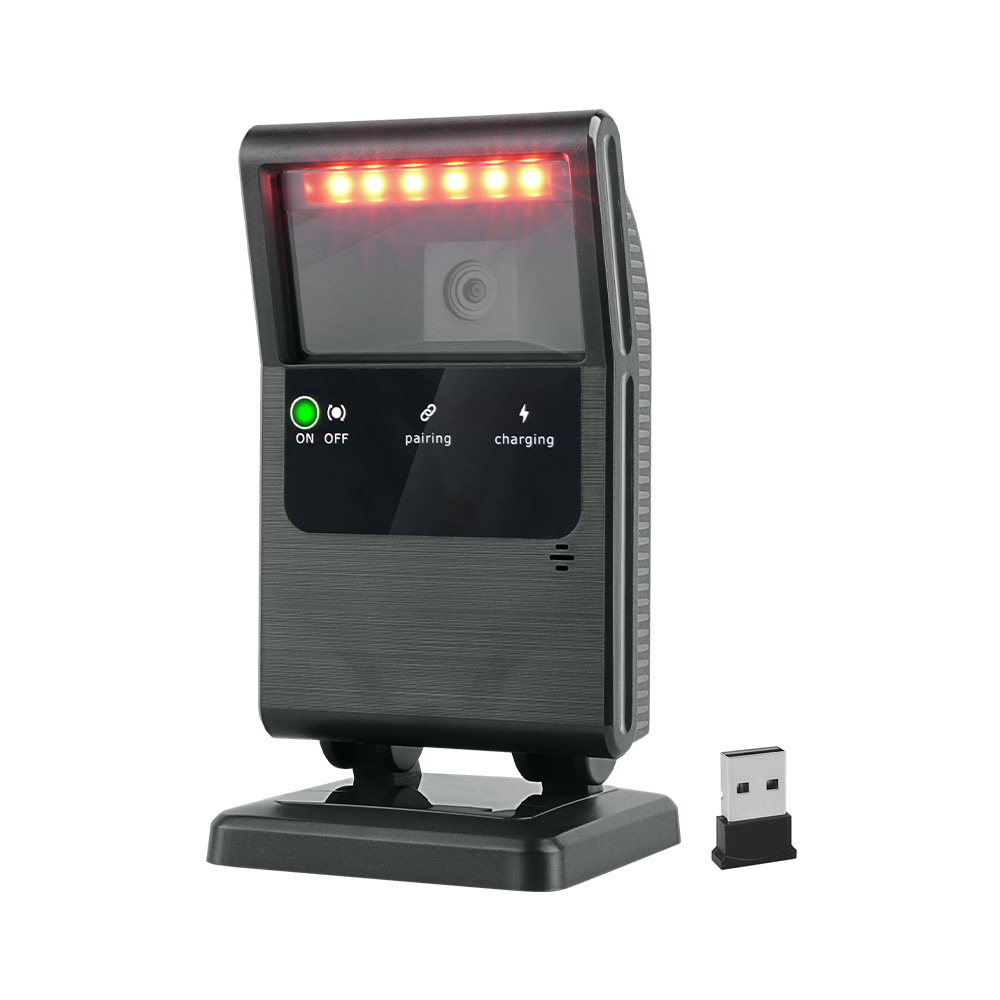

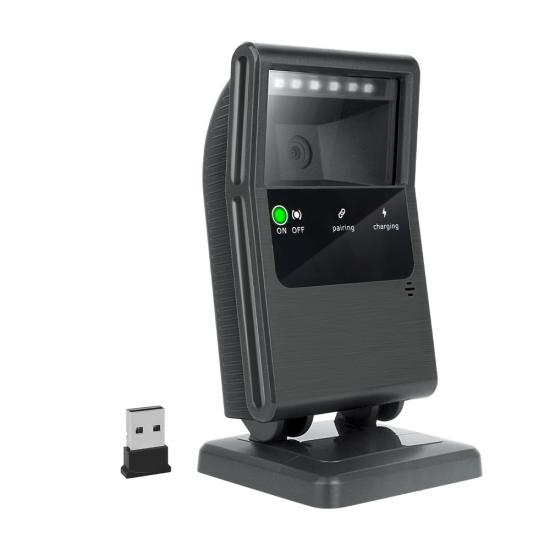

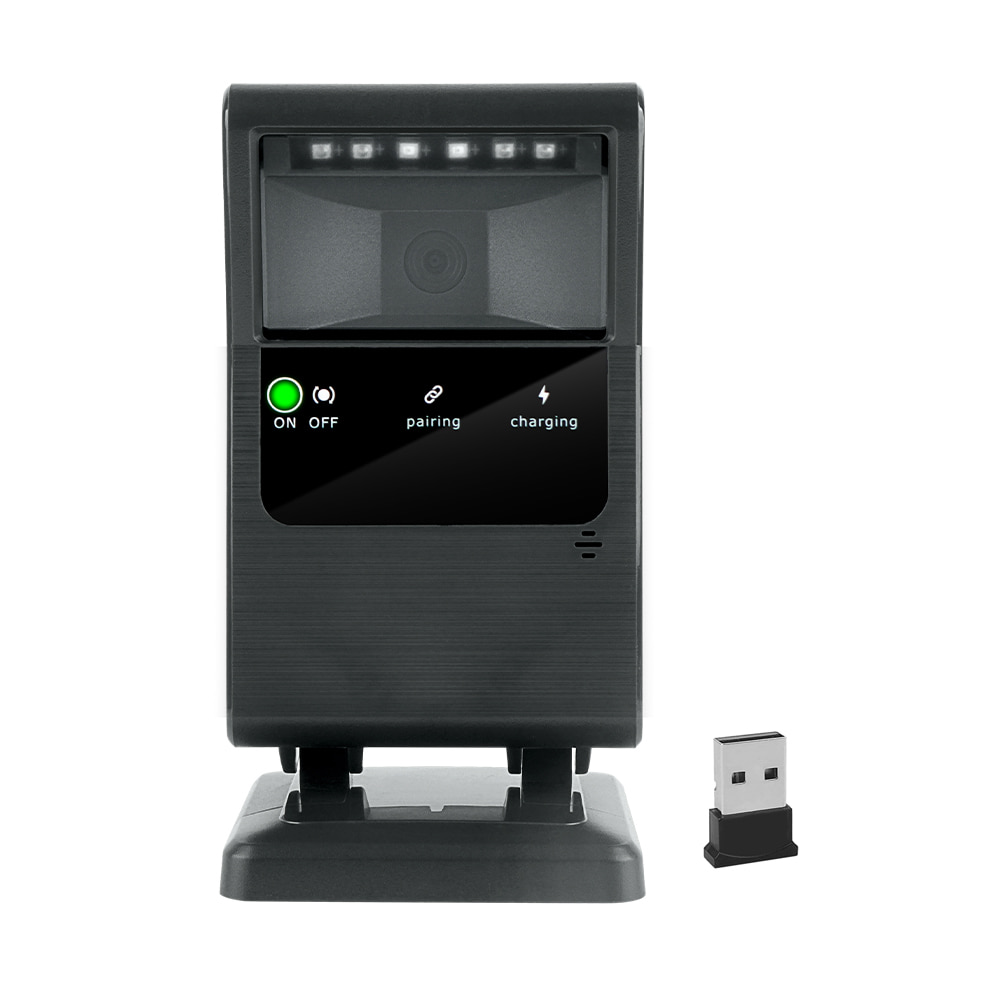

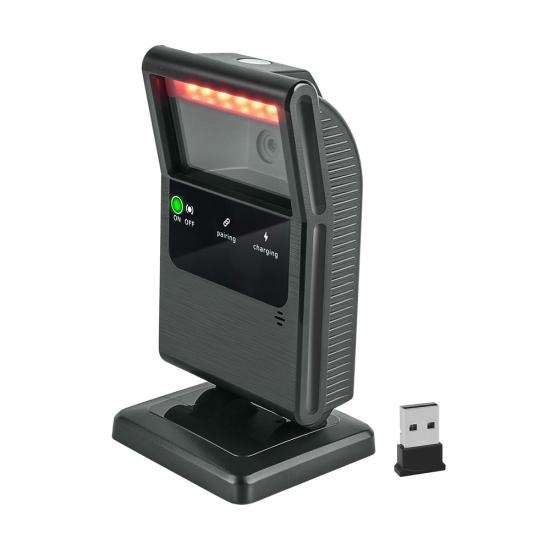

2D Wireless Desktop Barcode Scanners With Offline storage mode

Syble XB-868RB is a high performance 2D desktop barcode scanner designed for retail, logistics, warehousing and office scenarios. It supports omni-directional scanning of 1D/2D barcode without handheld operation, and seamlessly integrates into your business system through wireless connection, dramatically improving work efficiency and accuracy.
  • Item NO.:

    XB-868RB
  • Payment:

    EXW/FOB
  • Color:

    Black
  • Shipping Port:

    Guangzhou/Shenzhen
  • Lead Time:

    7-10days
  • Product Details

2D Bluetooth Omnidirectional Barcode Scanner

XB-868RB 2D desktop wireless barcode scanner, built-in 2600mAh battery, can continuously scan 35,000 times, Bluetooth stable transmission, support multi-code system high-speed scanning, suitable for retail, warehousing and other scenarios, efficient and durable.

Product Feature
  • New decoding chip, can read the paper 1D & 2D barcode.
  • 100 meters wireless transmission distance
  • 2600mA large capacity lithium battery
  •  Adjustable scanning window, flexible and applicable
  • Buzzer and light scanning feedback
  • Error rate as low as 1/5 million times, accurate professional technology

omnidirectional barcode scanner
bluetooth barcode scanner

Performance Parameters

Light Type

Red LED lighting

Supported Symbologies

1D:EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,CodaBar,Code 128,Code93 .ITF- 14 .ITF-6,Interleaved 2 of 5,Industrial 2 of 5 , Matrix 2 of 5, GS1 Databar(RSS), Code 39,Code 11,MSI-Plessey ,etc

2D: QR Code , Data Matrix , PDF417 , Micro , etc

Scan Principle

lmaging CMOS

Resolution

640*480

Scan Mode

Auto-sensing scan/continuous scan

Recognition Angle Range

Turn +360°,Elevation ±60°,Declination ±60°

Scan Depth Of Field

30-150mm(13mil CODE 128)

Interface:

USB-HID,USB-COM

Wireless Communication Method

Pairing dedicated receiver: 2.4G communication
Pairing mobile Bluetooth devices: Dual-mode Bluetooth

Wireless Transmission Distance

Open distance:100 meters

Storage Mode

Offline storage mode: The platform automatically stores data when it leaves the connection range, Storage capacity is 200K characters.
Inventory storage mode: The platform can enter inventory mode with a storage capacity of 200K characters

Pairing Mode

One-to-one: one platform paired with one receiver one platform pairs a Bluetooth mobile device

Receiving End

Dedicated Bluetooth U disk receiver, Android/IOS mobile device

Electronic Parameters

Working Voltage

DC5V±5%

Battery Working

Continuous work for 7 hours

Operating Current

Working state 200mA

Lithium Battery

2600mA

Standby Current

0mA(Standby is to cut off battery power)

Charging Time

3h

Charging Model

TYPE-C charging cable, plug-in direct charging

Physical Parameters

Dimensions

174.8mm*65.7mm*83.5mm

Material

ABS+PC

Cable Length

0.8M

Environmental Parameters

Operating Temperature

-20℃~+50℃

Storage Temperature

-40℃~+70℃

Relative Humidity

5%~95%((Non-condensing)

Ambient lighting

0~100000LUX

Shock Resistance

Withstands multiple times 1.5 meters drops to concrete


FAQ

Q1: Is OEM or ODM available?

Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.

Q2: How about the quality?

Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

Q3: How to control the performance stable?

Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.

Q4. What’s the warranty policy for the barcode scanners?

Syble provide 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem.

During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.

Q5. What Value-added services can be provided

1.Provide all technical documents as required

2.Provide the necessary professional training online or offline
