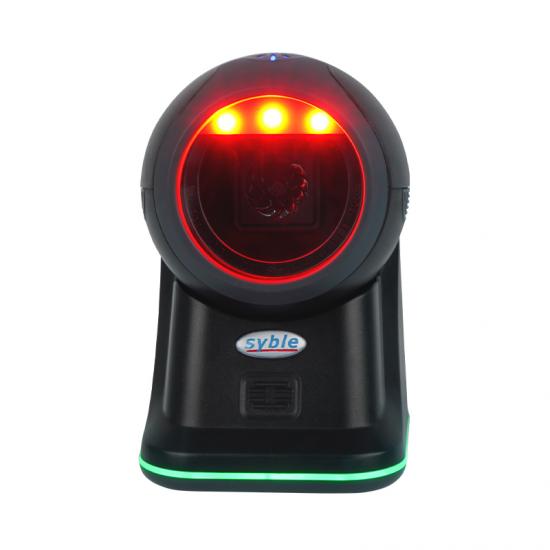

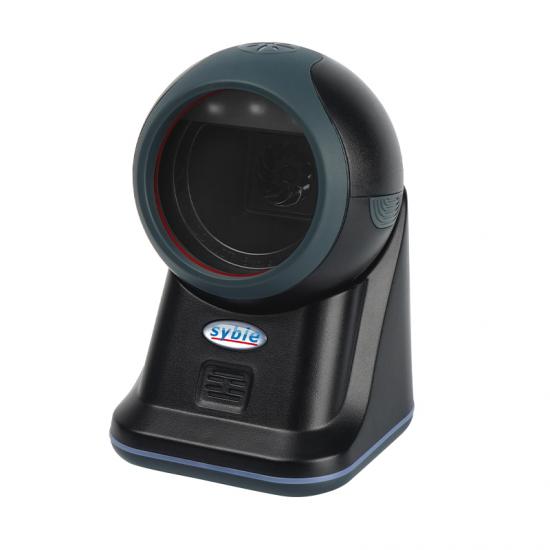

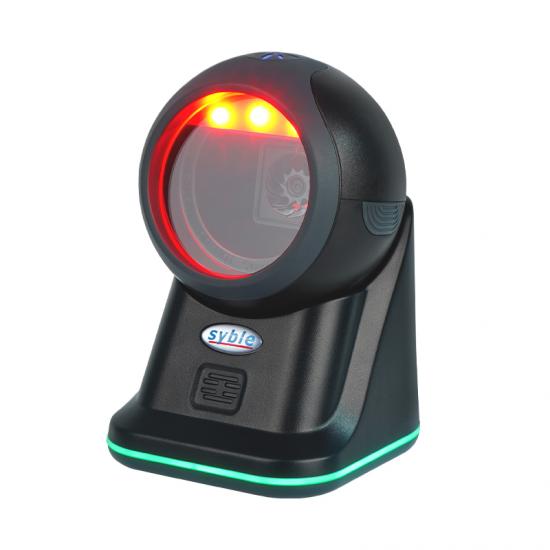

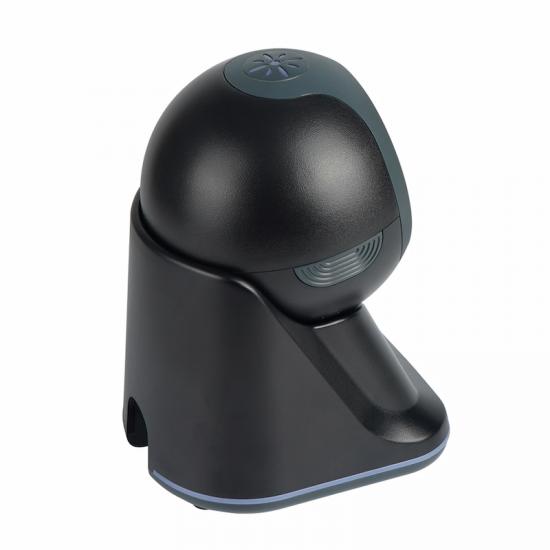

High cost-effective 2D Wired Omnidirectional Barcode Scanner

Product Features

• New decodingchip, can read the paper iD &2D barcode
• 1D & 2D barcode for mobile phone, tablet, etc
• Plug and play, simple setup, fast use
• Super wide angle lens is adopted to quickly read the bar code of mobile phone screen
• Error rate as low as 1/5 million times, accurate professional technology

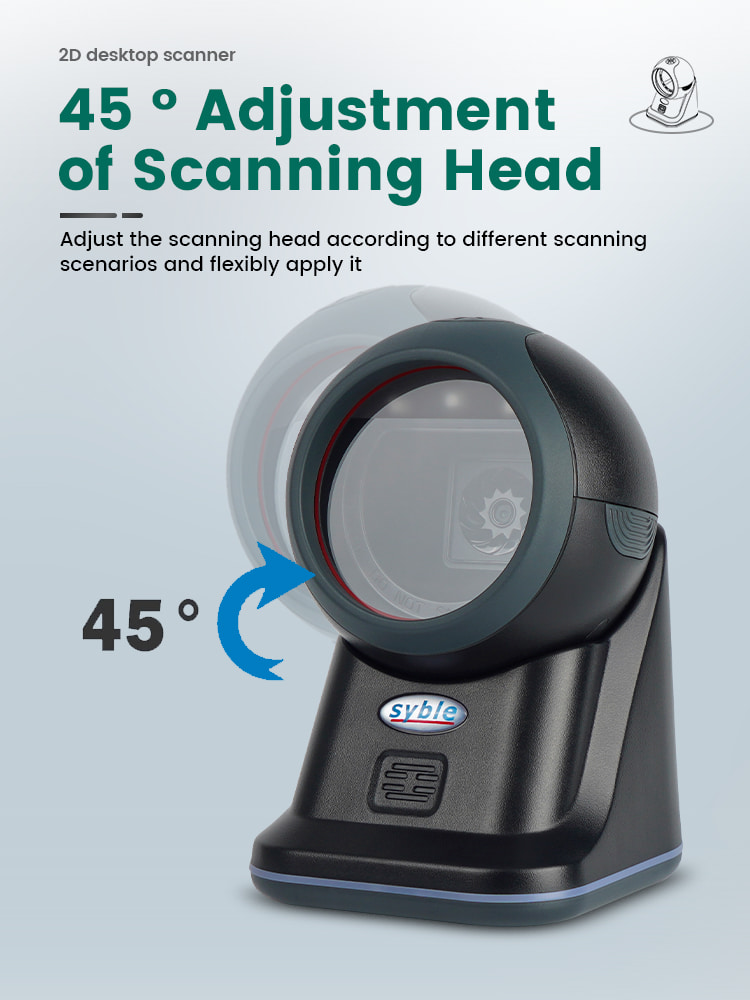

• Adjust the scanning head according to different scanning scenarios and flexibly apply it






  Specification


  Performance Parameters
  Sensor Pixel	640 pixels(H) x 480 pixels(V)

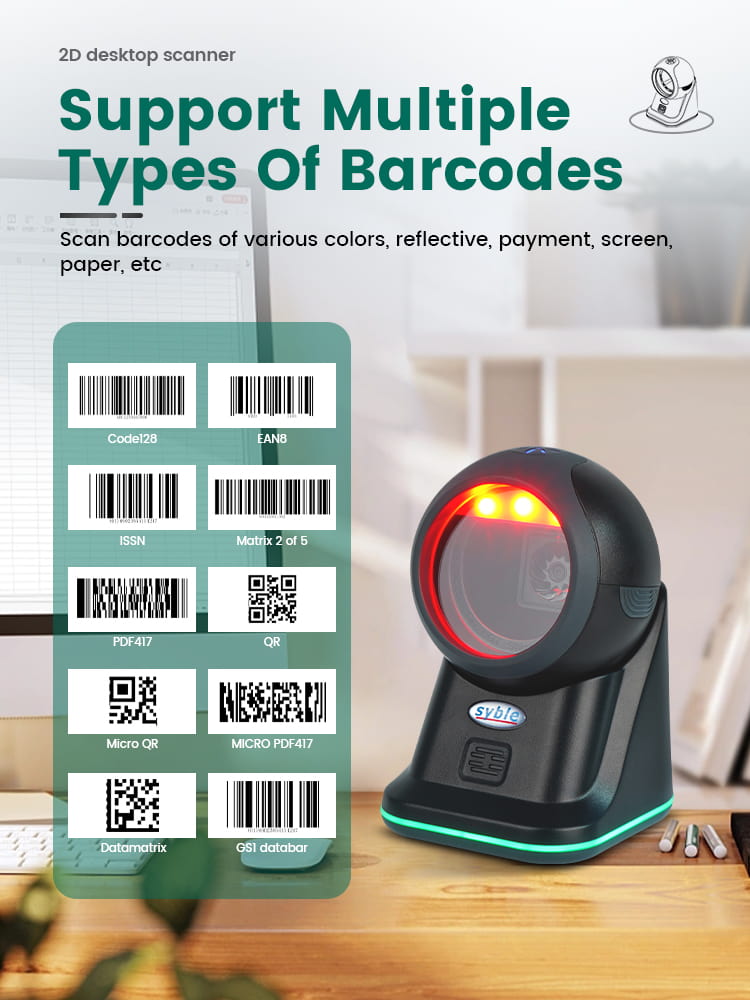

  Supported Symbologies	1D: Codabar, Code 39, Code 32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5, Industrial, Straight 2 of 5 IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 Data Bar-Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded.China Post(HongKong 2 of 5), Korea Post. 2D: PDF417, Micro PDF417, QR code, Data Matrix, Maxi Code, Aztec, HanXin, Codablock A, Codablock F, GS1 Composte Coders.
  Scan Range	10mm-110mm(EAN 13 13mil, PCS=90%)

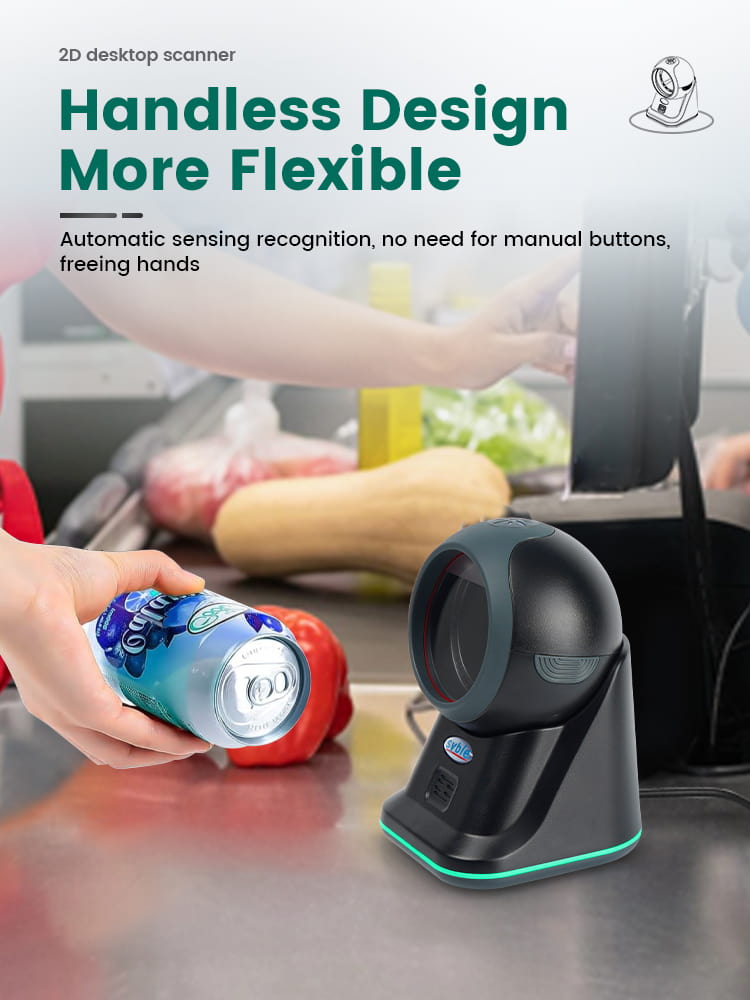

  Scan Mode	Automatic Induction Scanning
  Print Contrast	20% minimum reflective difference
  Field of view	44°(H), 34°(V)
  Recognition angle range	Turn ±360°, Elevation ±65°, Declination ±65°
  Man-machine Interaction	Ring light: green, top indicator light: blue.Both the reading ring light and the indicator light are flashing, code prompt, buzzer: start prompt, reading code prompt.
  Interface	USB(Drive-Free), RS232, USB-COM
  Physical  Parameters

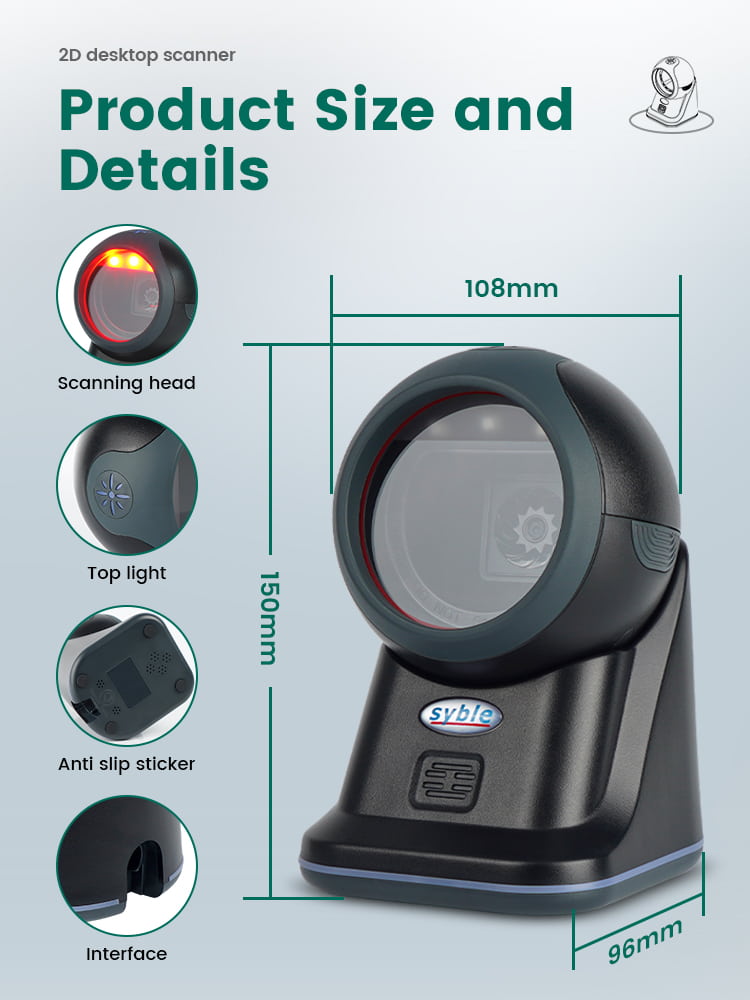

  Dimensions	96mm*108mm*150mm
  Material	ABS+PC
  Weight:	315g
  Cable Length	2M
  Environmental Parameters
  Operating Temperature	-20℃ ~60℃
  Storage Temperature	-30℃~70℃
  Relative Humidity	5%~95% RH（Non-condensing）
  Ambient Light Intensity	0~100000LUX
  Drop/Shock Resistance:	Withstands multiple times 1.5 meters drops to concrete
  Electronic Parameters
  Working Voltage	DC5V±5%
  Operating Current	Working current 240mA; Standby current 190mA.

  FAQ

  Q1: Is OEM or ODM available?

  Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.

  Q2: How about the quality?

  Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

  Q3: How to control the performance stable?

  Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.

  Q4:What’s the warranty policy for the barcode scanners?

  Syble provide  24 months maintenance warranty. Barcode scanners can be replaced during the first month if the technical and quality problem.

  During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.

  Q5:What Value-added services can be provided:

  1.Provide all technical documents as required

  2.Provide the necessary professional training online or offline

  3.Provide free maintenance technology and spare parts chargeable under out of warranty
