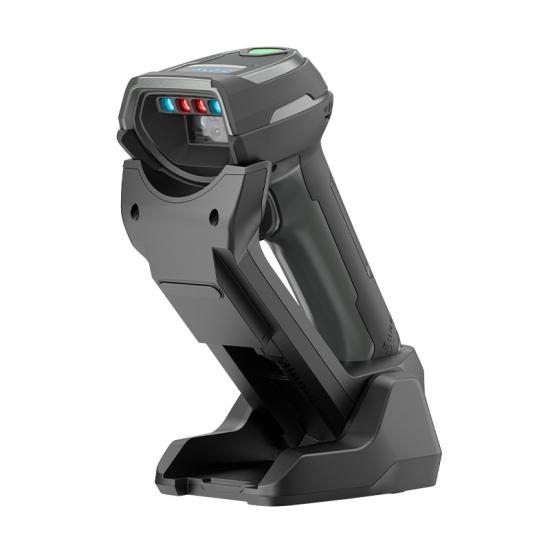

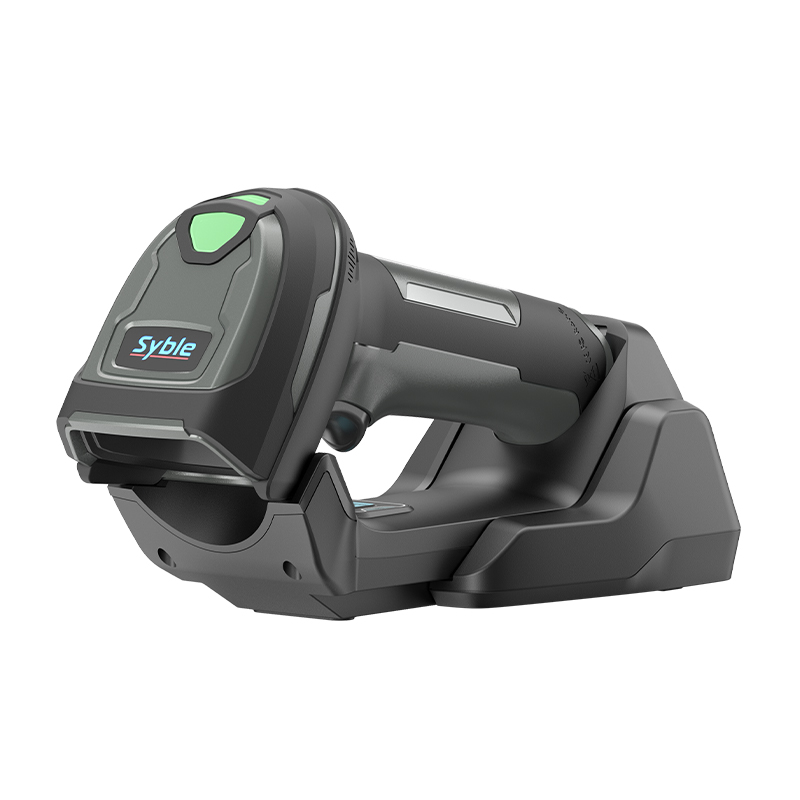

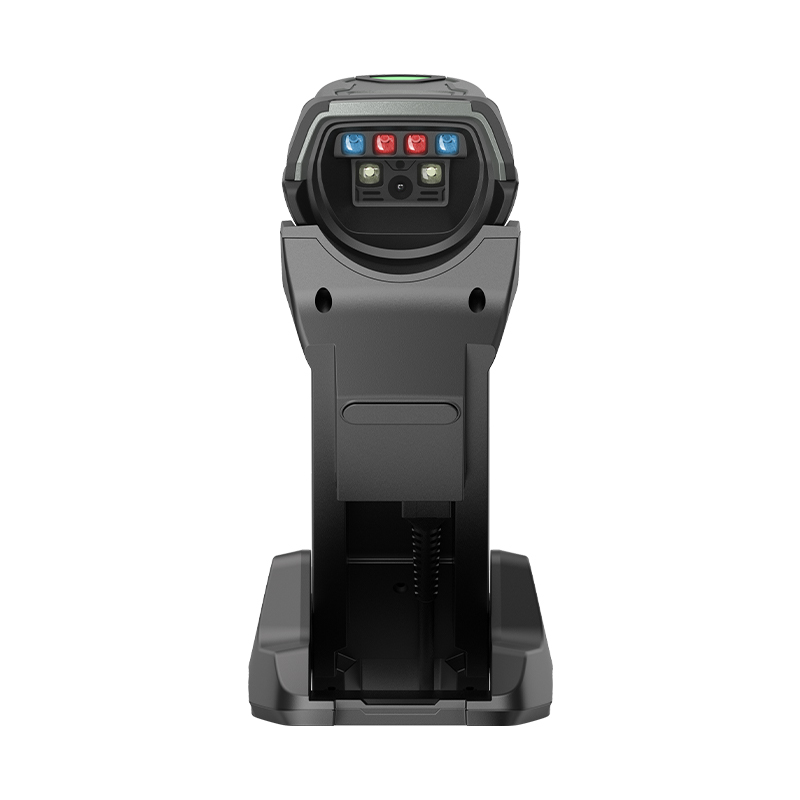

The XB-D76BT is a high-end wireless 2D barcode scanner from Syble, equipped with a 1.3 million pixel image engine and intelligent multi-light adaptive lighting. It can read complex barcodes such as those with reflections, curved surfaces, and oil stains, with the farthest scanning distance reaching 600mm. It features a 1.2G high-speed MCU with millisecond-level rapid barcode reading. It supports Bluetooth & 433Hz dual wireless transmission, with an open-air transmission distance of 500 meters. Suitable for inventory checks in warehouses, large warehouses, express logistics, shopping malls, pharmacies, etc. scanning scenarios.
Item NO.:
XB-D76BTPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackProduct weight:
453gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7daysProduct Features
• Using a high-end 130MP module, it not only meets the 3mil high-precision reading requirements, but also extends the reading range to 600mm (EAN13 13MIL).
• Intelligent multi-lamp adjustment (white/red/blue LEDs), intelligently selecting the optimal light source based on the barcode, maintaining the best decoding state at all times.
• Dual wireless connection: 433Hz (500m open range) & Bluetooth for phones, tablets & PCs
• Excellent 1.5 meter anti-drop performance
• It is equipped with a 2200mAh removable battery and support 7 hours continuous work(reading interval 1s).
• Trigger lifespan over 10 million presses with silicone protection
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
Tri-color LED (auto white/red/blue switch); Red laser LED aiming |
|
Supported Symbologies |
1D: Code128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5,Industrial 25, IATA25, MSI Plessey, GS1 DataBar, Plessey, Febraban. 2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec,Maxicode, HanXin Code, Dotcode, Composite. |
|
Scanning Principle |
Image CMOS |
|
Scan Mode |
Manual/Continuous/Automatic Scintillation |
|
Image (Pixels) |
1280pixels (H)x 1024pixels (V) Global Shutter |
|
Scan Angle |
Rotation angle 360°, elevation angle +65°, deflection angle +65° |
|
Print Contrast |
≥10% |
|
Depth of scan field |
Code 128 70mm-320mm (4mil);
|
|
Error Rate |
1/5million |
|
Interface |
Cardle: USB-HID USB-COM, Bluetooth: HID, BLE,SPP mode |
|
Transmission distance |
500M(Open Yard) |
|
One click pairing method |
Place scanner on cradle, one keypress for one-touch pairing |
|
Physical Parameters |
|
|
Dimensions |
181*86*85mm |
|
Material |
ABS+PC |
|
USB cable |
1.5M |
|
Weight |
Scanner: 211.7g; Cradle: 241.3g |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient lighting |
0~100000LUX |
|
Drop/Shock Resistance: |
Withstands multiple times 1.5 meters drops to concrete |
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Working Current |
220mA |
|
Standby Current |
0mA(Standby is to cut off battery power) |
|
Lithium battery |
2200mA lithium battery |
|
Charging Time |
5-6H |
|
Charging Mode |
Cradle Direct Charging |
FAQ:
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: Why so competitive? With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost. |
|
Q3: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q4: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q5. What's the warranty policy for the barcode scanners? Syble provide 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
|
