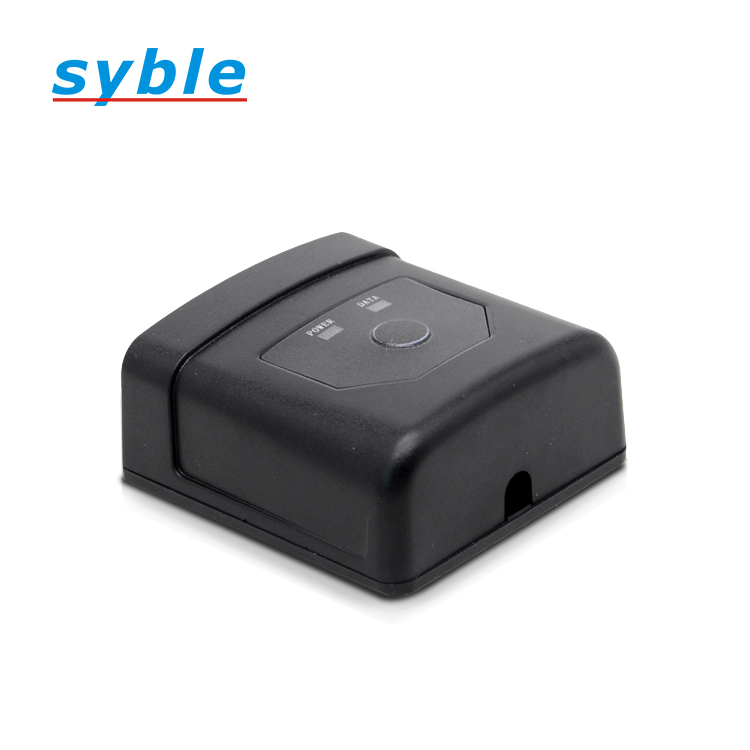

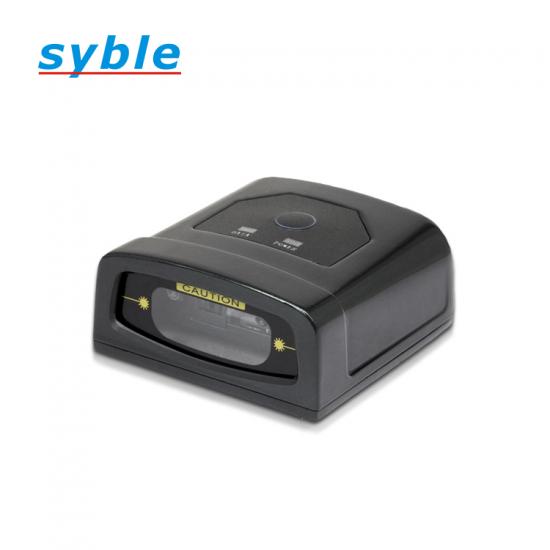

New decoding chip 1D CCD fixed mount embedded Barcode Scanner module

LightSources

617nm Red visible LED

Supported Symbologies

EAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128,   EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,China   Post Code and all 1D barcodes

Scan Type

Image Linear CCD

Scan Speed:

≥270   times/s

Scan Method

Manually/Automatic inductive

Scan Angle

Yaw 55°,Rotation 30°,Pitch 65°

Precision

4mil(0.1mm)

Depth of scan field

20-330mm(0.33mm,PCS90%)

Error Rate

Less than 1/5 million

Interface

USB-HID,USB-COM,RS232

Physical Parameters

Dimensions

23.6mm*56.5mm*25mm

Weight

60g

Material

ABS+PC

Cable Length

2M

Environmental Parameters

Operating Temperature

-20℃~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95%(Non-condensing)

Drop/Shock Resistance:

Withstands multiple times 3meters drops to   concrete

Electrical Parameters

Voltage

DC5V±1%

Current

150mA(Operating)

Q1:How about the quality?

Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

Q2: Why so competitive?

With almost many years experience,we owned a large domestic market in China.We are the best-seller in China.So large quantity will reduce our raw material cost directly.What’s more we have mature technology to save cost.

Q3: How to control the performance stable?

We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery.

Q4:Is OEM or ODM available?

Yes.We are the factory directly.We can make it as your requirement.

Q5:Why customer choose us?

Bcz our factory with strictly quality control system.Prompt after-sales service.

Q6:How about the factory?

We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
